comch_ctrl_path_common.c File Reference

#include <string.h>
#include <time.h>
#include <doca_argp.h>
#include <doca_comch.h>
#include <doca_ctx.h>
#include <doca_dev.h>
#include <doca_error.h>
#include <doca_log.h>
#include <doca_pe.h>
#include "comch_ctrl_path_common.h"
#include "common.h"

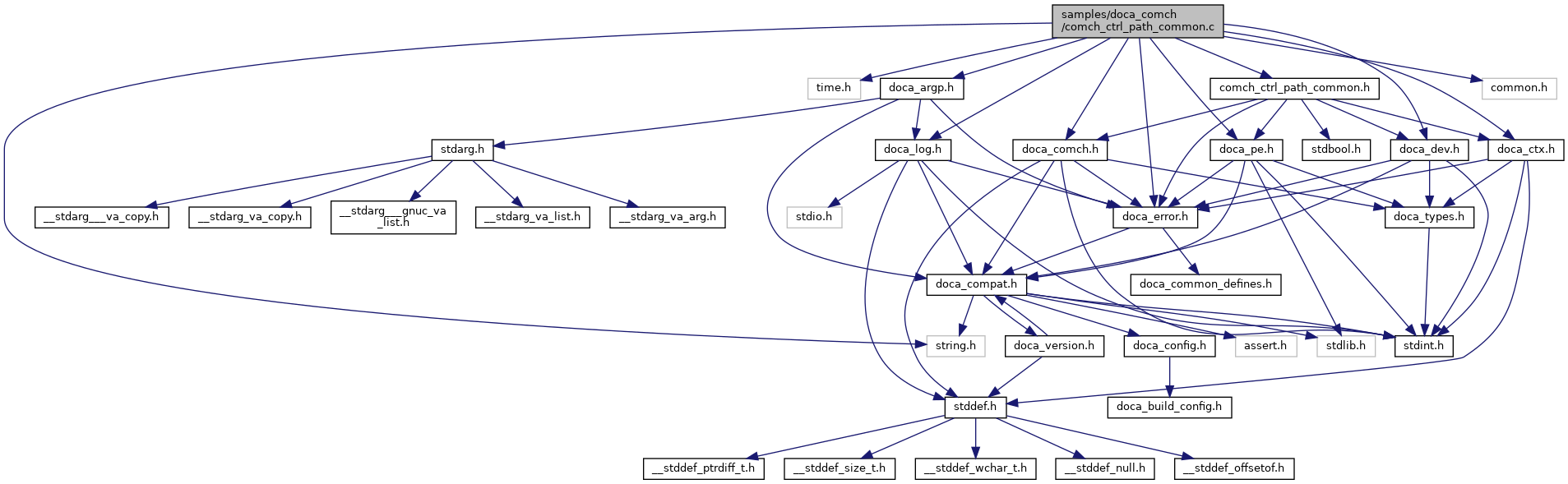

Include dependency graph for comch_ctrl_path_common.c:

Go to the source code of this file.

Macros
#define	CC_REC_QUEUE_SIZE   10 /* Maximum amount of message in queue */
#define	CC_SEND_TASK_NUM   1024 /* Number of CC send tasks */

Functions
	DOCA_LOG_REGISTER (COMCH_CTRL_PATH_COMMON)
static doca_error_t	pci_addr_callback (void *param, void *config)
static doca_error_t	rep_pci_addr_callback (void *param, void *config)
static doca_error_t	text_callback (void *param, void *config)
doca_error_t	register_comch_params (void)
void	clean_comch_ctrl_path_client (struct doca_comch_client *client, struct doca_pe *pe)
doca_error_t	init_comch_ctrl_path_client (const char *server_name, struct doca_dev *hw_dev, struct comch_ctrl_path_client_cb_config *cb_cfg, struct doca_comch_client **client, struct doca_pe **pe)
void	clean_comch_ctrl_path_server (struct doca_comch_server *server, struct doca_pe *pe)
doca_error_t	init_comch_ctrl_path_server (const char *server_name, struct doca_dev *hw_dev, struct doca_dev_rep *rep_dev, struct comch_ctrl_path_server_cb_config *cb_cfg, struct doca_comch_server **server, struct doca_pe **pe)

Macro Definition Documentation

CC_REC_QUEUE_SIZE

#define CC_REC_QUEUE_SIZE   10 /* Maximum amount of message in queue */

Definition at line 42 of file comch_ctrl_path_common.c.

CC_SEND_TASK_NUM

#define CC_SEND_TASK_NUM   1024 /* Number of CC send tasks */

Definition at line 43 of file comch_ctrl_path_common.c.

Function Documentation

clean_comch_ctrl_path_client()

void clean_comch_ctrl_path_client	(	struct doca_comch_client *	client,
		struct doca_pe *	pe
	)

Clean client and its PE

@client [in]: Client object to clean @pe [in]: Client PE object to clean

Definition at line 190 of file comch_ctrl_path_common.c.

clean_comch_ctrl_path_server()

void clean_comch_ctrl_path_server	(	struct doca_comch_server *	server,
		struct doca_pe *	pe
	)

Clean server and its PE

@server [in]: Server object to clean @pe [in]: Server PE object to clean

Definition at line 315 of file comch_ctrl_path_common.c.

DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER

(

COMCH_CTRL_PATH_COMMON

)

init_comch_ctrl_path_client()

doca_error_t init_comch_ctrl_path_client	(	const char *	server_name,
		struct doca_dev *	hw_dev,
		struct comch_ctrl_path_client_cb_config *	cb_cfg,
		struct doca_comch_client **	client,
		struct doca_pe **	pe
	)

Initialize a cc client and its PE

@server_name [in]: Server name to connect to @hw_dev [in]: Device to use @cb_cfg [in]: Client callback configuration @client [out]: Client object struct to initialize @pe [out]: Client PE object struct to initialize

Returns

: DOCA_SUCCESS on success and DOCA_ERROR otherwise

Definition at line 207 of file comch_ctrl_path_common.c.

init_comch_ctrl_path_server()

doca_error_t init_comch_ctrl_path_server	(	const char *	server_name,
		struct doca_dev *	hw_dev,
		struct doca_dev_rep *	rep_dev,
		struct comch_ctrl_path_server_cb_config *	cb_cfg,
		struct doca_comch_server **	server,
		struct doca_pe **	pe
	)

Initialize a cc server and its PE

@server_name [in]: Server name to connect to @hw_dev [in]: Device to use @rep_dev [in]: Representor device to use @cb_cfg [in]: Server callback configuration @server [out]: Server object struct to initialize @pe [out]: Server PE object struct to initialize

Returns

: DOCA_SUCCESS on success and DOCA_ERROR otherwise

Definition at line 332 of file comch_ctrl_path_common.c.

pci_addr_callback()

static doca_error_t pci_addr_callback ( void *  param, void *  config  )

static

Argument parsing section

Definition at line 56 of file comch_ctrl_path_common.c.

register_comch_params()

doca_error_t register_comch_params

(

void

)

Definition at line 129 of file comch_ctrl_path_common.c.

rep_pci_addr_callback()

static doca_error_t rep_pci_addr_callback ( void *  param, void *  config  )

static

Definition at line 83 of file comch_ctrl_path_common.c.

text_callback()

static doca_error_t text_callback ( void *  param, void *  config  )

static

Definition at line 110 of file comch_ctrl_path_common.c.
