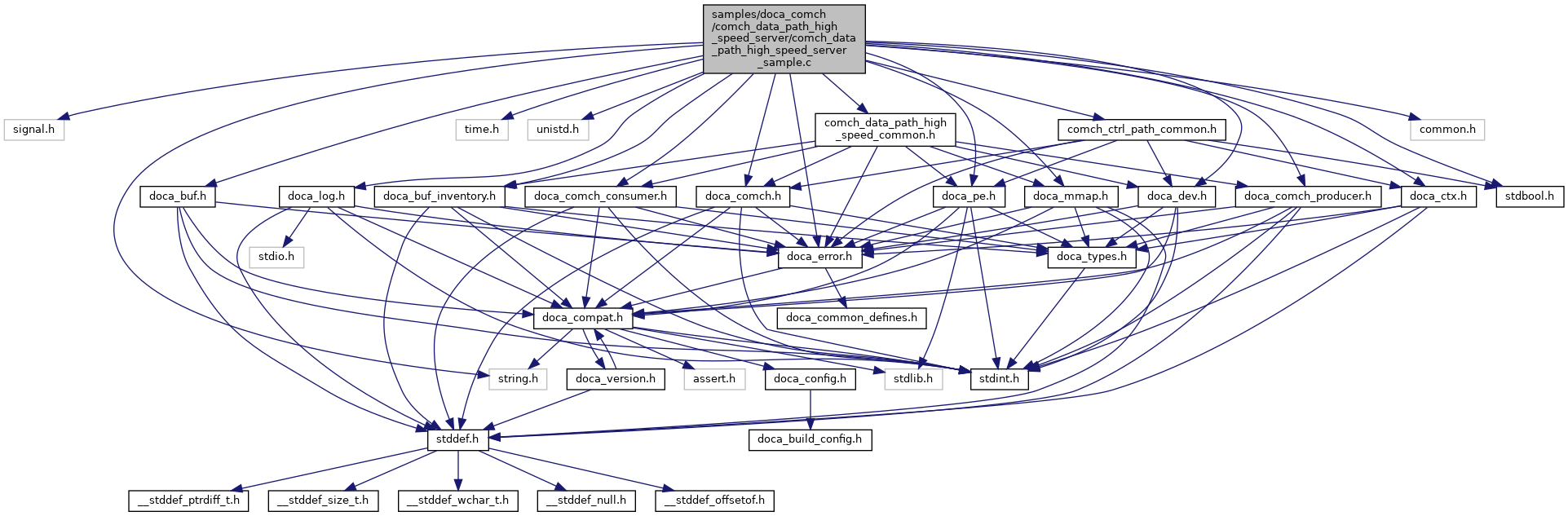

#include <signal.h>#include <stdbool.h>#include <string.h>#include <time.h>#include <unistd.h>#include <doca_buf.h>#include <doca_buf_inventory.h>#include <doca_comch.h>#include <doca_comch_consumer.h>#include <doca_comch_producer.h>#include <doca_ctx.h>#include <doca_dev.h>#include <doca_error.h>#include <doca_log.h>#include <doca_mmap.h>#include <doca_pe.h>#include "comch_ctrl_path_common.h"#include "comch_data_path_high_speed_common.h"#include "common.h"
Go to the source code of this file.
Data Structures | |
| struct | comch_data_path_server_objects |
Functions | |
| DOCA_LOG_REGISTER (COMCH_DATA_PATH_HIGH_SPEED_SERVER) | |
| static void | server_send_task_completion_callback (struct doca_comch_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| static void | server_send_task_completion_err_callback (struct doca_comch_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| static doca_error_t | server_send_msg (struct comch_data_path_server_objects *sample_objects, const char *msg, size_t len) |
| static void | server_message_recv_callback (struct doca_comch_event_msg_recv *event, uint8_t *recv_buffer, uint32_t msg_len, struct doca_comch_connection *comch_connection) |
| static void | server_connection_event_callback (struct doca_comch_event_connection_status_changed *event, struct doca_comch_connection *comch_connection, uint8_t change_success) |
| static void | server_disconnection_event_callback (struct doca_comch_event_connection_status_changed *event, struct doca_comch_connection *comch_connection, uint8_t change_success) |
| static void | server_state_changed_callback (const union doca_data user_data, struct doca_ctx *ctx, enum doca_ctx_states prev_state, enum doca_ctx_states next_state) |
| static void | new_consumer_callback (struct doca_comch_event_consumer *event, struct doca_comch_connection *comch_connection, uint32_t id) |
| void | expired_consumer_callback (struct doca_comch_event_consumer *event, struct doca_comch_connection *comch_connection, uint32_t id) |
| static void | clean_comch_data_path_server_objects (struct comch_data_path_server_objects *sample_objects) |
| static doca_error_t | init_comch_data_path_server_objects (const char *server_name, const char *dev_pci_addr, const char *dev_rep_pci_addr, const char *text, struct comch_data_path_server_objects *sample_objects) |
| static void | handle_error_state (struct comch_data_path_server_objects *sample_objects) |
| doca_error_t | start_comch_data_path_server_sample (const char *server_name, const char *dev_pci_addr, const char *rep_pci_addr, const char *text) |
Function Documentation
◆ clean_comch_data_path_server_objects()
|
static |
Clean all sample resources
@sample_objects [in]: Sample objects struct to clean
Definition at line 349 of file comch_data_path_high_speed_server_sample.c.
◆ DOCA_LOG_REGISTER()
| DOCA_LOG_REGISTER | ( | COMCH_DATA_PATH_HIGH_SPEED_SERVER | ) |
◆ expired_consumer_callback()
| void expired_consumer_callback | ( | struct doca_comch_event_consumer * | event, |
| struct doca_comch_connection * | comch_connection, | ||
| uint32_t | id | ||
| ) |
Callback for expired consumer arrival event
@event [in]: Expired remote consumer event object @comch_connection [in]: The connection related to the consumer @id [in]: The ID of the expired remote consumer
Definition at line 334 of file comch_data_path_high_speed_server_sample.c.
◆ handle_error_state()
|
static |
Definition at line 485 of file comch_data_path_high_speed_server_sample.c.
◆ init_comch_data_path_server_objects()
|
static |
Initialize sample resources
@server_name [in]: Server name to connect to @dev_pci_addr [in]: PCI address to connect over @dev_rep_pci_addr [in]: PCI address for the representor @text [in]: Message to send to the client @sample_objects [in]: Sample objects struct to initialize
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise
Definition at line 402 of file comch_data_path_high_speed_server_sample.c.
◆ new_consumer_callback()
|
static |
Callback for new consumer arrival event
@event [in]: New remote consumer event object @comch_connection [in]: The connection related to the consumer @id [in]: The ID of the new remote consumer
Definition at line 301 of file comch_data_path_high_speed_server_sample.c.
◆ server_connection_event_callback()
|
static |
Callback for connection event
@event [in]: Connection event object @comch_connection [in]: Connection object @change_success [in]: Whether the connection was successful or not
Definition at line 203 of file comch_data_path_high_speed_server_sample.c.
◆ server_disconnection_event_callback()
|
static |
Callback for disconnection event
@event [in]: Connection event object @comch_connection [in]: Connection object @change_success [in]: Whether the disconnection was successful or not
Definition at line 238 of file comch_data_path_high_speed_server_sample.c.
◆ server_message_recv_callback()
|
static |
Callback for server message recv event
@event [in]: Recv event object @recv_buffer [in]: Message buffer @msg_len [in]: Message len @comch_connection [in]: Connection the message was received on
Definition at line 148 of file comch_data_path_high_speed_server_sample.c.
◆ server_send_msg()
|
static |
Server sends a message to client
@sample_objects [in]: The sample object to use @msg [in]: The msg to send @len [in]: The msg length
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise
Definition at line 115 of file comch_data_path_high_speed_server_sample.c.
◆ server_send_task_completion_callback()
|
static |
Callback for server send task successful completion
@task [in]: Send task object @task_user_data [in]: User data for task @ctx_user_data [in]: User data for context
Definition at line 71 of file comch_data_path_high_speed_server_sample.c.
◆ server_send_task_completion_err_callback()
|
static |
Callback for server send task completion with error
@task [in]: Send task object @task_user_data [in]: User data for task @ctx_user_data [in]: User data for context
Definition at line 92 of file comch_data_path_high_speed_server_sample.c.
◆ server_state_changed_callback()
|
static |
Callback triggered whenever CC server context state changes
@user_data [in]: User data associated with the CC server context. @ctx [in]: The CC server context that had a state change @prev_state [in]: Previous context state @next_state [in]: Next context state (context is already in this state when the callback is called)
The context is in starting state, this is unexpected for CC server.
The context is in stopping, this can happen when fatal error encountered or when stopping context. doca_pe_progress() will cause all tasks to be flushed, and finally transition state to idle
Definition at line 257 of file comch_data_path_high_speed_server_sample.c.
◆ start_comch_data_path_server_sample()
| doca_error_t start_comch_data_path_server_sample | ( | const char * | server_name, |
| const char * | dev_pci_addr, | ||
| const char * | rep_pci_addr, | ||
| const char * | text | ||
| ) |
Run comch_client sample
@server_name [in]: Server name to connect to @dev_pci_addr [in]: PCI address to connect over @rep_pci_addr [in]: PCI address for the representor @text [in]: Message to send to the server
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise
Definition at line 506 of file comch_data_path_high_speed_server_sample.c.
