#include <stdio.h>
#include <stdlib.h>
#include <errno.h>
#include <fcntl.h>
#include <stdbool.h>
#include <stdint.h>
#include <string.h>
#include <sys/time.h>
#include <time.h>
#include <utils.h>
#include <signal.h>
#include <cuda.h>
#include <cuda_runtime.h>
#include <doca_version.h>
#include <doca_log.h>
#include <doca_error.h>
#include <doca_gpunetio.h>
#include <doca_dev.h>
#include <doca_eth_rxq.h>
#include <doca_eth_txq.h>
#include <doca_mmap.h>
#include <doca_argp.h>
#include <doca_dpdk.h>
#include <doca_flow.h>
#include <doca_pe.h>

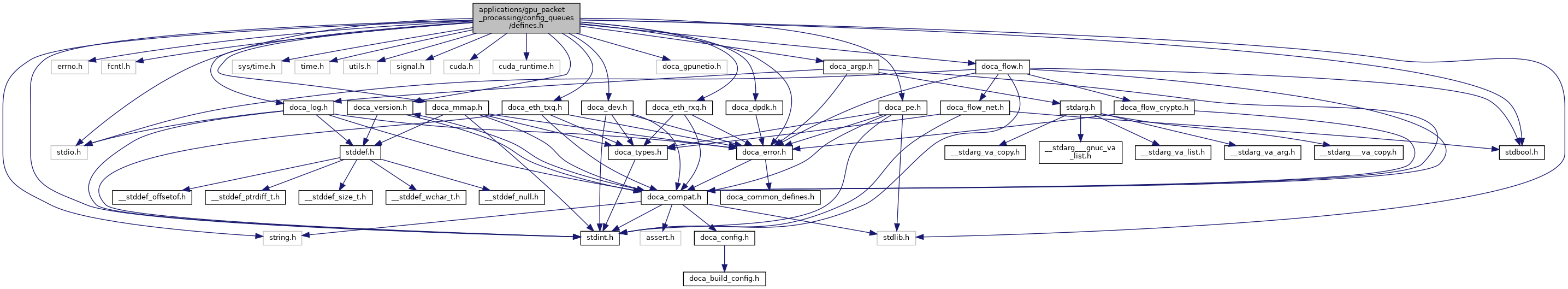

Include dependency graph for defines.h:

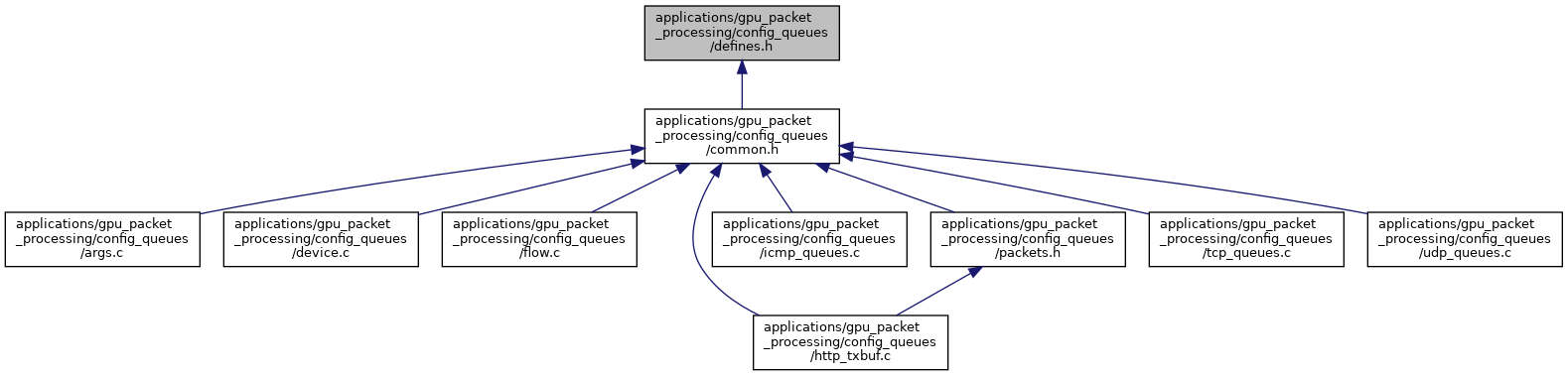

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	GPU_PAGE_SIZE (1UL << 16)

#define	WARP_SIZE 32

#define	WARP_FULL_MASK 0xFFFFFFFF

#define	MAX_PORT_STR_LEN 128 /* Maximal length of port name */

#define	MAX_QUEUES 4

#define	MAX_QUEUES_ICMP 1

#define	MAX_PKT_NUM 65536

#define	MAX_PKT_SIZE 8192

#define	MAX_RX_NUM_PKTS 4096

#define	MAX_RX_TIMEOUT_NS 1000000 /* 1ms */

#define	MAX_PKT_NUM_ICMP 16384

#define	MAX_PKT_SIZE_ICMP 512

#define	MAX_RX_NUM_PKTS_ICMP 64

#define	MAX_RX_TIMEOUT_NS_ICMP 50000 /* 50us */

#define	MAX_RX_NUM_PKTS_HTTP 64

#define	MAX_RX_TIMEOUT_NS_HTTP 50000 /* 50us */

#define	MAX_SQ_DESCR_NUM 4096

#define	SEMAPHORES_PER_QUEUE 1024

#define	CUDA_THREADS 512

#define	ETHER_ADDR_LEN 6

#define	BYTE_SWAP16(v) ((((uint16_t)(v)&UINT16_C(0x00ff)) << 8) \| (((uint16_t)(v)&UINT16_C(0xff00)) >> 8))

#define	BYTE_SWAP32(x) ((((x)&0xff000000) >> 24) \| (((x)&0x00ff0000) >> 8) \| (((x)&0x0000ff00) << 8) \| (((x)&0x000000ff) << 24))

#define	TX_BUF_NUM 1024 /* 32 x 32 */

#define	TX_BUF_MAX_SZ 512

#define	FLOW_NB_COUNTERS 524228 /* 1024 x 512 */

#define	DPDK_DEFAULT_PORT 0

Enumerations
enum	http_page_get { HTTP_GET_INDEX = 0 , HTTP_GET_CONTACTS , HTTP_GET_NOT_FOUND }

Macro Definition Documentation

◆ BYTE_SWAP16

#define BYTE_SWAP16 ( v ) ((((uint16_t)(v)&UINT16_C(0x00ff)) << 8) | (((uint16_t)(v)&UINT16_C(0xff00)) >> 8))

Definition at line 78 of file defines.h.

◆ BYTE_SWAP32

#define BYTE_SWAP32 ( x ) ((((x)&0xff000000) >> 24) | (((x)&0x00ff0000) >> 8) | (((x)&0x0000ff00) << 8) | (((x)&0x000000ff) << 24))

Definition at line 80 of file defines.h.

◆ CUDA_THREADS

#define CUDA_THREADS 512

Definition at line 76 of file defines.h.

◆ DPDK_DEFAULT_PORT

#define DPDK_DEFAULT_PORT 0

Definition at line 88 of file defines.h.

◆ ETHER_ADDR_LEN

#define ETHER_ADDR_LEN 6

Definition at line 77 of file defines.h.

◆ FLOW_NB_COUNTERS

#define FLOW_NB_COUNTERS 524228 /* 1024 x 512 */

Definition at line 86 of file defines.h.

◆ GPU_PAGE_SIZE

#define GPU_PAGE_SIZE (1UL << 16)

Definition at line 58 of file defines.h.

◆ MAX_PKT_NUM

#define MAX_PKT_NUM 65536

Definition at line 64 of file defines.h.

◆ MAX_PKT_NUM_ICMP

#define MAX_PKT_NUM_ICMP 16384

Definition at line 68 of file defines.h.

◆ MAX_PKT_SIZE

#define MAX_PKT_SIZE 8192

Definition at line 65 of file defines.h.

◆ MAX_PKT_SIZE_ICMP

#define MAX_PKT_SIZE_ICMP 512

Definition at line 69 of file defines.h.

◆ MAX_PORT_STR_LEN

#define MAX_PORT_STR_LEN 128 /* Maximal length of port name */

Definition at line 61 of file defines.h.

◆ MAX_QUEUES

#define MAX_QUEUES 4

Definition at line 62 of file defines.h.

◆ MAX_QUEUES_ICMP

#define MAX_QUEUES_ICMP 1

Definition at line 63 of file defines.h.

◆ MAX_RX_NUM_PKTS

#define MAX_RX_NUM_PKTS 4096

Definition at line 66 of file defines.h.

◆ MAX_RX_NUM_PKTS_HTTP

#define MAX_RX_NUM_PKTS_HTTP 64

Definition at line 72 of file defines.h.

◆ MAX_RX_NUM_PKTS_ICMP

#define MAX_RX_NUM_PKTS_ICMP 64

Definition at line 70 of file defines.h.

◆ MAX_RX_TIMEOUT_NS

#define MAX_RX_TIMEOUT_NS 1000000 /* 1ms */

Definition at line 67 of file defines.h.

◆ MAX_RX_TIMEOUT_NS_HTTP

#define MAX_RX_TIMEOUT_NS_HTTP 50000 /* 50us */

Definition at line 73 of file defines.h.

◆ MAX_RX_TIMEOUT_NS_ICMP

#define MAX_RX_TIMEOUT_NS_ICMP 50000 /* 50us */

Definition at line 71 of file defines.h.

◆ MAX_SQ_DESCR_NUM

#define MAX_SQ_DESCR_NUM 4096

Definition at line 74 of file defines.h.

◆ SEMAPHORES_PER_QUEUE

#define SEMAPHORES_PER_QUEUE 1024

Definition at line 75 of file defines.h.

◆ TX_BUF_MAX_SZ

#define TX_BUF_MAX_SZ 512

Definition at line 85 of file defines.h.

◆ TX_BUF_NUM

#define TX_BUF_NUM 1024 /* 32 x 32 */

Definition at line 84 of file defines.h.

◆ WARP_FULL_MASK

#define WARP_FULL_MASK 0xFFFFFFFF

Definition at line 60 of file defines.h.

◆ WARP_SIZE

#define WARP_SIZE 32

Definition at line 59 of file defines.h.

Enumeration Type Documentation

◆ http_page_get

enum http_page_get

Enumerator
HTTP_GET_INDEX
HTTP_GET_CONTACTS
HTTP_GET_NOT_FOUND

Definition at line 90 of file defines.h.
