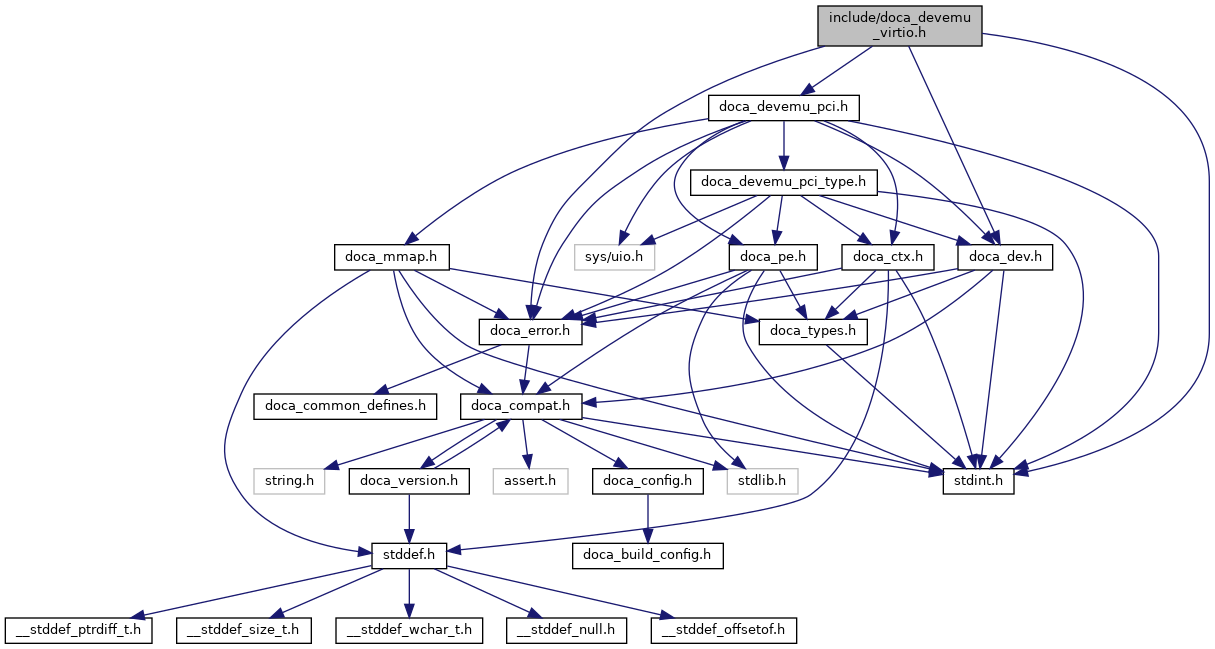

Include dependency graph for doca_devemu_virtio.h:

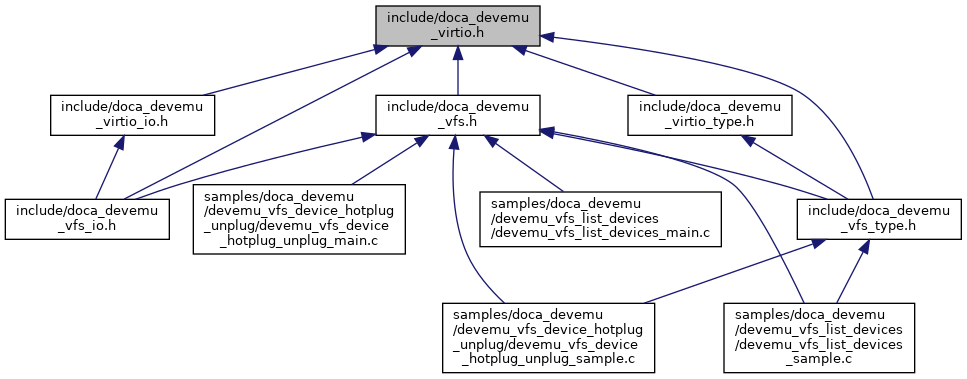

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Typedefs | |
| typedef void(* | doca_devemu_virtio_dev_event_reset_handler_cb_t) (struct doca_devemu_virtio_dev *virtio_dev, union doca_data event_user_data) |
| Function to be executed on Virtio device reset. The event handler will enable users to quiesce, flush and reset the necessary resources associated with the emulated Virtio device. Upon event, all PCI I/O transactions to/from the host memory are disabled. Additionally, the user should flush all the outstanding resources associated with the emulated Virtio device, which were initially owned by the Virtio device and moved the the ownership of the user. After flushing all the outstanding resources, the user should call doca_devemu_virtio_dev_reset_complete(). More... | |
| typedef void(* | doca_devemu_virtio_queue_stats_list_populate_done_cb_t) (struct doca_devemu_virtio_queue_stats **stats_list, union doca_data user_data, doca_error_t err) |
| Function to be executed upon finishing asynchronous population of Virtio queue statistics list. More... | |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_device_features_63_0 (const struct doca_devemu_virtio_dev *virtio_dev, uint64_t *features) |
| Get the Virtio device_feature bits (0-63) according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_set_device_features_63_0 (struct doca_devemu_virtio_dev *virtio_dev, uint64_t features) |
| Set the Virtio device_feature bits (0-63) according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_driver_features_63_0 (const struct doca_devemu_virtio_dev *virtio_dev, uint64_t *features) |
| Get the Virtio driver_feature bits (0-63) according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_config_msix_vector (const struct doca_devemu_virtio_dev *virtio_dev, uint16_t *config_msix_vector) |
| Get the Virtio config_msix_vector register according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_num_queues (const struct doca_devemu_virtio_dev *virtio_dev, uint16_t *num_queues) |
| Get the Virtio device num_queues register from common configuration structure according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_set_num_queues (struct doca_devemu_virtio_dev *virtio_dev, uint16_t num_queues) |
| Set the Virtio device num_queues register in common configuration structure according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_num_enabled_queues (const struct doca_devemu_virtio_dev *virtio_dev, uint16_t *num_queues) |
| Get the number of enabled Virtio device queues by the driver. The driver enables a queue by setting the corresponding queue index to the queue_select register and setting the queue_enable register to 1. The return value of num_queues is valid only if DRIVER_OK status bit was set by the driver. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_device_status (const struct doca_devemu_virtio_dev *virtio_dev, uint8_t *device_status) |
| Get the Virtio device_status register from common configuration structure according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_config_generation (const struct doca_devemu_virtio_dev *virtio_dev, uint8_t *config_generation) |
| Get the Virtio config_generation register from common configuration structure according to Virtio specification. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_queue_size (const struct doca_devemu_virtio_dev *virtio_dev, uint16_t *queue_size) |
| Get the Virtio max queue size for all Virtio queues. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_set_queue_size (struct doca_devemu_virtio_dev *virtio_dev, uint16_t queue_size) |
| Set the Virtio max queue size for all Virtio queues. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_get_num_required_running_virtio_io_ctxs (const struct doca_devemu_virtio_dev *virtio_dev, uint32_t *num_virtio_io) |
| Get the number of required running Virtio io context's to be bounded to the Virtio device context. The Virtio device context will not move to a "running" state before having this amount of running Virtio IO context's bounded to it. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_set_num_required_running_virtio_io_ctxs (struct doca_devemu_virtio_dev *virtio_dev, uint32_t num_virtio_io) |
| Set the number of required running Virtio IO context's to be bounded to the Virtio device context. The Virtio device context will not move to a "running" state before having this amount of running Virtio IO context's bounded to it. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_reset_complete (struct doca_devemu_virtio_dev *virtio_dev) |
| Complete the Virtio device reset handling. Prior to calling this function, the user must ensure that all the resources associated with the Virtio device are flushed back to the ownership of the device. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_devemu_virtio_dev_as_ctx (struct doca_devemu_virtio_dev *virtio_dev) |
| Convert DOCA Virtio device instance into DOCA context. More... | |
| DOCA_EXPERIMENTAL struct doca_devemu_pci_dev * | doca_devemu_virtio_dev_as_pci_dev (struct doca_devemu_virtio_dev *virtio_dev) |
| Convert DOCA Virtio device instance into DOCA devemu PCI device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_dev_event_reset_register (struct doca_devemu_virtio_dev *virtio_dev, doca_devemu_virtio_dev_event_reset_handler_cb_t handler, union doca_data user_data) |
| Register to Virtio device reset event. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_create_list (struct doca_devemu_virtio_dev *virtio_dev, struct doca_devemu_virtio_queue_stats ***stats_list, uint32_t *num_stats) |
| Create an empty list of statistics for Virtio device queues. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_destroy_list (struct doca_devemu_virtio_queue_stats **stats_list) |
| Destroy a list of Virtio queue statistics structures. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_populate_list (struct doca_devemu_virtio_queue_stats **stats_list, doca_devemu_virtio_queue_stats_list_populate_done_cb_t done, union doca_data user_data) |
| Issue an asynchronous population of a list of Virtio queue statistics structures. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_id (struct doca_devemu_virtio_queue_stats *stats, uint16_t *id) |
| Retrieve the Virtio queue index from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_size (struct doca_devemu_virtio_queue_stats *stats, uint16_t *size) |
| Retrieve the Virtio queue size (depth) from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_inflights (struct doca_devemu_virtio_queue_stats *stats, uint16_t *inflights) |
| Retrieve the number of in-flight requests for a Virtio queue from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_hw_avail_idx (struct doca_devemu_virtio_queue_stats *stats, uint16_t *idx) |
| Retrieve the available index of a Virtio queue as seen by the device from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_driver_avail_idx (struct doca_devemu_virtio_queue_stats *stats, uint16_t *idx) |
| Retrieve the available index of a Virtio queue as seen by the driver from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_hw_used_idx (struct doca_devemu_virtio_queue_stats *stats, uint16_t *idx) |
| Retrieve the used index of a Virtio queue as seen by the device from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_driver_used_idx (struct doca_devemu_virtio_queue_stats *stats, uint16_t *idx) |
| Retrieve the used index of a Virtio queue as seen by the driver from its statistics structure. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_devemu_virtio_queue_stats_get_enabled (struct doca_devemu_virtio_queue_stats *stats, uint8_t *enabled) |
| Retrieve the enabled status of a Virtio queue from its statistics structure. More... | |
