doca_eth_txq.h File Reference

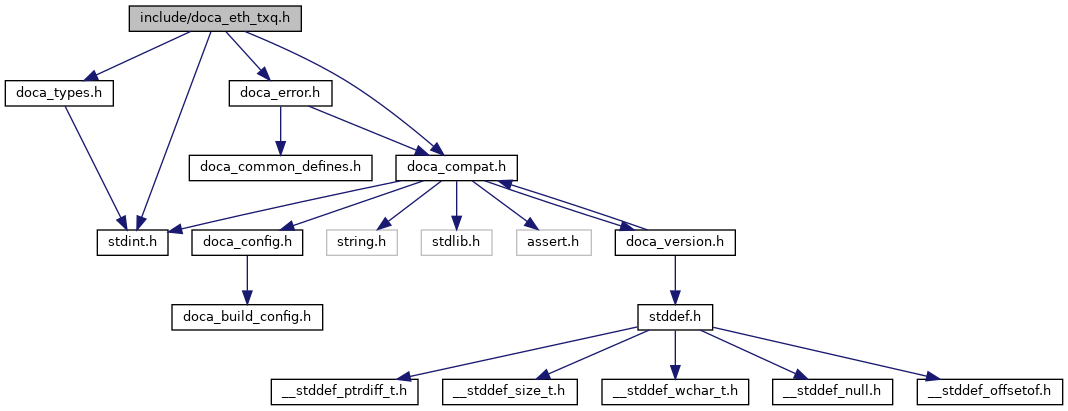

Include dependency graph for doca_eth_txq.h:

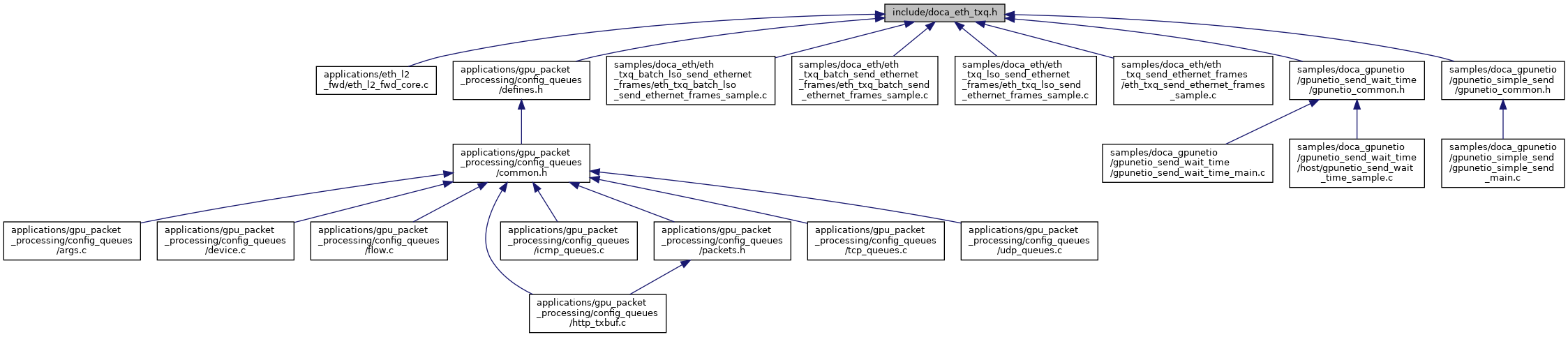

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Enumerations | |
| enum | doca_eth_txq_type { DOCA_ETH_TXQ_TYPE_REGULAR = 0 } |
| enum | doca_eth_txq_data_path_type { DOCA_ETH_TXQ_DATA_PATH_TYPE_CPU = 0 , DOCA_ETH_TXQ_DATA_PATH_TYPE_GPU } |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_create (struct doca_dev *dev, uint32_t max_burst_size, struct doca_eth_txq **eth_txq) |
| Create a DOCA ETH TXQ instance. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_destroy (struct doca_eth_txq *eth_txq) |
| Destroy a DOCA ETH TXQ instance. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_eth_txq_as_doca_ctx (struct doca_eth_txq *eth_txq) |
| Convert doca_eth_txq instance into a generalized context for use with doca core objects. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_max_burst_size (struct doca_eth_txq *eth_txq, uint32_t max_burst_size) |
| Set max burst size property for doca_eth_txq. This value dictates the maximal number of packets the HW can handle at the same time. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_max_send_buf_list_len (struct doca_eth_txq *eth_txq, uint32_t max_send_buf_list_len) |
| Set the maximal send buffer list length for doca_eth_txq. This value indicated what the maximal number of elements in a doca_buf list is. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_metadata_num (struct doca_eth_txq *eth_txq, uint8_t metadata_num) |
| Set metadata number for doca_eth_txq. This value is the number of metadata per packet. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_mss (struct doca_eth_txq *eth_txq, uint16_t mss) |
| Set the Maximum Segment Size for doca_eth_txq. This value will be used per LSO send task / task_batch unless user overrides it (by setting MSS on the specific task / task_batch). This value is the maximum data size that can be sent in each segment of the LSO packet. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_max_lso_header_size (struct doca_eth_txq *eth_txq, uint16_t max_lso_header_size) |
| Set the maximum LSO header size for doca_eth_txq. This value is the maximum header size of the LSO packet can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_type (struct doca_eth_txq *eth_txq, enum doca_eth_txq_type type) |
| Set TX queue type property for doca_eth_txq. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_l3_chksum_offload (struct doca_eth_txq *eth_txq, uint8_t enable_l3_chksum) |
| Set offload for the calculation of IPv4 checksum (L3) on transmitted packets. If the users enables L3 checksum offloading, then the HW will calculate the checksum value and write it into the specific field in the packet. This offload is enabled/disabled to every task / task_batch by default. User can change this by modifying the ol_flag value (See "enum doca_eth_txq_ol_flags"). can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_l4_chksum_offload (struct doca_eth_txq *eth_txq, uint8_t enable_l4_chksum) |
| Set offload for the calculation of TCP/UDP checksum (L4) on transmitted packets. If the users enables L4 checksum offloading, then the HW will calculate the checksum value and write it into the specific field in the packet. This offload is enabled/disabled to every task / task_batch by default. User can change this by modifying the ol_flag value (See "enum doca_eth_txq_ol_flags"). can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_set_wait_on_time_offload (struct doca_eth_txq *eth_txq) |
| Set offload to enable wait on time feature on the queue. can only be called before calling doca_ctx_start(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_get_gpu_handle (const struct doca_eth_txq *eth_txq, struct doca_gpu_eth_txq **eth_txq_ext) |
| Get a gpu handle of a doca_eth_txq. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_max_burst_size (const struct doca_devinfo *devinfo, uint32_t max_send_buf_list_len, uint16_t max_lso_header_size, uint32_t *max_burst_size) |
| Get the maximum burst size supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_max_send_buf_list_len (const struct doca_devinfo *devinfo, uint32_t *max_send_buf_list_len) |
| Get the maximum send buffer list length supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_max_metadata_num (const struct doca_devinfo *devinfo, uint8_t *max_metadata_num) |
| Get the maximum metadata number supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_max_lso_header_size (const struct doca_devinfo *devinfo, uint16_t *max_lso_header_size) |
| Get the maximum header size of an LSO packet supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_is_type_supported (const struct doca_devinfo *devinfo, enum doca_eth_txq_type type, enum doca_eth_txq_data_path_type data_path_type) |
| Check if TX queue type is supported. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_is_l3_chksum_offload_supported (const struct doca_devinfo *devinfo) |
| Check if L3 checksum offload is supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_is_l4_chksum_offload_supported (const struct doca_devinfo *devinfo) |
| Check if L4 checksum offload is supported by the device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_max_lso_msg_size (const struct doca_devinfo *devinfo, uint32_t *max_lso_msg_size) |
| Get the max LSO message size by the network device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_cap_get_wait_on_time_offload_supported (const struct doca_devinfo *devinfo, enum doca_eth_wait_on_time_type *wait_on_time_mode) |
| Check if wait on time offload is supported by the network device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_calculate_timestamp (struct doca_eth_txq *eth_txq, uint64_t timestamp_ns, uint64_t *wait_on_time_value) |
| Calculate timestamp to use when setting the wait on time on the Tx queue. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_get_flow_queue_id (struct doca_eth_txq *eth_txq, uint16_t *flow_queue_id) |
| Get the DPDK queue ID of the doca_eth send queue. can only be called after calling doca_ctx_start(). More... | |
