doca_eth_txq_cpu_data_path.h File Reference

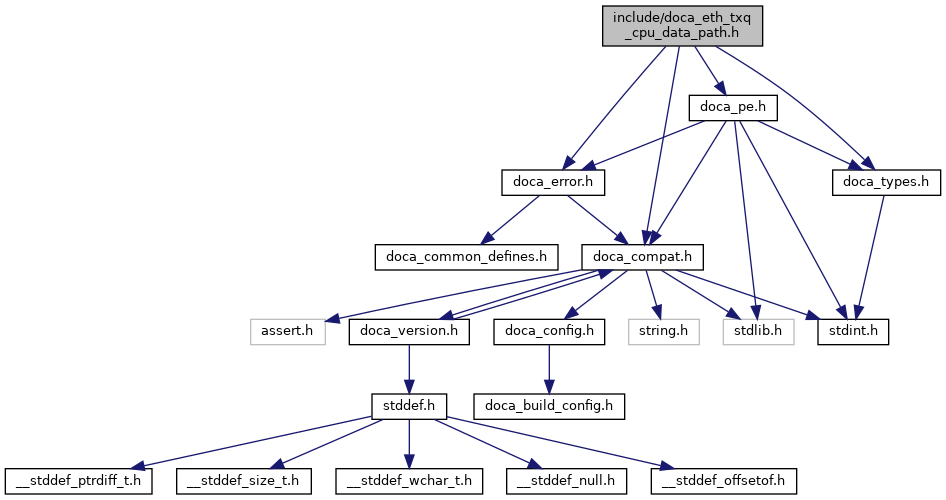

Include dependency graph for doca_eth_txq_cpu_data_path.h:

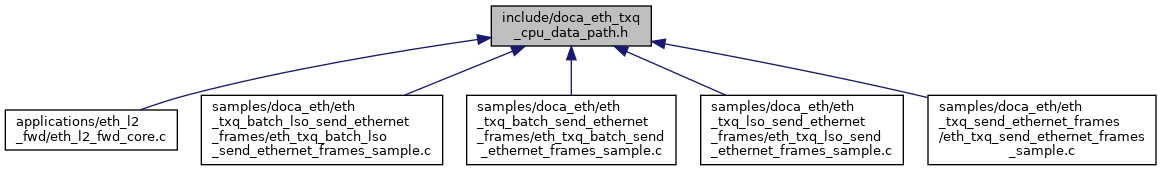

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | doca_eth_txq_task_batch_metadata_array_get_metadata(metadata_array, metadata_num, packet_index, metadata_index) metadata_array[packet_index * metadata_num + metadata_index] |
| This MACRO is used to get/set a specific metadata of a specific packet (in a task batch) from metadata_array. More... | |
Typedefs | |
| typedef void(* | doca_eth_txq_task_send_completion_cb_t) (struct doca_eth_txq_task_send *task_send, union doca_data task_user_data, union doca_data ctx_user_data) |
| Function to execute on task completion. More... | |
| typedef void(* | doca_eth_txq_task_lso_send_completion_cb_t) (struct doca_eth_txq_task_lso_send *task_lso_send, union doca_data task_user_data, union doca_data ctx_user_data) |
| Function to execute on task completion. More... | |
| typedef void(* | doca_eth_txq_task_batch_send_completion_cb_t) (struct doca_task_batch *task_batch, uint16_t tasks_num, union doca_data ctx_user_data, union doca_data task_batch_user_data, union doca_data *task_user_data_array, struct doca_buf **pkt_array, doca_error_t *status_array) |
| Function to execute on task_batch completion. More... | |
| typedef void(* | doca_eth_txq_task_batch_lso_send_completion_cb_t) (struct doca_task_batch *task_batch, uint16_t tasks_num, union doca_data ctx_user_data, union doca_data task_batch_user_data, union doca_data *task_user_data_array, struct doca_buf **pkt_payload_array, struct doca_gather_list **headers_array, doca_error_t *status_array) |
| Function to execute on task_batch completion. More... | |
Enumerations | |
| enum | doca_eth_txq_ol_flags { DOCA_ETH_TXQ_OL_FLAGS_L3_CSUM = (1 << 0) , DOCA_ETH_TXQ_OL_FLAGS_L4_CSUM = (1 << 1) } |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_send_set_conf (struct doca_eth_txq *eth_txq, doca_eth_txq_task_send_completion_cb_t task_completion_cb, doca_eth_txq_task_send_completion_cb_t task_error_cb, uint32_t task_send_num) |
| This method sets the doca_eth_txq_task_send tasks configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_set_conf (struct doca_eth_txq *eth_txq, doca_eth_txq_task_lso_send_completion_cb_t task_completion_cb, doca_eth_txq_task_lso_send_completion_cb_t task_error_cb, uint32_t task_lso_send_num) |
| This method sets the doca_eth_txq_task_lso_send tasks configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_send_set_conf (struct doca_eth_txq *eth_txq, enum doca_task_batch_max_tasks_number max_tasks_number, uint16_t num_task_batches, doca_eth_txq_task_batch_send_completion_cb_t success_completion_cb, doca_eth_txq_task_batch_send_completion_cb_t error_completion_cb) |
| This method sets the task_batch of send tasks configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_set_conf (struct doca_eth_txq *eth_txq, enum doca_task_batch_max_tasks_number max_tasks_number, uint16_t num_task_batches, doca_eth_txq_task_batch_lso_send_completion_cb_t success_completion_cb, doca_eth_txq_task_batch_lso_send_completion_cb_t error_completion_cb) |
| This method sets the task_batch of LSO send tasks configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_send_num_expand (struct doca_eth_txq *eth_txq, uint32_t task_send_num) |
| This method expands the number of doca_eth_txq_task_send tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_num_expand (struct doca_eth_txq *eth_txq, uint32_t task_lso_send_num) |
| This method expands the number of doca_eth_txq_task_lso_send tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_send_num_expand (struct doca_eth_txq *eth_txq, uint16_t task_batches_num) |
| This method expands the number of doca_eth_txq_task_batch_send tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_num_expand (struct doca_eth_txq *eth_txq, uint16_t task_batches_num) |
| This method expands the number of doca_eth_txq_task_batch_lso_send tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_send_allocate_init (struct doca_eth_txq *eth_txq, struct doca_buf *pkt, union doca_data user_data, struct doca_eth_txq_task_send **task_send) |
| This method allocates and initializes a doca_eth_txq_task_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_allocate_init (struct doca_eth_txq *eth_txq, struct doca_buf *pkt_payload, struct doca_gather_list *headers, union doca_data user_data, struct doca_eth_txq_task_lso_send **task_lso_send) |
| This method allocates and initializes a doca_eth_txq_task_lso_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_send_allocate (struct doca_eth_txq *eth_txq, uint16_t tasks_num, union doca_data task_batch_user_data, struct doca_buf ***pkt_array, union doca_data **task_user_data_array, struct doca_task_batch **task_batch) |
| This method allocates a doca_taskbtach of doca_eth_txq_task_send tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_allocate (struct doca_eth_txq *eth_txq, uint16_t tasks_num, union doca_data task_batch_user_data, struct doca_buf ***pkt_payload_array, struct doca_gather_list ***headers_array, union doca_data **task_user_data_array, struct doca_task_batch **task_batch) |
| This method allocates a doca_taskbtach of doca_eth_txq_task_lso_send tasks. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_send_set_pkt (struct doca_eth_txq_task_send *task_send, struct doca_buf *pkt) |
| This method sets packet buffer to doca_eth_txq_task_send task. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_lso_send_set_pkt_payload (struct doca_eth_txq_task_lso_send *task_lso_send, struct doca_buf *pkt_payload) |
| This method sets packet payload buffer to doca_eth_txq_task_lso_send task. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_lso_send_set_headers (struct doca_eth_txq_task_lso_send *task_lso_send, struct doca_gather_list *headers) |
| This method sets headers to doca_eth_txq_task_lso_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_send_get_pkt (const struct doca_eth_txq_task_send *task_send, struct doca_buf **pkt) |
| This method gets packet buffer from doca_eth_txq_task_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_get_pkt_payload (const struct doca_eth_txq_task_lso_send *task_lso_send, struct doca_buf **pkt_payload) |
| This method gets payload buffer from doca_eth_txq_task_lso_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_get_headers (const struct doca_eth_txq_task_lso_send *task_lso_send, struct doca_gather_list **headers) |
| This method gets headers from doca_eth_txq_task_lso_send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_send_get_metadata_array (struct doca_eth_txq_task_send *task_send, uint32_t **metadata_array) |
| This method gets a pointer to internal metadata array from send task. This pointer can be used to read/modify the metadata array content. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_lso_send_get_metadata_array (struct doca_eth_txq_task_lso_send *task_lso_send, uint32_t **metadata_array) |
| This method gets a pointer to internal metadata array from LSO send task. This pointer can be used to read/modify the metadata array content. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_send_get_metadata_array (struct doca_task_batch *task_batch_send, uint32_t **metadata_array) |
| This method gets a pointer to internal metadata array from send task batch. This pointer can be used to read/modify the metadata array content. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_get_metadata_array (struct doca_task_batch *task_batch_lso_send, uint32_t **metadata_array) |
| This method gets a pointer to internal metadata array from LSO send task batch. This pointer can be used to read/modify the metadata array content. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_lso_send_set_mss (struct doca_eth_txq_task_lso_send *task_lso_send, uint16_t mss) |
| This method sets overrides the default MSS value set by "doca_eth_txq_set_mss()" to a specific LSO send task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_get_mss_array (struct doca_task_batch *task_batch_lso_send, uint16_t **mss_array) |
| This method gets a pointer to internal MSS array from LSO send task batch. This pointer can be used to read/modify the MSS array content. This can be used to override the default MSS value set by "doca_eth_txq_set_mss()" to a specific LSO packet in task batch. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_send_set_ol_flags (struct doca_eth_txq_task_send *task_send, uint16_t ol_flags) |
| This method sets overrides the default ol_flags value set by the enabled offloads of the context. More... | |
| DOCA_EXPERIMENTAL void | doca_eth_txq_task_lso_send_set_ol_flags (struct doca_eth_txq_task_lso_send *task_lso_send, uint16_t ol_flags) |
| This method sets overrides the default ol_flags value set by the enabled offloads of the context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_send_get_ol_flags_array (struct doca_task_batch *task_batch_send, uint16_t **ol_flags_array) |
| This method gets a pointer to internal ol_flags array from send task batch. This pointer can be used to read/modify the ol_flags array content. This can be used to override the default ol_flags value set by the enabled offloads of the context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_eth_txq_task_batch_lso_send_get_ol_flags_array (struct doca_task_batch *task_batch_lso_send, uint16_t **ol_flags_array) |
| This method gets a pointer to internal ol_flags array from LSO send task batch. This pointer can be used to read/modify the ol_flags array content. This can be used to override the default ol_flags value set by the enabled offloads of the context. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_eth_txq_task_send_as_doca_task (struct doca_eth_txq_task_send *task_send) |
| This method converts a doca_eth_txq_task_send task to doca_task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_eth_txq_task_lso_send_as_doca_task (struct doca_eth_txq_task_lso_send *task_lso_send) |
| This method converts a doca_eth_txq_task_lso_send task to doca_task. More... | |
