#include <doca_pcc_dev_common.h>
#include <doca_pcc_dev_utils.h>
#include <doca_pcc_dev_services.h>
#include <doca_pcc_dev_data_structures.h>

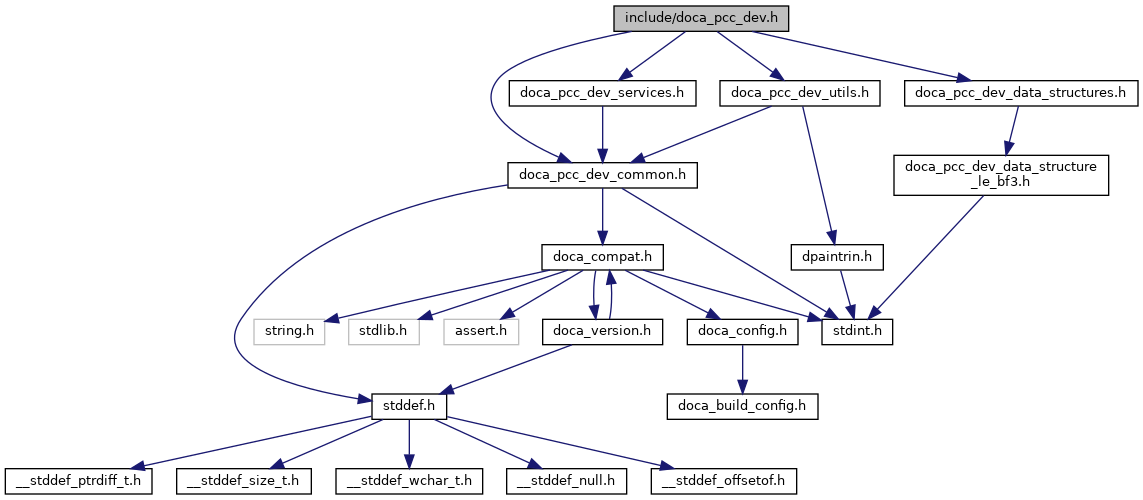

Include dependency graph for doca_pcc_dev.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	DOCA_DPA_DEVICE
	declares that we are compiling for the DPA Device More...

#define	DOCA_PCC_DEV_ACK_NACK_TX_EVENT_DISABLED_SUPPORTED (1)

#define	DOCA_PCC_DEV_TX_FLAG_ACK_EXPECTED (1 << 0)
	TX Flag: Ack expected. More...

#define	DOCA_PCC_DEV_TX_FLAG_OVERLOADED (1 << 1)
	TX Flag: Overloaded: More...

#define	DOCA_PCC_DEV_TX_FLAG_RTT_REQ_SENT (1 << 2)
	TX Flag: RTT packet sent. More...

#define	DOCA_PCC_DEV_LOG_MAX_RATE (20) /* rate format in fixed point 20 */
	defines the fixed point fraction size of the rate limiter More...

#define	DOCA_PCC_DEV_MAX_RATE (1U << DOCA_PCC_DEV_LOG_MAX_RATE)
	Max rate in rate limiter fixed point. More...

#define	DOCA_PCC_DEV_DEFAULT_RATE ((DOCA_PCC_DEV_MAX_RATE >> 8) > (1) ? (DOCA_PCC_DEV_MAX_RATE >> 8) : (1))
	Default rate. The user overrides the default in the user algo function. More...

#define	DOCA_PCC_DEV_MAX_NUM_USER_SLOTS (8)
	Max number of algo slots supported by the lib. More...

#define	DOCA_PCC_DEV_MAX_NUM_ALGOS (8)
	Max number of algos supported by the lib. More...

#define	DOCA_PCC_DEV_MAX_NUM_PARAMS_PER_ALGO (0x26)
	Max number of parameters per algo supported by the lib. More...

#define	DOCA_PCC_DEV_MAX_NUM_COUNTERS_PER_ALGO (0x3F)
	Max number of counters per algo supported by the lib. More...

#define	DOCA_PCC_DEV_ALGO_SLOT_INTERNAL (0xF)
	Reserved algo slot for internal algo provided by the lib. More...

#define	DOCA_PCC_DEV_ALGO_INDEX_INTERNAL (0xF)
	Reserved algo index for internal algo provided by the lib. More...

Typedefs
typedef struct doca_pcc_dev_results	doca_pcc_dev_results_t
	CC algorithm results. More...

Enumerations
enum	doca_pcc_dev_event_type_enum { DOCA_PCC_DEV_EVNT_NULL = 0 , DOCA_PCC_DEV_EVNT_FW = 1 , DOCA_PCC_DEV_EVNT_ROCE_CNP = 2 , DOCA_PCC_DEV_EVNT_ROCE_TX = 3 , DOCA_PCC_DEV_EVNT_ROCE_ACK = 4 , DOCA_PCC_DEV_EVNT_ROCE_NACK = 5 , DOCA_PCC_DEV_EVNT_RTT = 6 , DOCA_PCC_DEV_EVNT_ROCE_TX_FOR_ACK_NACK = 31 }
	CC event type. More...

enum	doca_pcc_dev_nack_event_sub_type_enum { DOCA_PCC_DEV_NACK_EVNT_NULL = 0 , DOCA_PCC_DEV_NACK_EVNT_RNR = 1 , DOCA_PCC_DEV_NACK_EVNT_OOS = 2 , DOCA_PCC_DEV_NACK_EVNT_DUP_READ = 3 }
	CC Nack event subtypes. More...

Functions
DOCA_STABLE void	doca_pcc_dev_default_internal_algo (doca_pcc_dev_algo_ctxt_t algo_ctxt, doca_pcc_dev_event_t event, const doca_pcc_dev_attr_t attr, doca_pcc_dev_results_t results)
	Implements the internal CC algorithm provided by the lib. More...

DOCA_STABLE void	doca_pcc_dev_user_algo (doca_pcc_dev_algo_ctxt_t algo_ctxt, doca_pcc_dev_event_t event, const doca_pcc_dev_attr_t attr, doca_pcc_dev_results_t results)
	Entry point to the user algorithm handling code. More...

DOCA_STABLE void	doca_pcc_dev_user_init (uint32_t *disable_event_bitmask)
	Entry point to the user one time initialization code. More...

DOCA_STABLE doca_pcc_dev_error_t	doca_pcc_dev_user_set_algo_params (uint32_t port_num, uint32_t algo_slot, uint32_t param_id_base, uint32_t param_num, const uint32_t new_param_values, uint32_t params)
	User callback executed then parameters are set. More...

DOCA_EXPERIMENTAL doca_pcc_dev_error_t	doca_pcc_dev_custom_header_set (doca_pcc_dev_algo_ctxt_t algo_ctxt, doca_pcc_dev_event_t event, uint32_t *header, uint32_t header_size, uint32_t wait_completed)
	User callback executed to set custom header in CCMAD probe packet. More...

Data Structures
