doca_pcc_dev_algo_access.h File Reference
#include <doca_pcc_dev.h>

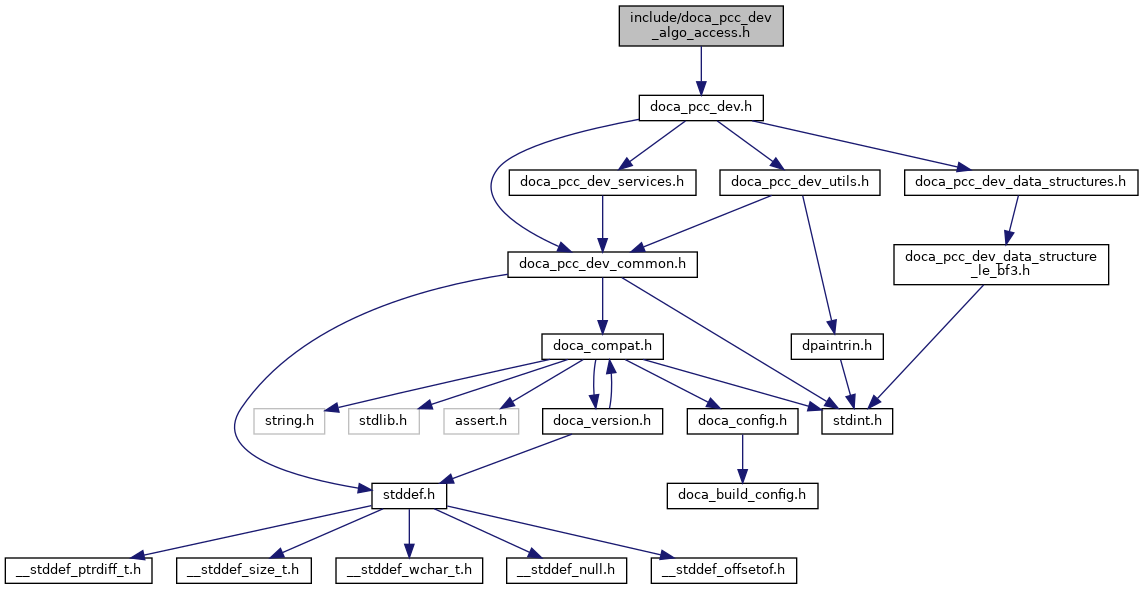

Include dependency graph for doca_pcc_dev_algo_access.h:

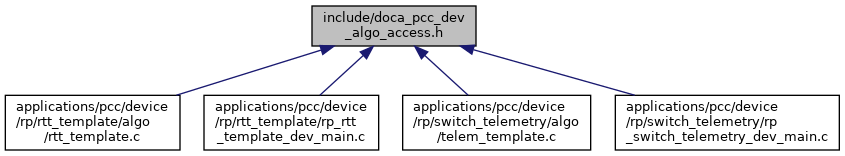

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | doca_pcc_dev_algo_meta_data |
| This struct provides meta data for a pcc user algo. More... | |
Macros | |
| #define | DOCA_PCC_DEV_TARGET_APP_RP (0) |
| Reaction Point target app. More... | |
| #define | DOCA_PCC_DEV_TARGET_APP_NP (1) |
| Notification Point target app. More... | |
| #define | DOCA_PCC_DEV_ALGO_SLOT(target_app, ppcc_algo_slot) ((target_app << 16) | (ppcc_algo_slot & 0xffff)) |
| wrapper to define algorithm slot per target device More... | |
Functions | |
| DOCA_STABLE doca_pcc_dev_error_t | doca_pcc_dev_algo_init_metadata (uint32_t algo_idx, const struct doca_pcc_dev_algo_meta_data *user_def, uint32_t param_num, uint32_t counter_num) |
| Initialize the algo database. More... | |
| DOCA_STABLE doca_pcc_dev_error_t | doca_pcc_dev_algo_init_param (uint32_t algo_idx, uint32_t param_id, uint32_t default_value, uint32_t max_value, uint32_t min_value, uint32_t permissions, uint32_t param_desc_size, uint64_t param_desc_addr) |
| Initialize a single parameter for an algo. More... | |
| DOCA_STABLE doca_pcc_dev_error_t | doca_pcc_dev_algo_init_counter (uint32_t algo_idx, uint32_t counter_id, uint32_t max_value, uint32_t permissions, uint32_t counter_desc_size, uint64_t counter_desc_addr) |
| Initialize a single counter for an algo. More... | |
| DOCA_STABLE doca_pcc_dev_error_t | doca_pcc_dev_init_algo_slot (uint32_t portid, uint32_t algo_slot, uint32_t algo_idx, uint32_t algo_en) |
| Initialize the algo per port database. More... | |
| DOCA_STABLE uint32_t | doca_pcc_dev_get_counters_num (uint32_t port_num, uint32_t algo_slot) |
| Get number of counters supported per algo on the port. More... | |
| DOCA_STABLE uint32_t * | doca_pcc_dev_get_counters (uint32_t port_num, uint32_t algo_slot) |
| Get pointer to counter array of a specific algo and specific port. More... | |
| DOCA_STABLE uint32_t | doca_pcc_dev_get_algo_params_num (uint32_t port_num, uint32_t algo_slot) |
| Get number of params supported per algo on the port. More... | |
| DOCA_STABLE uint32_t * | doca_pcc_dev_get_algo_params (uint32_t port_num, uint32_t algo_slot) |
| Get pointer to param array of a specific algo and specific port. More... | |
| DOCA_STABLE uint32_t | doca_pcc_dev_get_algo_index (uint32_t port_num, uint32_t algo_slot) |
| Get identifier of a specific algo and specific port. More... | |
