#include <stdint.h>
#include <stddef.h>
#include <doca_compat.h>

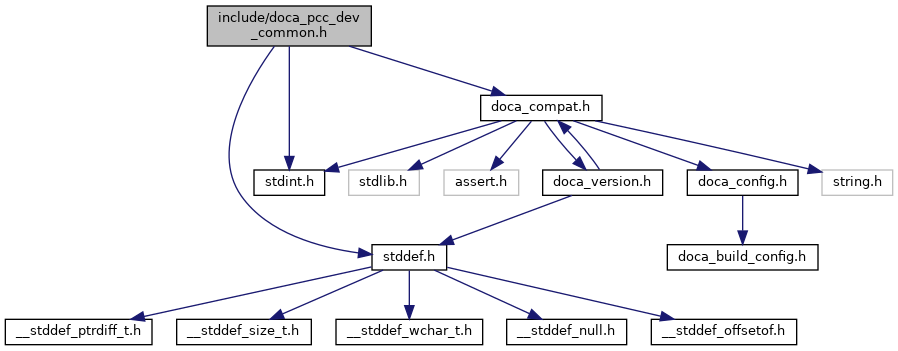

Include dependency graph for doca_pcc_dev_common.h:

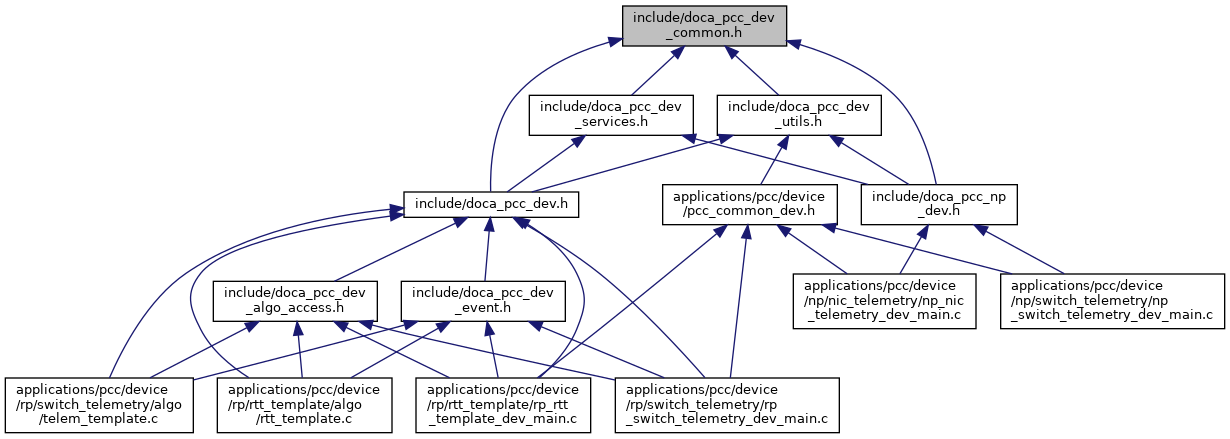

This graph shows which files directly or indirectly include this file:

Macros
#define	DOCA_DPA_DEVICE
	declares that we are compiling for the DPA Device More...

#define	ALWAYS_INLINE __attribute__((always_inline))
	force inline wrapper More...

#define	FORCE_INLINE static inline ALWAYS_INLINE
	static inline wrapper More...

#define	DOCA_PCC_DEV_GET_PORT_COUNTER_ID(port, type, plane) (((port & 0xF)) \| ((type & 0xF) << 4) \| ((plane & 0XF) << 8) \| ((1) << 24))
	Generates a unique ID using the logical port number, counter type, and plane parameters for identifying specific port counters. More...

#define	DOCA_PCC_DEV_MAX_NUM_PORTS (__NV_DPA >= __NV_DPA_CX8 ? 8 : 4)
	Max number of NIC ports supported by the lib. More...

Enumerations
enum	doca_pcc_dev_error_t { DOCA_PCC_DEV_STATUS_OK = 0 , DOCA_PCC_DEV_STATUS_FAIL = 1 }
	API functions return status. More...

enum	doca_pcc_dev_nic_port_counter_types_t { DOCA_PCC_DEV_NIC_COUNTER_TYPE_RX_BYTES = 0x1 , DOCA_PCC_DEV_NIC_COUNTER_TYPE_TX_BYTES = 0x2 }
	NIC counter types. More...

Functions
DOCA_EXPERIMENTAL void	doca_pcc_dev_nic_counters_config (uint32_t counter_ids, uint32_t num_counters, uint32_t values)
	Prepare a list of counters to read. More...

DOCA_EXPERIMENTAL ALWAYS_INLINE void	doca_pcc_dev_nic_counters_sample (void)
	Sample counters according to the prior configuration call. More...

DOCA_EXPERIMENTAL uint32_t	doca_pcc_dev_get_logical_ports (void)
	Get mask of initiated logical ports. More...

DOCA_EXPERIMENTAL uint32_t	doca_pcc_dev_get_port_planes (uint32_t portid)
	Get number of available planes per a given port. More...

DOCA_EXPERIMENTAL uint32_t	doca_pcc_dev_get_port_speed (uint32_t portid)
	Get speed in Gbps units per a given port. More...

DOCA_EXPERIMENTAL void	doca_pcc_dev_user_port_info_changed (uint32_t portid) __attribute__((weak))
	User callback triggered on a port state change. More...
