doca_pe.h File Reference
#include <stdint.h>#include <stdlib.h>#include <doca_compat.h>#include <doca_error.h>#include <doca_types.h>

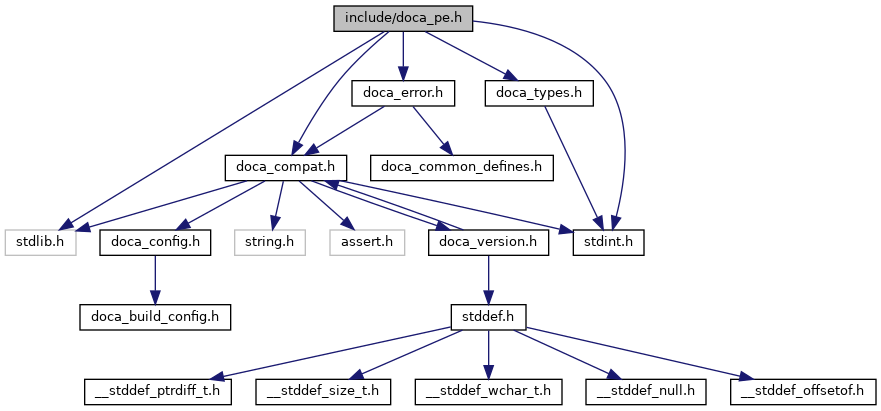

Include dependency graph for doca_pe.h:
Go to the source code of this file.
Typedefs | |
| typedef void(* | doca_task_completion_cb_t) (struct doca_task *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Function to execute on task completion. More... | |
Enumerations | |
| enum | doca_task_batch_max_tasks_number { DOCA_TASK_BATCH_MAX_TASKS_NUMBER_16 , DOCA_TASK_BATCH_MAX_TASKS_NUMBER_32 , DOCA_TASK_BATCH_MAX_TASKS_NUMBER_64 , DOCA_TASK_BATCH_MAX_TASKS_NUMBER_128 } |
| enum | doca_event_batch_events_number { DOCA_EVENT_BATCH_EVENTS_NUMBER_1 , DOCA_EVENT_BATCH_EVENTS_NUMBER_2 , DOCA_EVENT_BATCH_EVENTS_NUMBER_4 , DOCA_EVENT_BATCH_EVENTS_NUMBER_8 , DOCA_EVENT_BATCH_EVENTS_NUMBER_16 , DOCA_EVENT_BATCH_EVENTS_NUMBER_32 , DOCA_EVENT_BATCH_EVENTS_NUMBER_64 , DOCA_EVENT_BATCH_EVENTS_NUMBER_128 } |
| enum | doca_task_submit_flag { DOCA_TASK_SUBMIT_FLAG_NONE = 0U , DOCA_TASK_SUBMIT_FLAG_FLUSH = (1U << 0) , DOCA_TASK_SUBMIT_FLAG_OPTIMIZE_REPORTS = (1U << 1) } |
| Flags used when submitting a doca_task. More... | |
| enum | doca_pe_event_mode { DOCA_PE_EVENT_MODE_PROGRESS_SELECTIVE , DOCA_PE_EVENT_MODE_PROGRESS_ALL } |
| Progress engine event modes. More... | |
Functions | |
| DOCA_STABLE doca_error_t | doca_pe_create (struct doca_pe **pe) |
| Creates DOCA progress engine. More... | |
| DOCA_STABLE doca_error_t | doca_pe_destroy (struct doca_pe *pe) |
| Destroy doca progress engine. More... | |
| DOCA_STABLE uint8_t | doca_pe_progress (struct doca_pe *pe) |
| Run the progress engine. More... | |
| DOCA_STABLE doca_error_t | doca_pe_clear_notification (struct doca_pe *pe, doca_notification_handle_t handle) |
| Clear triggered completions after wait. More... | |
| DOCA_STABLE doca_error_t | doca_pe_request_notification (struct doca_pe *pe) |
| Arm the progress engine to wait for completion. More... | |
| DOCA_STABLE doca_error_t | doca_pe_get_num_inflight_tasks (const struct doca_pe *pe, size_t *num_inflight_tasks) |
| Get number of in flight tasks. More... | |
| DOCA_STABLE doca_error_t | doca_task_submit (struct doca_task *task) |
| Submit a task to a progress engine. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_task_submit_ex (struct doca_task *task, uint32_t flags) |
| Extended version of doca_task_submit. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_task_batch_submit (struct doca_task_batch *task_batch) |
| Submit a task_batch to a progress engine. More... | |
| DOCA_STABLE doca_error_t | doca_task_try_submit (struct doca_task *task) |
| Try to submit a task to a progress engine. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_task_batch_try_submit (struct doca_task_batch *task_batch) |
| Try to submit a task_batch to a progress engine. More... | |
| DOCA_STABLE void | doca_task_free (struct doca_task *task) |
| Free a task back to where it was allocated from. More... | |
| DOCA_EXPERIMENTAL void | doca_task_batch_free (struct doca_task_batch *task_batch) |
| Free a task_batch back to where it was allocated from. More... | |
| DOCA_STABLE doca_error_t | doca_task_get_status (const struct doca_task *task) |
| Get task status. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_task_batch_get_status (const struct doca_task_batch *task_batch) |
| Get task_batch status. More... | |
| DOCA_STABLE void | doca_task_set_user_data (struct doca_task *task, union doca_data user_data) |
| Set user data to a task. More... | |
| DOCA_EXPERIMENTAL void | doca_task_batch_set_user_data (struct doca_task_batch *task_batch, union doca_data user_data) |
| Set user data to a task_batch. More... | |
| DOCA_STABLE union doca_data | doca_task_get_user_data (const struct doca_task *task) |
| Get user data from a task. More... | |
| DOCA_EXPERIMENTAL union doca_data | doca_task_batch_get_user_data (const struct doca_task_batch *task_batch) |
| Get user data from a task_batch. More... | |
| DOCA_STABLE struct doca_ctx * | doca_task_get_ctx (const struct doca_task *task) |
| Get context from a doca task. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_task_batch_get_ctx (const struct doca_task_batch *task_batch) |
| Get context from a doca task_batch. More... | |
| DOCA_EXPERIMENTAL union doca_data | doca_task_batch_get_ctx_user_data (const struct doca_task_batch *task_batch) |
| Get context user data from a doca task_batch. More... | |
| DOCA_EXPERIMENTAL uint16_t | doca_task_batch_get_tasks_num (struct doca_task_batch *task_batch) |
| Get actual tasks number from a doca task_batch. More... | |
| DOCA_STABLE doca_error_t | doca_pe_connect_ctx (struct doca_pe *pe, struct doca_ctx *ctx) |
| This method connects a context to a progress engine. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_pe_set_event_mode (struct doca_pe *pe, enum doca_pe_event_mode event_mode) |
| Set event mode. More... | |
