doca_sta.h File Reference

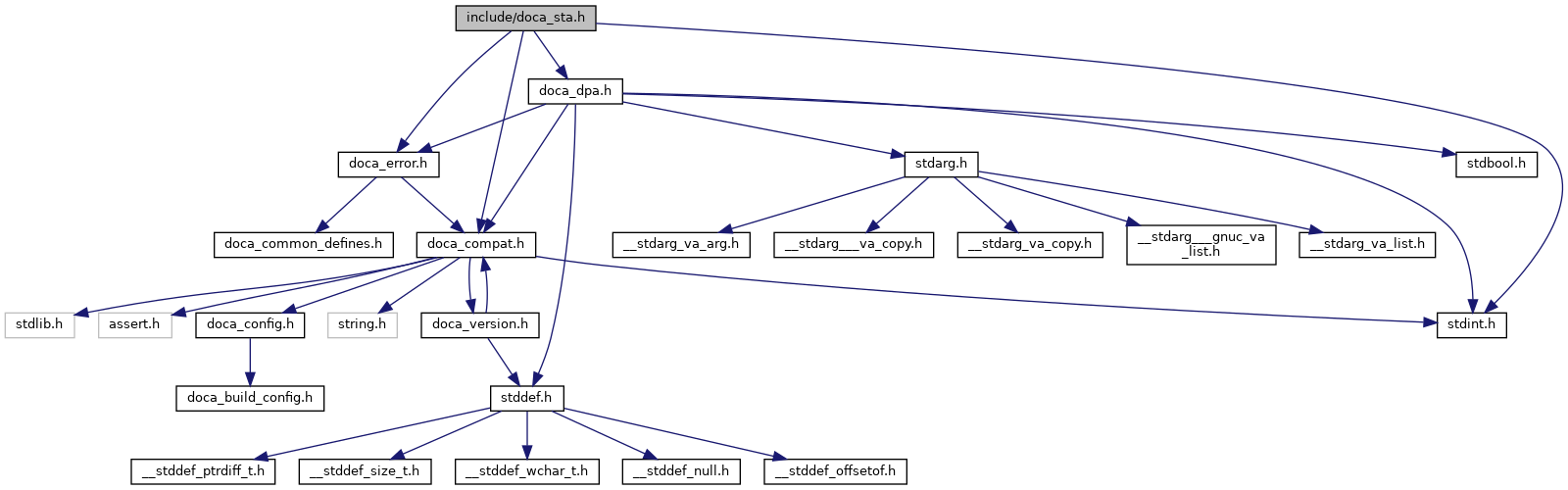

Include dependency graph for doca_sta.h:
Go to the source code of this file.
Function Documentation
◆ doca_sta_add_dev()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_add_dev | ( | struct doca_sta * | sta, |
| struct doca_dev * | dev | ||
| ) |
Support STA functionality on a given device.
- Parameters
-
[in] sta - Previously created STA context [in] dev - DOCA Dev instance with appropriate capability
- Returns
- DOCA_SUCCESS - in case of success. doca_error code - in case of failure: DOCA_ERROR_INVALID_VALUE - if an invalid input had been received DOCA_ERROR_NO_MEMORY - if reached to number of devices reported by doca_sta_get_max_devs() DOCA_ERROR_BAD_STATE - if sta in wrong state DOCA_ERROR_ALREADY_EXIST - if doca_dev already exists in doca_mmap DOCA_ERROR_NOT_SUPPORTED - provided dev does not support the RC transport type
◆ doca_sta_as_ctx()
| DOCA_EXPERIMENTAL struct doca_ctx* doca_sta_as_ctx | ( | struct doca_sta * | sta | ) |
Convert doca_sta instance into a generalized context for use with doca core objects.
- Parameters
-
[in] sta - Pointer to doca_sta instance.
- Returns
- Non NULL upon success, NULL otherwise.
◆ doca_sta_cap_is_supported()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_cap_is_supported | ( | const struct doca_devinfo * | devinfo | ) |
Get whether the DOCA device supports storage target acceleration ('STA')
- Parameters
-
[in] devinfo - the device to query
- Returns
- DOCA_SUCCESS - in case of the DOCA device queried has STA support DOCA_ERROR_INVALID_VALUE - received invalid input DOCA_ERROR_NOT_SUPPORTED - the device queried does not support STA
◆ doca_sta_create()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_create | ( | struct doca_dev * | dev, |
| struct doca_sta ** | sta | ||
| ) |
Create a DOCA STA Context.
This function creates a DOCA STA context given a DOCA device. The context represents a program on the STA that is referenced by the host process that called the context creation API
- Parameters
-
[in] dev - DOCA device [out] sta - created context
- Returns
- DOCA_SUCCESS - in case of success DOCA_ERROR_INVALID_VALUE - received invalid input DOCA_ERROR_DRIVER - in case of error in a DOCA driver call DOCA_ERROR_NOT_SUPPORTED - the device does not support STA DOCA_ERROR_NO_MEMORY - in case of failure in internal memory allocation
◆ doca_sta_destroy()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_destroy | ( | struct doca_sta * | sta | ) |
Destroy a DOCA STA context.
This function destroys STA context created by doca_sta_create()
- Parameters
-
[in] sta - Previously created STA context
- Returns
- DOCA_SUCCESS - in case of success DOCA_ERROR_INVALID_VALUE - received invalid input DOCA_ERROR_DRIVER - in case of error in a DOCA driver call DOCA_ERROR_IN_USE - in case the STA context is still used by another DOCA context
◆ doca_sta_get_max_be()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_be | ( | uint32_t * | max_be | ) |
◆ doca_sta_get_max_devs()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_devs | ( | uint32_t * | max_devs | ) |
Get the max number of the supported devices by the STA engine.
- Parameters
-
[in] max_devs - max devices
- Returns
- DOCA_SUCCESS - in case of success
- DOCA_ERROR_INVALID_VALUE - received invalid input
◆ doca_sta_get_max_icdoff()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_icdoff | ( | uint32_t * | icdoff | ) |
◆ doca_sta_get_max_io_num_per_dev()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_io_num_per_dev | ( | const struct doca_sta * | sta, |
| uint32_t * | max_ios | ||
| ) |
◆ doca_sta_get_max_io_queue_size()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_io_queue_size | ( | const struct doca_sta * | sta, |
| uint32_t * | max_io_queue_size | ||
| ) |
◆ doca_sta_get_max_io_size()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_io_size | ( | uint32_t * | max_io_size | ) |
◆ doca_sta_get_max_io_threads()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_io_threads | ( | uint32_t * | max_io_threads | ) |
◆ doca_sta_get_max_ioccsz()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_ioccsz | ( | uint32_t * | ioccsz | ) |
◆ doca_sta_get_max_iorcsz()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_iorcsz | ( | uint32_t * | iorcsz | ) |
◆ doca_sta_get_max_ns_per_subs()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_ns_per_subs | ( | uint32_t * | max_ns_per_subsys | ) |
◆ doca_sta_get_max_num_connected_qp_per_eu()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_num_connected_qp_per_eu | ( | const struct doca_sta * | sta, |
| uint32_t * | max_connected_qps | ||
| ) |
Retrieve the maximum number of connected QPs per EU.
- Parameters
-
[out] max_connected_qps - maximum number of connected QPs
- Returns
- DOCA_SUCCESS - in case of success
- DOCA_ERROR_INVALID_VALUE - received invalid input
◆ doca_sta_get_max_num_eus_available()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_num_eus_available | ( | const struct doca_sta * | sta, |
| uint32_t * | max_eus | ||
| ) |
Retrieve the total number of EUs available to the application.
- Parameters
-
[out] max_eus - number of total available EUs
- Returns
- DOCA_SUCCESS - in case of success
- DOCA_ERROR_INVALID_VALUE - received invalid input
◆ doca_sta_get_max_qps()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_qps | ( | uint32_t * | max_qps | ) |
◆ doca_sta_get_max_qs_per_be()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_qs_per_be | ( | uint32_t * | max_qs_per_be | ) |
◆ doca_sta_get_max_sta_io()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_sta_io | ( | const struct doca_sta * | sta, |
| uint16_t * | max_io_num | ||
| ) |
◆ doca_sta_get_max_subsys()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_max_subsys | ( | uint32_t * | max_subsys | ) |
◆ doca_sta_get_min_ioccsz()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_min_ioccsz | ( | uint32_t * | ioccsz | ) |
◆ doca_sta_get_min_iorcsz()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_get_min_iorcsz | ( | uint32_t * | iorcsz | ) |
◆ doca_sta_is_logical_block_size_supported()
| DOCA_EXPERIMENTAL bool doca_sta_is_logical_block_size_supported | ( | uint32_t | size | ) |
◆ doca_sta_set_max_sta_io()
| DOCA_EXPERIMENTAL doca_error_t doca_sta_set_max_sta_io | ( | struct doca_sta * | sta, |
| uint16_t | max_io_num | ||
| ) |
