doca_sta_io.h File Reference

#include <stdint.h>
#include <doca_compat.h>
#include <doca_error.h>
#include <doca_types.h>
#include <doca_sta_handle.h>
#include <doca_sta_task.h>

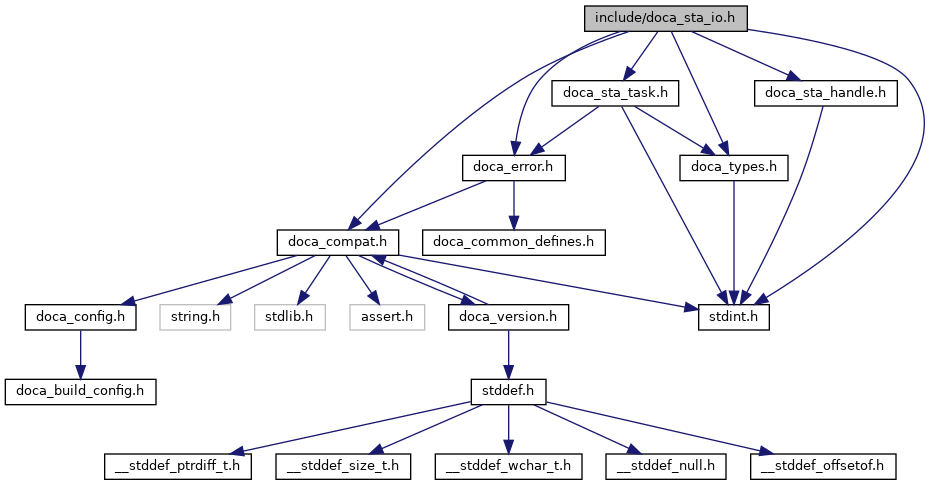

Include dependency graph for doca_sta_io.h:

Go to the source code of this file.

Functions
DOCA_EXPERIMENTAL doca_error_t	doca_sta_io_create (struct doca_sta *sta, struct doca_sta_io **sta_io)
	Create a DOCA STA IO Context. More...
DOCA_EXPERIMENTAL doca_error_t	doca_sta_io_destroy (struct doca_sta_io *sta_io)
	Destroy a DOCA STA IO context. More...
DOCA_EXPERIMENTAL struct doca_ctx *	doca_sta_io_as_ctx (struct doca_sta_io *sta_io)
	Convert doca_sta_io instance into a generalized context for use with doca core objects. More...
DOCA_EXPERIMENTAL doca_error_t	doca_sta_io_task_disconnect_set_conf (struct doca_sta_io *sta_io, doca_sta_task_completion_cb_t task_completion_cb, doca_sta_task_completion_cb_t task_error_cb)
	This method sets the STA IO disconnect tasks configuration. More...
DOCA_EXPERIMENTAL doca_error_t	doca_sta_io_task_disconnect_alloc_init (struct doca_sta_io *sta_io, union doca_data user_data, struct doca_sta_qp_handle *qp_handle, struct doca_sta_producer_task_send **task)
	This method allocates and initializes a STA IO disconnect task. More...

Function Documentation

doca_sta_io_as_ctx()

DOCA_EXPERIMENTAL struct doca_ctx* doca_sta_io_as_ctx

(

struct doca_sta_io *

sta_io

)

Convert doca_sta_io instance into a generalized context for use with doca core objects.

Parameters

[in]

sta_io

- Pointer to doca_sta_io instance.

Returns

Non NULL upon success, NULL otherwise.

doca_sta_io_create()

DOCA_EXPERIMENTAL doca_error_t doca_sta_io_create	(	struct doca_sta *	sta,
		struct doca_sta_io **	sta_io
	)

Create a DOCA STA IO Context.

This function creates a DOCA STA IO context attached to a DOCA STA context (control context). The IO context allows the user to perform IO transactions using the offload engine.

Parameters

[in]	sta	- Previously created STA context
[out]	sta_io	- created IO context

Returns

DOCA_SUCCESS - in case of success Error code - in case of failure. see doca_error_t.

doca_sta_io_destroy()

DOCA_EXPERIMENTAL doca_error_t doca_sta_io_destroy

(

struct doca_sta_io *

sta_io

)

Destroy a DOCA STA IO context.

This function destroys STA IO context created by doca_sta_io_create()

Parameters

[in]

sta_io

- Previously created STA IO context

Returns

DOCA_SUCCESS - in case of success Error code - in case of failure. see doca_error_t.

doca_sta_io_task_disconnect_alloc_init()

DOCA_EXPERIMENTAL doca_error_t doca_sta_io_task_disconnect_alloc_init	(	struct doca_sta_io *	sta_io,
		union doca_data	user_data,
		struct doca_sta_qp_handle *	qp_handle,
		struct doca_sta_producer_task_send **	task
	)

This method allocates and initializes a STA IO disconnect task.

Parameters

[in]	sta_io	The STA IO context to config
[in]	user_data	doca_data to attach to the task
[in]	qp_handle	The handle of the QP that should be disconnected
[out]	task	memcpy task to allocate

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - No more tasks to allocate

doca_sta_io_task_disconnect_set_conf()

DOCA_EXPERIMENTAL doca_error_t doca_sta_io_task_disconnect_set_conf	(	struct doca_sta_io *	sta_io,
		doca_sta_task_completion_cb_t	task_completion_cb,
		doca_sta_task_completion_cb_t	task_error_cb
	)

This method sets the STA IO disconnect tasks configuration.

Parameters

[in]	sta_io	The STA IO context to config
[in]	task_completion_cb	Task completion callback
[in]	task_error_cb	Task error callback

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure. see doca_error_t.
