#include <stdint.h>
#include <doca_compat.h>
#include <doca_error.h>
#include <doca_types.h>

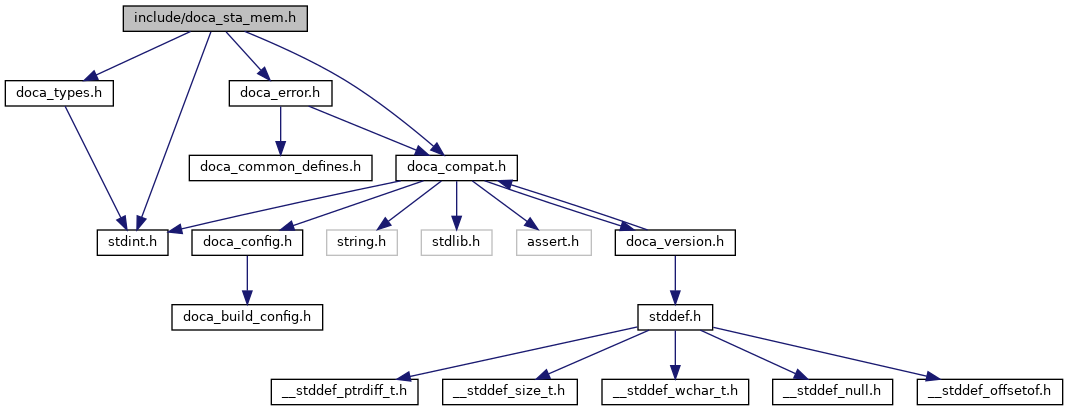

Include dependency graph for doca_sta_mem.h:

Macros
#define	DOCA_STA_VTOPHYS_ERROR (0xFFFFFFFFFFFFFFFFULL)

Typedefs
typedef void (	doca_sta_zmalloc_cb_t) (size_t size, size_t align, uint64_t *phys_addr)
	Function to allocate a pinned memory buffer with the given size and alignment. The buffer will be zeroed. More...

typedef void(*	doca_sta_free_cb_t) (void *buf)
	Function to free a memory buffer previously allocated by doca_sta_zmalloc_cb_t(). More...

typedef uint64_t(*	doca_sta_vtophys_cb_t) (const void *buf, uint32_t size)
	Get the physical address of a buffer previously allocated by doca_sta_zmalloc_cb_t. More...

Functions
DOCA_EXPERIMENTAL doca_error_t	doca_sta_mem_allocator_register (const struct doca_sta *sta, doca_sta_zmalloc_cb_t alloc_cb, doca_sta_free_cb_t free_cb, doca_sta_vtophys_cb_t vtophys_cb)

Macro Definition Documentation

◆ DOCA_STA_VTOPHYS_ERROR

#define DOCA_STA_VTOPHYS_ERROR (0xFFFFFFFFFFFFFFFFULL)

Definition at line 55 of file doca_sta_mem.h.

typedef void(* doca_sta_free_cb_t) (void *buf)

Function to free a memory buffer previously allocated by doca_sta_zmalloc_cb_t().

Parameters

[in] buf Buffer to free

Definition at line 53 of file doca_sta_mem.h.

typedef uint64_t(* doca_sta_vtophys_cb_t) (const void *buf, uint32_t size)

Get the physical address of a buffer previously allocated by doca_sta_zmalloc_cb_t.

Parameters

[in]	buf	A pointer to a buffer.
[in]	size	Contains the size of the memory region pointed to by vaddr.

Returns: the physical address of this buffer on success, or DOCA_STA_VTOPHYS_ERROR on failure.

Definition at line 66 of file doca_sta_mem.h.

typedef void*(* doca_sta_zmalloc_cb_t) (size_t size, size_t align, uint64_t *phys_addr)

Function to allocate a pinned memory buffer with the given size and alignment. The buffer will be zeroed.

Parameters

[in]	size	Size in bytes.
[in]	align	If non-zero, the allocated buffer is aligned to a multiple of align. In this case, it must be a power of two. The returned buffer is always aligned to at least cache line size.
[in]	phys_addr	A pointer to the variable to hold the physical address of the allocated buffer is passed. If NULL, the physical address is not returned.

Definition at line 45 of file doca_sta_mem.h.

DOCA_EXPERIMENTAL doca_error_t doca_sta_mem_allocator_register	(	const struct doca_sta *	sta,
		doca_sta_zmalloc_cb_t	alloc_cb,
		doca_sta_free_cb_t	free_cb,
		doca_sta_vtophys_cb_t	vtophys_cb
	)
