doca_sta_subsystem.h File Reference

#include <stdint.h>
#include <doca_compat.h>
#include <doca_error.h>
#include <doca_sta_handle.h>
#include <doca_sta_task.h>

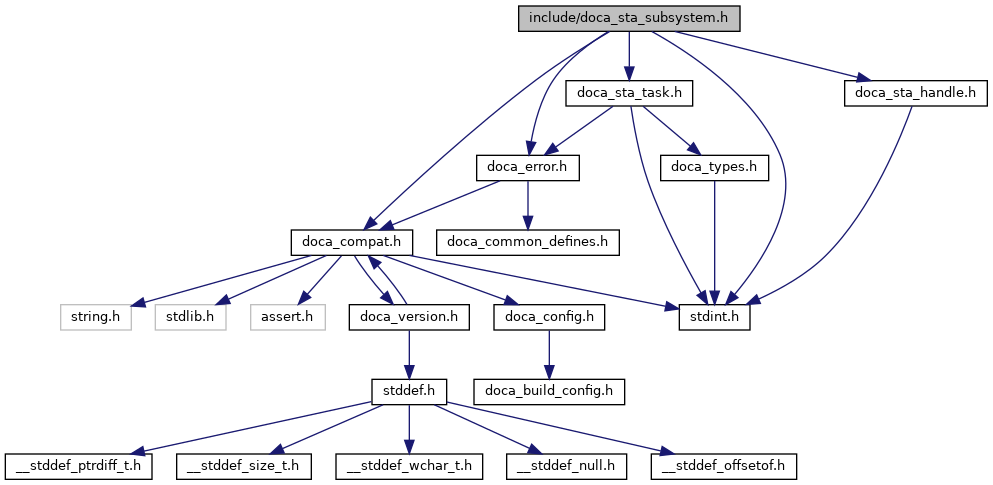

Include dependency graph for doca_sta_subsystem.h:

Go to the source code of this file.

Functions
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_create (struct doca_sta *sta, const char *nqn, struct doca_sta_subs_handle **subs_handle)
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_add_dev (struct doca_sta_subs_handle *subs_handle, const struct doca_dev *dev)
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_task_rm_ns_set_conf (struct doca_sta *sta, doca_sta_task_completion_cb_t task_completion_cb, doca_sta_task_completion_cb_t task_error_cb)
	This method sets the STA remove namespace tasks configuration. More...
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_destroy (struct doca_sta_subs_handle *subs_handle)
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_add_ns (struct doca_sta_subs_handle *subs_handle, uint32_t fe_ns_id, uint32_t ns_block_size, uint32_t be_ns_id, struct doca_sta_be_handle *be_handle, struct doca_sta_ns_handle **ns_handle)
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_rm_ns (struct doca_sta_subs_handle *subs_handle, struct doca_sta_ns_handle *ns_handle)
DOCA_EXPERIMENTAL doca_error_t	doca_sta_subsystem_task_rm_ns_alloc_init (struct doca_sta_subs_handle *subs_handle, struct doca_sta_ns_handle *ns_handle, union doca_data user_data, struct doca_sta_producer_task_send **task)
	This method allocates and initializes a STA remove namespace task. More...

Function Documentation

doca_sta_subsystem_add_dev()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_add_dev	(	struct doca_sta_subs_handle *	subs_handle,
		const struct doca_dev *	dev
	)

doca_sta_subsystem_add_ns()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_add_ns	(	struct doca_sta_subs_handle *	subs_handle,
		uint32_t	fe_ns_id,
		uint32_t	ns_block_size,
		uint32_t	be_ns_id,
		struct doca_sta_be_handle *	be_handle,
		struct doca_sta_ns_handle **	ns_handle
	)

doca_sta_subsystem_create()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_create	(	struct doca_sta *	sta,
		const char *	nqn,
		struct doca_sta_subs_handle **	subs_handle
	)

doca_sta_subsystem_destroy()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_destroy

(

struct doca_sta_subs_handle *

subs_handle

)

doca_sta_subsystem_rm_ns()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_rm_ns	(	struct doca_sta_subs_handle *	subs_handle,
		struct doca_sta_ns_handle *	ns_handle
	)

doca_sta_subsystem_task_rm_ns_alloc_init()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_task_rm_ns_alloc_init	(	struct doca_sta_subs_handle *	subs_handle,
		struct doca_sta_ns_handle *	ns_handle,
		union doca_data	user_data,
		struct doca_sta_producer_task_send **	task
	)

This method allocates and initializes a STA remove namespace task.

Parameters

[in]	subs_handle	The subsystem handle
[in]	ns_handle	The handle of the namespace that should be removed
[in]	user_data	doca_data to attach to the task
[out]	task	memcpy task to allocate

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - No more tasks to allocate

doca_sta_subsystem_task_rm_ns_set_conf()

DOCA_EXPERIMENTAL doca_error_t doca_sta_subsystem_task_rm_ns_set_conf	(	struct doca_sta *	sta,
		doca_sta_task_completion_cb_t	task_completion_cb,
		doca_sta_task_completion_cb_t	task_error_cb
	)

This method sets the STA remove namespace tasks configuration.

Parameters

[in]	sta	The STA context to config
[in]	task_completion_cb	Task completion callback
[in]	task_error_cb	Task error callback

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure. see doca_error_t.
