#include <stddef.h>#include <stdint.h>#include <doca_compat.h>#include <doca_error.h>#include <doca_types.h>

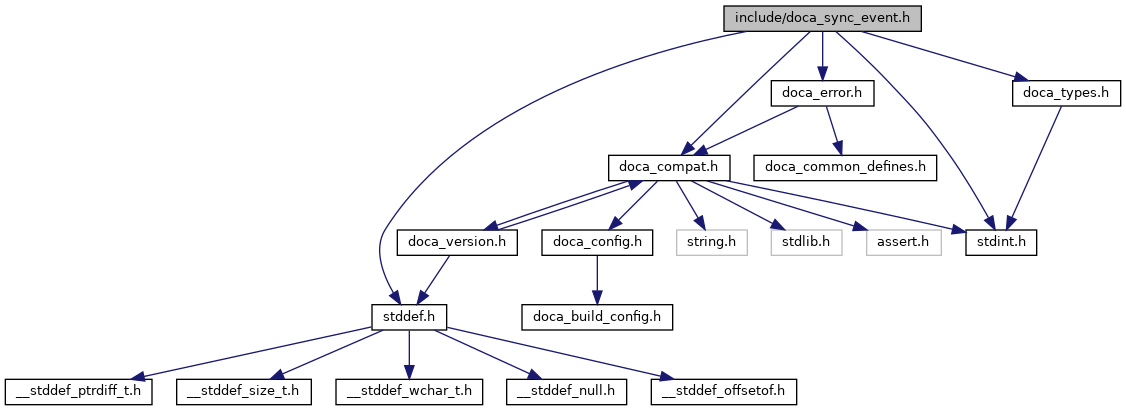

Include dependency graph for doca_sync_event.h:

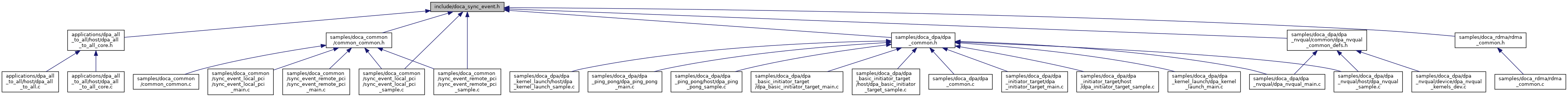

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Typedefs | |
| typedef uint64_t | doca_dpa_dev_sync_event_t |
| DOCA Sync Event DPA handle. More... | |
| typedef uint64_t | doca_dpa_dev_sync_event_remote_net_t |
| DOCA Sync Event remote DPA handle. More... | |
| typedef uint64_t | doca_gpu_dev_sync_event_t |
| DOCA Sync Event GPU handle. More... | |
| typedef uint64_t | doca_gpu_dev_sync_event_remote_net_t |
| DOCA Sync Event remote GPU handle. More... | |
| typedef void(* | doca_sync_event_task_get_completion_cb_t) (struct doca_sync_event_task_get *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Get task completion callback. More... | |
| typedef void(* | doca_sync_event_task_notify_set_completion_cb_t) (struct doca_sync_event_task_notify_set *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Set task completion callback. More... | |
| typedef void(* | doca_sync_event_task_notify_add_completion_cb_t) (struct doca_sync_event_task_notify_add *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Add task completion callback. More... | |
| typedef void(* | doca_sync_event_task_wait_eq_completion_cb_t) (struct doca_sync_event_task_wait_eq *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Wait eq task completion callback. More... | |
| typedef void(* | doca_sync_event_task_wait_neq_completion_cb_t) (struct doca_sync_event_task_wait_neq *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Wait neq task completion callback. More... | |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_create (struct doca_sync_event **event) |
| Create a Sync Event handle. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_create_from_export (struct doca_dev *dev, const uint8_t *data, size_t sz, struct doca_sync_event **event) |
| Create a Sync Event handle from an export. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_is_create_from_export_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_remote_net_create_from_export (struct doca_dev *dev, const uint8_t *data, size_t sz, struct doca_sync_event_remote_net **event) |
| Create a remote Sync Event handle from an export. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_remote_net_is_create_from_export_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_destroy (struct doca_sync_event *event) |
| Destroy a Sync Event instance. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_remote_net_destroy (struct doca_sync_event_remote_net *event) |
| Destroy a Sync Event instance. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_publisher_location_cpu (struct doca_sync_event *event, struct doca_dev *dev) |
| Associate a CPU device context as the Sync Event publisher. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_publisher_location_dpa (struct doca_sync_event *event, struct doca_dpa *dpa) |
| Associate a DOCA DPA context as the Sync Event publisher. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_publisher_location_gpu (struct doca_sync_event *event, struct doca_gpu *gpu) |
| Associate a DOCA GPU context as the Sync Event publisher. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_publisher_location_remote_pci (struct doca_sync_event *event) |
| Declare Sync Event publisher as remote pci. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_publisher_location_remote_net (struct doca_sync_event *event) |
| Declare Sync Event publisher as a remote peer. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_subscriber_location_cpu (struct doca_sync_event *event, struct doca_dev *dev) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_subscriber_location_dpa (struct doca_sync_event *event, struct doca_dpa *dpa) |
| Associate a DOCA DPA context as the Sync Event subscriber. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_subscriber_location_gpu (struct doca_sync_event *event, struct doca_gpu *gpu) |
| Associate a DOCA GPU context as the Sync Event subscriber. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_add_subscriber_location_remote_pci (struct doca_sync_event *event) |
| Declare Sync Event subscriber as remote PCI. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_set_addr (struct doca_sync_event *event, uint64_t *addr) |
| Set the 64-bit value's memory for a Sync Event. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_set_doca_buf (struct doca_sync_event *event, struct doca_buf *buf) |
| Set the 64-bit value's buffer for a Sync Event. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_start (struct doca_sync_event *event) |
| Start a Sync Event to be operate as stand-alone DOCA Core object only. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_stop (struct doca_sync_event *event) |
| Stop a Sync Event which has been previously started with 'doca_sync_event_start'. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_sync_event_as_ctx (struct doca_sync_event *event) |
| Convert a Sync Event to a DOCA context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_task_get_is_supported (const struct doca_devinfo *devinfo) |
| Check if a given device supports submitting a DOCA Sync Event get task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_get_set_conf (struct doca_sync_event *event, doca_sync_event_task_get_completion_cb_t completion_cb, doca_sync_event_task_get_completion_cb_t error_cb, uint32_t num_tasks) |
| Set the DOCA Sync Event get task configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_get_alloc_init (struct doca_sync_event *event, uint64_t *ret_val_ptr, union doca_data user_data, struct doca_sync_event_task_get **task) |
| Allocate a DOCA Sync Event get task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_sync_event_task_get_as_doca_task (struct doca_sync_event_task_get *task) |
| Convert a DOCA Sync Event get task to a DOCA Task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_get_set_ret_val_ptr (struct doca_sync_event_task_get *task, uint64_t *ret_val_ptr) |
| Set the return value pointer of a DOCA Sync Event get task. More... | |
| DOCA_EXPERIMENTAL uint64_t * | doca_sync_event_task_get_get_ret_val_ptr (const struct doca_sync_event_task_get *task) |
| Get the return value pointer of a DOCA Sync Event get task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_task_notify_set_is_supported (const struct doca_devinfo *devinfo) |
| Check if a given device supports submitting a DOCA Sync Event notify-set task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_notify_set_set_conf (struct doca_sync_event *event, doca_sync_event_task_notify_set_completion_cb_t completion_cb, doca_sync_event_task_notify_set_completion_cb_t error_cb, uint32_t num_tasks) |
| Set the DOCA Sync Event notify-set task configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_notify_set_alloc_init (struct doca_sync_event *event, uint64_t set_val, union doca_data user_data, struct doca_sync_event_task_notify_set **task) |
| Allocate a DOCA Sync Event notify-set task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_sync_event_task_notify_set_as_doca_task (struct doca_sync_event_task_notify_set *task) |
| Convert a DOCA Sync Event notify-set task to a DOCA Task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_notify_set_set_set_val (struct doca_sync_event_task_notify_set *task, uint64_t set_val) |
| Set the set value of a DOCA Sync Event notify-set task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_notify_set_get_set_val (const struct doca_sync_event_task_notify_set *task) |
| Get the set value of a DOCA Sync Event notify-set task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_task_notify_add_is_supported (const struct doca_devinfo *devinfo) |
| Check if a given device supports submitting a DOCA Sync Event notify-add task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_notify_add_set_conf (struct doca_sync_event *event, doca_sync_event_task_notify_add_completion_cb_t completion_cb, doca_sync_event_task_notify_add_completion_cb_t error_cb, uint32_t num_tasks) |
| Set the DOCA Sync Event notify-add task configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_notify_add_alloc_init (struct doca_sync_event *event, uint64_t inc_val, uint64_t *fetched_val_ptr, union doca_data user_data, struct doca_sync_event_task_notify_add **task) |
| Allocate a DOCA Sync Event notify-add task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_sync_event_task_notify_add_as_doca_task (struct doca_sync_event_task_notify_add *task) |
| Convert a DOCA Sync Event notify-add task to a DOCA Task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_notify_add_set_inc_val (struct doca_sync_event_task_notify_add *task, uint64_t inc_val) |
| Set the increment value of a doca notify-add task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_notify_add_get_inc_val (const struct doca_sync_event_task_notify_add *task) |
| Get the increment value of a DOCA Sync Event notify-add task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_notify_add_set_fetched_val_ptr (struct doca_sync_event_task_notify_add *task, uint64_t *fetched_val_ptr) |
| Set the fetched value pointer of a DOCA Sync Event notify-add task. More... | |
| DOCA_EXPERIMENTAL uint64_t * | doca_sync_event_task_notify_add_get_fetched_val_ptr (const struct doca_sync_event_task_notify_add *task) |
| Get the fetched value pointer of a DOCA Sync Event notify-add task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_task_wait_eq_is_supported (const struct doca_devinfo *devinfo) |
| Check if a given device supports submitting a DOCA Sync Event wait-equal task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_wait_eq_set_conf (struct doca_sync_event *event, doca_sync_event_task_wait_eq_completion_cb_t completion_cb, doca_sync_event_task_wait_eq_completion_cb_t error_cb, uint32_t num_tasks) |
| Set the DOCA Sync Event wait-equal task configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_wait_eq_alloc_init (struct doca_sync_event *event, uint64_t wait_val, uint64_t mask, union doca_data user_data, struct doca_sync_event_task_wait_eq **task) |
| Allocate a DOCA Sync Event wait-equal task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_sync_event_task_wait_eq_as_doca_task (struct doca_sync_event_task_wait_eq *task) |
| Convert a DOCA Sync Event wait-equal task to a DOCA Task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_wait_eq_set_wait_val (struct doca_sync_event_task_wait_eq *task, uint64_t wait_val) |
| Set the wait value of a DOCA wait-equal task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_wait_eq_get_wait_val (const struct doca_sync_event_task_wait_eq *task) |
| Get the wait value of a DOCA Sync Event wait-equal task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_wait_eq_set_mask (struct doca_sync_event_task_wait_eq *task, uint64_t mask) |
| Set the mask of a DOCA wait-equal task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_wait_eq_get_mask (const struct doca_sync_event_task_wait_eq *task) |
| Get the mask of a DOCA Sync Event wait-equal task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_task_wait_neq_is_supported (const struct doca_devinfo *devinfo) |
| Check if a given device supports submitting a DOCA Sync Event wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_wait_neq_set_conf (struct doca_sync_event *event, doca_sync_event_task_wait_neq_completion_cb_t completion_cb, doca_sync_event_task_wait_neq_completion_cb_t error_cb, uint32_t num_tasks) |
| Set the DOCA Sync Event wait-not-equal task configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_task_wait_neq_alloc_init (struct doca_sync_event *event, uint64_t wait_val, uint64_t mask, union doca_data user_data, struct doca_sync_event_task_wait_neq **task) |
| Allocate a DOCA Sync Event wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_sync_event_task_wait_neq_as_doca_task (struct doca_sync_event_task_wait_neq *task) |
| Convert a DOCA Sync Event wait-not-equal task to a DOCA Task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_wait_neq_set_wait_val (struct doca_sync_event_task_wait_neq *task, uint64_t wait_val) |
| Set the wait value of a DOCA wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_wait_neq_get_wait_val (const struct doca_sync_event_task_wait_neq *task) |
| Get the wait value of a DOCA Sync Event wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL void | doca_sync_event_task_wait_neq_set_mask (struct doca_sync_event_task_wait_neq *task, uint64_t mask) |
| Set the mask of a DOCA wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL uint64_t | doca_sync_event_task_wait_neq_get_mask (const struct doca_sync_event_task_wait_neq *task) |
| Get the mask of a DOCA Sync Event wait-not-equal task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_export_to_remote_pci (struct doca_sync_event *event, struct doca_dev *dev, const uint8_t **data, size_t *sz) |
| Export Sync Event to be shared with remote PCI. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_is_export_to_remote_pci_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_get_dpa_handle (struct doca_sync_event *event, struct doca_dpa *dpa, doca_dpa_dev_sync_event_t *dpa_dev_se_handle) |
| Export Sync Event to be shared with the DPA. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_is_export_to_dpa_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_get_gpu_handle (struct doca_sync_event *event, struct doca_gpu *gpu, doca_gpu_dev_sync_event_t **gpu_dev_se) |
| Export Sync Event to be shared with the GPU. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_is_export_to_gpu_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_export_to_remote_net (struct doca_sync_event *event, const uint8_t **data, size_t *sz) |
| Export Sync Event to be shared with a remote peer. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_is_export_to_remote_net_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_remote_net_get_dpa_handle (struct doca_sync_event_remote_net *event, struct doca_dpa *dpa, doca_dpa_dev_sync_event_remote_net_t *dpa_remote_event) |
| Export remote Sync Event to be shared with the DPA. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_remote_net_is_export_to_dpa_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_remote_net_get_gpu_handle (struct doca_sync_event_remote_net *event, struct doca_gpu *gpu, doca_gpu_dev_sync_event_remote_net_t *gpu_remote_event) |
| Export remote Sync Event to be shared with the GPU. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_cap_remote_net_is_export_to_gpu_supported (const struct doca_devinfo *devinfo) |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_get (struct doca_sync_event *event, uint64_t *value) |
| Get the value of a Sync Event synchronously. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_update_add (struct doca_sync_event *event, uint64_t value, uint64_t *fetched) |
| Atomically increase the value of a Sync Event by some value synchronously. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_update_set (struct doca_sync_event *event, uint64_t value) |
| Set the value of a Sync Event to some value synchronously. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_gt (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be grater than some threshold value synchronously in a polling busy wait manner. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_gt_yield (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be grater than some threshold value synchronously in a periodically busy wait manner. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_eq (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be equal to some value synchronously in a busy wait manner. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_eq_yield (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be equal to some value synchronously in a periodically busy wait manner. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_neq (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be not equal to some value synchronously in a busy wait manner. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_sync_event_wait_neq_yield (struct doca_sync_event *event, uint64_t value, uint64_t mask) |
| Wait for the value of a Sync Event to be not equal to some value synchronously in a periodically busy wait manner. More... | |
