doca_telemetry_diag.h File Reference

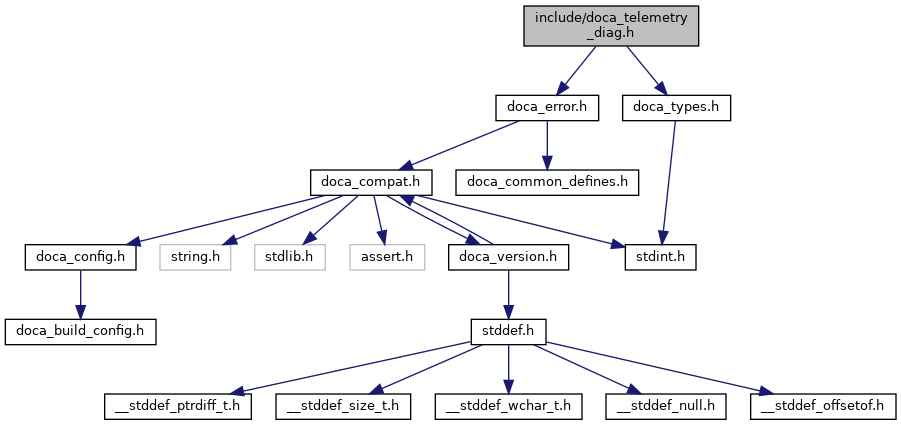

Include dependency graph for doca_telemetry_diag.h:

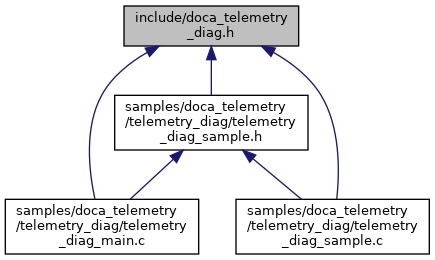

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | doca_telemetry_diag_data_sample_format_0_value |
| Output format 0 per-ID struct. More... | |
| struct | doca_telemetry_diag_data_sample_format_0 |
| Output format 0 struct. More... | |
| struct | doca_telemetry_diag_data_sample_format_1 |
| Output format 1 struct. More... | |
| struct | doca_telemetry_diag_data_sample_format_2 |
| Output format 2 struct. More... | |
Typedefs | |
| typedef struct doca_telemetry_diag_data_sample_format_0_value | doca_telemetry_diag_data_sample_format_0_value |
| Output format 0 per-ID struct. More... | |
| typedef struct doca_telemetry_diag_data_sample_format_0 | doca_telemetry_diag_data_sample_format_0 |
| Output format 0 struct. More... | |
| typedef struct doca_telemetry_diag_data_sample_format_1 | doca_telemetry_diag_data_sample_format_1 |
| Output format 1 struct. More... | |
| typedef struct doca_telemetry_diag_data_sample_format_2 | doca_telemetry_diag_data_sample_format_2 |
| Output format 2 struct. More... | |
Enumerations | |
| enum | doca_telemetry_diag_sync_mode { DOCA_TELEMETRY_DIAG_SYNC_MODE_NO_SYNC = 0 , DOCA_TELEMETRY_DIAG_SYNC_MODE_SYNC_START = 1 } |
| Synchronization mode of data sampling. More... | |
| enum | doca_telemetry_diag_sample_mode { DOCA_TELEMETRY_DIAG_SAMPLE_MODE_SINGLE = 0 , DOCA_TELEMETRY_DIAG_SAMPLE_MODE_REPETITIVE = 1 , DOCA_TELEMETRY_DIAG_SAMPLE_MODE_ON_DEMAND = 2 } |
| description of data sampling mode More... | |
| enum | doca_telemetry_diag_timestamp_source { DOCA_TELEMETRY_DIAG_TIMESTAMP_SOURCE_FRC = 0 , DOCA_TELEMETRY_DIAG_TIMESTAMP_SOURCE_RTC = 1 } |
| description of the timestamp source of the sample More... | |
| enum | doca_telemetry_diag_output_format { DOCA_TELEMETRY_DIAG_OUTPUT_FORMAT_0 = 0 , DOCA_TELEMETRY_DIAG_OUTPUT_FORMAT_1 = 1 , DOCA_TELEMETRY_DIAG_OUTPUT_FORMAT_2 = 2 } |
| Defines the layout of the diagnostic data output: More... | |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_is_supported (const struct doca_devinfo *devinfo) |
| Check if given device is capable of executing telemetry diagnostics operations. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_get_max_num_data_ids (const struct doca_devinfo *devinfo, uint32_t *max_num_data_ids) |
| Get the maximal num of data IDs that is supported by a given device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_get_log_max_num_samples (const struct doca_devinfo *devinfo, uint8_t *log_max_num_samples) |
| Get the maximal num (in log base 2) of samples that is supported by a given device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_is_data_clear_supported (const struct doca_devinfo *devinfo, uint8_t *data_clear) |
| Check if given device supports data clear. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_is_sync_start_supported (const struct doca_devinfo *devinfo, uint8_t *sync_start) |
| Check if given device supports sync start. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_is_sample_mode_supported (const struct doca_devinfo *devinfo, enum doca_telemetry_diag_sample_mode sample_mode, uint8_t *sample_mode_supported) |
| Check if given device supports a given sample mode. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_cap_is_data_timestamp_source_supported (const struct doca_devinfo *devinfo, enum doca_telemetry_diag_timestamp_source data_timestamp_source, uint8_t *timestamp_source_supported) |
| Check if given device supports a given data timestamp source. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_create (struct doca_dev *dev, uint8_t force_ownership, struct doca_telemetry_diag **diag) |
| Create a DOCA Telemetry Diagnostics instance. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_destroy (struct doca_telemetry_diag *diag) |
| Destroy doca_telemetry_diag previously created by doca_telemetry_diag_create(). More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_apply_config (struct doca_telemetry_diag *diag) |
| Apply device configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_start (struct doca_telemetry_diag *diag) |
| Start device sampling - trigger device to collect metrics. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_restart (struct doca_telemetry_diag *diag) |
| Restart device sampling - trigger device to collect new metrics. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_stop (struct doca_telemetry_diag *diag) |
| Stop device sampling. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_output_format (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_output_format output_format) |
| Set output format. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_output_format (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_output_format *output_format) |
| Get output format. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_sample_period (struct doca_telemetry_diag *diag, uint64_t sample_period) |
| Set sample period. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_sample_period (struct doca_telemetry_diag *diag, uint64_t *sample_period) |
| Get sample period. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_log_max_num_samples (struct doca_telemetry_diag *diag, uint8_t log_max_num_samples) |
| Set log max of samples. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_log_max_num_samples (struct doca_telemetry_diag *diag, uint8_t *log_max_num_samples) |
| Get log max of samples. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_max_num_data_ids (struct doca_telemetry_diag *diag, uint32_t max_num_data_ids) |
| Set max num of data IDs. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_max_num_data_ids (struct doca_telemetry_diag *diag, uint32_t *max_num_data_ids) |
| Get max num of data IDs. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_sync_mode (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_sync_mode sync_mode) |
| Set synchronization mode. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_sync_mode (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_sync_mode *sync_mode) |
| Get synchronization mode. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_sample_mode (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_sample_mode sample_mode) |
| Set sampling mode. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_sample_mode (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_sample_mode *sample_mode) |
| Get Sampling mode. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_data_clear (struct doca_telemetry_diag *diag, uint8_t data_clear) |
| Set data clear. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_data_clear (struct doca_telemetry_diag *diag, uint8_t *data_clear) |
| Get data clear. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_set_data_timestamp_source (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_timestamp_source data_timestamp_source) |
| Set data timestamp source. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_data_timestamp_source (struct doca_telemetry_diag *diag, enum doca_telemetry_diag_timestamp_source *data_timestamp_source) |
| Get data timestamp source. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_check_data_id (struct doca_telemetry_diag *diag, uint64_t data_id) |
| Check if a counter is supported in current configuration, by it's data ID. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_apply_counters_list_by_id (struct doca_telemetry_diag *diag, const uint64_t *data_ids, uint32_t num_data_ids, uint64_t *counter_id_failure) |
| Apply the counters, by their data ID, to be queried. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_num_applied_counters (struct doca_telemetry_diag *diag, uint32_t *num_applied_counters) |
| Get number of currently applied counters. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_applied_counters_list_by_id (struct doca_telemetry_diag *diag, uint32_t num_data_ids, uint64_t *data_ids) |
| Get list of currently applied counters, by their ID. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_get_sample_size (struct doca_telemetry_diag *diag, uint32_t *sample_size) |
| DOCA_EXPERIMENTAL doca_error_t | doca_telemetry_diag_query_counters (struct doca_telemetry_diag *diag, void *buf, uint32_t max_samples_to_read, uint32_t *num_valid_samples) |
