doca_telemetry_dpa.h File Reference

#include <doca_error.h>
#include <doca_types.h>

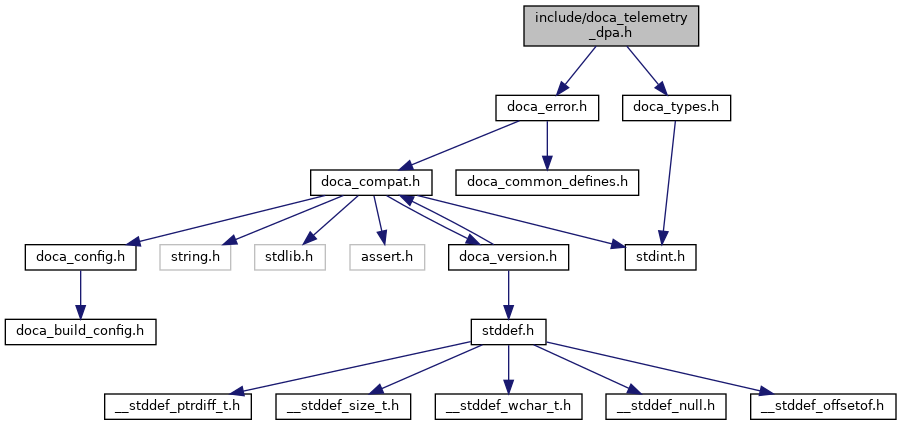

Include dependency graph for doca_telemetry_dpa.h:

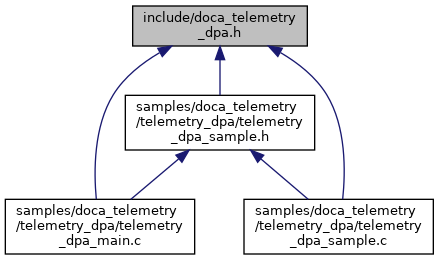

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	doca_telemetry_dpa_process_info
	Single process structure. More...
struct	doca_telemetry_dpa_thread_info
	Single thread structure. More...
struct	doca_telemetry_dpa_cumul_info
	Single cumulative info structure. More...
struct	doca_telemetry_dpa_event_sample
	Single performance events tracer structure. More...

Macros
#define	DOCA_TELEMETRY_DPA_PROCESS_NAME_SIZE   (17)
#define	DOCA_TELEMETRY_DPA_THREAD_NAME_SIZE   (17)

Typedefs
typedef struct doca_telemetry_dpa_process_info	doca_telemetry_dpa_process_info_t
	Single process structure. More...
typedef struct doca_telemetry_dpa_thread_info	doca_telemetry_dpa_thread_info_t
	Single thread structure. More...
typedef struct doca_telemetry_dpa_cumul_info	doca_telemetry_dpa_cumul_info_t
	Single cumulative info structure. More...
typedef struct doca_telemetry_dpa_event_sample	doca_telemetry_dpa_event_sample_t
	Single performance events tracer structure. More...

Enumerations
enum	doca_telemetry_dpa_counter_state { DOCA_TELEMETRY_DPA_COUNTER_STATE_ACTIVE = 0x1 , DOCA_TELEMETRY_DPA_COUNTER_STATE_INACTIVE = 0x2 , DOCA_TELEMETRY_DPA_COUNTER_STATE_RESET = 0x3 }
	Performance counters state. More...
enum	doca_telemetry_dpa_counter_type { DOCA_TELEMETRY_DPA_COUNTER_TYPE_CUMULATIVE_EVENT = 0x0 , DOCA_TELEMETRY_DPA_COUNTER_TYPE_EVENT_TRACER = 0x1 }
	Performance counters type. More...
enum	doca_telemetry_dpa_event_sample_type { DOCA_TELEMETRY_DPA_EVENT_SAMPLE_TYPE_EMPTY_SAMPLE = 0x0 , DOCA_TELEMETRY_DPA_EVENT_SAMPLE_TYPE_SCHEDULE_IN = 0x1 , DOCA_TELEMETRY_DPA_EVENT_SAMPLE_TYPE_SCHEDULE_OUT = 0x2 , DOCA_TELEMETRY_DPA_EVENT_SAMPLE_TYPE_BUFFER_FULL = 0xff }
	List of the performance event samples type. More...

Functions
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_cap_is_supported (const struct doca_devinfo *devinfo)
	Check if given device is capable of executing telemetry DPA operations. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_create (struct doca_dev *dev, struct doca_telemetry_dpa **dpa)
	Create a DOCA telemetry DPA instance. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_destroy (struct doca_telemetry_dpa *dpa)
	Destroy doca_telemetry_dpa previously created by doca_telemetry_dpa_create(). More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_start (struct doca_telemetry_dpa *dpa)
	Start context for telemetry DPA. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_stop (struct doca_telemetry_dpa *dpa)
	Stop telemetry DPA context. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_read_processes_list (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t *dpa_process_num, doca_telemetry_dpa_process_info_t *process_list)
	Read the processes info. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_read_thread_list (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t thread_id, uint32_t *dpa_threads_num, doca_telemetry_dpa_thread_info_t *thread_list)
	Read threads info. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_counter_start (struct doca_telemetry_dpa *dpa, uint32_t process_id, enum doca_telemetry_dpa_counter_type type)
	Start device counters sampling - trigger device to collect performance metrics. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_counter_restart (struct doca_telemetry_dpa *dpa, uint32_t process_id, enum doca_telemetry_dpa_counter_type type)
	Restart device counters sampling. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_counter_stop (struct doca_telemetry_dpa *dpa, uint32_t process_id, enum doca_telemetry_dpa_counter_type type)
	Stop device counters sampling. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_read_cumul_info_list (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t thread_id, uint32_t *cumul_samples_num, doca_telemetry_dpa_cumul_info_t *cumul_info_list)
	Read list of the cumulative info counters. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_read_perf_event_list (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t thread_id, uint32_t *perf_event_samples_num, doca_telemetry_dpa_event_sample_t *perf_event_list)
	Read list of the performance event samples. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_dpa_timer_freq (struct doca_telemetry_dpa *dpa, uint32_t *dpa_timer_freq)
	Get DPA timer frequency. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_process_list_size (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t *dpa_process_list_size)
	Get memory size (in bytes) to allocate the process list. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_thread_list_size (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t thread_id, uint32_t *dpa_thread_list_size)
	Get memory size (in bytes) to allocate the thread list. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_cumul_samples_size (struct doca_telemetry_dpa *dpa, uint32_t process_id, uint32_t thread_id, uint32_t *dpa_cumul_samples_size)
	Get memory size (in bytes) to allocate the cumul samples. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_set_max_perf_event_samples (struct doca_telemetry_dpa *dpa, uint32_t dpa_max_perf_event_samples)
	Set maximum number of perf event samples. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_max_perf_event_samples (struct doca_telemetry_dpa *dpa, uint32_t *dpa_max_perf_event_samples)
	Get maximum number of perf event samples. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_perf_event_samples_size (struct doca_telemetry_dpa *dpa, uint32_t *dpa_perf_event_samples_size)
	Get memory size (in bytes) to allocate the perf event samples. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_counter_state (struct doca_telemetry_dpa *dpa, uint32_t process_id, enum doca_telemetry_dpa_counter_state *state)
	Get counter state. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_counter_type (struct doca_telemetry_dpa *dpa, uint32_t process_id, enum doca_telemetry_dpa_counter_type *type)
	Get counter state and type. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_all_process_id (const struct doca_devinfo *devinfo, uint32_t *all_process_id)
	Get all process mask. More...
DOCA_EXPERIMENTAL doca_error_t	doca_telemetry_dpa_get_all_thread_id (const struct doca_devinfo *devinfo, uint32_t *all_thread_id)
	Get all threads mask. More...
