#include <stdint.h>

Include dependency graph for doca_transport_common.h:

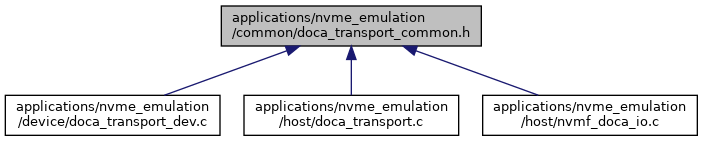

This graph shows which files directly or indirectly include this file:

Data Structures
struct	comch_msg

struct	io_thread_arg

Macros
#define	RPC_RETURN_STATUS_SUCCESS 0

#define	RPC_RETURN_STATUS_ERROR 1

#define	MAX_NUM_COMCH_MSGS 1024

Enumerations
enum	comch_msg_type { COMCH_MSG_DIRECTION = 1 , COMCH_MSG_EXPORT_DESCRIPTOR = 2 , COMCH_MSG_STATUS = 3 , COMCH_MSG_TYPE_BIND_SQ_DB , COMCH_MSG_TYPE_BIND_SQ_DB_DONE , COMCH_MSG_TYPE_UNBIND_SQ_DB , COMCH_MSG_TYPE_UNBIND_SQ_DB_DONE , COMCH_MSG_TYPE_RAISE_MSIX , COMCH_MSG_TYPE_HOST_DB }

Functions
struct comch_msg	__attribute__ ((__packed__, aligned(8)))

Variables
enum comch_msg_type	type

union {
struct {
uint64_t db

uint64_t cookie

} bind_sq_db_data

struct {
uint64_t cookie

} bind_sq_db_done_data

struct {
uint64_t db

uint64_t cookie

} unbind_sq_db_data

struct {
uint64_t cookie

} unbind_sq_db_done_data

struct {
uint64_t db_user_data

uint32_t db_value

} host_db_data

};

uint64_t	dpa_consumer_comp

uint64_t	dpa_producer_comp

uint64_t	dpa_producer

uint64_t	dpa_consumer

uint64_t	dpa_db_comp

uint64_t	dpa_msix

Macro Definition Documentation

◆ MAX_NUM_COMCH_MSGS

#define MAX_NUM_COMCH_MSGS 1024

Definition at line 33 of file doca_transport_common.h.

◆ RPC_RETURN_STATUS_ERROR

#define RPC_RETURN_STATUS_ERROR 1

Definition at line 32 of file doca_transport_common.h.

◆ RPC_RETURN_STATUS_SUCCESS

#define RPC_RETURN_STATUS_SUCCESS 0

Definition at line 31 of file doca_transport_common.h.

Enumeration Type Documentation

◆ comch_msg_type

enum comch_msg_type

Enumerator
COMCH_MSG_DIRECTION
COMCH_MSG_EXPORT_DESCRIPTOR
COMCH_MSG_STATUS
COMCH_MSG_TYPE_BIND_SQ_DB
COMCH_MSG_TYPE_BIND_SQ_DB_DONE
COMCH_MSG_TYPE_UNBIND_SQ_DB
COMCH_MSG_TYPE_UNBIND_SQ_DB_DONE
COMCH_MSG_TYPE_RAISE_MSIX
COMCH_MSG_TYPE_HOST_DB

Definition at line 35 of file doca_transport_common.h.

Function Documentation

◆ attribute()

struct comch_msg __attribute__ ( (__packed__, aligned(8)) )

Variable Documentation

◆

union { ... }

◆

struct { ... } bind_sq_db_data

◆

struct { ... } bind_sq_db_done_data

◆ cookie

uint64_t cookie

Definition at line 4 of file doca_transport_common.h.

◆ db

uint64_t db

Definition at line 3 of file doca_transport_common.h.

◆ db_user_data

uint64_t db_user_data

Definition at line 17 of file doca_transport_common.h.

◆ db_value

uint32_t db_value

Definition at line 18 of file doca_transport_common.h.

◆ dpa_consumer

uint64_t dpa_consumer

Definition at line 3 of file doca_transport_common.h.

◆ dpa_consumer_comp

uint64_t dpa_consumer_comp

Definition at line 0 of file doca_transport_common.h.

◆ dpa_db_comp

uint64_t dpa_db_comp

Definition at line 4 of file doca_transport_common.h.

◆ dpa_msix

uint64_t dpa_msix

Definition at line 5 of file doca_transport_common.h.

◆ dpa_producer

uint64_t dpa_producer

Definition at line 2 of file doca_transport_common.h.

◆ dpa_producer_comp

uint64_t dpa_producer_comp

Definition at line 1 of file doca_transport_common.h.

◆

struct { ... } host_db_data

◆ type

enum comch_msg_type type

Definition at line 63 of file doca_transport_common.h.

◆

struct { ... } unbind_sq_db_data

◆

struct { ... } unbind_sq_db_done_data
