doca_urom.h File Reference
#include <ucs/type/cpu_set.h>#include <doca_error.h>#include <doca_types.h>#include <doca_urom_plugin.h>

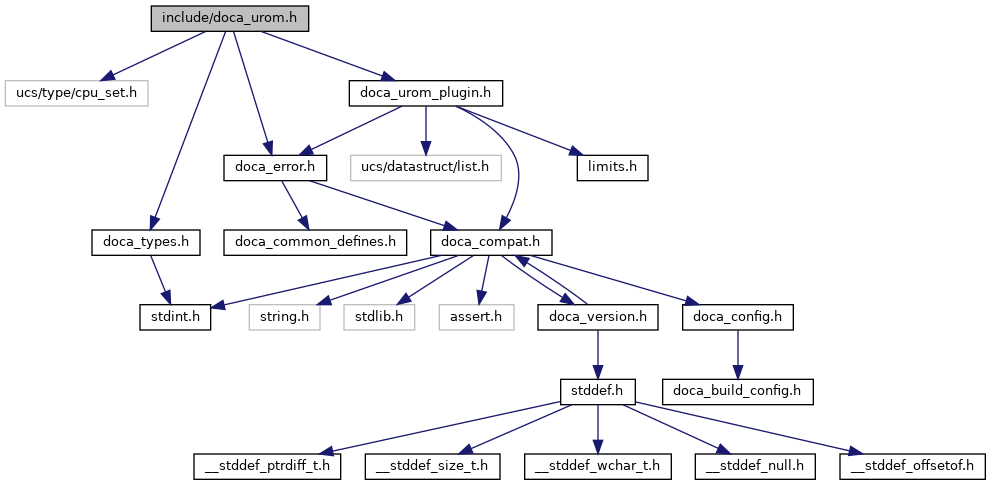

Include dependency graph for doca_urom.h:

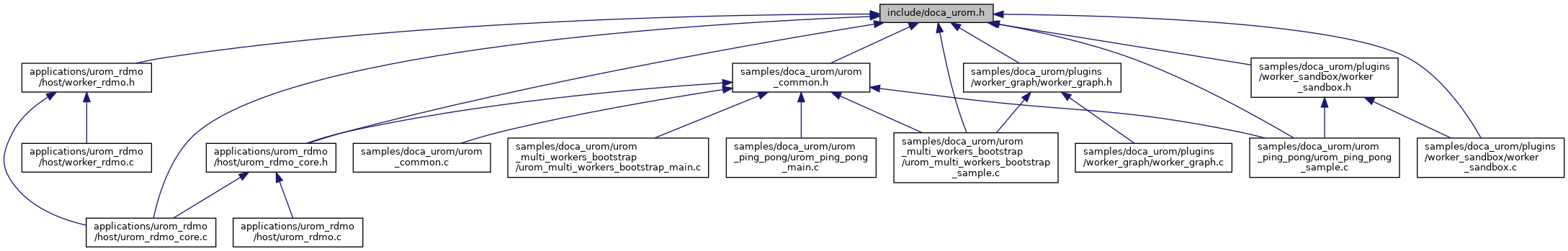

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | doca_urom_domain_oob_coll |
| Out-of-band communication descriptor for Domain creation. More... | |
Macros | |
| #define | DOCA_CPU_ZERO(_cpusetp) UCS_CPU_ZERO(_cpusetp) |
| Set DOCA CPU set to zero. More... | |
| #define | DOCA_CPU_SET(_cpu, _cpusetp) UCS_CPU_SET(_cpu, _cpusetp) |
| Set specific bit in DOCA CPU set. More... | |
| #define | doca_cpu_is_set(_cpu, _cpusetp) ucs_cpu_is_set(_cpu, _cpusetp) |
| Check if specific bit in DOCA CPU is set. More... | |
| #define | DOCA_UROM_WORKER_ID_ANY -1ULL |
| DOCA UROM WORKER ID any give the library the responsibility to generate a worker id. More... | |
Typedefs | |
| typedef ucs_cpu_set_t | doca_cpu_set_t |
| DOCA CPU set structure. More... | |
| typedef void(* | doca_urom_service_get_workers_by_gid_task_completion_cb_t) (struct doca_urom_service_get_workers_by_gid_task *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Service get workers task completion callback type. More... | |
| typedef void(* | doca_urom_worker_cmd_task_completion_cb_t) (struct doca_urom_worker_cmd_task *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| Worker Command task completion callback type. More... | |
| typedef doca_error_t(* | doca_urom_domain_allgather_cb_t) (void *sbuf, void *rbuf, size_t msglen, void *coll_info, void **req) |
| Callback for a non-blocking allgather operation. More... | |
| typedef doca_error_t(* | doca_urom_domain_req_test_cb_t) (void *req) |
| Callback to test the status of a non-blocking allgather request. More... | |
| typedef doca_error_t(* | doca_urom_domain_req_free_cb_t) (void *req) |
| Callback to free a non-blocking allgather request. More... | |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_create (struct doca_urom_service **service_ctx) |
| This method creates a UROM Service context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_destroy (struct doca_urom_service *service_ctx) |
| This method destroys a UROM Service context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_set_max_comm_msg_size (struct doca_urom_service *service_ctx, size_t msg_size) |
| Set the maximum message size for the UROM communication channel. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_set_max_workers (struct doca_urom_service *service_ctx, uint32_t max_workers) |
| Set maximum number of UROM workers. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_set_dev (struct doca_urom_service *service_ctx, struct doca_dev *dev) |
| This method attaches a DOCA Device to the UROM Service context. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_urom_service_as_ctx (struct doca_urom_service *service_ctx) |
| Convert service_ctx instance into a generalized context for use with DOCA core objects. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_get_plugins_list (struct doca_urom_service *service_ctx, const struct doca_urom_service_plugin_info **plugins, size_t *plugins_count) |
| This method gets the list of supported plugins on service's DPU side. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_get_cpuset (struct doca_urom_service *service_ctx, doca_cpu_set_t *cpuset) |
| Get the allowed CPU set for the service. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_get_workers_by_gid_task_allocate (struct doca_urom_service *service_ctx, struct doca_urom_service_get_workers_by_gid_task **task) |
| Allocate Service get workers by gid task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_get_workers_by_gid_task_allocate_init (struct doca_urom_service *service_ctx, uint32_t gid, doca_urom_service_get_workers_by_gid_task_completion_cb_t cb, struct doca_urom_service_get_workers_by_gid_task **task) |
| Allocate Service get workers by gid task and set task attributes. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_service_get_workers_by_gid_task_release (struct doca_urom_service_get_workers_by_gid_task *task) |
| Release Service get workers by gid task. More... | |
| DOCA_EXPERIMENTAL void | doca_urom_service_get_workers_by_gid_task_set_gid (struct doca_urom_service_get_workers_by_gid_task *task, uint32_t gid) |
| Set Service get workers task group id. More... | |
| DOCA_EXPERIMENTAL void | doca_urom_service_get_workers_by_gid_task_set_cb (struct doca_urom_service_get_workers_by_gid_task *task, doca_urom_service_get_workers_by_gid_task_completion_cb_t cb) |
| Set Service get workers task completion callback. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_urom_service_get_workers_by_gid_task_as_task (struct doca_urom_service_get_workers_by_gid_task *task) |
| This method converts a service get workers task to doca_task. More... | |
| DOCA_EXPERIMENTAL size_t | doca_urom_service_get_workers_by_gid_task_get_workers_count (struct doca_urom_service_get_workers_by_gid_task *task) |
| Get the number of workers returned for the requested gid. More... | |
| DOCA_EXPERIMENTAL const uint64_t * | doca_urom_service_get_workers_by_gid_task_get_worker_ids (struct doca_urom_service_get_workers_by_gid_task *task) |
| Get Service get workers task ids array. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_create (struct doca_urom_worker **worker_ctx) |
| This method creates a UROM Worker context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_destroy (struct doca_urom_worker *worker_ctx) |
| This method destroys a UROM Worker context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_service (struct doca_urom_worker *worker_ctx, struct doca_urom_service *service_ctx) |
| This method attaches a UROM Service to the Worker context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_id (struct doca_urom_worker *worker_ctx, uint64_t worker_id) |
| This method sets the Worker context ID to be used to identify the Worker. Worker IDs enable an application to establish multiple connections to the same Worker process running on a DOCA Device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_plugins (struct doca_urom_worker *worker_ctx, uint64_t plugins) |
| This method adds plugins mask for the supported plugins by the UROM Worker on the DPU. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_cpuset (struct doca_urom_worker *worker_ctx, doca_cpu_set_t cpuset) |
| Set the allowed CPUs for the Worker. The cpuset must be a subset of the service's allowed CPUs. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_gid (struct doca_urom_worker *worker_ctx, uint32_t gid) |
| Set worker group ID, must be set before starting the worker context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_max_inflight_tasks (struct doca_urom_worker *worker_ctx, uint32_t max_tasks) |
| Set Worker maximum in-flight tasks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_set_env (struct doca_urom_worker *worker_ctx, char *const env[], size_t count) |
| Set worker env variables when spawning worker on DPU side. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_get_id (struct doca_urom_worker *worker_ctx, uint64_t *worker_id) |
| This method gets the Worker context ID to be used to identify the Worker. Worker IDs enable an application to establish multiple connections to the same Worker process running on a DOCA Device. If when creating the worker the user sets worker id equals to DOCA_UROM_WORKER_ID_ANY the library will generate new id for the worker. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_get_gid (struct doca_urom_worker *worker_ctx, uint32_t *worker_gid) |
| This method gets the Worker context group ID to be used to identify the Worker group that belongs to. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_urom_worker_as_ctx (struct doca_urom_worker *worker_ctx) |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_cmd_task_allocate (struct doca_urom_worker *worker_ctx, struct doca_urom_worker_cmd_task **task) |
| Allocate Worker Command task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_cmd_task_allocate_init (struct doca_urom_worker *worker_ctx, uint64_t plugin, struct doca_urom_worker_cmd_task **task) |
| Allocate and initialize Worker Command task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_worker_cmd_task_release (struct doca_urom_worker_cmd_task *task) |
| Release Worker Command task. More... | |
| DOCA_EXPERIMENTAL void | doca_urom_worker_cmd_task_set_plugin (struct doca_urom_worker_cmd_task *task, uint64_t plugin) |
| Set Worker Command task plugin. More... | |
| DOCA_EXPERIMENTAL void | doca_urom_worker_cmd_task_set_cb (struct doca_urom_worker_cmd_task *task, doca_urom_worker_cmd_task_completion_cb_t cb) |
| Set Worker Command task callback. More... | |
| DOCA_EXPERIMENTAL struct doca_buf * | doca_urom_worker_cmd_task_get_payload (struct doca_urom_worker_cmd_task *task) |
| Get Worker Command task payload. More... | |
| DOCA_EXPERIMENTAL struct doca_buf * | doca_urom_worker_cmd_task_get_response (struct doca_urom_worker_cmd_task *task) |
| Get Worker Command task response. More... | |
| DOCA_EXPERIMENTAL void * | doca_urom_worker_cmd_task_get_user_data (struct doca_urom_worker_cmd_task *task) |
| Get Worker Command user data to populate. More... | |
| DOCA_EXPERIMENTAL struct doca_task * | doca_urom_worker_cmd_task_as_task (struct doca_urom_worker_cmd_task *task) |
| This method converts a worker cmd task to doca_task. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_create (struct doca_urom_domain **domain_ctx) |
| This method creates a UROM Domain context. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_destroy (struct doca_urom_domain *domain_ctx) |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_set_buffers_count (struct doca_urom_domain *domain_ctx, size_t buffers_cnt) |
| This method attaches the number of local buffers that will be added to the Domain. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_add_buffer (struct doca_urom_domain *domain_ctx, void *buffer, size_t buf_len, void *memh, size_t memh_len, void *mkey, size_t mkey_len) |
| This method attaches local buffer attributes to the Domain. Should be called after calling doca_urom_domain_set_buffers_count() More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_set_oob (struct doca_urom_domain *domain_ctx, struct doca_urom_domain_oob_coll *oob) |
| Set OOB communication info to be used for Domain initialization. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_urom_domain_set_workers (struct doca_urom_domain *domain_ctx, uint64_t *domain_worker_ids, struct doca_urom_worker **workers, size_t workers_cnt) |
| Set the list of Workers in the domain. More... | |
| DOCA_EXPERIMENTAL struct doca_ctx * | doca_urom_domain_as_ctx (struct doca_urom_domain *domain_ctx) |
