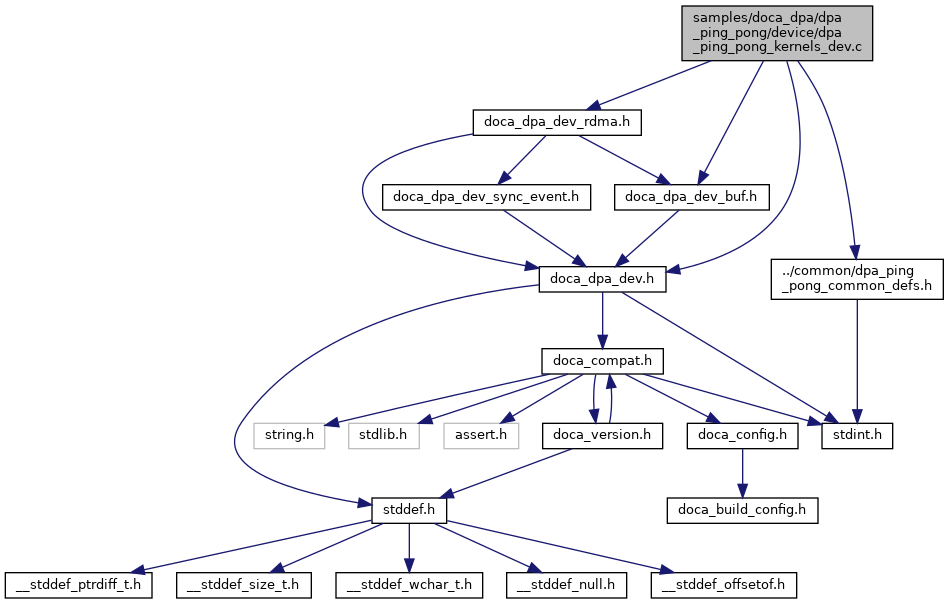

#include <doca_dpa_dev.h>#include <doca_dpa_dev_rdma.h>#include <doca_dpa_dev_buf.h>#include "../common/dpa_ping_pong_common_defs.h"
Go to the source code of this file.
Functions | |
| __dpa_global__ void | thread_kernel (uint64_t arg) |
| Kernel function of DPA thread. More... | |
| __dpa_rpc__ uint64_t | trigger_first_iteration_rpc (doca_dpa_dev_t rdma_dpa_ctx_handle, struct dpa_thread_arg ping_thread_arg, struct dpa_thread_arg pong_thread_arg) |
| RPC function to trigger first ping pong send/receive iteration. More... | |
Function Documentation
◆ thread_kernel()
| __dpa_global__ void thread_kernel | ( | uint64_t | arg | ) |
Kernel function of DPA thread.
This app has 2 DPA Threads (called ping and pong threads), posting send/receive RDMA operations. Both DPA Threads post send RDMA operations with buffer of values in [0-EXPECTED_NUM_RECEIVES) When a completion is received with data i, then a local array is updated with received_values[i] = 1. At the end both arrays should be [1, 1, ..., 1].
- [in]: Kernel argument
Definition at line 42 of file dpa_ping_pong_kernels_dev.c.
◆ trigger_first_iteration_rpc()
| __dpa_rpc__ uint64_t trigger_first_iteration_rpc | ( | doca_dpa_dev_t | rdma_dpa_ctx_handle, |
| struct dpa_thread_arg | ping_thread_arg, | ||
| struct dpa_thread_arg | pong_thread_arg | ||
| ) |
RPC function to trigger first ping pong send/receive iteration.
First ping pong send/receive iteration is done using this RPC. After this iteration all remaining send/receive iterations are done within the DPA Thread kernel. On the first iteration the two threads post receive operation on the expected receive addresses. To trigger the first completion the ping thread posts a send operation as well.
@rdma_dpa_ctx_handle [in]: DPA context handle used for RDMA DOCA device. Needed when running from DPU @ping_thread_arg [in]: Ping thread argument which includes all needed info for RDMA post send/receive @pong_thread_arg [in]: Pong thread argument which includes all needed info for RDMA post receive
- Returns
- : RPC function always succeed and returns 0
Definition at line 130 of file dpa_ping_pong_kernels_dev.c.
