#include <rte_ethdev.h>
#include <rte_ether.h>
#include <rte_malloc.h>
#include <doca_log.h>
#include <doca_mmap.h>
#include <doca_buf_inventory.h>
#include "dpdk_utils.h"

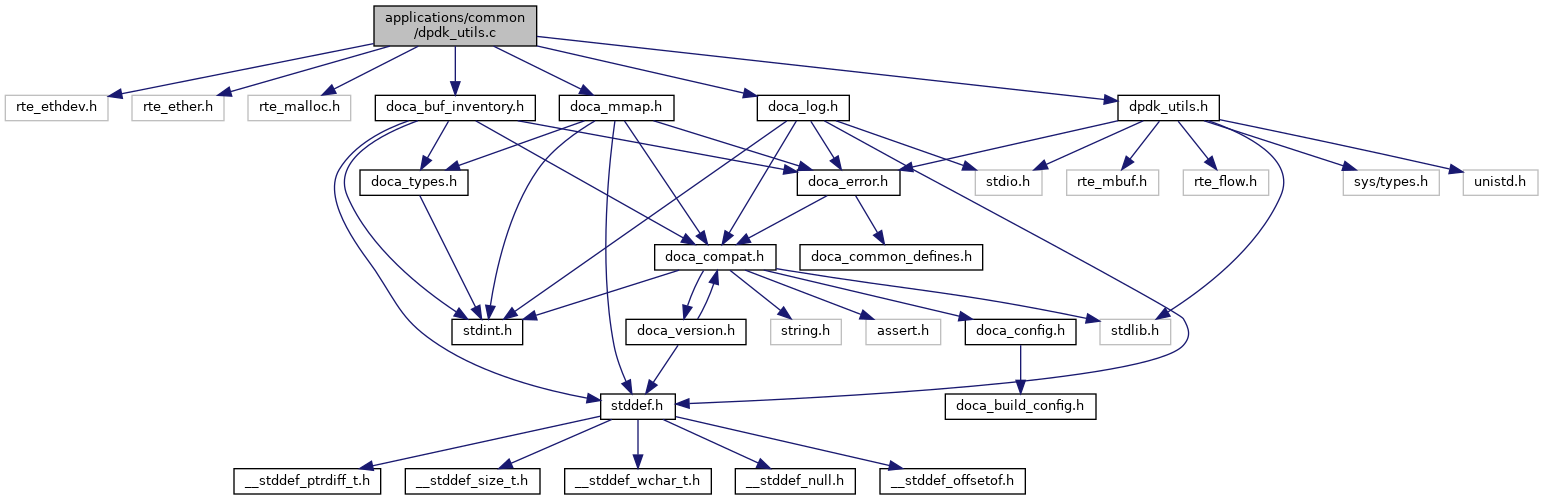

Include dependency graph for dpdk_utils.c:

Data Structures
struct	dpdk_mempool_shadow

Macros
#define	RSS_KEY_LEN 40

#define	IPv6_BYTES_FMT

#define	IPv6_BYTES(addr)

Functions
	DOCA_LOG_REGISTER (NUTILS)

static doca_error_t	bind_hairpin_queues (uint16_t port_id)

static doca_error_t	unbind_hairpin_queues (uint16_t port_id)

static doca_error_t	setup_hairpin_queues (uint16_t port_id, uint16_t peer_port_id, uint16_t *reserved_hairpin_q_list, int hairpin_queue_len)

static void	disable_hairpin_queues (uint16_t nb_ports)

static doca_error_t	enable_hairpin_queues (uint8_t nb_ports)

static doca_error_t	allocate_mempool (const uint32_t total_nb_mbufs, const uint32_t mbuf_size, struct rte_mempool **mbuf_pool)

static doca_error_t	port_init (struct rte_mempool mbuf_pool, uint8_t port, struct application_dpdk_config app_config)

static void	dpdk_ports_fini (struct application_dpdk_config *app_dpdk_config, uint16_t nb_ports)

static doca_error_t	dpdk_ports_init (struct application_dpdk_config *app_config)

doca_error_t	dpdk_queues_and_ports_init (struct application_dpdk_config *app_dpdk_config)

void	dpdk_queues_and_ports_fini (struct application_dpdk_config *app_dpdk_config)

static void	print_ether_addr (const struct rte_ether_addr dmac, const struct rte_ether_addr smac, const uint32_t ethertype)

static void	print_l2_header (const struct rte_mbuf *packet)

static void	print_ipv4_addr (const rte_be32_t dip, const rte_be32_t sip, const char *packet_type)

static void	print_ipv6_addr (const uint8_t dst_addr[16], const uint8_t src_addr[16], const char *packet_type)

static void	print_l3_header (const struct rte_mbuf *packet)

static void	print_l4_header (const struct rte_mbuf *packet)

static void	dpdk_chunk_to_mmap_cb (struct rte_mempool mp, void opaque, struct rte_mempool_memhdr *memhdr, unsigned int mem_idx)

struct dpdk_mempool_shadow *	dpdk_mempool_shadow_create (struct rte_mempool mbuf_pool, struct doca_dev device)

static doca_error_t	dpdk_ext_chunk_to_mmap (struct dpdk_mempool_shadow mempool_shadow, void chunk, size_t len)

struct dpdk_mempool_shadow *	dpdk_mempool_shadow_create_extbuf (const struct rte_pktmbuf_extmem *ext_mem, uint32_t ext_num, struct doca_dev device)

void	dpdk_mempool_shadow_destroy (struct dpdk_mempool_shadow *mempool_shadow)

doca_error_t	dpdk_mempool_shadow_find_buf_by_data (struct dpdk_mempool_shadow mempool_shadow, struct doca_buf_inventory inventory, uintptr_t mem_range_start, size_t mem_range_size, struct doca_buf **out_buf)

void	print_header_info (const struct rte_mbuf *packet, const bool l2, const bool l3, const bool l4)

doca_error_t	dpdk_init (int argc, char **argv)

void	dpdk_fini (void)

Macro Definition Documentation

◆ IPv6_BYTES

#define IPv6_BYTES ( addr )

Value:

addr[0], addr[1], addr[2], addr[3], addr[4], addr[5], addr[6], addr[7], addr[8], addr[9], addr[10], addr[11], \

addr[12], addr[13], addr[14], addr[15]

addr

uintptr_t addr

Definition: doca_dpa_dev_buf.h:0

Definition at line 44 of file dpdk_utils.c.

◆ IPv6_BYTES_FMT

#define IPv6_BYTES_FMT

Value:

"%02x%02x:%02x%02x:%02x%02x:%02x%02x:" \

"%02x%02x:%02x%02x:%02x%02x:%02x%02x"

Definition at line 41 of file dpdk_utils.c.

◆ RSS_KEY_LEN

#define RSS_KEY_LEN 40

Definition at line 38 of file dpdk_utils.c.

Function Documentation

◆ allocate_mempool()

static doca_error_t allocate_mempool	(	const uint32_t	total_nb_mbufs,
		const uint32_t	mbuf_size,
		struct rte_mempool **	mbuf_pool
	)

static

Definition at line 251 of file dpdk_utils.c.

◆ bind_hairpin_queues()

static doca_error_t bind_hairpin_queues ( uint16_t port_id )

static

Definition at line 61 of file dpdk_utils.c.

◆ disable_hairpin_queues()

static void disable_hairpin_queues ( uint16_t nb_ports )

static

Definition at line 201 of file dpdk_utils.c.

◆ DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER ( NUTILS )

◆ dpdk_chunk_to_mmap_cb()

static void dpdk_chunk_to_mmap_cb	(	struct rte_mempool *	mp,
		void *	opaque,
		struct rte_mempool_memhdr *	memhdr,
		unsigned int	mem_idx
	)

static

Definition at line 707 of file dpdk_utils.c.

◆ dpdk_ext_chunk_to_mmap()

static doca_error_t dpdk_ext_chunk_to_mmap	(	struct dpdk_mempool_shadow *	mempool_shadow,
		void *	chunk,
		size_t	len
	)

static

Definition at line 787 of file dpdk_utils.c.

◆ dpdk_fini()

void dpdk_fini ( void )

Definition at line 919 of file dpdk_utils.c.

◆ dpdk_init()

doca_error_t dpdk_init	(	int	argc,
		char **	argv
	)

Definition at line 907 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_create()

struct dpdk_mempool_shadow* dpdk_mempool_shadow_create	(	struct rte_mempool *	mbuf_pool,
		struct doca_dev *	device
	)

Definition at line 749 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_create_extbuf()

struct dpdk_mempool_shadow* dpdk_mempool_shadow_create_extbuf	(	const struct rte_pktmbuf_extmem **	ext_mem,
		uint32_t	ext_num,
		struct doca_dev *	device
	)

Definition at line 824 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_destroy()

void dpdk_mempool_shadow_destroy ( struct dpdk_mempool_shadow * mempool_shadow )

Definition at line 857 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_find_buf_by_data()

doca_error_t dpdk_mempool_shadow_find_buf_by_data	(	struct dpdk_mempool_shadow *	mempool_shadow,
		struct doca_buf_inventory *	inventory,
		uintptr_t	mem_range_start,
		size_t	mem_range_size,
		struct doca_buf **	out_buf
	)

Definition at line 869 of file dpdk_utils.c.

◆ dpdk_ports_fini()

static void dpdk_ports_fini	(	struct application_dpdk_config *	app_dpdk_config,
		uint16_t	nb_ports
	)

static

Definition at line 444 of file dpdk_utils.c.

◆ dpdk_ports_init()

static doca_error_t dpdk_ports_init ( struct application_dpdk_config * app_config )

static

Definition at line 472 of file dpdk_utils.c.

◆ dpdk_queues_and_ports_fini()

void dpdk_queues_and_ports_fini ( struct application_dpdk_config * app_dpdk_config )

Definition at line 564 of file dpdk_utils.c.

◆ dpdk_queues_and_ports_init()

doca_error_t dpdk_queues_and_ports_init ( struct application_dpdk_config * app_dpdk_config )

Definition at line 515 of file dpdk_utils.c.

◆ enable_hairpin_queues()

static doca_error_t enable_hairpin_queues ( uint8_t nb_ports )

static

Definition at line 221 of file dpdk_utils.c.

◆ port_init()

static doca_error_t port_init	(	struct rte_mempool *	mbuf_pool,
		uint8_t	port,
		struct application_dpdk_config *	app_config
	)

static

Definition at line 272 of file dpdk_utils.c.

◆ print_ether_addr()

static void print_ether_addr	(	const struct rte_ether_addr *	dmac,
		const struct rte_ether_addr *	smac,
		const uint32_t	ethertype
	)

static

Definition at line 578 of file dpdk_utils.c.

◆ print_header_info()

void print_header_info	(	const struct rte_mbuf *	packet,
		const bool	l2,
		const bool	l3,
		const bool	l4
	)

Definition at line 897 of file dpdk_utils.c.

◆ print_ipv4_addr()

static void print_ipv4_addr	(	const rte_be32_t	dip,
		const rte_be32_t	sip,
		const char *	packet_type
	)

static

Definition at line 609 of file dpdk_utils.c.

◆ print_ipv6_addr()

static void print_ipv6_addr	(	const uint8_t	dst_addr[16],
		const uint8_t	src_addr[16],
		const char *	packet_type
	)

static

Definition at line 630 of file dpdk_utils.c.

◆ print_l2_header()

static void print_l2_header ( const struct rte_mbuf * packet )

static

Definition at line 595 of file dpdk_utils.c.

◆ print_l3_header()

static void print_l3_header ( const struct rte_mbuf * packet )

static

Definition at line 643 of file dpdk_utils.c.

◆ print_l4_header()

static void print_l4_header ( const struct rte_mbuf * packet )

static

Definition at line 665 of file dpdk_utils.c.

◆ setup_hairpin_queues()

static doca_error_t setup_hairpin_queues	(	uint16_t	port_id,
		uint16_t	peer_port_id,
		uint16_t *	reserved_hairpin_q_list,
		int	hairpin_queue_len
	)

static

Definition at line 148 of file dpdk_utils.c.

◆ unbind_hairpin_queues()

static doca_error_t unbind_hairpin_queues ( uint16_t port_id )

static

Definition at line 103 of file dpdk_utils.c.
