#include <stdio.h>
#include <stdlib.h>
#include <sys/types.h>
#include <unistd.h>
#include <rte_mbuf.h>
#include <rte_flow.h>
#include <doca_error.h>

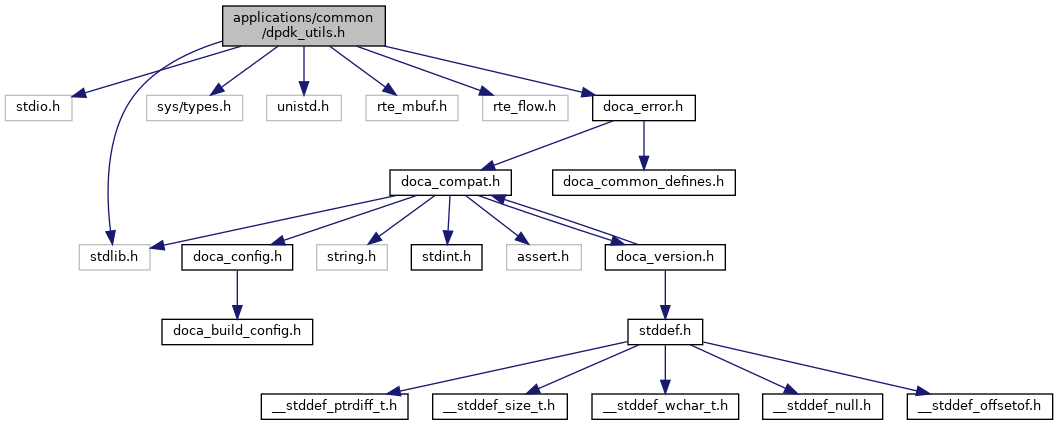

Include dependency graph for dpdk_utils.h:

Data Structures
struct	application_port_config

struct	application_dpdk_config

Macros
#define	RX_RING_SIZE 1024 /* RX ring size */

#define	TX_RING_SIZE 1024 /* TX ring size */

#define	NUM_MBUFS (8 * 1024) /* Number of mbufs to be allocated in the mempool */

#define	MBUF_CACHE_SIZE 250 /* mempool cache size */

Functions
doca_error_t	dpdk_init (int argc, char **argv)

void	dpdk_fini (void)

doca_error_t	dpdk_queues_and_ports_init (struct application_dpdk_config *app_dpdk_config)

void	dpdk_queues_and_ports_fini (struct application_dpdk_config *app_dpdk_config)

struct dpdk_mempool_shadow *	dpdk_mempool_shadow_create (struct rte_mempool mbuf_pool, struct doca_dev device)

struct dpdk_mempool_shadow *	dpdk_mempool_shadow_create_extbuf (const struct rte_pktmbuf_extmem *ext_mem, uint32_t ext_num, struct doca_dev device)

doca_error_t	dpdk_mempool_shadow_find_buf_by_data (struct dpdk_mempool_shadow mempool_shadow, struct doca_buf_inventory inventory, uintptr_t mem_range_start, size_t mem_range_size, struct doca_buf **out_buf)

void	dpdk_mempool_shadow_destroy (struct dpdk_mempool_shadow *mempool_shadow)

void	print_header_info (const struct rte_mbuf *packet, const bool l2, const bool l3, const bool l4)

Macro Definition Documentation

◆ MBUF_CACHE_SIZE

#define MBUF_CACHE_SIZE 250 /* mempool cache size */

Definition at line 46 of file dpdk_utils.h.

◆ NUM_MBUFS

#define NUM_MBUFS (8 * 1024) /* Number of mbufs to be allocated in the mempool */

Definition at line 45 of file dpdk_utils.h.

◆ RX_RING_SIZE

#define RX_RING_SIZE 1024 /* RX ring size */

Definition at line 43 of file dpdk_utils.h.

◆ TX_RING_SIZE

#define TX_RING_SIZE 1024 /* TX ring size */

Definition at line 44 of file dpdk_utils.h.

Function Documentation

◆ dpdk_fini()

void dpdk_fini ( void )

Definition at line 919 of file dpdk_utils.c.

◆ dpdk_init()

doca_error_t dpdk_init	(	int	argc,
		char **	argv
	)

Definition at line 907 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_create()

struct dpdk_mempool_shadow* dpdk_mempool_shadow_create	(	struct rte_mempool *	mbuf_pool,
		struct doca_dev *	device
	)

Definition at line 749 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_create_extbuf()

struct dpdk_mempool_shadow* dpdk_mempool_shadow_create_extbuf	(	const struct rte_pktmbuf_extmem **	ext_mem,
		uint32_t	ext_num,
		struct doca_dev *	device
	)

Definition at line 824 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_destroy()

void dpdk_mempool_shadow_destroy ( struct dpdk_mempool_shadow * mempool_shadow )

Definition at line 857 of file dpdk_utils.c.

◆ dpdk_mempool_shadow_find_buf_by_data()

doca_error_t dpdk_mempool_shadow_find_buf_by_data	(	struct dpdk_mempool_shadow *	mempool_shadow,
		struct doca_buf_inventory *	inventory,
		uintptr_t	mem_range_start,
		size_t	mem_range_size,
		struct doca_buf **	out_buf
	)

Definition at line 869 of file dpdk_utils.c.

◆ dpdk_queues_and_ports_fini()

void dpdk_queues_and_ports_fini ( struct application_dpdk_config * app_dpdk_config )

Definition at line 564 of file dpdk_utils.c.

◆ dpdk_queues_and_ports_init()

doca_error_t dpdk_queues_and_ports_init ( struct application_dpdk_config * app_dpdk_config )

Definition at line 515 of file dpdk_utils.c.

◆ print_header_info()

void print_header_info	(	const struct rte_mbuf *	packet,
		const bool	l2,
		const bool	l3,
		const bool	l4
	)

Definition at line 897 of file dpdk_utils.c.
