NVIDIA DOCA SDK Data Center on a Chip Framework Documentation
Macros | Functions
flow_ct_udp_sample.c File Reference
#include <unistd.h>
#include <rte_ethdev.h>
#include <doca_log.h>
#include <doca_flow.h>
#include <doca_flow_ct.h>
#include "flow_ct_common.h"
#include "flow_common.h"

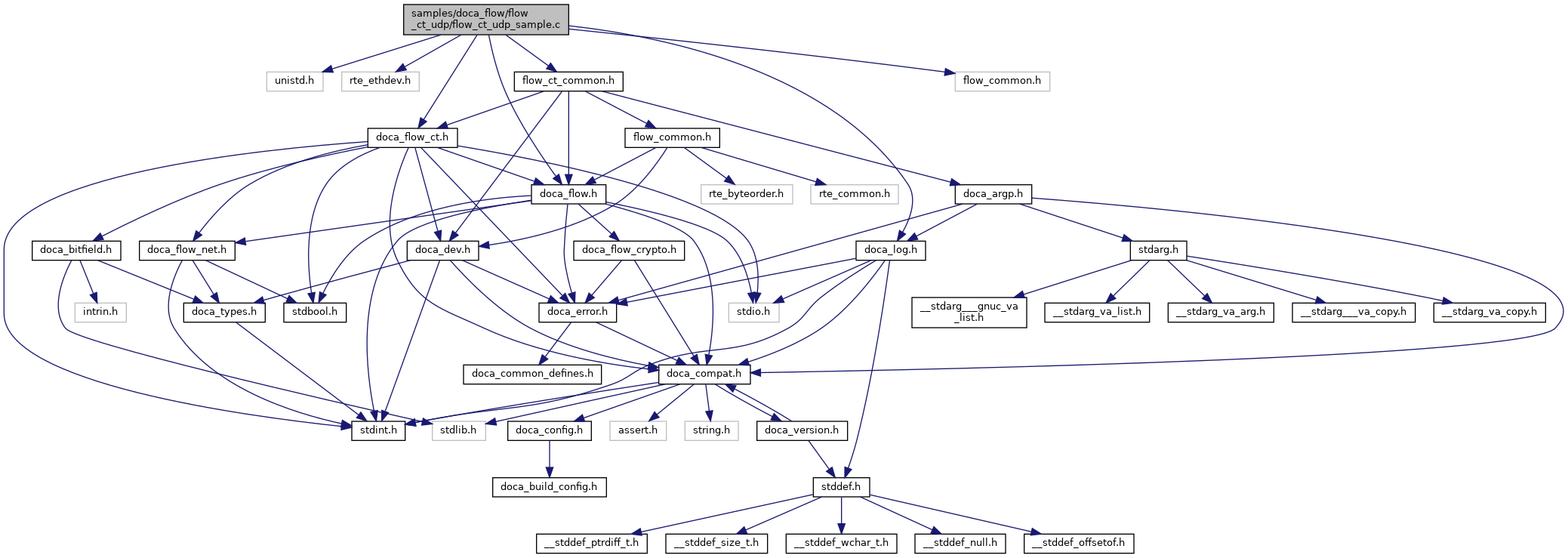

Include dependency graph for flow_ct_udp_sample.c:

Go to the source code of this file.

Macros

#define PACKET_BURST   128


Functions

 DOCA_LOG_REGISTER (FLOW_CT_UDP)

static doca_error_t create_rss_pipe (struct doca_flow_port *port, struct entries_status *status, struct doca_flow_pipe **pipe)

static doca_error_t create_ct_pipe (struct doca_flow_port *port, struct doca_flow_pipe *fwd_pipe, struct doca_flow_pipe *fwd_miss_pipe, struct doca_flow_pipe **pipe)

static doca_error_t create_vxlan_encap_pipe (struct doca_flow_port *port, int port_id, struct entries_status *status, struct doca_flow_pipe **pipe)

static doca_error_t create_count_pipe (struct doca_flow_port *port, struct doca_flow_pipe *fwd_pipe, struct entries_status *status, struct doca_flow_pipe **pipe)

static void parse_packet (struct rte_mbuf *packet, struct doca_flow_ct_match *match_o, struct doca_flow_ct_match *match_r)

static doca_error_t process_packets (struct doca_flow_port *port, uint16_t ct_queue, struct entries_status *ct_status)

doca_error_t flow_ct_udp (uint16_t nb_queues, struct doca_dev *ct_dev)


Macro Definition Documentation

◆ PACKET_BURST

#define PACKET_BURST   128

Definition at line 37 of file flow_ct_udp_sample.c.

Function Documentation

◆ create_count_pipe()

static doca_error_t create_count_pipe ( struct doca_flow_port *  port,
struct doca_flow_pipe *  fwd_pipe,
struct entries_status *  status,
struct doca_flow_pipe **  pipe
)
static

Definition at line 293 of file flow_ct_udp_sample.c.

◆ create_ct_pipe()

static doca_error_t create_ct_pipe ( struct doca_flow_port *  port,
struct doca_flow_pipe *  fwd_pipe,
struct doca_flow_pipe *  fwd_miss_pipe,
struct doca_flow_pipe **  pipe
)
static

Definition at line 121 of file flow_ct_udp_sample.c.

◆ create_rss_pipe()

static doca_error_t create_rss_pipe ( struct doca_flow_port *  port,
struct entries_status *  status,
struct doca_flow_pipe **  pipe
)
static

Definition at line 49 of file flow_ct_udp_sample.c.

◆ create_vxlan_encap_pipe()

static doca_error_t create_vxlan_encap_pipe ( struct doca_flow_port *  port,
int  port_id,
struct entries_status *  status,
struct doca_flow_pipe **  pipe
)
static

Definition at line 178 of file flow_ct_udp_sample.c.

◆ DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER ( FLOW_CT_UDP  )

◆ flow_ct_udp()

doca_error_t flow_ct_udp ( uint16_t  nb_queues,
struct doca_dev *  ct_dev
)

Definition at line 509 of file flow_ct_udp_sample.c.

◆ parse_packet()

static void parse_packet ( struct rte_mbuf *  packet,
struct doca_flow_ct_match *  match_o,
struct doca_flow_ct_match *  match_r
)
static

Definition at line 387 of file flow_ct_udp_sample.c.

◆ process_packets()

static doca_error_t process_packets ( struct doca_flow_port *  port,
uint16_t  ct_queue,
struct entries_status *  ct_status
)
static

Definition at line 422 of file flow_ct_udp_sample.c.
