flow_ecmp_sample.c File Reference

#include <stdint.h>
#include <string.h>
#include <unistd.h>
#include <rte_byteorder.h>
#include <doca_log.h>
#include <doca_flow.h>
#include "flow_common.h"
#include "flow_switch_common.h"

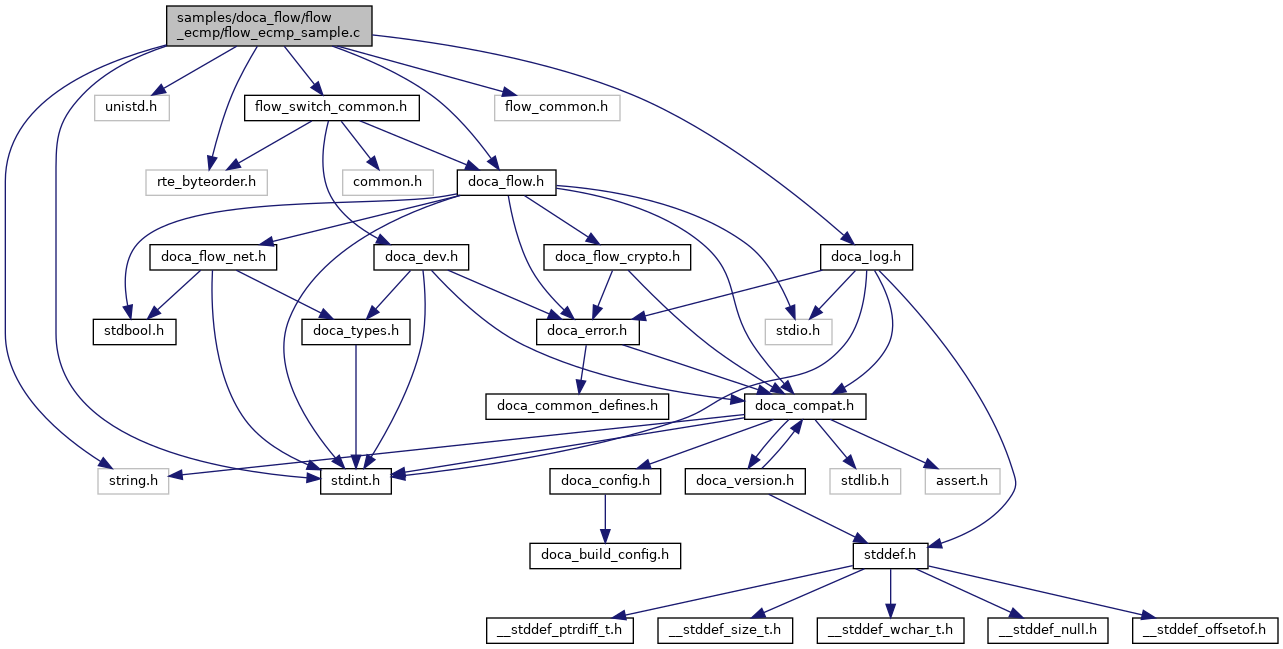

Include dependency graph for flow_ecmp_sample.c:

Go to the source code of this file.

Macros
#define	GET_PERCENTAGE(part, total)   (((double)part / (double)total) * 100)
#define	WAITING_TIME   15
#define	MAX_ECMP_PORTS   (8)
#define	MAX_TOTAL_PORTS   ((MAX_ECMP_PORTS) + 1)

Functions
	DOCA_LOG_REGISTER (FLOW_ECMP)
static doca_error_t	create_root_pipe (struct doca_flow_port *port, uint32_t shared_counter_id, struct doca_flow_pipe *next_pipe, struct entries_status *status)
static bool	is_power_of_two (uint8_t x)
static doca_error_t	create_hash_pipe (struct doca_flow_port *port, uint8_t nb_flows, struct doca_flow_pipe **pipe)
static doca_error_t	add_hash_pipe_entries (struct doca_flow_pipe *pipe, uint8_t nb_ecmp_ports, struct doca_flow_pipe_entry **entries, struct entries_status *status)
static doca_error_t	show_ecmp_results (uint32_t counter_id, struct doca_flow_pipe_entry **entries, uint8_t nb_ecmp_ports)
doca_error_t	flow_ecmp (int nb_queues, int nb_ports, struct flow_switch_ctx *ctx)

Macro Definition Documentation

GET_PERCENTAGE

#define GET_PERCENTAGE	(		part,
			total
	)		(((double)part / (double)total) * 100)

Definition at line 41 of file flow_ecmp_sample.c.

MAX_ECMP_PORTS

#define MAX_ECMP_PORTS   (8)

Definition at line 46 of file flow_ecmp_sample.c.

MAX_TOTAL_PORTS

#define MAX_TOTAL_PORTS   ((MAX_ECMP_PORTS) + 1)

Definition at line 47 of file flow_ecmp_sample.c.

WAITING_TIME

#define WAITING_TIME   15

Definition at line 44 of file flow_ecmp_sample.c.

Function Documentation

add_hash_pipe_entries()

static doca_error_t add_hash_pipe_entries ( struct doca_flow_pipe *  pipe, uint8_t  nb_ecmp_ports, struct doca_flow_pipe_entry **  entries, struct entries_status *  status  )

static

Definition at line 232 of file flow_ecmp_sample.c.

create_hash_pipe()

static doca_error_t create_hash_pipe ( struct doca_flow_port *  port, uint8_t  nb_flows, struct doca_flow_pipe **  pipe  )

static

Definition at line 163 of file flow_ecmp_sample.c.

create_root_pipe()

static doca_error_t create_root_pipe ( struct doca_flow_port *  port, uint32_t  shared_counter_id, struct doca_flow_pipe *  next_pipe, struct entries_status *  status  )

static

Definition at line 61 of file flow_ecmp_sample.c.

DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER

(

FLOW_ECMP

)

flow_ecmp()

doca_error_t flow_ecmp	(	int	nb_queues,
		int	nb_ports,
		struct flow_switch_ctx *	ctx
	)

Definition at line 322 of file flow_ecmp_sample.c.

is_power_of_two()

static bool is_power_of_two ( uint8_t  x )

inlinestatic

Definition at line 148 of file flow_ecmp_sample.c.

show_ecmp_results()

static doca_error_t show_ecmp_results ( uint32_t  counter_id, struct doca_flow_pipe_entry **  entries, uint8_t  nb_ecmp_ports  )

static

Definition at line 269 of file flow_ecmp_sample.c.
