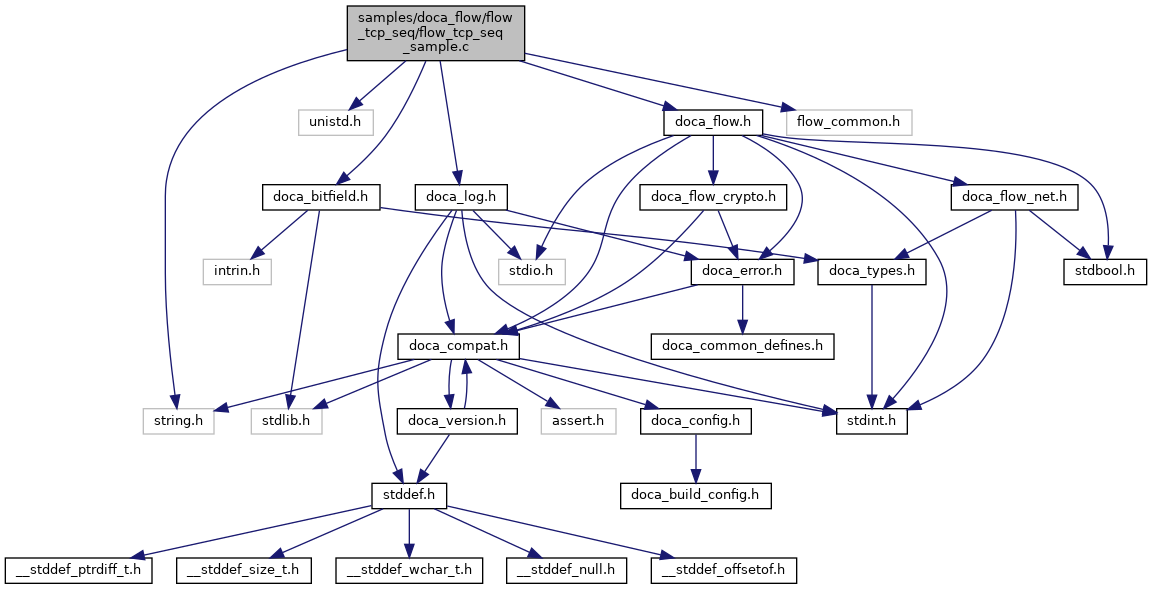

#include <string.h>#include <unistd.h>#include <doca_bitfield.h>#include <doca_log.h>#include <doca_flow.h>#include "flow_common.h"
Go to the source code of this file.
Macros | |
| #define | NB_ACTION_DESC (1) |
| #define | WAITING_TIME (5) |
Functions | |
| DOCA_LOG_REGISTER (FLOW_TCP_SEQ) | |
| static doca_error_t | create_root_pipe (struct doca_flow_port *port, struct doca_flow_pipe *next_pipe, struct doca_flow_pipe **pipe) |
| static doca_error_t | create_comparison_pipe (struct doca_flow_port *port, struct doca_flow_pipe **pipe) |
| static doca_error_t | add_comparison_pipe_entry (struct doca_flow_pipe *pipe, struct doca_flow_pipe *next_pipe, struct entries_status *status) |
| static doca_error_t | create_action_pipe (struct doca_flow_port *port, int port_id, struct doca_flow_pipe **pipe) |
| doca_error_t | flow_tcp_seq (int nb_queues) |
Macro Definition Documentation
◆ NB_ACTION_DESC
| #define NB_ACTION_DESC (1) |
Definition at line 36 of file flow_tcp_seq_sample.c.
◆ WAITING_TIME
| #define WAITING_TIME (5) |
Definition at line 38 of file flow_tcp_seq_sample.c.
Function Documentation
◆ add_comparison_pipe_entry()
|
static |
Add DOCA Flow pipe entry to the comparison pipe The entry compares TCP sequence number field and forwards matched traffic
@pipe [in]: pipe of the entries. @next_pipe [in]: next pipe to forward the matched traffic @status [in]: user context for adding entry.
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise.
Definition at line 129 of file flow_tcp_seq_sample.c.
◆ create_action_pipe()
|
static |
Create DOCA Flow action pipe The pipe adds constant value to acknowledgment number field of each TCP packet and forwards the packet to other port
@port [in]: port of the pipe @port_id [in]: port ID for forwarding to. @pipe [out]: created pipe pointer
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise.
Definition at line 174 of file flow_tcp_seq_sample.c.
◆ create_comparison_pipe()
|
static |
Create DOCA Flow control pipe
@port [in]: port of the pipe @pipe [out]: created pipe pointer
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise.
Definition at line 96 of file flow_tcp_seq_sample.c.
◆ create_root_pipe()
|
static |
Create DOCA Flow pipe root pipe to match on TCP packets
@port [in]: port of the pipe @next_pipe [in]: next pipe to forward the matched traffic @pipe [out]: created pipe pointer
- Returns
- : DOCA_SUCCESS on success and DOCA_ERROR otherwise.
Definition at line 50 of file flow_tcp_seq_sample.c.
◆ DOCA_LOG_REGISTER()
| DOCA_LOG_REGISTER | ( | FLOW_TCP_SEQ | ) |
◆ flow_tcp_seq()
| doca_error_t flow_tcp_seq | ( | int | nb_queues | ) |
Definition at line 238 of file flow_tcp_seq_sample.c.
