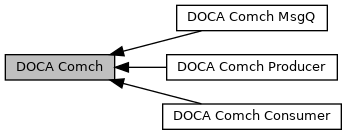

Collaboration diagram for DOCA Comch:

Modules
	DOCA Comch Consumer

	DOCA Comch MsgQ

	DOCA Comch Producer

Typedefs
typedef void(*	doca_comch_task_send_completion_cb_t) (struct doca_comch_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data)

typedef void(*	doca_comch_event_msg_recv_cb_t) (struct doca_comch_event_msg_recv event, uint8_t recv_buffer, uint32_t msg_len, struct doca_comch_connection *comch_connection)

typedef void(*	doca_comch_event_connection_status_changed_cb_t) (struct doca_comch_event_connection_status_changed event, struct doca_comch_connection comch_connection, uint8_t change_successful)

typedef void(*	doca_comch_event_consumer_cb_t) (struct doca_comch_event_consumer event, struct doca_comch_connection comch_connection, uint32_t id)

Enumerations
enum	doca_comch_counter { DOCA_COMCH_COUNTER_SENT_MESSAGES = 1 , DOCA_COMCH_COUNTER_SENT_BYTES = 2 , DOCA_COMCH_COUNTER_RECV_MESSAGES = 3 , DOCA_COMCH_COUNTER_RECV_BYTES = 4 }

Functions
DOCA_STABLE doca_error_t	doca_comch_connection_set_user_data (struct doca_comch_connection *connection, union doca_data user_data)

DOCA_STABLE union doca_data	doca_comch_connection_get_user_data (const struct doca_comch_connection *connection)

DOCA_STABLE struct doca_comch_server *	doca_comch_server_get_server_ctx (const struct doca_comch_connection *connection)

DOCA_STABLE struct doca_comch_client *	doca_comch_client_get_client_ctx (const struct doca_comch_connection *connection)

DOCA_STABLE doca_error_t	doca_comch_cap_get_max_name_len (const struct doca_devinfo devinfo, uint32_t max_name_len)

DOCA_STABLE doca_error_t	doca_comch_cap_get_max_msg_size (const struct doca_devinfo devinfo, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_cap_get_max_recv_queue_size (const struct doca_devinfo devinfo, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_cap_get_max_clients (const struct doca_devinfo devinfo, uint32_t num_clients)

DOCA_STABLE doca_error_t	doca_comch_server_create (struct doca_dev dev, struct doca_dev_rep repr, const char name, struct doca_comch_server *comch_server)

DOCA_STABLE doca_error_t	doca_comch_server_destroy (struct doca_comch_server *comch_server)

DOCA_STABLE doca_error_t	doca_comch_cap_server_is_supported (const struct doca_devinfo *devinfo)

DOCA_STABLE doca_error_t	doca_comch_server_set_max_msg_size (struct doca_comch_server *comch_server, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_server_get_max_msg_size (const struct doca_comch_server comch_server, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_server_set_recv_queue_size (struct doca_comch_server *comch_server, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_server_get_recv_queue_size (const struct doca_comch_server comch_server, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_server_get_device (const struct doca_comch_server comch_server, struct doca_dev *dev)

DOCA_STABLE doca_error_t	doca_comch_server_get_device_rep (const struct doca_comch_server comch_server, struct doca_dev_rep *rep)

DOCA_STABLE struct doca_ctx *	doca_comch_server_as_ctx (struct doca_comch_server *comch_server)

DOCA_STABLE doca_error_t	doca_comch_server_disconnect (struct doca_comch_server comch_server, struct doca_comch_connection connection)

DOCA_STABLE doca_error_t	doca_comch_client_create (struct doca_dev dev, const char name, struct doca_comch_client **comch_client)

DOCA_STABLE doca_error_t	doca_comch_client_destroy (struct doca_comch_client *comch_client)

DOCA_STABLE doca_error_t	doca_comch_cap_client_is_supported (const struct doca_devinfo *devinfo)

DOCA_STABLE doca_error_t	doca_comch_client_set_max_msg_size (struct doca_comch_client *comch_client, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_client_get_max_msg_size (const struct doca_comch_client comch_client, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_client_set_recv_queue_size (struct doca_comch_client *comch_client, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_client_get_recv_queue_size (const struct doca_comch_client comch_client, uint32_t size)

DOCA_STABLE doca_error_t	doca_comch_client_get_device (const struct doca_comch_client comch_client, struct doca_dev *dev)

DOCA_STABLE struct doca_ctx *	doca_comch_client_as_ctx (struct doca_comch_client *comch_client)

DOCA_STABLE doca_error_t	doca_comch_client_get_connection (const struct doca_comch_client comch_client, struct doca_comch_connection *connection)

DOCA_STABLE doca_error_t	doca_comch_cap_get_max_send_tasks (const struct doca_devinfo devinfo, uint32_t max_send_tasks)

DOCA_STABLE doca_error_t	doca_comch_server_task_send_set_conf (struct doca_comch_server *comch_server, doca_comch_task_send_completion_cb_t task_completion_cb, doca_comch_task_send_completion_cb_t task_error_cb, uint32_t num_send_tasks)

DOCA_STABLE doca_error_t	doca_comch_client_task_send_set_conf (struct doca_comch_client *comch_client, doca_comch_task_send_completion_cb_t task_completion_cb, doca_comch_task_send_completion_cb_t task_error_cb, uint32_t num_send_tasks)

DOCA_STABLE doca_error_t	doca_comch_server_task_send_alloc_init (struct doca_comch_server comch_server, struct doca_comch_connection peer, const void msg, uint32_t len, struct doca_comch_task_send *task)

DOCA_STABLE doca_error_t	doca_comch_client_task_send_alloc_init (struct doca_comch_client comch_client, struct doca_comch_connection peer, const void msg, uint32_t len, struct doca_comch_task_send *task)

DOCA_STABLE struct doca_task *	doca_comch_task_send_as_task (struct doca_comch_task_send *task)

DOCA_STABLE doca_error_t	doca_comch_server_event_msg_recv_register (struct doca_comch_server *comch_server, doca_comch_event_msg_recv_cb_t recv_event_cb)
	Configure the doca_comch recv event callback for server context. More...

DOCA_STABLE doca_error_t	doca_comch_client_event_msg_recv_register (struct doca_comch_client *comch_client, doca_comch_event_msg_recv_cb_t recv_event_cb)
	Configure the doca_comch recv event callback for client context. More...

DOCA_STABLE doca_error_t	doca_comch_server_event_connection_status_changed_register (struct doca_comch_server *comch_server, doca_comch_event_connection_status_changed_cb_t connect_event_cb, doca_comch_event_connection_status_changed_cb_t disconnect_event_cb)
	Configure the doca_comch recv event callback for server context. More...

DOCA_STABLE doca_error_t	doca_comch_connection_update_info (struct doca_comch_connection *comch_connection)
	update statistics for given comch_connection More...

DOCA_STABLE doca_error_t	doca_comch_connection_get_counter (const struct doca_comch_connection comch_connection, enum doca_comch_counter counter_type, uint64_t counter_value)
	get statistics counter for a given comch_connection More...

DOCA_STABLE doca_error_t	doca_comch_server_event_consumer_register (struct doca_comch_server *comch_server, doca_comch_event_consumer_cb_t new_consumer_event_cb, doca_comch_event_consumer_cb_t expired_consumer_event_cb)
	Configure the doca_comch callback for for receiving consumer events on server context. More...

DOCA_STABLE doca_error_t	doca_comch_client_event_consumer_register (struct doca_comch_client *comch_client, doca_comch_event_consumer_cb_t new_consumer_event_cb, doca_comch_event_consumer_cb_t expired_consumer_event_cb)
	Configure the doca_comch callback for for receiving consumer events on client context. More...

Detailed Description

DOCA Communication Channel library let you set a direct communication channel between the host and the DPU. The channel is run over RoCE/IB protocol and is not part of the TCP/IP stack. Please follow the programmer guide for usage instructions.

Typedef Documentation

◆ doca_comch_event_connection_status_changed_cb_t

typedef void(* doca_comch_event_connection_status_changed_cb_t) (struct doca_comch_event_connection_status_changed *event, struct doca_comch_connection *comch_connection, uint8_t change_successful)

Function executed on a doca_comch connection event.

Parameters

[in]	event	Doca_comch connection event that has triggered.
[in]	comch_connection	Pointer to the peer which triggered the connection event.
[in]	change_successful	1 if the action (connect/disconnect) was successful, 0 otherwise.

The implementation can assume these values are not NULL.

Definition at line 778 of file doca_comch.h.

◆ doca_comch_event_consumer_cb_t

typedef void(* doca_comch_event_consumer_cb_t) (struct doca_comch_event_consumer *event, struct doca_comch_connection *comch_connection, uint32_t id)

Function executed on a doca_comch consumer event.

Parameters

[in]	event	Doca_comch consumer event that has triggered.
[in]	comch_connection	Pointer to the comch_connection which triggered that has generated the consumer event.
[in]	id	The ID of the newly created or destroyed consumer.

The implementation can assume these values are not NULL.

Definition at line 874 of file doca_comch.h.

◆ doca_comch_event_msg_recv_cb_t

typedef void(* doca_comch_event_msg_recv_cb_t) (struct doca_comch_event_msg_recv *event, uint8_t *recv_buffer, uint32_t msg_len, struct doca_comch_connection *comch_connection)

Function executed on a doca_comch receive message event.

Parameters

[in]	event	Doca_comch recv message event that has triggered.
[in]	recv_buffer	Pointer to the message data associated with the event.
[in]	msg_len	Length of the message data associated with the event.
[in]	comch_connection	Pointer to the connection instance that generated the message event.

The implementation can assume these values are not NULL.

Definition at line 718 of file doca_comch.h.

◆ doca_comch_task_send_completion_cb_t

typedef void(* doca_comch_task_send_completion_cb_t) (struct doca_comch_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data)

Function executed on doca_comch send task completion. Used for both task success and failure.

Parameters

[in]	task	DOCA Comch send task that has completed.
[in]	task_user_data	The task user data.
[in]	ctx_user_data	Doca_comch context user data.

The implementation can assume this value is not NULL.

Definition at line 563 of file doca_comch.h.

Enumeration Type Documentation

◆ doca_comch_counter

enum doca_comch_counter

Available counters for connection statistics query

Enumerator
DOCA_COMCH_COUNTER_SENT_MESSAGES
DOCA_COMCH_COUNTER_SENT_BYTES
DOCA_COMCH_COUNTER_RECV_MESSAGES
DOCA_COMCH_COUNTER_RECV_BYTES

Definition at line 809 of file doca_comch.h.

Function Documentation

◆ doca_comch_cap_client_is_supported()

DOCA_STABLE doca_error_t doca_comch_cap_client_is_supported ( const struct doca_devinfo * devinfo )

Check if given device is capable of running a comm channel client.

Parameters

[in] devinfo The DOCA device information.

Returns

DOCA_SUCCESS - in case device can run as a client. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - received invalid input.
DOCA_ERROR_NOT_SUPPORTED - provided devinfo can not implement a cc client

◆ doca_comch_cap_get_max_clients()

DOCA_STABLE doca_error_t doca_comch_cap_get_max_clients	(	const struct doca_devinfo *	devinfo,
		uint32_t *	num_clients
	)

Get the maximal number of clients that can be connected to a single doca_comch server.

Parameters

[in]	devinfo	devinfo to query the capability for.
[out]	num_clients	The number of clients that can be connected to a single doca_comch server.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_cap_get_max_msg_size()

DOCA_STABLE doca_error_t doca_comch_cap_get_max_msg_size	(	const struct doca_devinfo *	devinfo,
		uint32_t *	size
	)

Get the maximum message size that can be used on any comm channel instance.

Parameters

[in]	devinfo	devinfo to query the capability for.
[out]	size	The maximum size of a message available on any cc instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_cap_get_max_name_len()

DOCA_STABLE doca_error_t doca_comch_cap_get_max_name_len	(	const struct doca_devinfo *	devinfo,
		uint32_t *	max_name_len
	)

Get the maximum name length that can be used in a cc instance.

Parameters

[in]	devinfo	devinfo to query the capability for.
[out]	max_name_len	The cc max name length, including the terminating null byte ('\0').

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_cap_get_max_recv_queue_size()

DOCA_STABLE doca_error_t doca_comch_cap_get_max_recv_queue_size	(	const struct doca_devinfo *	devinfo,
		uint32_t *	size
	)

Get the maximal recv queue size that can be used on any comm channel instance.

Parameters

[in]	devinfo	devinfo to query the capability for.
[out]	size	The maximal recv queue size supported on any cc instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_cap_get_max_send_tasks()

DOCA_STABLE doca_error_t doca_comch_cap_get_max_send_tasks	(	const struct doca_devinfo *	devinfo,
		uint32_t *	max_send_tasks
	)

Get the maximal send tasks num that can be used on any cc instance.

Parameters

[in]	devinfo	devinfo to query the capability for.
[out]	max_send_tasks	The maximal supported number of send tasks for any cc instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_cap_server_is_supported()

DOCA_STABLE doca_error_t doca_comch_cap_server_is_supported ( const struct doca_devinfo * devinfo )

Check if given device is capable of running a comm channel server.

Parameters

[in] devinfo The DOCA device information.

Returns

DOCA_SUCCESS - in case device can run as a server. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - received invalid input.
DOCA_ERROR_NOT_SUPPORTED - provided devinfo can not implement a cc server.

◆ doca_comch_client_as_ctx()

DOCA_STABLE struct doca_ctx* doca_comch_client_as_ctx ( struct doca_comch_client * comch_client )

Convert doca_comch instance into a generalized context for use with doca core objects.

Parameters

[in] comch_client DOCA Comch client instance. This must remain valid until after the context is no longer required.

Returns: Non NULL upon success, NULL otherwise.

◆ doca_comch_client_create()

DOCA_STABLE doca_error_t doca_comch_client_create	(	struct doca_dev *	dev,
		const char *	name,
		struct doca_comch_client **	comch_client
	)

Create a DOCA Comch client instance.

Parameters

[in]	dev	Device to use in DOCA Comch client instance.
[in]	name	Identifier for the server the client will connect to. Max length, including terminating '\0', is obtained by doca_comch_cap_get_max_name_len().
[out]	comch_client	Pointer to pointer to be set to created doca_comch client instance.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - one or more of the arguments is null.
DOCA_ERROR_NO_MEMORY - failed to alloc doca_comch.
DOCA_ERROR_INITIALIZATION - failed to initialize a mutex.

◆ doca_comch_client_destroy()

DOCA_STABLE doca_error_t doca_comch_client_destroy ( struct doca_comch_client * comch_client )

Destroy a DOCA Comch client instance.

Parameters

[in] comch_client DOCA Comch client instance to be destroyed.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - cc argument is a NULL pointer.
DOCA_ERROR_IN_USE - Unable to gain exclusive access to the cc instance.

◆ doca_comch_client_event_consumer_register()

DOCA_STABLE doca_error_t doca_comch_client_event_consumer_register	(	struct doca_comch_client *	comch_client,
		doca_comch_event_consumer_cb_t	new_consumer_event_cb,
		doca_comch_event_consumer_cb_t	expired_consumer_event_cb
	)

Configure the doca_comch callback for for receiving consumer events on client context.

Parameters

[in]	comch_client	Pointer to doca_comch_client instance.
[in]	new_consumer_event_cb	Consumer event callback on creation of a new consumer.
[in]	expired_consumer_event_cb	Consumer event callback on when a consumer has expired.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case one of the arguments is NULL.
DOCA_ERROR_BAD_STATE - doca_comch_servcie context state is not idle.

◆ doca_comch_client_event_msg_recv_register()

DOCA_STABLE doca_error_t doca_comch_client_event_msg_recv_register	(	struct doca_comch_client *	comch_client,
		doca_comch_event_msg_recv_cb_t	recv_event_cb
	)

Configure the doca_comch recv event callback for client context.

Parameters

[in]	comch_client	Pointer to doca_comch_client instance.
[in]	recv_event_cb	Recv event callback.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case one of the arguments is NULL.
DOCA_ERROR_BAD_STATE - doca_comch context state is not idle.

◆ doca_comch_client_get_client_ctx()

DOCA_STABLE struct doca_comch_client* doca_comch_client_get_client_ctx ( const struct doca_comch_connection * connection )

Get the doca_comch_client context from a given connection.

Parameters

[in] connection DOCA Comch connection instance.

Returns: doca_comch_client object on success. NULL if the connection is related to a server context.

◆ doca_comch_client_get_connection()

DOCA_STABLE doca_error_t doca_comch_client_get_connection	(	const struct doca_comch_client *	comch_client,
		struct doca_comch_connection **	connection
	)

Get the connection object associated with the client ctx. Can only be called after starting the ctx.

Parameters

[in]	comch_client	DOCA Comch client instance.
[out]	connection	The connection object associated with the client.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is not started.

◆ doca_comch_client_get_device()

DOCA_STABLE doca_error_t doca_comch_client_get_device	(	const struct doca_comch_client *	comch_client,
		struct doca_dev **	dev
	)

Get the doca device property of the associated doca_comch instance.

Parameters

[in]	comch_client	DOCA Comch client instance.
[out]	dev	Current device used in the doca_comch instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_client_get_max_msg_size()

DOCA_STABLE doca_error_t doca_comch_client_get_max_msg_size	(	const struct doca_comch_client *	comch_client,
		uint32_t *	size
	)

Get the maximum message size that can be sent on the comm channel instance.

Parameters

[in]	comch_client	DOCA Comch client instance.
[out]	size	The maximum size of a message for the instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_client_get_recv_queue_size()

DOCA_STABLE doca_error_t doca_comch_client_get_recv_queue_size	(	const struct doca_comch_client *	comch_client,
		uint32_t *	size
	)

Get the recv queue size property set on the doca_comch instance.

Parameters

[in]	comch_client	DOCA Comch client instance.
[out]	size	The recv queue size for the instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_client_set_max_msg_size()

DOCA_STABLE doca_error_t doca_comch_client_set_max_msg_size	(	struct doca_comch_client *	comch_client,
		uint32_t	size
	)

Set the maximum message size property for the doca_comch instance. If not called, a default value will be used and can be queried using doca_comch_client_get_max_msg_size().

Parameters

[in]	comch_client	DOCA Comch client instance.
[in]	size	The maximum size of a message to set for the instance. Can be queried with doca_comch_cap_get_max_msg_size().

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_client_set_recv_queue_size()

DOCA_STABLE doca_error_t doca_comch_client_set_recv_queue_size	(	struct doca_comch_client *	comch_client,
		uint32_t	size
	)

Set the recv queue size property for the doca_comch instance. If not called, a default value will be used and can be queried using doca_comch_client_get_recv_queue_size().

Parameters

[in]	comch_client	DOCA Comch client instance.
[in]	size	The recv queue size to set for the instance. Limit can be queried with doca_comch_cap_get_max_recv_queue_size().

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_client_task_send_alloc_init()

DOCA_STABLE doca_error_t doca_comch_client_task_send_alloc_init	(	struct doca_comch_client *	comch_client,
		struct doca_comch_connection *	peer,
		const void *	msg,
		uint32_t	len,
		struct doca_comch_task_send **	task
	)

Allocate and initialize a doca_comch_client send task.

Parameters

[in]	comch_client	The doca_comch_client instance.
[in]	peer	Connected endpoint to send the message to.
[in]	msg	Message or data to sent to associated peer.
[in]	len	Length of the message to send.
[out]	task	Pointer to a doca_comch_send_task instance populated with input parameters.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_NO_MEMORY - no available tasks to allocate.

◆ doca_comch_client_task_send_set_conf()

DOCA_STABLE doca_error_t doca_comch_client_task_send_set_conf	(	struct doca_comch_client *	comch_client,
		doca_comch_task_send_completion_cb_t	task_completion_cb,
		doca_comch_task_send_completion_cb_t	task_error_cb,
		uint32_t	num_send_tasks
	)

Configure the doca_comch_client send task callback and parameters.

Parameters

[in]	comch_client	The doca_comch_client instance.
[in]	task_completion_cb	Send task completion callback.
[in]	task_error_cb	Send task error callback.
[in]	num_send_tasks	Number of send tasks to create.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_connection_get_counter()

DOCA_STABLE doca_error_t doca_comch_connection_get_counter	(	const struct doca_comch_connection *	comch_connection,
		enum doca_comch_counter	counter_type,
		uint64_t *	counter_value
	)

get statistics counter for a given comch_connection

This function will return statistics for a given comch_connection, updated to the last time doca_comch_connection_update_info() was called.

Parameters

[in]	comch_connection	Pointer to comch_connection to query statistics for.
[in]	counter_type	Which statistics counter should be queried.
[out]	counter_value	Will contain the value for the counter on the given comch_connection.

Returns: DOCA_SUCCESS on success. DOCA_ERROR_INVALID_VALUE if any of the arguments are NULL or if the counter is not valid.

◆ doca_comch_connection_get_user_data()

DOCA_STABLE union doca_data doca_comch_connection_get_user_data ( const struct doca_comch_connection * connection )

Get the user data from a given connection.

Parameters

[in] connection DOCA Comch connection instance.

Returns: User data for the given connection.

◆ doca_comch_connection_set_user_data()

DOCA_STABLE doca_error_t doca_comch_connection_set_user_data	(	struct doca_comch_connection *	connection,
		union doca_data	user_data
	)

Set the user data for a given connection.

Parameters

[in]	connection	DOCA Comch connection instance.
[in]	user_data	User data for the given connection.

Returns: DOCA_SUCCESS on success.

◆ doca_comch_connection_update_info()

DOCA_STABLE doca_error_t doca_comch_connection_update_info ( struct doca_comch_connection * comch_connection )

update statistics for given comch_connection

Should be used before calling to any connection information function to update the saved statistics.

Parameters

[in] comch_connection Pointer to comch_connection to update statistics in.

Returns: DOCA_SUCCESS on success. DOCA_ERROR_INVALID_VALUE if comch_connection is NULL. DOCA_ERROR_CONNECTION_INPROGRESS if connection is not yet established. DOCA_ERROR_CONNECTION_ABORTED if the connection failed.

◆ doca_comch_server_as_ctx()

DOCA_STABLE struct doca_ctx* doca_comch_server_as_ctx ( struct doca_comch_server * comch_server )

Convert doca_comch_server instance into a generalized context for use with doca core objects.

Parameters

[in] comch_server DOCA Comch server instance. This must remain valid until after the context is no longer required.

Returns: Non NULL upon success, NULL otherwise.

◆ doca_comch_server_create()

DOCA_STABLE doca_error_t doca_comch_server_create	(	struct doca_dev *	dev,
		struct doca_dev_rep *	repr,
		const char *	name,
		struct doca_comch_server **	comch_server
	)

Create a DOCA Comch server instance.

Parameters

[in]	dev	Device to use in DOCA Comch server instance.
[in]	repr	Representor device to use in CC server instance.
[in]	name	Identifier for server associated with instance. Must be NULL terminated. Max length, including terminating '\0', is obtained by doca_comch_cap_get_max_name_len().
[out]	comch_server	Pointer to pointer to be set to created doca_comch server instance.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - one or more of the arguments is null.
DOCA_ERROR_NO_MEMORY - failed to alloc doca_comch.
DOCA_ERROR_INITIALIZATION - failed to initialize a mutex.

◆ doca_comch_server_destroy()

DOCA_STABLE doca_error_t doca_comch_server_destroy ( struct doca_comch_server * comch_server )

Destroy a DOCA Comch server instance.

Parameters

[in] comch_server DOCA Comch server instance to be destroyed.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - cc argument is a NULL pointer.
DOCA_ERROR_IN_USE - Unable to gain exclusive access to the cc instance.

◆ doca_comch_server_disconnect()

DOCA_STABLE doca_error_t doca_comch_server_disconnect	(	struct doca_comch_server *	comch_server,
		struct doca_comch_connection *	connection
	)

Disconnect specific connection on doca_comch_server.

This function will notify the peer of the disconnection.

Parameters

[in]	comch_server	DOCA Comch server instance.
[out]	connection	Connection representing the remote peer to disconnect.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_IN_USE - if there are active consumers/producers for the connection.
DOCA_ERROR_AGAIN - cannot send disconnection message due to full queue. Requires the app to call disconnect again later.

◆ doca_comch_server_event_connection_status_changed_register()

DOCA_STABLE doca_error_t doca_comch_server_event_connection_status_changed_register	(	struct doca_comch_server *	comch_server,
		doca_comch_event_connection_status_changed_cb_t	connect_event_cb,
		doca_comch_event_connection_status_changed_cb_t	disconnect_event_cb
	)

Configure the doca_comch recv event callback for server context.

Parameters

[in]	comch_server	Pointer to doca_comch_server instance.
[in]	connect_event_cb	Callback for connect event.
[in]	disconnect_event_cb	Callback for disconnect event.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case one of the arguments is NULL.
DOCA_ERROR_BAD_STATE - doca_comch context state is not idle.

◆ doca_comch_server_event_consumer_register()

DOCA_STABLE doca_error_t doca_comch_server_event_consumer_register	(	struct doca_comch_server *	comch_server,
		doca_comch_event_consumer_cb_t	new_consumer_event_cb,
		doca_comch_event_consumer_cb_t	expired_consumer_event_cb
	)

Configure the doca_comch callback for for receiving consumer events on server context.

Parameters

[in]	comch_server	Pointer to doca_comch_server instance.
[in]	new_consumer_event_cb	Consumer event callback on creation of a new consumer.
[in]	expired_consumer_event_cb	Consumer event callback on when a consumer has expired.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case one of the arguments is NULL.
DOCA_ERROR_BAD_STATE - doca_comch_servcie context state is not idle.

◆ doca_comch_server_event_msg_recv_register()

DOCA_STABLE doca_error_t doca_comch_server_event_msg_recv_register	(	struct doca_comch_server *	comch_server,
		doca_comch_event_msg_recv_cb_t	recv_event_cb
	)

Configure the doca_comch recv event callback for server context.

Parameters

[in]	comch_server	Pointer to doca_comch_server instance.
[in]	recv_event_cb	Recv event callback.

Returns

DOCA_SUCCESS - in case of success. doca_error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case one of the arguments is NULL.
DOCA_ERROR_BAD_STATE - doca_comch context state is not idle.

◆ doca_comch_server_get_device()

DOCA_STABLE doca_error_t doca_comch_server_get_device	(	const struct doca_comch_server *	comch_server,
		struct doca_dev **	dev
	)

Get the doca device property of the associated doca_comch instance.

Parameters

[in]	comch_server	DOCA Comch server instance.
[out]	dev	Current device used in the doca_comch instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_server_get_device_rep()

DOCA_STABLE doca_error_t doca_comch_server_get_device_rep	(	const struct doca_comch_server *	comch_server,
		struct doca_dev_rep **	rep
	)

Get the device representor property of the associated doca_comch server instance.

Parameters

[in]	comch_server	DOCA Comch server instance.
[out]	rep	Current device representor used in the doca_comch server instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_server_get_max_msg_size()

DOCA_STABLE doca_error_t doca_comch_server_get_max_msg_size	(	const struct doca_comch_server *	comch_server,
		uint32_t *	size
	)

Get the maximum message size that can be sent on the comm channel instance.

Parameters

[in]	comch_server	DOCA Comch server instance.
[out]	size	The maximum size of a message for the instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_server_get_recv_queue_size()

DOCA_STABLE doca_error_t doca_comch_server_get_recv_queue_size	(	const struct doca_comch_server *	comch_server,
		uint32_t *	size
	)

Get the recv queue size property set on the doca_comch instance.

Parameters

[in]	comch_server	DOCA Comch server instance.
[out]	size	The recv queue size set for the instance.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.

◆ doca_comch_server_get_server_ctx()

DOCA_STABLE struct doca_comch_server* doca_comch_server_get_server_ctx ( const struct doca_comch_connection * connection )

Get the doca_comch_server context from a given connection.

Parameters

[in] connection DOCA Comch connection instance.

Returns: doca_comch_server object on success. NULL if the connection is related to a client context.

◆ doca_comch_server_set_max_msg_size()

DOCA_STABLE doca_error_t doca_comch_server_set_max_msg_size	(	struct doca_comch_server *	comch_server,
		uint32_t	size
	)

Set the maximum message size property for the doca_comch instance. If not called, a default value will be used and can be queried using doca_comch_server_get_max_msg_size().

Parameters

[in]	comch_server	DOCA Comch server instance.
[in]	size	The maximum size of a message to set for the instance. Can be queried with doca_comch_cap_get_max_msg_size().

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_server_set_recv_queue_size()

DOCA_STABLE doca_error_t doca_comch_server_set_recv_queue_size	(	struct doca_comch_server *	comch_server,
		uint32_t	size
	)

Set the recv queue size property for the doca_comch instance. If not called, a default value will be used and can be queried using doca_comch_server_get_recv_queue_size().

Parameters

[in]	comch_server	DOCA Comch server instance.
[in]	size	The recv queue size set for the instance. Can be queried with doca_comch_cap_get_max_recv_queue_size().

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_server_task_send_alloc_init()

DOCA_STABLE doca_error_t doca_comch_server_task_send_alloc_init	(	struct doca_comch_server *	comch_server,
		struct doca_comch_connection *	peer,
		const void *	msg,
		uint32_t	len,
		struct doca_comch_task_send **	task
	)

Allocate and initialize a doca_comch_server send task.

Parameters

[in]	comch_server	The doca_comch_server instance.
[in]	peer	Connected endpoint to send the message to.
[in]	msg	Message or data to sent to associated peer.
[in]	len	Length of the message to send.
[out]	task	Pointer to a doca_comch_send_task instance populated with input parameters.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_NO_MEMORY - no available tasks to allocate.

◆ doca_comch_server_task_send_set_conf()

DOCA_STABLE doca_error_t doca_comch_server_task_send_set_conf	(	struct doca_comch_server *	comch_server,
		doca_comch_task_send_completion_cb_t	task_completion_cb,
		doca_comch_task_send_completion_cb_t	task_error_cb,
		uint32_t	num_send_tasks
	)

Configure the doca_comch_server send task callback and parameters.

Parameters

[in]	comch_server	The doca_comch_server instance.
[in]	task_completion_cb	Send task completion callback.
[in]	task_error_cb	Send task error callback.
[in]	num_send_tasks	Number of send tasks to create.

Returns

DOCA_SUCCESS on success. Error code - in case of failure:

DOCA_ERROR_INVALID_VALUE - in case of invalid input.
DOCA_ERROR_BAD_STATE - cc instance is already active.

◆ doca_comch_task_send_as_task()

DOCA_STABLE struct doca_task* doca_comch_task_send_as_task ( struct doca_comch_task_send * task )

Convert a doca_comch_send_task task to doca_task.

Parameters

[in] task Doca_comch_send_task task to convert.

Returns: Non NULL upon success, NULL otherwise.

Modules

Typedefs

Enumerations

Functions

Detailed Description

Typedef Documentation

◆ doca_comch_event_connection_status_changed_cb_t

◆ doca_comch_event_consumer_cb_t

◆ doca_comch_event_msg_recv_cb_t

◆ doca_comch_task_send_completion_cb_t

Enumeration Type Documentation

◆ doca_comch_counter

Function Documentation

◆ doca_comch_cap_client_is_supported()

◆ doca_comch_cap_get_max_clients()

◆ doca_comch_cap_get_max_msg_size()

◆ doca_comch_cap_get_max_name_len()

◆ doca_comch_cap_get_max_recv_queue_size()

◆ doca_comch_cap_get_max_send_tasks()

◆ doca_comch_cap_server_is_supported()

◆ doca_comch_client_as_ctx()

◆ doca_comch_client_create()

◆ doca_comch_client_destroy()

◆ doca_comch_client_event_consumer_register()

◆ doca_comch_client_event_msg_recv_register()

◆ doca_comch_client_get_client_ctx()

◆ doca_comch_client_get_connection()

◆ doca_comch_client_get_device()

◆ doca_comch_client_get_max_msg_size()

◆ doca_comch_client_get_recv_queue_size()

◆ doca_comch_client_set_max_msg_size()

◆ doca_comch_client_set_recv_queue_size()

◆ doca_comch_client_task_send_alloc_init()

◆ doca_comch_client_task_send_set_conf()

◆ doca_comch_connection_get_counter()

◆ doca_comch_connection_get_user_data()

◆ doca_comch_connection_set_user_data()

◆ doca_comch_connection_update_info()

◆ doca_comch_server_as_ctx()

◆ doca_comch_server_create()

◆ doca_comch_server_destroy()

◆ doca_comch_server_disconnect()

◆ doca_comch_server_event_connection_status_changed_register()

◆ doca_comch_server_event_consumer_register()

◆ doca_comch_server_event_msg_recv_register()

◆ doca_comch_server_get_device()

◆ doca_comch_server_get_device_rep()

◆ doca_comch_server_get_max_msg_size()

◆ doca_comch_server_get_recv_queue_size()

◆ doca_comch_server_get_server_ctx()

◆ doca_comch_server_set_max_msg_size()

◆ doca_comch_server_set_recv_queue_size()

◆ doca_comch_server_task_send_alloc_init()

◆ doca_comch_server_task_send_set_conf()

◆ doca_comch_task_send_as_task()
