ip_frag_dp.c File Reference

#include "ip_frag_dp.h"
#include <flow_common.h>
#include <doca_log.h>
#include <doca_flow.h>
#include <dpdk_utils.h>
#include <packet_parser.h>
#include <rte_lcore.h>
#include <rte_malloc.h>
#include <rte_ethdev.h>
#include <rte_ip_frag.h>
#include <rte_cycles.h>
#include <rte_mempool.h>
#include <stdbool.h>

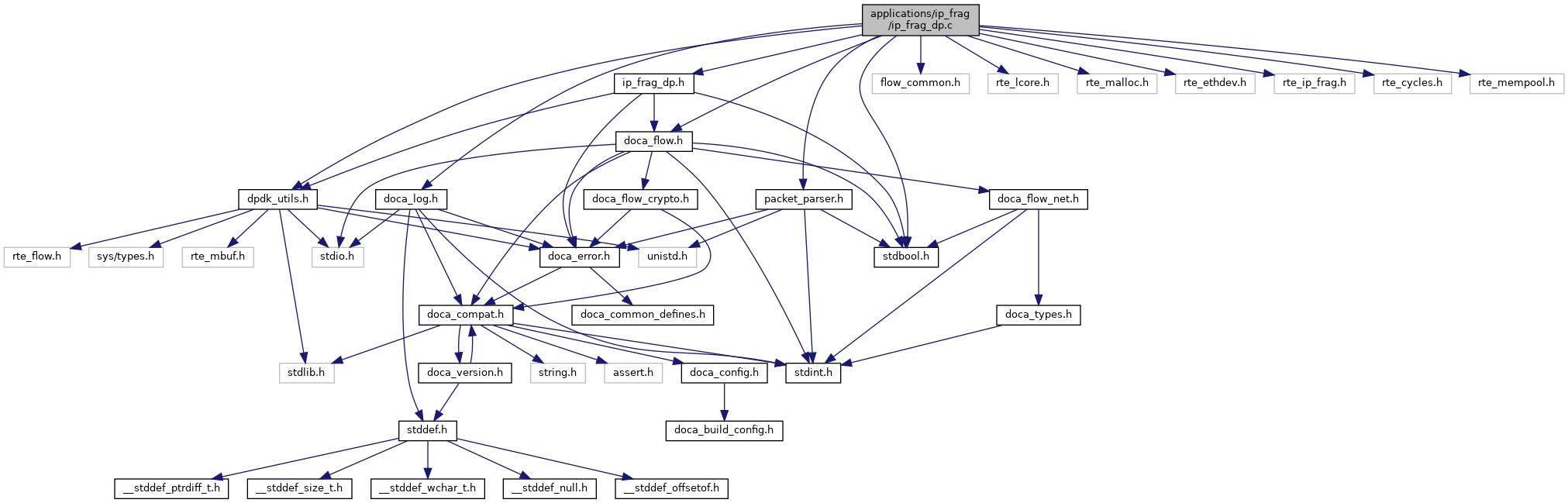

Include dependency graph for ip_frag_dp.c:

Go to the source code of this file.

Data Structures
struct	ip_frag_sw_counters
struct	ip_frag_wt_data

Macros
#define	IP_FRAG_MAX_PKT_BURST   32
#define	IP_FRAG_BURST_PREFETCH   (IP_FRAG_MAX_PKT_BURST / 8)
#define	IP_FRAG_FLUSH_THRESHOLD   16
#define	IP_FRAG_TBL_BUCKET_SIZE   4

Functions
	DOCA_LOG_REGISTER (IP_FRAG::DP)
struct ip_frag_wt_data	__rte_aligned (RTE_CACHE_LINE_SIZE)
static void	ip_frag_pkt_err_drop (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, struct rte_mbuf *pkt)
static doca_error_t	ip_frag_pkt_parse (enum parser_pkt_type *pkt_type, struct rte_mbuf *pkt, struct tun_parser_ctx *parse_ctx)
static void	ip_frag_pkt_reassemble_prepare (struct rte_mbuf *pkt, size_t l2_len, size_t l3_len, uint64_t flags)
static void	ip_frag_ipv4_hdr_cksum (struct rte_ipv4_hdr *hdr)
static void	ip_frag_network_cksum (struct network_parser_ctx *ctx)
static void	ip_frag_ipv4_cksum_handle (struct ip_frag_wt_data *wt_data, struct rte_mbuf *pkt, uint64_t l2_len, uint64_t l3_len, struct rte_ipv4_hdr *ipv4_hdr)
static void	ip_frag_network_cksum_handle (struct ip_frag_wt_data *wt_data, struct rte_mbuf *pkt, struct link_parser_ctx *link_ctx, struct network_parser_ctx *network_ctx)
static void	ip_frag_udp_cksum_handle (struct ip_frag_wt_data *wt_data, struct rte_mbuf *pkt, struct link_parser_ctx *link_ctx, struct network_parser_ctx *network_ctx, struct transport_parser_ctx *transport_ctx)
static void	ip_frag_pkt_fixup (struct ip_frag_wt_data *wt_data, enum parser_pkt_type pkt_type, struct rte_mbuf *pkt, struct tun_parser_ctx *parse_ctx)
static doca_error_t	ip_frag_pkt_flatten (struct rte_mbuf *pkt)
static struct rte_mbuf *	ip_frag_pkt_reassemble_push_outer (struct ip_frag_wt_data *wt_data, struct rte_mbuf *pkt, struct tun_parser_ctx *parse_ctx, uint64_t rx_ts)
static struct rte_mbuf *	ip_frag_pkt_reassemble_push_inner (struct ip_frag_wt_data *wt_data, enum parser_pkt_type pkt_type, struct rte_mbuf *pkt, struct tun_parser_ctx *parse_ctx, uint64_t rx_ts)
static doca_error_t	ip_frag_pkt_reassemble_push (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, enum parser_pkt_type pkt_type, struct rte_mbuf *pkt, struct tun_parser_ctx *parse_ctx, uint64_t rx_ts, struct rte_mbuf **whole_pkt)
static void	ip_frag_pkt_reassemble (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id, enum parser_pkt_type pkt_type, struct rte_mbuf *pkt, uint64_t rx_ts)
static void	ip_frag_pkts_reassemble (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id, enum parser_pkt_type pkt_type, struct rte_mbuf *pkts[], int pkts_cnt, uint64_t rx_ts)
static void	ip_frag_wt_reassemble (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id, enum parser_pkt_type pkt_type)
static int32_t	ip_frag_mbuf_fragment (struct ip_frag_wt_data *wt_data, struct conn_parser_ctx *parse_ctx, struct rte_mbuf *pkt_in, struct rte_mbuf **pkts_out, uint16_t pkts_out_max, uint16_t mtu, struct rte_mempool *direct_pool, struct rte_mempool *indirect_pool)
static void	ip_frag_pkt_fragment (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id, struct rte_mbuf *pkt)
static void	ip_frag_pkts_fragment (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id, struct rte_mbuf *pkts[], int pkts_cnt)
static void	ip_frag_wt_fragment (struct ip_frag_wt_data *wt_data, uint16_t rx_port_id, uint16_t tx_port_id)
static int	ip_frag_wt_thread_main (void *param)
static doca_error_t	ip_frag_mbuf_flags_init (struct ip_frag_config *cfg)
static doca_error_t	ip_frag_indirect_pool_init (uint16_t nb_queues, struct rte_mempool *indirect_pools[])
static void	ip_frag_wt_data_cleanup (struct ip_frag_wt_data *wt_data_arr)
static doca_error_t	ip_frag_wt_data_init (const struct ip_frag_config *cfg, struct rte_mempool *indirect_pools[], struct ip_frag_wt_data **wt_data_arr_out)
static void	ip_frag_sw_counters_print (struct ip_frag_ctx *ctx, struct ip_frag_wt_data *wt_data_arr)
static void	ip_frag_tx_buffer_error_print (struct ip_frag_wt_data *wt_data_arr)
static void	ip_frag_tbl_stats_print (struct ip_frag_wt_data *wt_data_arr)
static void	ip_frag_debug_counters_print (struct ip_frag_ctx *ctx, struct ip_frag_wt_data *wt_data_arr)
static doca_error_t	ip_frag_pipe_create (struct ip_frag_pipe_cfg *pipe_cfg, struct doca_flow_pipe **pipe)
static doca_error_t	ip_frag_rss_pipe_create (struct ip_frag_ctx *ctx, uint16_t port_id, char *pipe_name, bool is_root, uint32_t flags, struct doca_flow_pipe *pipe_miss, struct doca_flow_pipe **pipe_out)
static doca_error_t	ip_frag_rss_pipes_create (struct ip_frag_ctx *ctx)
doca_error_t	ip_frag (struct ip_frag_config *cfg, struct application_dpdk_config *dpdk_cfg)

Variables
const struct ip_frag_config *	cfg
uint16_t	queue_id
struct ip_frag_sw_counters	sw_counters [IP_FRAG_PORT_NUM]
struct rte_eth_dev_tx_buffer *	tx_buffer
uint64_t	tx_buffer_err
struct rte_ip_frag_tbl *	frag_tbl
struct rte_mempool *	indirect_pool
struct rte_ip_frag_death_row	death_row
bool	force_stop = false

Macro Definition Documentation

IP_FRAG_BURST_PREFETCH

#define IP_FRAG_BURST_PREFETCH   (IP_FRAG_MAX_PKT_BURST / 8)

Definition at line 44 of file ip_frag_dp.c.

IP_FRAG_FLUSH_THRESHOLD

#define IP_FRAG_FLUSH_THRESHOLD   16

Definition at line 45 of file ip_frag_dp.c.

IP_FRAG_MAX_PKT_BURST

#define IP_FRAG_MAX_PKT_BURST   32

Definition at line 43 of file ip_frag_dp.c.

IP_FRAG_TBL_BUCKET_SIZE

#define IP_FRAG_TBL_BUCKET_SIZE   4

Definition at line 47 of file ip_frag_dp.c.

Function Documentation

__rte_aligned()

struct ip_frag_wt_data __rte_aligned

(

RTE_CACHE_LINE_SIZE

)

DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER

(

IP_FRAG::DP

)

ip_frag()

doca_error_t ip_frag	(	struct ip_frag_config *	cfg,
		struct application_dpdk_config *	dpdk_cfg
	)

Definition at line 1243 of file ip_frag_dp.c.

ip_frag_debug_counters_print()

static void ip_frag_debug_counters_print ( struct ip_frag_ctx *  ctx, struct ip_frag_wt_data *  wt_data_arr  )

static

Definition at line 1053 of file ip_frag_dp.c.

ip_frag_indirect_pool_init()

static doca_error_t ip_frag_indirect_pool_init ( uint16_t  nb_queues, struct rte_mempool *  indirect_pools[]  )

static

Definition at line 809 of file ip_frag_dp.c.

ip_frag_ipv4_cksum_handle()

static void ip_frag_ipv4_cksum_handle ( struct ip_frag_wt_data *  wt_data, struct rte_mbuf *  pkt, uint64_t  l2_len, uint64_t  l3_len, struct rte_ipv4_hdr *  ipv4_hdr  )

static

Definition at line 160 of file ip_frag_dp.c.

ip_frag_ipv4_hdr_cksum()

static void ip_frag_ipv4_hdr_cksum ( struct rte_ipv4_hdr *  hdr )

static

Definition at line 134 of file ip_frag_dp.c.

ip_frag_mbuf_flags_init()

static doca_error_t ip_frag_mbuf_flags_init ( struct ip_frag_config *  cfg )

static

Definition at line 774 of file ip_frag_dp.c.

ip_frag_mbuf_fragment()

static int32_t ip_frag_mbuf_fragment ( struct ip_frag_wt_data *  wt_data, struct conn_parser_ctx *  parse_ctx, struct rte_mbuf *  pkt_in, struct rte_mbuf **  pkts_out, uint16_t  pkts_out_max, uint16_t  mtu, struct rte_mempool *  direct_pool, struct rte_mempool *  indirect_pool  )

static

Definition at line 568 of file ip_frag_dp.c.

ip_frag_network_cksum()

static void ip_frag_network_cksum ( struct network_parser_ctx *  ctx )

static

Definition at line 145 of file ip_frag_dp.c.

ip_frag_network_cksum_handle()

static void ip_frag_network_cksum_handle ( struct ip_frag_wt_data *  wt_data, struct rte_mbuf *  pkt, struct link_parser_ctx *  link_ctx, struct network_parser_ctx *  network_ctx  )

static

Definition at line 183 of file ip_frag_dp.c.

ip_frag_pipe_create()

static doca_error_t ip_frag_pipe_create ( struct ip_frag_pipe_cfg *  pipe_cfg, struct doca_flow_pipe **  pipe  )

static

Definition at line 1073 of file ip_frag_dp.c.

ip_frag_pkt_err_drop()

static void ip_frag_pkt_err_drop ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, struct rte_mbuf *  pkt  )

static

Definition at line 80 of file ip_frag_dp.c.

ip_frag_pkt_fixup()

static void ip_frag_pkt_fixup ( struct ip_frag_wt_data *  wt_data, enum parser_pkt_type  pkt_type, struct rte_mbuf *  pkt, struct tun_parser_ctx *  parse_ctx  )

static

Definition at line 233 of file ip_frag_dp.c.

ip_frag_pkt_flatten()

static doca_error_t ip_frag_pkt_flatten ( struct rte_mbuf *  pkt )

static

Definition at line 296 of file ip_frag_dp.c.

ip_frag_pkt_fragment()

static void ip_frag_pkt_fragment ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id, struct rte_mbuf *  pkt  )

static

Definition at line 599 of file ip_frag_dp.c.

ip_frag_pkt_parse()

static doca_error_t ip_frag_pkt_parse ( enum parser_pkt_type *  pkt_type, struct rte_mbuf *  pkt, struct tun_parser_ctx *  parse_ctx  )

static

Definition at line 94 of file ip_frag_dp.c.

ip_frag_pkt_reassemble()

static void ip_frag_pkt_reassemble ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id, enum parser_pkt_type  pkt_type, struct rte_mbuf *  pkt, uint64_t  rx_ts  )

static

Definition at line 457 of file ip_frag_dp.c.

ip_frag_pkt_reassemble_prepare()

static void ip_frag_pkt_reassemble_prepare ( struct rte_mbuf *  pkt, size_t  l2_len, size_t  l3_len, uint64_t  flags  )

static

Definition at line 122 of file ip_frag_dp.c.

ip_frag_pkt_reassemble_push()

static doca_error_t ip_frag_pkt_reassemble_push ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, enum parser_pkt_type  pkt_type, struct rte_mbuf *  pkt, struct tun_parser_ctx *  parse_ctx, uint64_t  rx_ts, struct rte_mbuf **  whole_pkt  )

static

Definition at line 412 of file ip_frag_dp.c.

ip_frag_pkt_reassemble_push_inner()

static struct rte_mbuf* ip_frag_pkt_reassemble_push_inner ( struct ip_frag_wt_data *  wt_data, enum parser_pkt_type  pkt_type, struct rte_mbuf *  pkt, struct tun_parser_ctx *  parse_ctx, uint64_t  rx_ts  )

static

Definition at line 372 of file ip_frag_dp.c.

ip_frag_pkt_reassemble_push_outer()

static struct rte_mbuf* ip_frag_pkt_reassemble_push_outer ( struct ip_frag_wt_data *  wt_data, struct rte_mbuf *  pkt, struct tun_parser_ctx *  parse_ctx, uint64_t  rx_ts  )

static

Definition at line 338 of file ip_frag_dp.c.

ip_frag_pkts_fragment()

static void ip_frag_pkts_fragment ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id, struct rte_mbuf *  pkts[], int  pkts_cnt  )

static

Definition at line 684 of file ip_frag_dp.c.

ip_frag_pkts_reassemble()

static void ip_frag_pkts_reassemble ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id, enum parser_pkt_type  pkt_type, struct rte_mbuf *  pkts[], int  pkts_cnt, uint64_t  rx_ts  )

static

Definition at line 520 of file ip_frag_dp.c.

ip_frag_rss_pipe_create()

static doca_error_t ip_frag_rss_pipe_create ( struct ip_frag_ctx *  ctx, uint16_t  port_id, char *  pipe_name, bool  is_root, uint32_t  flags, struct doca_flow_pipe *  pipe_miss, struct doca_flow_pipe **  pipe_out  )

static

Definition at line 1133 of file ip_frag_dp.c.

ip_frag_rss_pipes_create()

static doca_error_t ip_frag_rss_pipes_create ( struct ip_frag_ctx *  ctx )

static

Definition at line 1209 of file ip_frag_dp.c.

ip_frag_sw_counters_print()

static void ip_frag_sw_counters_print ( struct ip_frag_ctx *  ctx, struct ip_frag_wt_data *  wt_data_arr  )

static

Definition at line 935 of file ip_frag_dp.c.

ip_frag_tbl_stats_print()

static void ip_frag_tbl_stats_print ( struct ip_frag_wt_data *  wt_data_arr )

static

Definition at line 1032 of file ip_frag_dp.c.

ip_frag_tx_buffer_error_print()

static void ip_frag_tx_buffer_error_print ( struct ip_frag_wt_data *  wt_data_arr )

static

Definition at line 1007 of file ip_frag_dp.c.

ip_frag_udp_cksum_handle()

static void ip_frag_udp_cksum_handle ( struct ip_frag_wt_data *  wt_data, struct rte_mbuf *  pkt, struct link_parser_ctx *  link_ctx, struct network_parser_ctx *  network_ctx, struct transport_parser_ctx *  transport_ctx  )

static

Definition at line 202 of file ip_frag_dp.c.

ip_frag_wt_data_cleanup()

static void ip_frag_wt_data_cleanup ( struct ip_frag_wt_data *  wt_data_arr )

static

Definition at line 844 of file ip_frag_dp.c.

ip_frag_wt_data_init()

static doca_error_t ip_frag_wt_data_init ( const struct ip_frag_config *  cfg, struct rte_mempool *  indirect_pools[], struct ip_frag_wt_data **  wt_data_arr_out  )

static

Definition at line 869 of file ip_frag_dp.c.

ip_frag_wt_fragment()

static void ip_frag_wt_fragment ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id  )

static

Definition at line 717 of file ip_frag_dp.c.

ip_frag_wt_reassemble()

static void ip_frag_wt_reassemble ( struct ip_frag_wt_data *  wt_data, uint16_t  rx_port_id, uint16_t  tx_port_id, enum parser_pkt_type  pkt_type  )

static

Definition at line 550 of file ip_frag_dp.c.

ip_frag_wt_thread_main()

static int ip_frag_wt_thread_main ( void *  param )

static

Definition at line 733 of file ip_frag_dp.c.

Variable Documentation

cfg

const struct ip_frag_config* cfg

Definition at line 0 of file ip_frag_dp.c.

death_row

struct rte_ip_frag_death_row death_row

Definition at line 6 of file ip_frag_dp.c.

force_stop

bool force_stop = false

Definition at line 71 of file ip_frag_dp.c.

frag_tbl

struct rte_ip_frag_tbl* frag_tbl

Definition at line 5 of file ip_frag_dp.c.

indirect_pool

struct rte_mempool* indirect_pool

Definition at line 6 of file ip_frag_dp.c.

queue_id

uint16_t queue_id

Definition at line 1 of file ip_frag_dp.c.

sw_counters

struct ip_frag_sw_counters sw_counters[IP_FRAG_PORT_NUM]

Definition at line 1 of file ip_frag_dp.c.

tx_buffer

struct rte_eth_dev_tx_buffer* tx_buffer

Definition at line 3 of file ip_frag_dp.c.

tx_buffer_err

uint64_t tx_buffer_err

Definition at line 4 of file ip_frag_dp.c.
