eth_l2_fwd_dev_resources Struct Reference

#include </opt/mellanox/doca/applications/eth_l2_fwd/eth_l2_fwd_core.h>

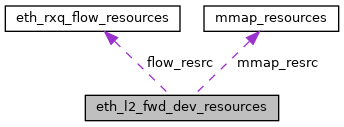

Collaboration diagram for eth_l2_fwd_dev_resources:

Data Fields
struct doca_dev *	mlxdev
struct doca_eth_rxq *	eth_rxq
struct doca_ctx *	eth_rxq_ctx
struct doca_eth_txq *	eth_txq
struct doca_ctx *	eth_txq_ctx
struct eth_rxq_flow_resources	flow_resrc
struct mmap_resources	mmap_resrc
uint16_t	rxq_flow_queue_id

Detailed Description

Definition at line 65 of file eth_l2_fwd_core.h.

Field Documentation

eth_rxq

struct doca_eth_rxq* eth_l2_fwd_dev_resources::eth_rxq

Definition at line 68 of file eth_l2_fwd_core.h.

eth_rxq_ctx

struct doca_ctx* eth_l2_fwd_dev_resources::eth_rxq_ctx

Definition at line 69 of file eth_l2_fwd_core.h.

eth_txq

struct doca_eth_txq* eth_l2_fwd_dev_resources::eth_txq

Definition at line 71 of file eth_l2_fwd_core.h.

eth_txq_ctx

struct doca_ctx* eth_l2_fwd_dev_resources::eth_txq_ctx

Definition at line 72 of file eth_l2_fwd_core.h.

flow_resrc

struct eth_rxq_flow_resources eth_l2_fwd_dev_resources::flow_resrc

Definition at line 72 of file eth_l2_fwd_core.h.

mlxdev

struct doca_dev* eth_l2_fwd_dev_resources::mlxdev

Definition at line 66 of file eth_l2_fwd_core.h.

mmap_resrc

struct mmap_resources eth_l2_fwd_dev_resources::mmap_resrc

Definition at line 72 of file eth_l2_fwd_core.h.

rxq_flow_queue_id

uint16_t eth_l2_fwd_dev_resources::rxq_flow_queue_id

Definition at line 78 of file eth_l2_fwd_core.h.

---

The documentation for this struct was generated from the following file:

• applications/eth_l2_fwd/eth_l2_fwd_core.h
