compress_common.h File Reference

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <doca_dev.h>
#include <doca_compress.h>
#include <doca_mmap.h>
#include <doca_error.h>

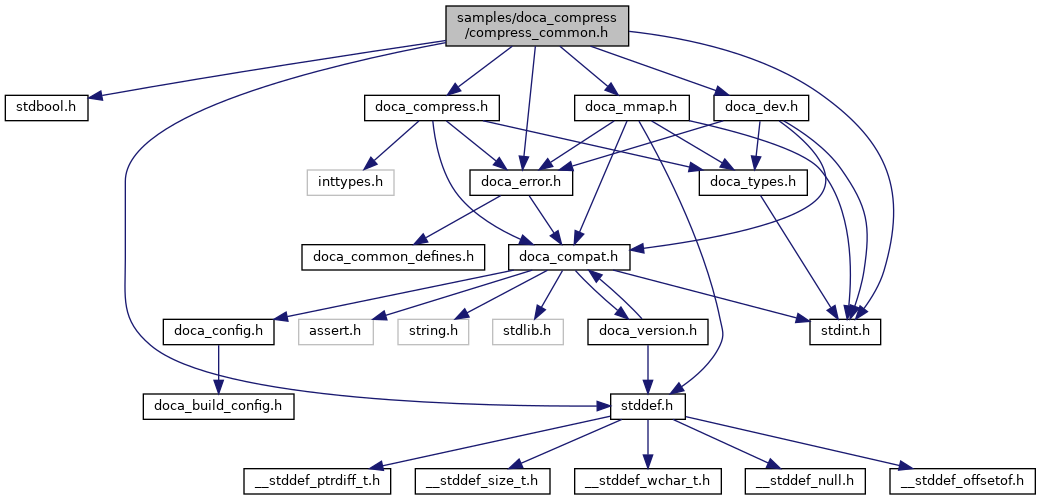

Include dependency graph for compress_common.h:

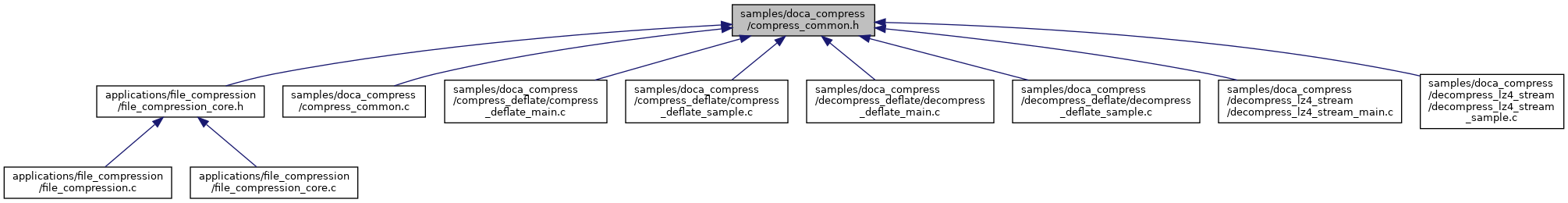

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	compress_cfg
struct	compress_resources
struct	compress_zlib_header

Macros
#define	USER_MAX_FILE_NAME   255 /* Max file name length */
#define	MAX_FILE_NAME   (USER_MAX_FILE_NAME + 1) /* Max file name string length */
#define	SLEEP_IN_NANOS   (10 * 1000) /* Sample the task every 10 microseconds */
#define	NUM_COMPRESS_TASKS   (1) /* Number of compress tasks */
#define	ADLER_CHECKSUM_SHIFT   (32) /* The shift for the Adler checksum within the output checksum */
#define	ZLIB_HEADER_SIZE   (2) /* The header size in zlib */
#define	ZLIB_TRAILER_SIZE   (4) /* The trailer size in zlib (the 32-bit checksum) */
#define	ZLIB_COMPATIBILITY_ADDITIONAL_MEMORY   (ZLIB_HEADER_SIZE + ZLIB_TRAILER_SIZE)

Enumerations
enum	compress_mode { COMPRESS_MODE_COMPRESS_DEFLATE , COMPRESS_MODE_DECOMPRESS_DEFLATE , COMPRESS_MODE_DECOMPRESS_LZ4_STREAM }

Functions
struct compress_zlib_header	__attribute__ ((packed))
doca_error_t	register_compress_params (void)
doca_error_t	register_deflate_params (void)
doca_error_t	register_lz4_stream_params (void)
void	init_compress_zlib_header (struct compress_zlib_header *zlib_header)
doca_error_t	verify_compress_zlib_header (struct compress_zlib_header *zlib_header)
doca_error_t	parse_lz4_frame (struct doca_buf *src_buf, struct compress_cfg *cfg, bool *has_content_checksum, uint32_t *content_checksum)
doca_error_t	allocate_compress_resources (const char *pci_addr, uint32_t max_bufs, struct compress_resources *resources)
doca_error_t	destroy_compress_resources (struct compress_resources *resources)
doca_error_t	submit_compress_deflate_task (struct compress_resources *resources, struct doca_buf *src_buf, struct doca_buf *dst_buf, uint64_t *output_checksum)
doca_error_t	submit_decompress_deflate_task (struct compress_resources *resources, struct doca_buf *src_buf, struct doca_buf *dst_buf, uint64_t *output_checksum)
doca_error_t	submit_decompress_lz4_stream_task (struct compress_resources *resources, uint8_t has_block_checksum, uint8_t are_blocks_independent, struct doca_buf *src_buf, struct doca_buf *dst_buf, uint32_t *output_crc_checksum, uint32_t *output_xxh_checksum)
doca_error_t	compress_task_compress_deflate_is_supported (struct doca_devinfo *devinfo)
doca_error_t	compress_task_decompress_deflate_is_supported (struct doca_devinfo *devinfo)
doca_error_t	compress_task_decompress_lz4_stream_is_supported (struct doca_devinfo *devinfo)
void	compress_completed_callback (struct doca_compress_task_compress_deflate *compress_task, union doca_data task_user_data, union doca_data ctx_user_data)
void	compress_error_callback (struct doca_compress_task_compress_deflate *compress_task, union doca_data task_user_data, union doca_data ctx_user_data)
void	decompress_deflate_completed_callback (struct doca_compress_task_decompress_deflate *decompress_task, union doca_data task_user_data, union doca_data ctx_user_data)
void	decompress_deflate_error_callback (struct doca_compress_task_decompress_deflate *decompress_task, union doca_data task_user_data, union doca_data ctx_user_data)
void	decompress_lz4_stream_completed_callback (struct doca_compress_task_decompress_lz4_stream *decompress_task, union doca_data task_user_data, union doca_data ctx_user_data)
void	decompress_lz4_stream_error_callback (struct doca_compress_task_decompress_lz4_stream *decompress_task, union doca_data task_user_data, union doca_data ctx_user_data)

Variables
uint8_t	cmf
uint8_t	flg

Macro Definition Documentation

ADLER_CHECKSUM_SHIFT

#define ADLER_CHECKSUM_SHIFT   (32) /* The shift for the Adler checksum within the output checksum */

Definition at line 42 of file compress_common.h.

MAX_FILE_NAME

#define MAX_FILE_NAME   (USER_MAX_FILE_NAME + 1) /* Max file name string length */

Definition at line 39 of file compress_common.h.

NUM_COMPRESS_TASKS

#define NUM_COMPRESS_TASKS   (1) /* Number of compress tasks */

Definition at line 41 of file compress_common.h.

SLEEP_IN_NANOS

#define SLEEP_IN_NANOS   (10 * 1000) /* Sample the task every 10 microseconds */

Definition at line 40 of file compress_common.h.

USER_MAX_FILE_NAME

#define USER_MAX_FILE_NAME   255 /* Max file name length */

Definition at line 38 of file compress_common.h.

ZLIB_COMPATIBILITY_ADDITIONAL_MEMORY

#define ZLIB_COMPATIBILITY_ADDITIONAL_MEMORY   (ZLIB_HEADER_SIZE + ZLIB_TRAILER_SIZE)

Definition at line 46 of file compress_common.h.

ZLIB_HEADER_SIZE

#define ZLIB_HEADER_SIZE   (2) /* The header size in zlib */

Definition at line 43 of file compress_common.h.

ZLIB_TRAILER_SIZE

#define ZLIB_TRAILER_SIZE   (4) /* The trailer size in zlib (the 32-bit checksum) */

Definition at line 44 of file compress_common.h.

Enumeration Type Documentation

compress_mode

enum compress_mode

Enumerator
COMPRESS_MODE_COMPRESS_DEFLATE
COMPRESS_MODE_DECOMPRESS_DEFLATE
COMPRESS_MODE_DECOMPRESS_LZ4_STREAM

Definition at line 49 of file compress_common.h.

Function Documentation

__attribute__()

struct compress_zlib_header __attribute__

(

(packed)

)

Definition at line 1 of file telemetry_exporter.h.

allocate_compress_resources()

doca_error_t allocate_compress_resources	(	const char *	pci_addr,
		uint32_t	max_bufs,
		struct compress_resources *	resources
	)

Definition at line 659 of file compress_common.c.

compress_completed_callback()

void compress_completed_callback	(	struct doca_compress_task_compress_deflate *	compress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1043 of file compress_common.c.

compress_error_callback()

void compress_error_callback	(	struct doca_compress_task_compress_deflate *	compress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1066 of file compress_common.c.

compress_task_compress_deflate_is_supported()

doca_error_t compress_task_compress_deflate_is_supported

(

struct doca_devinfo *

devinfo

)

Definition at line 1028 of file compress_common.c.

compress_task_decompress_deflate_is_supported()

doca_error_t compress_task_decompress_deflate_is_supported

(

struct doca_devinfo *

devinfo

)

Definition at line 1033 of file compress_common.c.

compress_task_decompress_lz4_stream_is_supported()

doca_error_t compress_task_decompress_lz4_stream_is_supported

(

struct doca_devinfo *

devinfo

)

Definition at line 1038 of file compress_common.c.

decompress_deflate_completed_callback()

void decompress_deflate_completed_callback	(	struct doca_compress_task_decompress_deflate *	decompress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1086 of file compress_common.c.

decompress_deflate_error_callback()

void decompress_deflate_error_callback	(	struct doca_compress_task_decompress_deflate *	decompress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1109 of file compress_common.c.

decompress_lz4_stream_completed_callback()

void decompress_lz4_stream_completed_callback	(	struct doca_compress_task_decompress_lz4_stream *	decompress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1129 of file compress_common.c.

decompress_lz4_stream_error_callback()

void decompress_lz4_stream_error_callback	(	struct doca_compress_task_decompress_lz4_stream *	decompress_task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1152 of file compress_common.c.

destroy_compress_resources()

doca_error_t destroy_compress_resources

(

struct compress_resources *

resources

)

Definition at line 793 of file compress_common.c.

init_compress_zlib_header()

void init_compress_zlib_header

(

struct compress_zlib_header *

zlib_header

)

Definition at line 429 of file compress_common.c.

parse_lz4_frame()

doca_error_t parse_lz4_frame	(	struct doca_buf *	src_buf,
		struct compress_cfg *	cfg,
		bool *	has_content_checksum,
		uint32_t *	content_checksum
	)

Definition at line 487 of file compress_common.c.

register_compress_params()

doca_error_t register_compress_params

(

void

)

Definition at line 190 of file compress_common.c.

register_deflate_params()

doca_error_t register_deflate_params

(

void

)

Definition at line 284 of file compress_common.c.

register_lz4_stream_params()

doca_error_t register_lz4_stream_params

(

void

)

Definition at line 348 of file compress_common.c.

submit_compress_deflate_task()

doca_error_t submit_compress_deflate_task	(	struct compress_resources *	resources,
		struct doca_buf *	src_buf,
		struct doca_buf *	dst_buf,
		uint64_t *	output_checksum
	)

Definition at line 843 of file compress_common.c.

submit_decompress_deflate_task()

doca_error_t submit_decompress_deflate_task	(	struct compress_resources *	resources,
		struct doca_buf *	src_buf,
		struct doca_buf *	dst_buf,
		uint64_t *	output_checksum
	)

Definition at line 902 of file compress_common.c.

submit_decompress_lz4_stream_task()

doca_error_t submit_decompress_lz4_stream_task	(	struct compress_resources *	resources,
		uint8_t	has_block_checksum,
		uint8_t	are_blocks_independent,
		struct doca_buf *	src_buf,
		struct doca_buf *	dst_buf,
		uint32_t *	output_crc_checksum,
		uint32_t *	output_xxh_checksum
	)

Definition at line 961 of file compress_common.c.

verify_compress_zlib_header()

doca_error_t verify_compress_zlib_header

(

struct compress_zlib_header *

zlib_header

)

Definition at line 444 of file compress_common.c.

Variable Documentation

cmf

uint8_t cmf

The CMF byte represents the Compression Method and Compression Info

Definition at line 0 of file compress_common.h.

flg

uint8_t flg

The FLG byte represents various flags, including FCHECK and FLEVEL

Definition at line 1 of file compress_common.h.
