doca_comch.h File Reference
#include <stddef.h>#include <stdint.h>#include <doca_compat.h>#include <doca_error.h>#include <doca_types.h>

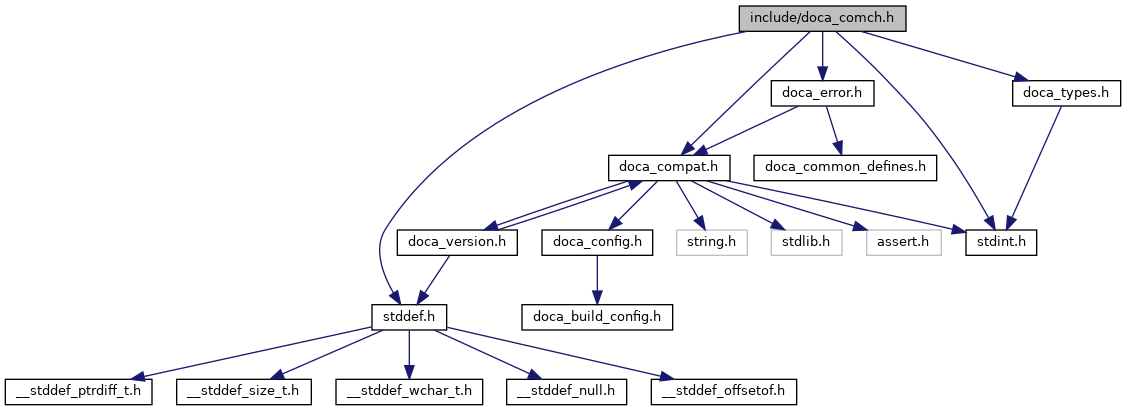

Include dependency graph for doca_comch.h:

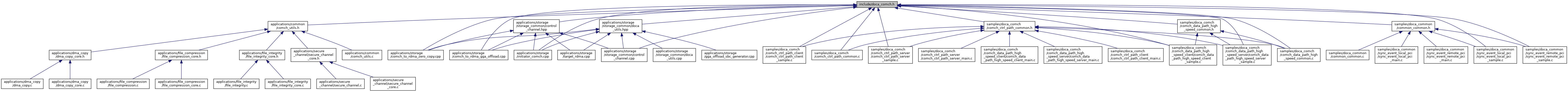

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Typedefs | |
| typedef void(* | doca_comch_task_send_completion_cb_t) (struct doca_comch_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data) |
| typedef void(* | doca_comch_event_msg_recv_cb_t) (struct doca_comch_event_msg_recv *event, uint8_t *recv_buffer, uint32_t msg_len, struct doca_comch_connection *comch_connection) |
| typedef void(* | doca_comch_event_connection_status_changed_cb_t) (struct doca_comch_event_connection_status_changed *event, struct doca_comch_connection *comch_connection, uint8_t change_successful) |
| typedef void(* | doca_comch_event_consumer_cb_t) (struct doca_comch_event_consumer *event, struct doca_comch_connection *comch_connection, uint32_t id) |
Enumerations | |
| enum | doca_comch_counter { DOCA_COMCH_COUNTER_SENT_MESSAGES = 1 , DOCA_COMCH_COUNTER_SENT_BYTES = 2 , DOCA_COMCH_COUNTER_RECV_MESSAGES = 3 , DOCA_COMCH_COUNTER_RECV_BYTES = 4 } |
Functions | |
| DOCA_STABLE doca_error_t | doca_comch_connection_set_user_data (struct doca_comch_connection *connection, union doca_data user_data) |
| DOCA_STABLE union doca_data | doca_comch_connection_get_user_data (const struct doca_comch_connection *connection) |
| DOCA_STABLE struct doca_comch_server * | doca_comch_server_get_server_ctx (const struct doca_comch_connection *connection) |
| DOCA_STABLE struct doca_comch_client * | doca_comch_client_get_client_ctx (const struct doca_comch_connection *connection) |
| DOCA_STABLE doca_error_t | doca_comch_cap_get_max_name_len (const struct doca_devinfo *devinfo, uint32_t *max_name_len) |
| DOCA_STABLE doca_error_t | doca_comch_cap_get_max_msg_size (const struct doca_devinfo *devinfo, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_cap_get_max_recv_queue_size (const struct doca_devinfo *devinfo, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_cap_get_max_clients (const struct doca_devinfo *devinfo, uint32_t *num_clients) |
| DOCA_STABLE doca_error_t | doca_comch_server_create (struct doca_dev *dev, struct doca_dev_rep *repr, const char *name, struct doca_comch_server **comch_server) |
| DOCA_STABLE doca_error_t | doca_comch_server_destroy (struct doca_comch_server *comch_server) |
| DOCA_STABLE doca_error_t | doca_comch_cap_server_is_supported (const struct doca_devinfo *devinfo) |
| DOCA_STABLE doca_error_t | doca_comch_server_set_max_msg_size (struct doca_comch_server *comch_server, uint32_t size) |
| DOCA_STABLE doca_error_t | doca_comch_server_get_max_msg_size (const struct doca_comch_server *comch_server, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_server_set_recv_queue_size (struct doca_comch_server *comch_server, uint32_t size) |
| DOCA_STABLE doca_error_t | doca_comch_server_get_recv_queue_size (const struct doca_comch_server *comch_server, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_server_get_device (const struct doca_comch_server *comch_server, struct doca_dev **dev) |
| DOCA_STABLE doca_error_t | doca_comch_server_get_device_rep (const struct doca_comch_server *comch_server, struct doca_dev_rep **rep) |
| DOCA_STABLE struct doca_ctx * | doca_comch_server_as_ctx (struct doca_comch_server *comch_server) |
| DOCA_STABLE doca_error_t | doca_comch_server_disconnect (struct doca_comch_server *comch_server, struct doca_comch_connection *connection) |
| DOCA_STABLE doca_error_t | doca_comch_client_create (struct doca_dev *dev, const char *name, struct doca_comch_client **comch_client) |
| DOCA_STABLE doca_error_t | doca_comch_client_destroy (struct doca_comch_client *comch_client) |
| DOCA_STABLE doca_error_t | doca_comch_cap_client_is_supported (const struct doca_devinfo *devinfo) |
| DOCA_STABLE doca_error_t | doca_comch_client_set_max_msg_size (struct doca_comch_client *comch_client, uint32_t size) |
| DOCA_STABLE doca_error_t | doca_comch_client_get_max_msg_size (const struct doca_comch_client *comch_client, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_client_set_recv_queue_size (struct doca_comch_client *comch_client, uint32_t size) |
| DOCA_STABLE doca_error_t | doca_comch_client_get_recv_queue_size (const struct doca_comch_client *comch_client, uint32_t *size) |
| DOCA_STABLE doca_error_t | doca_comch_client_get_device (const struct doca_comch_client *comch_client, struct doca_dev **dev) |
| DOCA_STABLE struct doca_ctx * | doca_comch_client_as_ctx (struct doca_comch_client *comch_client) |
| DOCA_STABLE doca_error_t | doca_comch_client_get_connection (const struct doca_comch_client *comch_client, struct doca_comch_connection **connection) |
| DOCA_STABLE doca_error_t | doca_comch_cap_get_max_send_tasks (const struct doca_devinfo *devinfo, uint32_t *max_send_tasks) |
| DOCA_STABLE doca_error_t | doca_comch_server_task_send_set_conf (struct doca_comch_server *comch_server, doca_comch_task_send_completion_cb_t task_completion_cb, doca_comch_task_send_completion_cb_t task_error_cb, uint32_t num_send_tasks) |
| DOCA_STABLE doca_error_t | doca_comch_client_task_send_set_conf (struct doca_comch_client *comch_client, doca_comch_task_send_completion_cb_t task_completion_cb, doca_comch_task_send_completion_cb_t task_error_cb, uint32_t num_send_tasks) |
| DOCA_STABLE doca_error_t | doca_comch_server_task_send_alloc_init (struct doca_comch_server *comch_server, struct doca_comch_connection *peer, const void *msg, uint32_t len, struct doca_comch_task_send **task) |
| DOCA_STABLE doca_error_t | doca_comch_client_task_send_alloc_init (struct doca_comch_client *comch_client, struct doca_comch_connection *peer, const void *msg, uint32_t len, struct doca_comch_task_send **task) |
| DOCA_STABLE struct doca_task * | doca_comch_task_send_as_task (struct doca_comch_task_send *task) |
| DOCA_STABLE doca_error_t | doca_comch_server_event_msg_recv_register (struct doca_comch_server *comch_server, doca_comch_event_msg_recv_cb_t recv_event_cb) |
| Configure the doca_comch recv event callback for server context. More... | |
| DOCA_STABLE doca_error_t | doca_comch_client_event_msg_recv_register (struct doca_comch_client *comch_client, doca_comch_event_msg_recv_cb_t recv_event_cb) |
| Configure the doca_comch recv event callback for client context. More... | |
| DOCA_STABLE doca_error_t | doca_comch_server_event_connection_status_changed_register (struct doca_comch_server *comch_server, doca_comch_event_connection_status_changed_cb_t connect_event_cb, doca_comch_event_connection_status_changed_cb_t disconnect_event_cb) |
| Configure the doca_comch recv event callback for server context. More... | |
| DOCA_STABLE doca_error_t | doca_comch_connection_update_info (struct doca_comch_connection *comch_connection) |
| update statistics for given comch_connection More... | |
| DOCA_STABLE doca_error_t | doca_comch_connection_get_counter (const struct doca_comch_connection *comch_connection, enum doca_comch_counter counter_type, uint64_t *counter_value) |
| get statistics counter for a given comch_connection More... | |
| DOCA_STABLE doca_error_t | doca_comch_server_event_consumer_register (struct doca_comch_server *comch_server, doca_comch_event_consumer_cb_t new_consumer_event_cb, doca_comch_event_consumer_cb_t expired_consumer_event_cb) |
| Configure the doca_comch callback for for receiving consumer events on server context. More... | |
| DOCA_STABLE doca_error_t | doca_comch_client_event_consumer_register (struct doca_comch_client *comch_client, doca_comch_event_consumer_cb_t new_consumer_event_cb, doca_comch_event_consumer_cb_t expired_consumer_event_cb) |
| Configure the doca_comch callback for for receiving consumer events on client context. More... | |
