#include <stdint.h>
#include <stdbool.h>
#include <doca_types.h>

Include dependency graph for doca_flow_net.h:

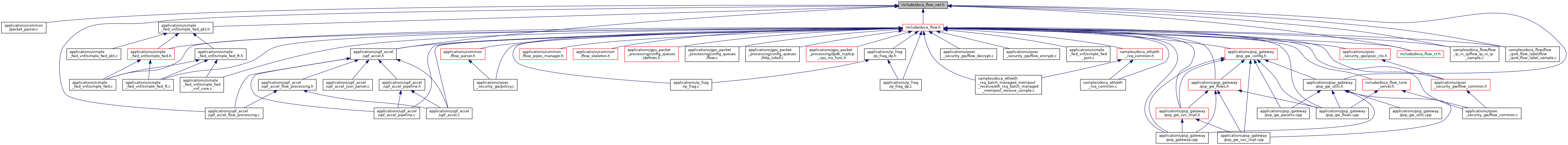

This graph shows which files directly or indirectly include this file:

Data Structures
struct	doca_flow_header_eth_vlan
	doca flow vlan header More...

struct	doca_flow_header_eth
	doca flow eth header More...

struct	doca_flow_ip_addr
	doca flow ip address More...

struct	doca_flow_header_ib_bth
	doca flow BTH header in match data More...

struct	doca_flow_header_l4_port
	doca flow tcp or udp port header in match data More...

struct	doca_flow_header_udp
	doca flow udp header in match data More...

struct	doca_flow_header_roce_v2
	doca flow ROCEv2 header in match data More...

struct	doca_flow_header_tcp
	doca flow tcp header in match data More...

struct	doca_flow_header_icmp
	doca flow icmp header in match data More...

struct	doca_flow_header_ip4
	doca flow ipv4 header in match data More...

struct	doca_flow_header_ip6
	doca flow ipv6 header in match data More...

struct	doca_flow_ct_ip4

struct	doca_flow_ct_ip6

struct	doca_flow_header_mpls
	doca flow MPLS header. More...

struct	doca_flow_header_geneve
	doca flow GENEVE header. More...

union	doca_flow_geneve_option
	doca flow GENEVE option single DW. More...

struct	doca_flow_header_psp
	doca flow psp header in match data and modify/encap actions More...

struct	doca_flow_tun
	doca flow tunnel information More...

Macros
#define	DOCA_FLOW_ETHER_ADDR_LEN (6)

#define	DOCA_FLOW_PROTO_ICMP (1)

#define	DOCA_FLOW_PROTO_ICMP6 (58)

#define	DOCA_FLOW_PROTO_IPV4 (4)

#define	DOCA_FLOW_PROTO_IPV6 (41)

#define	DOCA_FLOW_PROTO_TCP (6)

#define	DOCA_FLOW_PROTO_UDP (17)

#define	DOCA_FLOW_PROTO_IB_BTH (16)

#define	DOCA_FLOW_PROTO_GRE (47)

#define	DOCA_FLOW_PROTO_ESP (50)

#define	DOCA_FLOW_PROTO_IP4_IN_IP (4)

#define	DOCA_FLOW_PROTO_IP6_IN_IP (41)

#define	DOCA_FLOW_GTPU_DEFAULT_PORT (2152)

#define	DOCA_FLOW_VXLAN_DEFAULT_PORT (4789)

#define	DOCA_FLOW_VXLAN_GPE_DEFAULT_PORT (4790)

#define	DOCA_FLOW_MPLS_DEFAULT_PORT (6635)

#define	DOCA_FLOW_GENEVE_DEFAULT_PORT (6081)

#define	DOCA_FLOW_PSP_DEFAULT_PORT (1000)

#define	DOCA_FLOW_ROCEV2_DEFAULT_PORT (4791)

#define	DOCA_FLOW_ETHER_TYPE_IPV4 (0x0800)

#define	DOCA_FLOW_ETHER_TYPE_IPV6 (0x86DD)

#define	DOCA_FLOW_ETHER_TYPE_TEB (0x6558)

#define	DOCA_FLOW_ETHER_TYPE_ARP (0x0806)

#define	DOCA_FLOW_ETHER_TYPE_VLAN (0x8100)

#define	DOCA_FLOW_ETHER_TYPE_QINQ (0x88A8)

#define	DOCA_FLOW_UDP_HEADER_LEN 8

#define	DOCA_FLOW_ESP_HEADER_LEN (4 * sizeof(doca_be32_t))

#define	DOCA_FLOW_ESP_HEADER_MARKER_LEN_4B 4

#define	DOCA_FLOW_ESP_HEADER_MARKER_LEN_8B 8

#define	DOCA_FLOW_CRYPTO_KEY_LEN_MAX 32

#define	DOCA_FLOW_GENEVE_OPT_LEN_MAX 63

#define	DOCA_FLOW_ENCAP_GENEVE_OPT_LEN_MAX 19

#define	DOCA_FLOW_GENEVE_DATA_OPTION_LEN_MAX 31

#define	DOCA_FLOW_GENEVE_NUM_OF_OPTIONS_MAX 8

#define	DOCA_FLOW_MPLS_LABELS_MAX 5

#define	DOCA_FLOW_PSP_HEADER_LEN (6 * sizeof(doca_be32_t))

#define	DOCA_FLOW_VXLAN_GPE_TYPE_IPV4 1

#define	DOCA_FLOW_VXLAN_GPE_TYPE_IPV6 2

#define	DOCA_FLOW_VXLAN_GPE_TYPE_ETH 3

#define	DOCA_FLOW_VXLAN_GPE_TYPE_NSH 4

#define	DOCA_FLOW_VXLAN_GPE_TYPE_MPLS 5

#define	DOCA_FLOW_VXLAN_GPE_TYPE_GBP 6

#define	DOCA_FLOW_VXLAN_GPE_TYPE_VBNG 7

#define	DOCA_FLOW_GTP_EXT_PSC (0x85)

#define	DOCA_FLOW_IB_BTH_DST_QP_LEN 3

#define	DOCA_FLOW_IB_BTH_PSN_LEN 3

#define	DOCA_FLOW_CRYPTO_HEADER_LEN_MAX

Enumerations
enum	doca_flow_l3_type { DOCA_FLOW_L3_TYPE_NONE = 0 , DOCA_FLOW_L3_TYPE_IP4 , DOCA_FLOW_L3_TYPE_IP6 }
	doca flow layer 3 packet type More...

enum	doca_flow_l4_type_ext { DOCA_FLOW_L4_TYPE_EXT_NONE = 0 , DOCA_FLOW_L4_TYPE_EXT_TCP , DOCA_FLOW_L4_TYPE_EXT_UDP , DOCA_FLOW_L4_TYPE_EXT_ICMP , DOCA_FLOW_L4_TYPE_EXT_ICMP6 , DOCA_FLOW_L4_TYPE_EXT_TRANSPORT , DOCA_FLOW_L4_TYPE_EXT_ROCE_V2 }
	doca flow layer 4 packet extend type More...

enum	doca_flow_ip_fragment_flags { DOCA_FLOW_IP4_FLAG_MORE_FRAGMENTS = (1 << 13) , DOCA_FLOW_IP4_FLAG_DONT_FRAGMENT = (1 << 14) }
	doca flow IP fragment flags More...

enum	doca_flow_tun_type { DOCA_FLOW_TUN_NONE = 0 , DOCA_FLOW_TUN_VXLAN , DOCA_FLOW_TUN_GTPU , DOCA_FLOW_TUN_GRE , DOCA_FLOW_TUN_ESP , DOCA_FLOW_TUN_MPLS_O_UDP , DOCA_FLOW_TUN_GENEVE , DOCA_FLOW_TUN_PSP , DOCA_FLOW_TUN_IP_IN_IP , DOCA_FLOW_TUN_MAX }
	doca flow tunnel type More...

enum	doca_flow_tun_ext_vxlan_type { DOCA_FLOW_TUN_EXT_VXLAN_STANDARD = 0 , DOCA_FLOW_TUN_EXT_VXLAN_GPE , DOCA_FLOW_TUN_EXT_VXLAN_GBP }
	doca flow tunnel extension vxlan type More...

enum	doca_flow_tun_ext_gre_type { DOCA_FLOW_TUN_EXT_GRE_STANDARD = 0 , DOCA_FLOW_TUN_EXT_GRE_NVGRE }
	doca flow tun extension gre type More...
