#include <stddef.h>#include <stdint.h>#include <doca_compat.h>#include <doca_error.h>#include <doca_types.h>

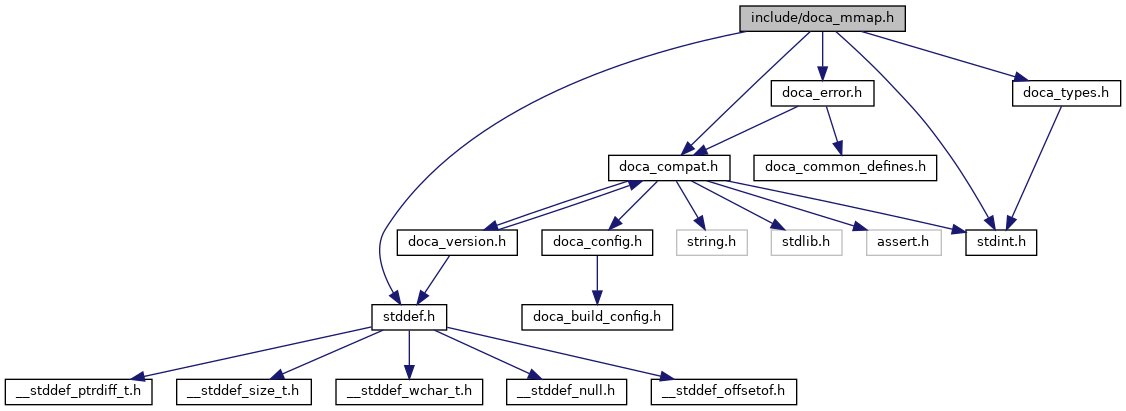

Include dependency graph for doca_mmap.h:
Go to the source code of this file.
Typedefs | |
| typedef uint32_t | doca_dpa_dev_mmap_t |
| Handle on the DPA for a doca_mmap instance. More... | |
| typedef void() | doca_mmap_memrange_free_cb_t(void *addr, size_t len, void *cookie) |
| Function to be called for each populated memory range on memory map destroy. More... | |
Functions | |
| DOCA_STABLE doca_error_t | doca_mmap_create (struct doca_mmap **mmap) |
| Allocates zero size memory map object with default/unset attributes. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_destroy (struct doca_mmap *mmap) |
| Destroy DOCA Memory Map structure. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_start (struct doca_mmap *mmap) |
| Start DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_stop (struct doca_mmap *mmap) |
| Stop DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_add_dev (struct doca_mmap *mmap, struct doca_dev *dev) |
| Register DOCA memory map on a given device. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_rm_dev (struct doca_mmap *mmap, struct doca_dev *dev) |
| Deregister given device from DOCA memory map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_export_pci (struct doca_mmap *mmap, const struct doca_dev *dev, const void **export_desc, size_t *export_desc_len) |
| Compose memory map representation for later import with doca_mmap_create_from_export() for one of the devices previously added to the memory map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_export_rdma (struct doca_mmap *mmap, const struct doca_dev *dev, const void **export_desc, size_t *export_desc_len) |
| Compose memory map representation for later import with doca_mmap_create_from_export() for one of the devices previously added to the memory map. The imported mmap can then be used for RDMA operations. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_mmap_dev_get_dpa_handle (struct doca_mmap *mmap, const struct doca_dev *dev, doca_dpa_dev_mmap_t *dpa_mmap_handle) |
| Extract mmap handle associated with the given DOCA device, for the DPA to operate on. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_create_from_export (const union doca_data *user_data, const void *export_desc, size_t export_desc_len, struct doca_dev *dev, struct doca_mmap **mmap) |
| Creates a memory map object representing memory ranges in remote system memory space. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_memrange (struct doca_mmap *mmap, void *addr, size_t len) |
| Set the memory range of DOCA memory map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_dmabuf_memrange (struct doca_mmap *mmap, int dmabuf_fd, void *addr, size_t dmabuf_offset, size_t len) |
| Set the memory range of DOCA memory map using dmabuf. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_mmap_set_dpa_memrange (struct doca_mmap *mmap, struct doca_dpa *dpa, uint64_t dpa_addr, size_t len) |
| Set the memory range of DOCA memory map to be a DPA heap memory. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_memrange (const struct doca_mmap *mmap, void **addr, size_t *len) |
| Get the memory range of DOCA memory map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_free_cb (struct doca_mmap *mmap, doca_mmap_memrange_free_cb_t *free_cb, void *opaque) |
| Set callback that will free the memory range when destroying DOCA memory map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_user_data (const struct doca_mmap *mmap, union doca_data *user_data) |
| Get the user_data of a DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_max_num_devices (const struct doca_mmap *mmap, uint32_t *max_num_devices) |
| Get the max number of devices to add to a DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_num_bufs (const struct doca_mmap *mmap, uint32_t *num_bufs) |
Get the Total number of struct doca_buf objects pointing to the memory in a DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_exported (const struct doca_mmap *mmap, uint8_t *exported) |
| Get the flag indicating if a DOCA Memory Map had been exported. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_get_from_export (const struct doca_mmap *mmap, uint8_t *from_export) |
| Get the flag indicating if a DOCA Memory Map had been created from an export. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_max_num_devices (struct doca_mmap *mmap, uint32_t max_num_devices) |
| Set a new max number of devices to add to a DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_permissions (struct doca_mmap *mmap, uint32_t access_mask) |
| Set access flags of the registered memory. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_set_user_data (struct doca_mmap *mmap, union doca_data user_data) |
| Set user_data for a DOCA Memory Map. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_cap_is_export_pci_supported (const struct doca_devinfo *devinfo, uint8_t *mmap_export) |
| Get the mmap export to PCI capability of a device. More... | |
| DOCA_STABLE doca_error_t | doca_mmap_cap_is_create_from_export_pci_supported (const struct doca_devinfo *devinfo, uint8_t *from_export) |
| Get the mmap create from export PCI capability of a device. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_mmap_enable_thread_safety (struct doca_mmap *mmap) |
| Enable thread safety for doca_mmap. More... | |
