#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <time.h>
#include <unistd.h>
#include <doca_buf.h>
#include <doca_buf_inventory.h>
#include <doca_dev.h>
#include <doca_error.h>
#include <doca_mmap.h>
#include <doca_pe.h>
#include <doca_rdma.h>
#include <doca_sync_event.h>
#include "common.h"

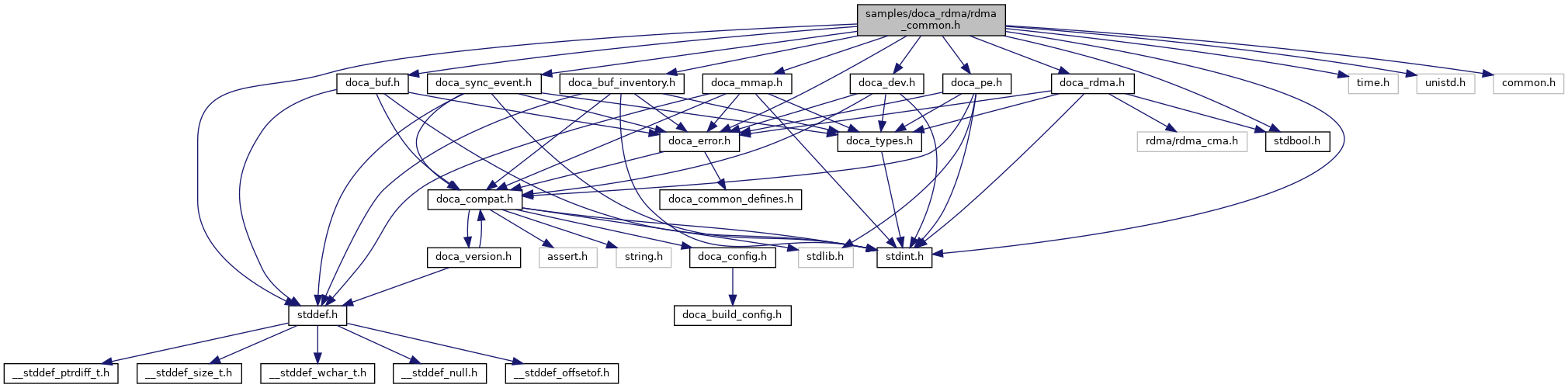

Include dependency graph for rdma_common.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rdma_config

struct	rdma_resources

Macros
#define	MEM_RANGE_LEN (4096) /* DOCA mmap memory range length */

#define	INVENTORY_NUM_INITIAL_ELEMENTS (16) /* Number of DOCA inventory initial elements */

#define	MAX_USER_ARG_SIZE (256) /* Maximum size of user input argument */

#define	MAX_ARG_SIZE (MAX_USER_ARG_SIZE + 1) /* Maximum size of input argument */

#define	DEFAULT_STRING "Hi DOCA RDMA!" /* Default string to use in our samples */

#define	DEFAULT_LOCAL_CONNECTION_DESC_PATH "/tmp/local_connection_desc_path.txt"

#define	DEFAULT_REMOTE_CONNECTION_DESC_PATH "/tmp/remote_connection_desc_path.txt"

#define	DEFAULT_REMOTE_RESOURCE_CONNECTION_DESC_PATH "/tmp/remote_resource_desc_path.txt"

#define	NUM_RDMA_TASKS (1) /* Number of RDMA tasks*/

#define	SLEEP_IN_NANOS (10 * 1000) /* Sample the task every 10 microseconds */

#define	MAX(a, b) (((a) > (b)) ? (a) : (b))

#define	SERVER_ADDR_LEN (128)

#define	SERVER_ADDR_TYPE_LEN (6)

#define	NUM_NEGOTIATION_RDMA_TASKS (1)

#define	SERVER_NAME "Server"

#define	CLIENT_NAME "Client"

#define	DEFAULT_RDMA_CM_PORT (13579)

#define	MAX_NUM_CONNECTIONS (8)

Typedefs
typedef doca_error_t(*	task_check) (const struct doca_devinfo *)

typedef doca_error_t(*	prepare_and_submit_task_fn) (struct rdma_resources *)

Functions
doca_error_t	allocate_rdma_resources (struct rdma_config cfg, const uint32_t mmap_permissions, const uint32_t rdma_permissions, task_check func, struct rdma_resources resources)

doca_error_t	destroy_rdma_resources (struct rdma_resources resources, struct rdma_config cfg)

doca_error_t	register_rdma_common_params (void)

doca_error_t	register_rdma_send_string_param (void)

doca_error_t	register_rdma_read_string_param (void)

doca_error_t	register_rdma_write_string_param (void)

doca_error_t	register_rdma_num_connections_param (void)

doca_error_t	write_file (const char file_path, const char string, size_t string_len)

doca_error_t	read_file (const char file_path, char string, size_t string_len)

doca_error_t	delete_file (const char *file_path)

doca_error_t	rdma_cm_connect (struct rdma_resources *resources)

doca_error_t	rdma_cm_disconnect (struct rdma_resources *resources)

doca_error_t	send_msg (struct doca_rdma rdma, struct doca_rdma_connection rdma_connection, struct doca_mmap mmap, struct doca_buf_inventory buf_inv, void msg, uint32_t msg_len, void user_data)

doca_error_t	recv_msg (struct doca_rdma rdma, struct doca_mmap mmap, struct doca_buf_inventory buf_inv, void msg, uint32_t msg_len, void *user_data)

void	receive_task_completion_cb (struct doca_rdma_task_receive *task, union doca_data task_user_data, union doca_data ctx_user_data)

void	receive_task_error_cb (struct doca_rdma_task_receive *task, union doca_data task_user_data, union doca_data ctx_user_data)

void	send_task_completion_cb (struct doca_rdma_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data)

void	send_task_error_cb (struct doca_rdma_task_send *task, union doca_data task_user_data, union doca_data ctx_user_data)

void	rdma_cm_connect_request_cb (struct doca_rdma_connection *connection, union doca_data ctx_user_data)

void	rdma_cm_connect_established_cb (struct doca_rdma_connection *connection, union doca_data connection_user_data, union doca_data ctx_user_data)

void	rdma_cm_connect_failure_cb (struct doca_rdma_connection *connection, union doca_data connection_user_data, union doca_data ctx_user_data)

void	rdma_cm_disconnect_cb (struct doca_rdma_connection *connection, union doca_data connection_user_data, union doca_data ctx_user_data)

doca_error_t	set_default_config_value (struct rdma_config *cfg)

doca_error_t	create_local_mmap (struct doca_mmap *mmap, const uint32_t mmap_permissions, void data_buffer, size_t data_buffer_size, struct doca_dev *dev)

doca_error_t	config_rdma_cm_callback_and_negotiation_task (struct rdma_resources *resources, bool need_send_task, bool need_recv_task)

doca_error_t	rdma_requester_recv_data_from_rdma_responder (struct rdma_resources *resources)

doca_error_t	rdma_responder_send_data_to_rdma_requester (struct rdma_resources *resources)

void	wait_for_enter (void)

Macro Definition Documentation

◆ CLIENT_NAME

#define CLIENT_NAME "Client"

Definition at line 65 of file rdma_common.h.

◆ DEFAULT_LOCAL_CONNECTION_DESC_PATH

#define DEFAULT_LOCAL_CONNECTION_DESC_PATH "/tmp/local_connection_desc_path.txt"

Definition at line 52 of file rdma_common.h.

◆ DEFAULT_RDMA_CM_PORT

#define DEFAULT_RDMA_CM_PORT (13579)

Definition at line 66 of file rdma_common.h.

◆ DEFAULT_REMOTE_CONNECTION_DESC_PATH

#define DEFAULT_REMOTE_CONNECTION_DESC_PATH "/tmp/remote_connection_desc_path.txt"

Definition at line 54 of file rdma_common.h.

◆ DEFAULT_REMOTE_RESOURCE_CONNECTION_DESC_PATH

#define DEFAULT_REMOTE_RESOURCE_CONNECTION_DESC_PATH "/tmp/remote_resource_desc_path.txt"

Definition at line 56 of file rdma_common.h.

◆ DEFAULT_STRING

#define DEFAULT_STRING "Hi DOCA RDMA!" /* Default string to use in our samples */

Definition at line 50 of file rdma_common.h.

◆ INVENTORY_NUM_INITIAL_ELEMENTS

#define INVENTORY_NUM_INITIAL_ELEMENTS (16) /* Number of DOCA inventory initial elements */

Definition at line 47 of file rdma_common.h.

◆ MAX

#define MAX	(	a,
		b
	)	(((a) > (b)) ? (a) : (b))

Definition at line 59 of file rdma_common.h.

◆ MAX_ARG_SIZE

#define MAX_ARG_SIZE (MAX_USER_ARG_SIZE + 1) /* Maximum size of input argument */

Definition at line 49 of file rdma_common.h.

◆ MAX_NUM_CONNECTIONS

#define MAX_NUM_CONNECTIONS (8)

Definition at line 67 of file rdma_common.h.

◆ MAX_USER_ARG_SIZE

#define MAX_USER_ARG_SIZE (256) /* Maximum size of user input argument */

Definition at line 48 of file rdma_common.h.

◆ MEM_RANGE_LEN

#define MEM_RANGE_LEN (4096) /* DOCA mmap memory range length */

Definition at line 46 of file rdma_common.h.

◆ NUM_NEGOTIATION_RDMA_TASKS

#define NUM_NEGOTIATION_RDMA_TASKS (1)

Definition at line 63 of file rdma_common.h.

◆ NUM_RDMA_TASKS

#define NUM_RDMA_TASKS (1) /* Number of RDMA tasks*/

Definition at line 57 of file rdma_common.h.

◆ SERVER_ADDR_LEN

#define SERVER_ADDR_LEN (128)

Definition at line 61 of file rdma_common.h.

◆ SERVER_ADDR_TYPE_LEN

#define SERVER_ADDR_TYPE_LEN (6)

Definition at line 62 of file rdma_common.h.

◆ SERVER_NAME

#define SERVER_NAME "Server"

Definition at line 64 of file rdma_common.h.

◆ SLEEP_IN_NANOS

#define SLEEP_IN_NANOS (10 * 1000) /* Sample the task every 10 microseconds */

Definition at line 58 of file rdma_common.h.

Typedef Documentation

◆ prepare_and_submit_task_fn

typedef doca_error_t(* prepare_and_submit_task_fn) (struct rdma_resources *)

Definition at line 76 of file rdma_common.h.

◆ task_check

typedef doca_error_t(* task_check) (const struct doca_devinfo *)

Definition at line 70 of file rdma_common.h.

Function Documentation

◆ allocate_rdma_resources()

doca_error_t allocate_rdma_resources	(	struct rdma_config *	cfg,
		const uint32_t	mmap_permissions,
		const uint32_t	rdma_permissions,
		task_check	func,
		struct rdma_resources *	resources
	)

Definition at line 758 of file rdma_common.c.

◆ config_rdma_cm_callback_and_negotiation_task()

doca_error_t config_rdma_cm_callback_and_negotiation_task	(	struct rdma_resources *	resources,
		bool	need_send_task,
		bool	need_recv_task
	)

Set send&recv task configuration they are used for transferring the mmap desc between client and server for non-sync-event task also used for transferring the sync-event desc between client and server for syn-event task

Definition at line 1720 of file rdma_common.c.

◆ create_local_mmap()

doca_error_t create_local_mmap	(	struct doca_mmap **	mmap,
		const uint32_t	mmap_permissions,
		void *	data_buffer,
		size_t	data_buffer_size,
		struct doca_dev *	dev
	)

Definition at line 1665 of file rdma_common.c.

◆ delete_file()

doca_error_t delete_file ( const char * file_path )

Definition at line 899 of file rdma_common.c.

◆ destroy_rdma_resources()

doca_error_t destroy_rdma_resources	(	struct rdma_resources *	resources,
		struct rdma_config *	cfg
	)

Definition at line 1002 of file rdma_common.c.

◆ rdma_cm_connect()

doca_error_t rdma_cm_connect ( struct rdma_resources * resources )

Definition at line 1172 of file rdma_common.c.

◆ rdma_cm_connect_established_cb()

void rdma_cm_connect_established_cb	(	struct doca_rdma_connection *	connection,
		union doca_data	connection_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 75 of file rdma_common.c.

◆ rdma_cm_connect_failure_cb()

void rdma_cm_connect_failure_cb	(	struct doca_rdma_connection *	connection,
		union doca_data	connection_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 101 of file rdma_common.c.

◆ rdma_cm_connect_request_cb()

void rdma_cm_connect_request_cb	(	struct doca_rdma_connection *	connection,
		union doca_data	ctx_user_data
	)

Definition at line 47 of file rdma_common.c.

◆ rdma_cm_disconnect()

doca_error_t rdma_cm_disconnect ( struct rdma_resources * resources )

Definition at line 1244 of file rdma_common.c.

◆ rdma_cm_disconnect_cb()

void rdma_cm_disconnect_cb	(	struct doca_rdma_connection *	connection,
		union doca_data	connection_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 128 of file rdma_common.c.

◆ rdma_requester_recv_data_from_rdma_responder()

doca_error_t rdma_requester_recv_data_from_rdma_responder ( struct rdma_resources * resources )

Definition at line 1332 of file rdma_common.c.

◆ rdma_responder_send_data_to_rdma_requester()

doca_error_t rdma_responder_send_data_to_rdma_requester ( struct rdma_resources * resources )

Definition at line 1387 of file rdma_common.c.

◆ read_file()

doca_error_t read_file	(	const char *	file_path,
		char **	string,
		size_t *	string_len
	)

Definition at line 56 of file utils.c.

◆ receive_task_completion_cb()

void receive_task_completion_cb	(	struct doca_rdma_task_receive *	task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1477 of file rdma_common.c.

◆ receive_task_error_cb()

void receive_task_error_cb	(	struct doca_rdma_task_receive *	task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1510 of file rdma_common.c.

◆ recv_msg()

doca_error_t recv_msg	(	struct doca_rdma *	rdma,
		struct doca_mmap *	mmap,
		struct doca_buf_inventory *	buf_inv,
		void *	msg,
		uint32_t	msg_len,
		void *	user_data
	)

Definition at line 1297 of file rdma_common.c.

◆ register_rdma_common_params()

doca_error_t register_rdma_common_params ( void )

Definition at line 580 of file rdma_common.c.

◆ register_rdma_num_connections_param()

doca_error_t register_rdma_num_connections_param ( void )

Definition at line 338 of file rdma_common.c.

◆ register_rdma_read_string_param()

doca_error_t register_rdma_read_string_param ( void )

Definition at line 260 of file rdma_common.c.

◆ register_rdma_send_string_param()

doca_error_t register_rdma_send_string_param ( void )

Definition at line 232 of file rdma_common.c.

◆ register_rdma_write_string_param()

doca_error_t register_rdma_write_string_param ( void )

Definition at line 288 of file rdma_common.c.

◆ send_msg()

doca_error_t send_msg	(	struct doca_rdma *	rdma,
		struct doca_rdma_connection *	rdma_connection,
		struct doca_mmap *	mmap,
		struct doca_buf_inventory *	buf_inv,
		void *	msg,
		uint32_t	msg_len,
		void *	user_data
	)

Definition at line 1262 of file rdma_common.c.

◆ send_task_completion_cb()

void send_task_completion_cb	(	struct doca_rdma_task_send *	task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1525 of file rdma_common.c.

◆ send_task_error_cb()

void send_task_error_cb	(	struct doca_rdma_task_send *	task,
		union doca_data	task_user_data,
		union doca_data	ctx_user_data
	)

Definition at line 1541 of file rdma_common.c.

◆ set_default_config_value()

doca_error_t set_default_config_value ( struct rdma_config * cfg )

Definition at line 1640 of file rdma_common.c.

◆ wait_for_enter()

void wait_for_enter ( void )

Definition at line 1771 of file rdma_common.c.

◆ write_file()

doca_error_t write_file	(	const char *	file_path,
		const char *	string,
		size_t	string_len
	)

Definition at line 1087 of file rdma_common.c.
