#include <arpa/inet.h>
#include <rte_ethdev.h>
#include <doca_flow.h>
#include "common.h"
#include "dpdk_tcp/tcp_session_table.h"

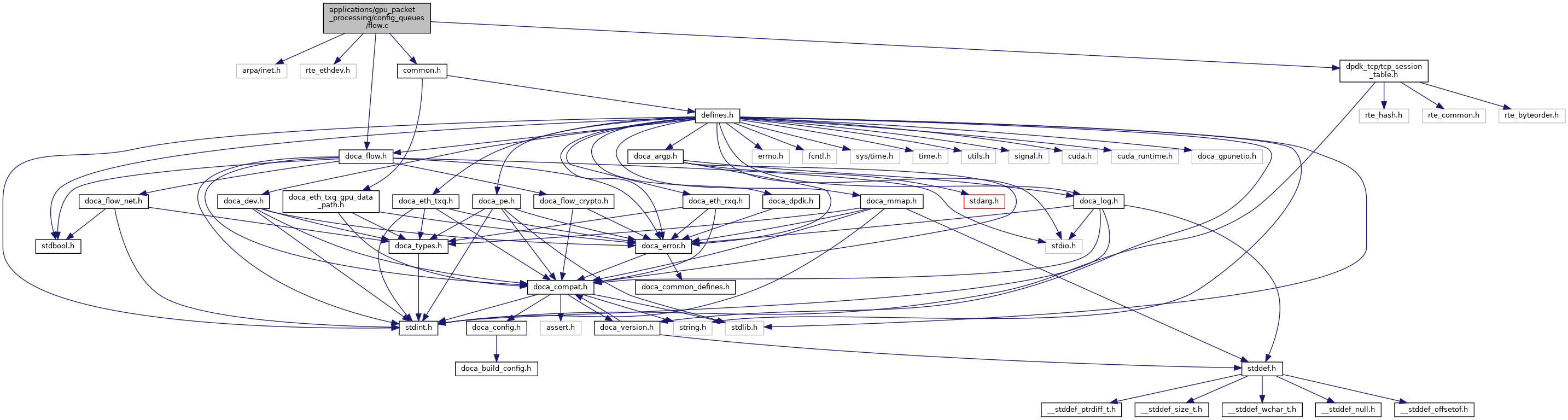

Include dependency graph for flow.c:

Functions
	DOCA_LOG_REGISTER (GPU_PACKET_PROCESSING_FLOW)

struct doca_flow_port *	init_doca_flow (uint16_t port_id, uint8_t rxq_num)

doca_error_t	create_udp_pipe (struct rxq_udp_queues udp_queues, struct doca_flow_port port)

doca_error_t	create_tcp_cpu_pipe (struct rxq_tcp_queues tcp_queues, struct doca_flow_port port)

doca_error_t	create_tcp_gpu_pipe (struct rxq_tcp_queues tcp_queues, struct doca_flow_port port, bool connection_based_flows)

doca_error_t	create_icmp_gpu_pipe (struct rxq_icmp_queues icmp_queues, struct doca_flow_port port)

doca_error_t	create_root_pipe (struct rxq_udp_queues udp_queues, struct rxq_tcp_queues tcp_queues, struct rxq_icmp_queues icmp_queues, struct doca_flow_port port)

doca_error_t	enable_tcp_gpu_offload (struct doca_flow_port port, uint16_t queue_id, struct doca_flow_pipe gpu_rss_pipe, struct tcp_session_entry *session_entry)

doca_error_t	disable_tcp_gpu_offload (struct doca_flow_port port, uint16_t queue_id, struct tcp_session_entry session_entry)

doca_error_t	destroy_flow_queue (struct doca_flow_port port_df, struct rxq_icmp_queues icmp_queues, struct rxq_udp_queues udp_queues, struct rxq_tcp_queues tcp_queues, bool http_server, struct txq_http_queues *http_queues)

Variables
static uint64_t	default_flow_timeout_usec

Function Documentation

◆ create_icmp_gpu_pipe()

doca_error_t create_icmp_gpu_pipe	(	struct rxq_icmp_queues *	icmp_queues,
		struct doca_flow_port *	port
	)

Definition at line 526 of file flow.c.

◆ create_root_pipe()

doca_error_t create_root_pipe	(	struct rxq_udp_queues *	udp_queues,
		struct rxq_tcp_queues *	tcp_queues,
		struct rxq_icmp_queues *	icmp_queues,
		struct doca_flow_port *	port
	)

Definition at line 632 of file flow.c.

◆ create_tcp_cpu_pipe()

doca_error_t create_tcp_cpu_pipe	(	struct rxq_tcp_queues *	tcp_queues,
		struct doca_flow_port *	port
	)

Definition at line 280 of file flow.c.

◆ create_tcp_gpu_pipe()

doca_error_t create_tcp_gpu_pipe	(	struct rxq_tcp_queues *	tcp_queues,
		struct doca_flow_port *	port,
		bool	connection_based_flows
	)

Definition at line 395 of file flow.c.

◆ create_udp_pipe()

doca_error_t create_udp_pipe	(	struct rxq_udp_queues *	udp_queues,
		struct doca_flow_port *	port
	)

Definition at line 176 of file flow.c.

◆ destroy_flow_queue()

doca_error_t destroy_flow_queue	(	struct doca_flow_port *	port_df,
		struct rxq_icmp_queues *	icmp_queues,
		struct rxq_udp_queues *	udp_queues,
		struct rxq_tcp_queues *	tcp_queues,
		bool	http_server,
		struct txq_http_queues *	http_queues
	)

Definition at line 944 of file flow.c.

◆ disable_tcp_gpu_offload()

doca_error_t disable_tcp_gpu_offload	(	struct doca_flow_port *	port,
		uint16_t	queue_id,
		struct tcp_session_entry *	session_entry
	)

Definition at line 901 of file flow.c.

◆ DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER ( GPU_PACKET_PROCESSING_FLOW )

◆ enable_tcp_gpu_offload()

doca_error_t enable_tcp_gpu_offload	(	struct doca_flow_port *	port,
		uint16_t	queue_id,
		struct doca_flow_pipe *	gpu_rss_pipe,
		struct tcp_session_entry *	session_entry
	)

Definition at line 841 of file flow.c.

◆ init_doca_flow()

struct doca_flow_port* init_doca_flow	(	uint16_t	port_id,
		uint8_t	rxq_num
	)

Definition at line 37 of file flow.c.

Variable Documentation

◆ default_flow_timeout_usec

uint64_t default_flow_timeout_usec

static

Definition at line 35 of file flow.c.
