flow_pipe_resize_sample.c File Reference

#include <string.h>
#include <unistd.h>
#include <doca_log.h>
#include <doca_flow.h>
#include "flow_common.h"
#include "flow_switch_common.h"

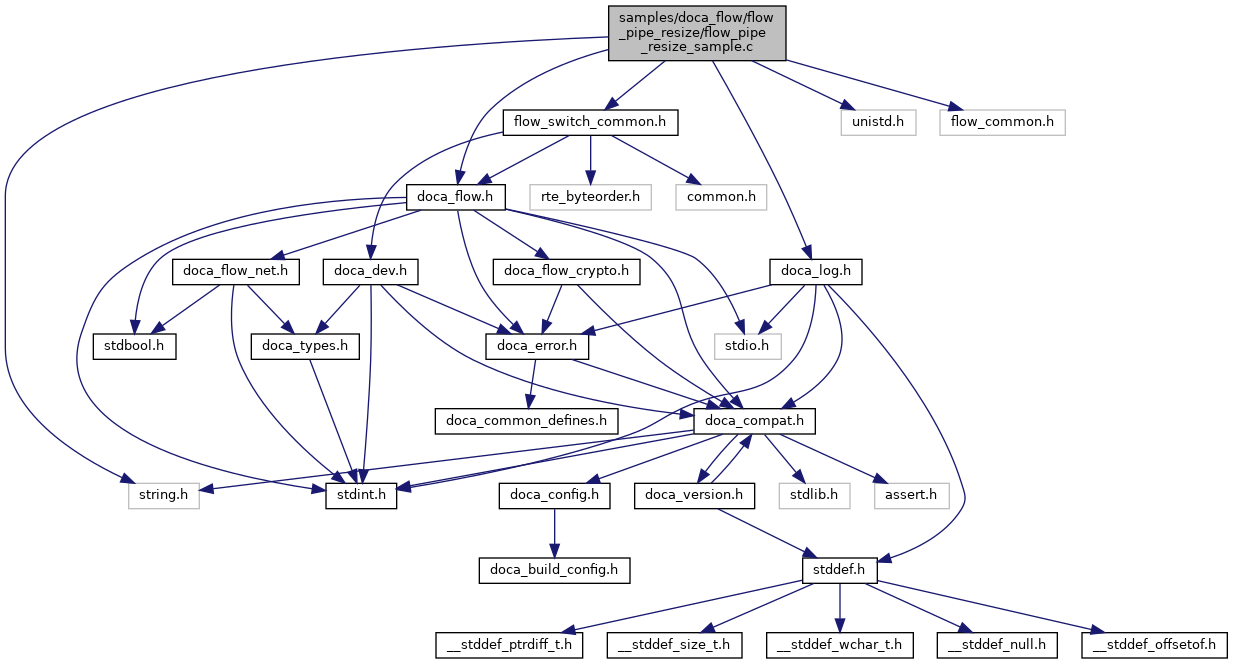

Include dependency graph for flow_pipe_resize_sample.c:

Go to the source code of this file.

Data Structures
struct	entry_ctx

Macros
#define	PIPE_SIZE   10
#define	PERCENTAGE   80
#define	MAX_ENTRIES   80

Functions
	DOCA_LOG_REGISTER (FLOW_PIPE_RESIZE)
static doca_error_t	pipe_resize_sample_nr_entries_changed_cb (void *pipe_user_ctx, uint32_t nr_entries)
static doca_error_t	pipe_resize_sample_entry_relocate_cb (void *pipe_user_ctx, uint16_t pipe_queue, void *entry_user_ctx, void **new_entry_user_ctx)
static doca_error_t	create_resizable_pipe (struct doca_flow_port *port, bool is_basic_pipe, uint16_t nb_queues, struct doca_flow_pipe **pipe)
static void	remove_resizable_pipe_entries (void)
static doca_error_t	add_resizable_pipe_entries (struct doca_flow_pipe *pipe, int port_id, uint16_t nb_queues, bool is_basic_pipe)
static void	pipe_process_cb (struct doca_flow_pipe *pipe, enum doca_flow_pipe_status status, enum doca_flow_pipe_op op, void *user_ctx)
doca_error_t	flow_pipe_resize (uint16_t nb_queues, struct flow_switch_ctx *ctx, bool is_basic_pipe)

Variables
static bool	resize_cb_received
static bool	congestion_notified
static int	congestion_reached_flag
static struct doca_flow_port *	ports [3]
static struct doca_flow_pipe_entry *	entry [MAX_ENTRIES]
static struct entry_ctx	entry_ctx [MAX_ENTRIES]
static doca_flow_pipe_resize_nr_entries_changed_cb	nr_entries_changed_cb = pipe_resize_sample_nr_entries_changed_cb
static doca_flow_pipe_resize_entry_relocate_cb	entry_relocation_cb = pipe_resize_sample_entry_relocate_cb

Macro Definition Documentation

MAX_ENTRIES

#define MAX_ENTRIES   80

Definition at line 39 of file flow_pipe_resize_sample.c.

PERCENTAGE

#define PERCENTAGE   80

Definition at line 38 of file flow_pipe_resize_sample.c.

PIPE_SIZE

#define PIPE_SIZE   10

Definition at line 37 of file flow_pipe_resize_sample.c.

Function Documentation

add_resizable_pipe_entries()

static doca_error_t add_resizable_pipe_entries ( struct doca_flow_pipe *  pipe, int  port_id, uint16_t  nb_queues, bool  is_basic_pipe  )

static

Definition at line 237 of file flow_pipe_resize_sample.c.

create_resizable_pipe()

static doca_error_t create_resizable_pipe ( struct doca_flow_port *  port, bool  is_basic_pipe, uint16_t  nb_queues, struct doca_flow_pipe **  pipe  )

static

Definition at line 105 of file flow_pipe_resize_sample.c.

DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER

(

FLOW_PIPE_RESIZE

)

flow_pipe_resize()

doca_error_t flow_pipe_resize	(	uint16_t	nb_queues,
		struct flow_switch_ctx *	ctx,
		bool	is_basic_pipe
	)

Definition at line 431 of file flow_pipe_resize_sample.c.

pipe_process_cb()

static void pipe_process_cb ( struct doca_flow_pipe *  pipe, enum doca_flow_pipe_status  status, enum doca_flow_pipe_op  op, void *  user_ctx  )

static

Definition at line 388 of file flow_pipe_resize_sample.c.

pipe_resize_sample_entry_relocate_cb()

static doca_error_t pipe_resize_sample_entry_relocate_cb ( void *  pipe_user_ctx, uint16_t  pipe_queue, void *  entry_user_ctx, void **  new_entry_user_ctx  )

static

Definition at line 76 of file flow_pipe_resize_sample.c.

pipe_resize_sample_nr_entries_changed_cb()

static doca_error_t pipe_resize_sample_nr_entries_changed_cb ( void *  pipe_user_ctx, uint32_t  nr_entries  )

static

Definition at line 60 of file flow_pipe_resize_sample.c.

remove_resizable_pipe_entries()

static void remove_resizable_pipe_entries ( void  )

static

Definition at line 215 of file flow_pipe_resize_sample.c.

Variable Documentation

congestion_notified

bool congestion_notified

static

Definition at line 41 of file flow_pipe_resize_sample.c.

congestion_reached_flag

int congestion_reached_flag

static

Definition at line 43 of file flow_pipe_resize_sample.c.

entry

struct doca_flow_pipe_entry* entry[MAX_ENTRIES]

static

Definition at line 46 of file flow_pipe_resize_sample.c.

entry_ctx

struct entry_ctx entry_ctx[MAX_ENTRIES]

static

Definition at line 46 of file flow_pipe_resize_sample.c.

entry_relocation_cb

doca_flow_pipe_resize_entry_relocate_cb entry_relocation_cb = pipe_resize_sample_entry_relocate_cb

static

Definition at line 95 of file flow_pipe_resize_sample.c.

nr_entries_changed_cb

doca_flow_pipe_resize_nr_entries_changed_cb nr_entries_changed_cb = pipe_resize_sample_nr_entries_changed_cb

static

Definition at line 94 of file flow_pipe_resize_sample.c.

ports

struct doca_flow_port* ports[3]

static

Definition at line 45 of file flow_pipe_resize_sample.c.

resize_cb_received

bool resize_cb_received

static

Definition at line 40 of file flow_pipe_resize_sample.c.
