DOCA Flow

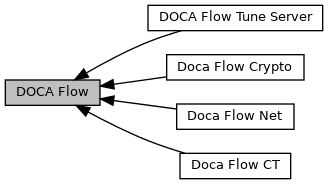

Collaboration diagram for DOCA Flow:

Modules
	Doca Flow Crypto
	Doca Flow CT
	Doca Flow Net
	DOCA Flow Tune Server

Data Structures
struct	doca_flow_resource_rss_cfg
	doca flow rss resource configuration More...
struct	doca_flow_meta
	doca flow meta data More...
struct	doca_flow_parser_meta
	doca flow parser meta data More...
struct	doca_flow_header_format
	doca flow packet format More...
struct	doca_flow_entropy_format
	doca flow header format for entropy More...
struct	doca_flow_match
	doca flow matcher information More...
struct	doca_flow_desc_field
	Action descriptor field. More...
struct	doca_flow_match_condition
	doca flow match condition information More...
struct	doca_flow_encap_action
	doca flow encap data information More...
struct	doca_flow_push_vlan_action
	doca flow push VLAN data information More...
struct	doca_flow_push_action
	doca flow push data information More...
struct	doca_flow_nat64_action
	doca flow nat64 action More...
struct	doca_flow_crypto_action
	doca flow crypto action information More...
struct	doca_flow_crypto_encap_action
	doca flow crypto encap action information More...
struct	doca_flow_resource_encap_cfg
	doca flow encap resource configuration More...
struct	doca_flow_resource_decap_cfg
	doca flow decap resource configuration More...
struct	doca_flow_actions
	doca flow actions information More...
struct	doca_flow_fwd
	forwarding configuration More...
struct	doca_flow_resource_meter_cfg
	doca flow meter resource configuration More...
struct	doca_flow_resource_psp_cfg
	doca flow psp resource configuration More...
struct	doca_flow_resource_ipsec_sa_cfg
	doca flow ipsec SA resource configuration More...
struct	doca_flow_mirror_target
	doca flow mirror target More...
struct	doca_flow_resource_mirror_cfg
	doca flow mirror resource configuration More...
struct	doca_flow_shared_resource_cfg
	doca flow shared resource configuration More...
struct	doca_flow_monitor
	doca monitor action configuration More...
struct	doca_flow_action_desc
	action description More...
struct	doca_flow_action_descs
	action descriptor array More...
struct	doca_flow_ordered_list_element
	Ordered list elements. More...
struct	doca_flow_ordered_list
	Ordered list configuration. More...
struct	doca_flow_resource_query
	flow resource query More...
struct	doca_flow_parser_geneve_opt_cfg
	User configuration structure using to create parser for single GENEVE TLV option. More...

Macros
#define	DOCA_FLOW_META_SCRATCH_PAD_MAX   10
#define	DOCA_FLOW_META_MAX   ((DOCA_FLOW_META_SCRATCH_PAD_MAX + 1) * 4)
#define	DOCA_FLOW_MAX_ENTRY_ACTIONS_MEM_SIZE   (128)
	meter mark color More...
#define	DOCA_FLOW_VLAN_MAX   2
#define	DOCA_FLOW_PSP_DECRYPTION_ID   UINT32_MAX

Typedefs
typedef void(*	doca_flow_pipe_process_cb) (struct doca_flow_pipe *pipe, enum doca_flow_pipe_status status, enum doca_flow_pipe_op op, void *user_ctx)
	doca flow pipe process callback More...
typedef void(*	doca_flow_entry_process_cb) (struct doca_flow_pipe_entry *entry, uint16_t pipe_queue, enum doca_flow_entry_status status, enum doca_flow_entry_op op, void *user_ctx)
	doca flow entry process callback More...
typedef void(*	doca_flow_shared_resource_unbind_cb) (enum doca_flow_shared_resource_type, uint32_t shared_resource_id, void *bindable_obj)
	doca flow shared resource unbind callback More...
typedef doca_error_t(*	doca_flow_pipe_resize_nr_entries_changed_cb) (void *pipe_user_ctx, uint32_t nr_entries)
	doca flow pipe resize number of entries changed callback. More...
typedef doca_error_t(*	doca_flow_pipe_resize_entry_relocate_cb) (void *pipe_user_ctx, uint16_t pipe_queue, void *entry_user_ctx, void **new_entry_user_ctx)
	doca flow pipe entry relocation callback. More...

Enumerations
enum	doca_flow_shared_resource_type {   DOCA_FLOW_SHARED_RESOURCE_METER , DOCA_FLOW_SHARED_RESOURCE_COUNTER , DOCA_FLOW_SHARED_RESOURCE_RSS , DOCA_FLOW_SHARED_RESOURCE_MIRROR ,   DOCA_FLOW_SHARED_RESOURCE_PSP , DOCA_FLOW_SHARED_RESOURCE_ENCAP , DOCA_FLOW_SHARED_RESOURCE_DECAP , DOCA_FLOW_SHARED_RESOURCE_IPSEC_SA }
	Shared resource supported types. More...
enum	doca_flow_flags_type { DOCA_FLOW_NO_WAIT = 0 , DOCA_FLOW_WAIT_FOR_BATCH = (1 << 0) }
	doca flow flags type More...
enum	doca_flow_pipe_op { DOCA_FLOW_PIPE_OP_CONGESTION_REACHED , DOCA_FLOW_PIPE_OP_RESIZED , DOCA_FLOW_PIPE_OP_DESTROYED }
	doca flow pipe operation More...
enum	doca_flow_pipe_status { DOCA_FLOW_PIPE_STATUS_SUCCESS = 1 , DOCA_FLOW_PIPE_STATUS_ERROR }
	doca flow pipe status More...
enum	doca_flow_entry_op { DOCA_FLOW_ENTRY_OP_ADD , DOCA_FLOW_ENTRY_OP_DEL , DOCA_FLOW_ENTRY_OP_UPD , DOCA_FLOW_ENTRY_OP_AGED }
	doca flow entry operation More...
enum	doca_flow_entry_status { DOCA_FLOW_ENTRY_STATUS_IN_PROCESS , DOCA_FLOW_ENTRY_STATUS_SUCCESS , DOCA_FLOW_ENTRY_STATUS_ERROR }
	doca flow entry status More...
enum	doca_flow_rss_hash_function { DOCA_FLOW_RSS_HASH_FUNCTION_TOEPLITZ , DOCA_FLOW_RSS_HASH_FUNCTION_SYMMETRIC_TOEPLITZ }
	rss hash function type More...
enum	doca_flow_pipe_type {   DOCA_FLOW_PIPE_BASIC , DOCA_FLOW_PIPE_CONTROL , DOCA_FLOW_PIPE_LPM , DOCA_FLOW_PIPE_CT ,   DOCA_FLOW_PIPE_ACL , DOCA_FLOW_PIPE_ORDERED_LIST , DOCA_FLOW_PIPE_HASH }
	doca flow pipe type More...
enum	doca_flow_pipe_domain { DOCA_FLOW_PIPE_DOMAIN_DEFAULT = 0 , DOCA_FLOW_PIPE_DOMAIN_SECURE_INGRESS , DOCA_FLOW_PIPE_DOMAIN_EGRESS , DOCA_FLOW_PIPE_DOMAIN_SECURE_EGRESS }
	doca flow pipe domain More...
enum	doca_flow_l2_meta { DOCA_FLOW_L2_META_NO_VLAN = 0 , DOCA_FLOW_L2_META_MULTI_VLAN , DOCA_FLOW_L2_META_SINGLE_VLAN , DOCA_FLOW_L2_META_CUSTOM_VLAN }
	doca flow l2 valid type for parser meta More...
enum	doca_flow_l3_meta { DOCA_FLOW_L3_META_NONE = 0 , DOCA_FLOW_L3_META_IPV4 , DOCA_FLOW_L3_META_IPV6 }
	doca flow l3 valid type for parser meta More...
enum	doca_flow_l4_meta {   DOCA_FLOW_L4_META_NONE = 0 , DOCA_FLOW_L4_META_TCP , DOCA_FLOW_L4_META_UDP , DOCA_FLOW_L4_META_ICMP ,   DOCA_FLOW_L4_META_ESP }
	doca flow l4 valid type for parser meta More...
enum	doca_flow_crypto_syndrome { DOCA_FLOW_CRYPTO_SYNDROME_OK , DOCA_FLOW_CRYPTO_SYNDROME_ICV_FAIL , DOCA_FLOW_CRYPTO_SYNDROME_BAD_TRAILER }
	doca flow psp/ipsec syndrome valid values for parser meta More...
enum	doca_flow_pipe_hash_map_algorithm {   DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_HASH = 1 << 0 , DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_RANDOM = 1 << 1 , DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_IDENTITY = 1 << 2 , DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_ROUND_ROBIN = 1 << 3 ,   DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_FLOODING = 1 << 4 , DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_SELECT_ENABLED = 1 << 5 }
	DOCA Flow pipe map algorithm. More...
enum	doca_flow_match_tcp_flags {   DOCA_FLOW_MATCH_TCP_FLAG_FIN = (1 << 0) , DOCA_FLOW_MATCH_TCP_FLAG_SYN = (1 << 1) , DOCA_FLOW_MATCH_TCP_FLAG_RST = (1 << 2) , DOCA_FLOW_MATCH_TCP_FLAG_PSH = (1 << 3) ,   DOCA_FLOW_MATCH_TCP_FLAG_ACK = (1 << 4) , DOCA_FLOW_MATCH_TCP_FLAG_URG = (1 << 5) , DOCA_FLOW_MATCH_TCP_FLAG_ECE = (1 << 6) , DOCA_FLOW_MATCH_TCP_FLAG_CWR = (1 << 7) }
	doca flow match flags More...
enum	doca_flow_l2_valid_header { DOCA_FLOW_L2_VALID_HEADER_VLAN_0 = (1 << 0) , DOCA_FLOW_L2_VALID_HEADER_VLAN_1 = (1 << 1) }
	doca flow l2 valid headers More...
enum	doca_flow_compare_op {   DOCA_FLOW_COMPARE_EQ , DOCA_FLOW_COMPARE_NE , DOCA_FLOW_COMPARE_LT , DOCA_FLOW_COMPARE_LE ,   DOCA_FLOW_COMPARE_GT , DOCA_FLOW_COMPARE_GE }
	doca flow compare operation More...
enum	doca_flow_push_action_type { DOCA_FLOW_PUSH_ACTION_VLAN }
	doca flow push action type More...
enum	doca_flow_resource_type { DOCA_FLOW_RESOURCE_TYPE_NONE , DOCA_FLOW_RESOURCE_TYPE_SHARED , DOCA_FLOW_RESOURCE_TYPE_NON_SHARED }
	doca flow resource type More...
enum	doca_flow_target_type { DOCA_FLOW_TARGET_KERNEL }
	doca flow target type More...
enum	doca_flow_fwd_type {   DOCA_FLOW_FWD_NONE = 0 , DOCA_FLOW_FWD_RSS , DOCA_FLOW_FWD_PORT , DOCA_FLOW_FWD_PIPE ,   DOCA_FLOW_FWD_DROP , DOCA_FLOW_FWD_TARGET , DOCA_FLOW_FWD_ORDERED_LIST_PIPE , DOCA_FLOW_FWD_HASH_PIPE ,   DOCA_FLOW_FWD_CHANGEABLE = 100 }
	forwarding action type More...
enum	doca_rss_type {   DOCA_FLOW_RSS_IPV4 = (1 << 0) , DOCA_FLOW_RSS_IPV6 = (1 << 1) , DOCA_FLOW_RSS_UDP = (1 << 2) , DOCA_FLOW_RSS_TCP = (1 << 3) ,   DOCA_FLOW_RSS_ESP = (1 << 4) }
	rss offload types More...
enum	doca_flow_meter_algorithm_type { DOCA_FLOW_METER_ALGORITHM_TYPE_RFC2697 , DOCA_FLOW_METER_ALGORITHM_TYPE_RFC2698 , DOCA_FLOW_METER_ALGORITHM_TYPE_RFC4115 }
	Traffic meter algorithms. More...
enum	doca_flow_meter_limit_type { DOCA_FLOW_METER_LIMIT_TYPE_BYTES = 0 , DOCA_FLOW_METER_LIMIT_TYPE_PACKETS }
	Traffic meter limit type: per bytes or per packets for all meter parameters: cir, cbs, eir, ebs. More...
enum	doca_flow_meter_color_mode { DOCA_FLOW_METER_COLOR_MODE_BLIND = 0 , DOCA_FLOW_METER_COLOR_MODE_AWARE }
	Traffic meter init color mode when creating a pipe or entry: blind (fixed as green) or aware (configurable value). More...
enum	doca_flow_action_type { DOCA_FLOW_ACTION_AUTO = 0 , DOCA_FLOW_ACTION_ADD , DOCA_FLOW_ACTION_COPY }
	action type enumeration More...
enum	doca_flow_ordered_list_element_type { DOCA_FLOW_ORDERED_LIST_ELEMENT_ACTIONS , DOCA_FLOW_ORDERED_LIST_ELEMENT_MONITOR }
	Type of an ordered list element. More...
enum	doca_flow_direction_info { DOCA_FLOW_DIRECTION_BIDIRECTIONAL = 0 , DOCA_FLOW_DIRECTION_NETWORK_TO_HOST , DOCA_FLOW_DIRECTION_HOST_TO_NETWORK }
	doca flow direction info More...
enum	doca_flow_parser_geneve_opt_mode { DOCA_FLOW_PARSER_GENEVE_OPT_MODE_IGNORE , DOCA_FLOW_PARSER_GENEVE_OPT_MODE_FIXED , DOCA_FLOW_PARSER_GENEVE_OPT_MODE_MATCHABLE }
	Geneve TLV option class mode. More...
enum	doca_flow_port_operation_state { DOCA_FLOW_PORT_OPERATION_STATE_ACTIVE , DOCA_FLOW_PORT_OPERATION_STATE_ACTIVE_READY_TO_SWAP , DOCA_FLOW_PORT_OPERATION_STATE_STANDBY , DOCA_FLOW_PORT_OPERATION_STATE_UNCONNECTED }
	Defines the operation states for a port instance. More...

Functions
enum	__attribute__ ((__packed__)) doca_flow_meter_color
DOCA_EXPERIMENTAL doca_error_t	doca_flow_init (struct doca_flow_cfg *cfg)
	Initialize the doca flow. More...
DOCA_STABLE void	doca_flow_destroy (void)
	Destroy the doca flow. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_start (const struct doca_flow_port_cfg *cfg, struct doca_flow_port **port)
	Start a doca port. More...
DOCA_STABLE doca_error_t	doca_flow_port_stop (struct doca_flow_port *port)
	Stop a doca port. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_pair (struct doca_flow_port *port, struct doca_flow_port *pair_port)
	pair two doca flow ports. More...
DOCA_STABLE uint8_t *	doca_flow_port_priv_data (struct doca_flow_port *port)
	Get pointer of user private data. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_operation_state_modify (struct doca_flow_port *port, enum doca_flow_port_operation_state state)
	Modifies the operation state of a port instance. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_shared_resource_set_cfg (enum doca_flow_shared_resource_type type, uint32_t id, struct doca_flow_shared_resource_cfg *cfg)
	Configure a single shared resource. More...
DOCA_STABLE doca_error_t	doca_flow_shared_resources_bind (enum doca_flow_shared_resource_type type, uint32_t *res_array, uint32_t res_array_len, void *bindable_obj)
	Binds a bulk of shared resources to a bindable object. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_shared_resources_query (enum doca_flow_shared_resource_type type, uint32_t *res_array, struct doca_flow_resource_query *query_results_array, uint32_t array_len)
	Extract information about shared counter. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_create (const struct doca_flow_pipe_cfg *cfg, const struct doca_flow_fwd *fwd, const struct doca_flow_fwd *fwd_miss, struct doca_flow_pipe **pipe)
	Create one new pipe. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_resize (struct doca_flow_pipe *pipe, uint8_t new_congestion_level, doca_flow_pipe_resize_nr_entries_changed_cb nr_entries_changed_cb, doca_flow_pipe_resize_entry_relocate_cb entry_relocation_cb)
	Resize pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_add_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, const struct doca_flow_match *match, const struct doca_flow_actions *actions, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, uint32_t flags, void *usr_ctx, struct doca_flow_pipe_entry **entry)
	Add one new entry to a pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_update_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, const struct doca_flow_actions *actions, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, const enum doca_flow_flags_type flags, struct doca_flow_pipe_entry *entry)
	Update the pipe entry with new actions. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_control_add_entry (uint16_t pipe_queue, uint32_t priority, struct doca_flow_pipe *pipe, const struct doca_flow_match *match, const struct doca_flow_match *match_mask, const struct doca_flow_match_condition *condition, const struct doca_flow_actions *actions, const struct doca_flow_actions *actions_mask, const struct doca_flow_action_descs *action_descs, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, void *usr_ctx, struct doca_flow_pipe_entry **entry)
	Add one new entry to a control pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_lpm_add_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, const struct doca_flow_match *match, const struct doca_flow_match *match_mask, const struct doca_flow_actions *actions, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, const enum doca_flow_flags_type flag, void *usr_ctx, struct doca_flow_pipe_entry **entry)
	Add one new entry to a lpm pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_lpm_update_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, const struct doca_flow_actions *actions, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, const enum doca_flow_flags_type flags, struct doca_flow_pipe_entry *entry)
	Update the lpm pipe entry with new actions. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_ordered_list_add_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, uint32_t idx, const struct doca_flow_ordered_list *ordered_list, const struct doca_flow_fwd *fwd, enum doca_flow_flags_type flags, void *user_ctx, struct doca_flow_pipe_entry **entry)
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_acl_add_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, const struct doca_flow_match *match, const struct doca_flow_match *match_mask, const uint32_t priority, const struct doca_flow_fwd *fwd, const enum doca_flow_flags_type flag, void *usr_ctx, struct doca_flow_pipe_entry **entry)
	Add one new entry to a acl pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_hash_add_entry (uint16_t pipe_queue, struct doca_flow_pipe *pipe, uint32_t entry_index, const struct doca_flow_actions *actions, const struct doca_flow_monitor *monitor, const struct doca_flow_fwd *fwd, const enum doca_flow_flags_type flags, void *usr_ctx, struct doca_flow_pipe_entry **entry)
	Add one new entry to an hash pipe. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_remove_entry (uint16_t pipe_queue, uint32_t flags, struct doca_flow_pipe_entry *entry)
	Free one pipe entry. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_calc_hash (struct doca_flow_pipe *pipe, const struct doca_flow_match *match, uint32_t *hash)
	calc the hash for a given match on a given pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_calc_entropy (struct doca_flow_port *port, struct doca_flow_entropy_format *header, uint16_t *entropy)
	Calculate the entropy. More...
DOCA_STABLE void	doca_flow_pipe_destroy (struct doca_flow_pipe *pipe)
	Destroy one pipe. More...
DOCA_STABLE void	doca_flow_port_pipes_flush (struct doca_flow_port *port)
	Flush pipes of one port. More...
DOCA_EXPERIMENTAL void	doca_flow_port_pipes_dump (struct doca_flow_port *port, FILE *f)
	Dump pipes of one port. More...
DOCA_EXPERIMENTAL void	doca_flow_pipe_dump (struct doca_flow_pipe *pipe, FILE *f)
	Dump pipe information (not including the entries) More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_resource_query_entry (struct doca_flow_pipe_entry *entry, struct doca_flow_resource_query *query_stats)
	Extract information about specific entry. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_resource_query_pipe_miss (struct doca_flow_pipe *pipe, struct doca_flow_resource_query *query_stats)
	Extract information about pipe miss entry. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_update_miss (struct doca_flow_pipe *pipe, const struct doca_flow_fwd *fwd_miss)
	Update the forward miss action. More...
DOCA_STABLE int	doca_flow_aging_handle (struct doca_flow_port *port, uint16_t queue, uint64_t quota, uint64_t max_entries)
	Handle aging of entries. More...
DOCA_STABLE doca_error_t	doca_flow_entries_process (struct doca_flow_port *port, uint16_t pipe_queue, uint64_t timeout, uint32_t max_processed_entries)
	Process entries in queue. More...
DOCA_STABLE enum doca_flow_entry_status	doca_flow_pipe_entry_get_status (struct doca_flow_pipe_entry *entry)
	Get entry's status. More...
DOCA_STABLE struct doca_flow_port *	doca_flow_port_switch_get (const struct doca_flow_port *port)
	Get doca flow switch port. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_mpls_label_encode (uint32_t label, uint8_t traffic_class, uint8_t ttl, bool bottom_of_stack, struct doca_flow_header_mpls *mpls)
	Prepare an MPLS label header in big-endian. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_mpls_label_decode (const struct doca_flow_header_mpls *mpls, uint32_t *label, uint8_t *traffic_class, uint8_t *ttl, bool *bottom_of_stack)
	Decode an MPLS label header. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_parser_geneve_opt_create (const struct doca_flow_port *port, const struct doca_flow_parser_geneve_opt_cfg tlv_list[], uint8_t nb_options, struct doca_flow_parser **parser)
	Creates GENEVE TLV parser for the selected port. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_parser_geneve_opt_destroy (struct doca_flow_parser *parser)
	Destroy GENEVE TLV parser. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_get_target (enum doca_flow_target_type type, struct doca_flow_target **target)
	Get doca flow forward target. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_create (struct doca_flow_cfg **cfg)
	Create DOCA Flow configuration struct. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_destroy (struct doca_flow_cfg *cfg)
	Destroy DOCA Flow configuration struct. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_pipe_queues (struct doca_flow_cfg *cfg, uint16_t pipe_queues)
	Set pipe queues. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_nr_counters (struct doca_flow_cfg *cfg, uint32_t nr_counters)
	Set number of counters to configure. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_nr_meters (struct doca_flow_cfg *cfg, uint32_t nr_meters)
	Set number of traffic meters to configure. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_nr_acl_collisions (struct doca_flow_cfg *cfg, uint8_t nr_acl_collisions)
	Set number of pre-configured collisions. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_mode_args (struct doca_flow_cfg *cfg, const char *mode_args)
	Set DOCA mode args. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_nr_shared_resource (struct doca_flow_cfg *cfg, uint32_t nr_shared_resource, enum doca_flow_shared_resource_type type)
	Set number of shared resource. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_queue_depth (struct doca_flow_cfg *cfg, uint32_t queue_depth)
	Set number of pre-configured queue_size. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_cb_pipe_process (struct doca_flow_cfg *cfg, doca_flow_pipe_process_cb cb)
	Set callback for pipe process completion. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_cb_entry_process (struct doca_flow_cfg *cfg, doca_flow_entry_process_cb cb)
	Set callback for entry create/destroy. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_cb_shared_resource_unbind (struct doca_flow_cfg *cfg, doca_flow_shared_resource_unbind_cb cb)
	Set callback for unbinding of a shared resource. More...
DOCA_STABLE doca_error_t	doca_flow_cfg_set_rss_key (struct doca_flow_cfg *cfg, const uint8_t *rss_key, uint32_t rss_key_len)
	Set RSS hash key. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_cfg_set_default_rss (struct doca_flow_cfg *cfg, const struct doca_flow_resource_rss_cfg *rss)
	Set RSS global configuration. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_cfg_set_definitions (struct doca_flow_cfg *cfg, const struct doca_flow_definitions *defs)
	Set the definition object. More...
DOCA_STABLE doca_error_t	doca_flow_port_cfg_create (struct doca_flow_port_cfg **cfg)
	Create DOCA Flow port configuration struct. More...
DOCA_STABLE doca_error_t	doca_flow_port_cfg_destroy (struct doca_flow_port_cfg *cfg)
	Destroy DOCA Flow port configuration struct. More...
DOCA_STABLE doca_error_t	doca_flow_port_cfg_set_devargs (struct doca_flow_port_cfg *cfg, const char *devargs)
	Set devargs. More...
DOCA_STABLE doca_error_t	doca_flow_port_cfg_set_priv_data_size (struct doca_flow_port_cfg *cfg, uint16_t priv_data_size)
	Set user private data size. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_dev (struct doca_flow_port_cfg *cfg, struct doca_dev *dev)
	Set port's device. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_dev_rep (struct doca_flow_port_cfg *cfg, struct doca_dev_rep *dev)
	Set port's device for representor. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_port_id (struct doca_flow_port_cfg *cfg, uint16_t port_id)
	Set the logical port ID. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_rss_cfg (struct doca_flow_port_cfg *cfg, const struct doca_flow_resource_rss_cfg *rss_cfg)
	Set RSS optional configuration. More...
DOCA_STABLE doca_error_t	doca_flow_port_cfg_set_ipsec_sn_offload_disable (struct doca_flow_port_cfg *cfg)
	Disable SN offload for ipsec - Anti-replay and sn increment will not be activated. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_operation_state (struct doca_flow_port_cfg *cfg, enum doca_flow_port_operation_state state)
	Set default rules operation state. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_actions_mem_size (struct doca_flow_port_cfg *cfg, uint32_t size)
	Set max memory size used by actions. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_service_threads_core (struct doca_flow_port_cfg *cfg, uint32_t core)
	Set service threads execution cpu core. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_port_cfg_set_service_threads_cycle (struct doca_flow_port_cfg *cfg, uint32_t cycle_ms)
	Set service threads max execution cycle. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_create (struct doca_flow_pipe_cfg **cfg, struct doca_flow_port *port)
	Create DOCA Flow pipe configuration struct. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_destroy (struct doca_flow_pipe_cfg *cfg)
	Destroy DOCA Flow pipe configuration struct. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_match (struct doca_flow_pipe_cfg *cfg, const struct doca_flow_match *match, const struct doca_flow_match *match_mask)
	Set pipe's match and match mask. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_actions (struct doca_flow_pipe_cfg *cfg, struct doca_flow_actions *const *actions, struct doca_flow_actions *const *actions_masks, struct doca_flow_action_descs *const *action_descs, size_t nr_actions)
	Set pipe's actions, actions mask and actions descriptor. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_monitor (struct doca_flow_pipe_cfg *cfg, const struct doca_flow_monitor *monitor)
	Set pipe's monitor. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_ordered_lists (struct doca_flow_pipe_cfg *cfg, struct doca_flow_ordered_list *const *ordered_lists, size_t nr_ordered_lists)
	Set pipe's ordered lists. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_name (struct doca_flow_pipe_cfg *cfg, const char *name)
	Set pipe's name. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_label (struct doca_flow_pipe_cfg *cfg, const char *label)
	Sets the label for the given pipe. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_type (struct doca_flow_pipe_cfg *cfg, enum doca_flow_pipe_type type)
	Set pipe's type. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_domain (struct doca_flow_pipe_cfg *cfg, enum doca_flow_pipe_domain domain)
	Set pipe's domain. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_is_root (struct doca_flow_pipe_cfg *cfg, bool is_root)
	Set if pipe is root or not. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_nr_entries (struct doca_flow_pipe_cfg *cfg, uint32_t nr_entries)
	Set pipe's maximum number of flow rules. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_is_resizable (struct doca_flow_pipe_cfg *cfg, bool is_resizable)
	Set if the pipe supports the resize operation. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_excluded_queue (struct doca_flow_pipe_cfg *cfg, uint16_t pipe_queue)
	Set pipe_queue as excluded in the pipe. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_dir_info (struct doca_flow_pipe_cfg *cfg, enum doca_flow_direction_info dir_info)
	Set pipe's Direction info. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_miss_counter (struct doca_flow_pipe_cfg *cfg, bool miss_counter)
	Set to enable pipe's miss counter. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_congestion_level_threshold (struct doca_flow_pipe_cfg *cfg, uint8_t congestion_level_threshold)
	Set pipe's congestion level threshold. More...
DOCA_STABLE doca_error_t	doca_flow_pipe_cfg_set_user_ctx (struct doca_flow_pipe_cfg *cfg, void *user_ctx)
	Set pipe's user context. More...
DOCA_EXPERIMENTAL doca_error_t	doca_flow_pipe_cfg_set_hash_map_algorithm (struct doca_flow_pipe_cfg *cfg, uint32_t algorithm_flags)
	Set pipe map algorithm - supported only in hash pipe. More...

Detailed Description

DOCA HW offload flow library. For more details please refer to the user guide on DOCA devzone.

Macro Definition Documentation

DOCA_FLOW_MAX_ENTRY_ACTIONS_MEM_SIZE

#define DOCA_FLOW_MAX_ENTRY_ACTIONS_MEM_SIZE   (128)

meter mark color

Max usage of actions memory size in byte

Definition at line 266 of file doca_flow.h.

DOCA_FLOW_META_MAX

#define DOCA_FLOW_META_MAX   ((DOCA_FLOW_META_SCRATCH_PAD_MAX + 1) * 4)

Max meta data size in bytes, including pkt_meta.

Definition at line 259 of file doca_flow.h.

DOCA_FLOW_META_SCRATCH_PAD_MAX

#define DOCA_FLOW_META_SCRATCH_PAD_MAX   10

Max meta scratch pad size in 32-bit resolution

Definition at line 254 of file doca_flow.h.

DOCA_FLOW_PSP_DECRYPTION_ID

#define DOCA_FLOW_PSP_DECRYPTION_ID   UINT32_MAX

PSP decryption reserved id, must be used at pipe creation and entry addition

Definition at line 621 of file doca_flow.h.

DOCA_FLOW_VLAN_MAX

#define DOCA_FLOW_VLAN_MAX   2

Max number of vlan headers.

Definition at line 424 of file doca_flow.h.

Typedef Documentation

doca_flow_entry_process_cb

typedef void(* doca_flow_entry_process_cb) (struct doca_flow_pipe_entry *entry, uint16_t pipe_queue, enum doca_flow_entry_status status, enum doca_flow_entry_op op, void *user_ctx)

doca flow entry process callback

Definition at line 204 of file doca_flow.h.

doca_flow_pipe_process_cb

typedef void(* doca_flow_pipe_process_cb) (struct doca_flow_pipe *pipe, enum doca_flow_pipe_status status, enum doca_flow_pipe_op op, void *user_ctx)

doca flow pipe process callback

Definition at line 196 of file doca_flow.h.

doca_flow_pipe_resize_entry_relocate_cb

typedef doca_error_t(* doca_flow_pipe_resize_entry_relocate_cb) (void *pipe_user_ctx, uint16_t pipe_queue, void *entry_user_ctx, void **new_entry_user_ctx)

doca flow pipe entry relocation callback.

Called for each entry that reached its destination after resize. User is allowed to switch the context to a new pointer.

Parameters

[in]	pipe_user_ctx	Pointer to pipe user context.
[in]	pipe_queue	Pipe queue id.
[in]	entry_user_ctx	Pointer to entry user context.
[out]	new_entry_user_ctx	Pointer to new entry user context.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - memory error.

Definition at line 1456 of file doca_flow.h.

doca_flow_pipe_resize_nr_entries_changed_cb

typedef doca_error_t(* doca_flow_pipe_resize_nr_entries_changed_cb) (void *pipe_user_ctx, uint32_t nr_entries)

doca flow pipe resize number of entries changed callback.

Parameters

[in]	pipe_user_ctx	Pointer to pipe user context.
[out]	nr_entries	Changed value for pipe's number of entries.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - memory error.

Definition at line 1435 of file doca_flow.h.

doca_flow_shared_resource_unbind_cb

typedef void(* doca_flow_shared_resource_unbind_cb) (enum doca_flow_shared_resource_type, uint32_t shared_resource_id, void *bindable_obj)

doca flow shared resource unbind callback

Definition at line 213 of file doca_flow.h.

Enumeration Type Documentation

doca_flow_action_type

enum doca_flow_action_type

action type enumeration

Enumerator
DOCA_FLOW_ACTION_AUTO
DOCA_FLOW_ACTION_ADD
DOCA_FLOW_ACTION_COPY

Definition at line 1007 of file doca_flow.h.

doca_flow_compare_op

enum doca_flow_compare_op

doca flow compare operation

Enumerator
DOCA_FLOW_COMPARE_EQ	Equal compare.
DOCA_FLOW_COMPARE_NE	Not equal compare.
DOCA_FLOW_COMPARE_LT	Less than compare.
DOCA_FLOW_COMPARE_LE	Less equal compare.
DOCA_FLOW_COMPARE_GT	Great than compare.
DOCA_FLOW_COMPARE_GE	Great equal compare.

Definition at line 509 of file doca_flow.h.

doca_flow_crypto_syndrome

enum doca_flow_crypto_syndrome

doca flow psp/ipsec syndrome valid values for parser meta

Enumerator
DOCA_FLOW_CRYPTO_SYNDROME_OK	Decryption and authentication success
DOCA_FLOW_CRYPTO_SYNDROME_ICV_FAIL	Authentication failure
DOCA_FLOW_CRYPTO_SYNDROME_BAD_TRAILER	Trailer overlaps with headers

Definition at line 321 of file doca_flow.h.

doca_flow_direction_info

enum doca_flow_direction_info

doca flow direction info

Enumerator
DOCA_FLOW_DIRECTION_BIDIRECTIONAL
DOCA_FLOW_DIRECTION_NETWORK_TO_HOST
DOCA_FLOW_DIRECTION_HOST_TO_NETWORK

Definition at line 1092 of file doca_flow.h.

doca_flow_entry_op

enum doca_flow_entry_op

doca flow entry operation

Enumerator
DOCA_FLOW_ENTRY_OP_ADD	Add entry
DOCA_FLOW_ENTRY_OP_DEL	Delete entry
DOCA_FLOW_ENTRY_OP_UPD	Update entry
DOCA_FLOW_ENTRY_OP_AGED	Aged entry

Definition at line 146 of file doca_flow.h.

doca_flow_entry_status

enum doca_flow_entry_status

doca flow entry status

Enumerator
DOCA_FLOW_ENTRY_STATUS_IN_PROCESS
DOCA_FLOW_ENTRY_STATUS_SUCCESS
DOCA_FLOW_ENTRY_STATUS_ERROR

Definition at line 160 of file doca_flow.h.

doca_flow_flags_type

enum doca_flow_flags_type

doca flow flags type

Enumerator
DOCA_FLOW_NO_WAIT	entry will not be buffered
DOCA_FLOW_WAIT_FOR_BATCH	entry will be buffered

Definition at line 114 of file doca_flow.h.

doca_flow_fwd_type

enum doca_flow_fwd_type

forwarding action type

Enumerator
DOCA_FLOW_FWD_NONE	No forward action be set
DOCA_FLOW_FWD_RSS	Forwards packets to rss
DOCA_FLOW_FWD_PORT	Forwards packets to one port
DOCA_FLOW_FWD_PIPE	Forwards packets to another pipe
DOCA_FLOW_FWD_DROP	Drops packets
DOCA_FLOW_FWD_TARGET	Forwards packets to target
DOCA_FLOW_FWD_ORDERED_LIST_PIPE	Forwards packet to a specific entry in an ordered list pipe.
DOCA_FLOW_FWD_HASH_PIPE	Forwards packet to a specific algorithm in hash pipe.
DOCA_FLOW_FWD_CHANGEABLE	Forward is specified at entry creation.

Definition at line 739 of file doca_flow.h.

doca_flow_l2_meta

enum doca_flow_l2_meta

doca flow l2 valid type for parser meta

Enumerator
DOCA_FLOW_L2_META_NO_VLAN	no vlan present
DOCA_FLOW_L2_META_MULTI_VLAN	multiple vlan present
DOCA_FLOW_L2_META_SINGLE_VLAN	single vlan present
DOCA_FLOW_L2_META_CUSTOM_VLAN	custom vlan present

Definition at line 279 of file doca_flow.h.

doca_flow_l2_valid_header

enum doca_flow_l2_valid_header

doca flow l2 valid headers

Enumerator
DOCA_FLOW_L2_VALID_HEADER_VLAN_0	first vlan
DOCA_FLOW_L2_VALID_HEADER_VLAN_1	second vlan

Definition at line 429 of file doca_flow.h.

doca_flow_l3_meta

enum doca_flow_l3_meta

doca flow l3 valid type for parser meta

Enumerator
DOCA_FLOW_L3_META_NONE	l3 type is none of the below
DOCA_FLOW_L3_META_IPV4	l3 type is ipv4
DOCA_FLOW_L3_META_IPV6	l3 type is ipv6

Definition at line 293 of file doca_flow.h.

doca_flow_l4_meta

enum doca_flow_l4_meta

doca flow l4 valid type for parser meta

Enumerator
DOCA_FLOW_L4_META_NONE	l4 type is none of the below
DOCA_FLOW_L4_META_TCP	l4 type is tcp
DOCA_FLOW_L4_META_UDP	l4 type is udp
DOCA_FLOW_L4_META_ICMP	l4 type is icmp or icmp6
DOCA_FLOW_L4_META_ESP	l4 type is esp

Definition at line 305 of file doca_flow.h.

doca_flow_match_tcp_flags

enum doca_flow_match_tcp_flags

doca flow match flags

Enumerator
DOCA_FLOW_MATCH_TCP_FLAG_FIN	match tcp packet with Fin flag
DOCA_FLOW_MATCH_TCP_FLAG_SYN	match tcp packet with Syn flag
DOCA_FLOW_MATCH_TCP_FLAG_RST	match tcp packet with Rst flag
DOCA_FLOW_MATCH_TCP_FLAG_PSH	match tcp packet with Psh flag
DOCA_FLOW_MATCH_TCP_FLAG_ACK	match tcp packet with Ack flag
DOCA_FLOW_MATCH_TCP_FLAG_URG	match tcp packet with Urg flag
DOCA_FLOW_MATCH_TCP_FLAG_ECE	match tcp packet with Ece flag
DOCA_FLOW_MATCH_TCP_FLAG_CWR	match tcp packet with Cwr flag

Definition at line 402 of file doca_flow.h.

doca_flow_meter_algorithm_type

enum doca_flow_meter_algorithm_type

Traffic meter algorithms.

Enumerator
DOCA_FLOW_METER_ALGORITHM_TYPE_RFC2697	Single Rate Three Color Marker - IETF RFC 2697.
DOCA_FLOW_METER_ALGORITHM_TYPE_RFC2698	Two Rate Three Color Marker - IETF RFC 2698.
DOCA_FLOW_METER_ALGORITHM_TYPE_RFC4115	Two Rate Three Color Marker - IETF RFC 4115.

Definition at line 829 of file doca_flow.h.

doca_flow_meter_color_mode

enum doca_flow_meter_color_mode

Traffic meter init color mode when creating a pipe or entry: blind (fixed as green) or aware (configurable value).

Enumerator
DOCA_FLOW_METER_COLOR_MODE_BLIND	Meter action init color is green.
DOCA_FLOW_METER_COLOR_MODE_AWARE	Meter action init color is configured.

Definition at line 853 of file doca_flow.h.

doca_flow_meter_limit_type

enum doca_flow_meter_limit_type

Traffic meter limit type: per bytes or per packets for all meter parameters: cir, cbs, eir, ebs.

Enumerator
DOCA_FLOW_METER_LIMIT_TYPE_BYTES	Meter parameters per bytes
DOCA_FLOW_METER_LIMIT_TYPE_PACKETS	Meter parameters packets

Definition at line 842 of file doca_flow.h.

doca_flow_ordered_list_element_type

enum doca_flow_ordered_list_element_type

Type of an ordered list element.

Enumerator
DOCA_FLOW_ORDERED_LIST_ELEMENT_ACTIONS
DOCA_FLOW_ORDERED_LIST_ELEMENT_MONITOR	Ordered list element is struct doca_flow_actions, and/or actions mask associated with the current element, or corresponding doca_flow_action_desc.

Definition at line 1043 of file doca_flow.h.

doca_flow_parser_geneve_opt_mode

enum doca_flow_parser_geneve_opt_mode

Geneve TLV option class mode.

Enumerator
DOCA_FLOW_PARSER_GENEVE_OPT_MODE_IGNORE	class is ignored.
DOCA_FLOW_PARSER_GENEVE_OPT_MODE_FIXED	class is fixed (the class defines the option along with the type).
DOCA_FLOW_PARSER_GENEVE_OPT_MODE_MATCHABLE	class is matching per flow.

Definition at line 1119 of file doca_flow.h.

doca_flow_pipe_domain

enum doca_flow_pipe_domain

doca flow pipe domain

Enumerator
DOCA_FLOW_PIPE_DOMAIN_DEFAULT	Default pipe domain for actions on ingress traffic
DOCA_FLOW_PIPE_DOMAIN_SECURE_INGRESS	Pipe domain for secure actions on ingress traffic
DOCA_FLOW_PIPE_DOMAIN_EGRESS	Pipe domain for actions on egress traffic
DOCA_FLOW_PIPE_DOMAIN_SECURE_EGRESS	Pipe domain for actions on egress traffic

Definition at line 240 of file doca_flow.h.

doca_flow_pipe_hash_map_algorithm

enum doca_flow_pipe_hash_map_algorithm

DOCA Flow pipe map algorithm.

Enumerator
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_HASH	Hash algorithm - default
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_RANDOM	Random algorithm
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_IDENTITY	Direct mapping algorithm
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_ROUND_ROBIN	Round robin algorithm
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_FLOODING	Flooding algorithm
DOCA_FLOW_PIPE_HASH_MAP_ALGORITHM_SELECT_ENABLED	Select enabled map entry

Definition at line 333 of file doca_flow.h.

doca_flow_pipe_op

enum doca_flow_pipe_op

doca flow pipe operation

Enumerator
DOCA_FLOW_PIPE_OP_CONGESTION_REACHED	Pipe congestion percentage level reached
DOCA_FLOW_PIPE_OP_RESIZED	Pipe resize completion
DOCA_FLOW_PIPE_OP_DESTROYED	Pipe destroy completion

Definition at line 124 of file doca_flow.h.

doca_flow_pipe_status

enum doca_flow_pipe_status

doca flow pipe status

Enumerator
DOCA_FLOW_PIPE_STATUS_SUCCESS	The operation was completed successfully.
DOCA_FLOW_PIPE_STATUS_ERROR	The operation failed.

Definition at line 136 of file doca_flow.h.

doca_flow_pipe_type

enum doca_flow_pipe_type

doca flow pipe type

Enumerator
DOCA_FLOW_PIPE_BASIC	Flow pipe
DOCA_FLOW_PIPE_CONTROL	Control pipe
DOCA_FLOW_PIPE_LPM	longest prefix match (LPM) pipe
DOCA_FLOW_PIPE_CT	Connection Tracking pipe
DOCA_FLOW_PIPE_ACL	ACL pipe
DOCA_FLOW_PIPE_ORDERED_LIST	Ordered list pipe
DOCA_FLOW_PIPE_HASH	Hash pipe

Definition at line 220 of file doca_flow.h.

doca_flow_port_operation_state

enum doca_flow_port_operation_state

Defines the operation states for a port instance.

Enumerator
DOCA_FLOW_PORT_OPERATION_STATE_ACTIVE	This instance actively handles incoming and outgoing traffic
DOCA_FLOW_PORT_OPERATION_STATE_ACTIVE_READY_TO_SWAP	This instance actively handles traffic when no other active instance is available
DOCA_FLOW_PORT_OPERATION_STATE_STANDBY	This instance handles traffic only when no active or active_ready_to_swap instance is available
DOCA_FLOW_PORT_OPERATION_STATE_UNCONNECTED	This instance does not handle traffic, regardless of the state of other instances

Definition at line 1147 of file doca_flow.h.

doca_flow_push_action_type

enum doca_flow_push_action_type

doca flow push action type

Enumerator
DOCA_FLOW_PUSH_ACTION_VLAN

Definition at line 586 of file doca_flow.h.

doca_flow_resource_type

enum doca_flow_resource_type

doca flow resource type

Enumerator
DOCA_FLOW_RESOURCE_TYPE_NONE
DOCA_FLOW_RESOURCE_TYPE_SHARED
DOCA_FLOW_RESOURCE_TYPE_NON_SHARED

Definition at line 612 of file doca_flow.h.

doca_flow_rss_hash_function

enum doca_flow_rss_hash_function

rss hash function type

Enumerator
DOCA_FLOW_RSS_HASH_FUNCTION_TOEPLITZ	Toeplitz
DOCA_FLOW_RSS_HASH_FUNCTION_SYMMETRIC_TOEPLITZ	Toeplitz with sorted source and destination

Definition at line 172 of file doca_flow.h.

doca_flow_shared_resource_type

enum doca_flow_shared_resource_type

Shared resource supported types.

Enumerator
DOCA_FLOW_SHARED_RESOURCE_METER	Shared meter type
DOCA_FLOW_SHARED_RESOURCE_COUNTER	Shared counter type
DOCA_FLOW_SHARED_RESOURCE_RSS	Shared rss type
DOCA_FLOW_SHARED_RESOURCE_MIRROR	Shared mirror type
DOCA_FLOW_SHARED_RESOURCE_PSP	Shared psp action type
DOCA_FLOW_SHARED_RESOURCE_ENCAP	Shared encap type
DOCA_FLOW_SHARED_RESOURCE_DECAP	Shared decap type
DOCA_FLOW_SHARED_RESOURCE_IPSEC_SA	Shared ipsec SA type

Definition at line 92 of file doca_flow.h.

doca_flow_target_type

enum doca_flow_target_type

doca flow target type

Enumerator
DOCA_FLOW_TARGET_KERNEL

Definition at line 732 of file doca_flow.h.

doca_rss_type

enum doca_rss_type

rss offload types

Enumerator
DOCA_FLOW_RSS_IPV4	rss by ipv4 header
DOCA_FLOW_RSS_IPV6	rss by ipv6 header
DOCA_FLOW_RSS_UDP	rss by udp header
DOCA_FLOW_RSS_TCP	rss by tcp header
DOCA_FLOW_RSS_ESP	rss by esp header

Definition at line 763 of file doca_flow.h.

Function Documentation

__attribute__()

enum __attribute__

(

(__packed__)

)

packed

< Meter marking packet color as red

< Meter marking packet color as yellow

< Meter marking packet color as green

Definition at line 213 of file doca_flow.h.

doca_flow_aging_handle()

DOCA_STABLE int doca_flow_aging_handle	(	struct doca_flow_port *	port,
		uint16_t	queue,
		uint64_t	quota,
		uint64_t	max_entries
	)

Handle aging of entries.

Process aged entries, the user will get a notification in the callback.

Handling of aged entries can take too much time, so we split each cycle to small chunks that are limited by some time quota.

As long as the function doesn't return -1, more entries are pending processing for this cycle.

Parameters

[in]	port	Port to handle aging
[in]	queue	Queue identifier.
[in]	quota	Max time quota in micro seconds handle aging, 0: no limit.
[in]	max_entries	Max entries for this function to handle aging, 0: no limit.

Returns

0 the number of aged entries.

0 no aged entries in current call. -1 full cycle done.

doca_flow_cfg_create()

DOCA_STABLE doca_error_t doca_flow_cfg_create

(

struct doca_flow_cfg **

cfg

)

Create DOCA Flow configuration struct.

Create and allocate DOCA Flow configuration struct

Parameters

[out]

cfg

DOCA Flow global configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_cfg_destroy()

DOCA_STABLE doca_error_t doca_flow_cfg_destroy

(

struct doca_flow_cfg *

cfg

)

Destroy DOCA Flow configuration struct.

Free and destroy the DOCA Flow configuration struct

Parameters

[in]

cfg

DOCA Flow global configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_cb_entry_process()

DOCA_STABLE doca_error_t doca_flow_cfg_set_cb_entry_process	(	struct doca_flow_cfg *	cfg,
		doca_flow_entry_process_cb	cb
	)

Set callback for entry create/destroy.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	cb	Callback for entry create/destroy

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_cb_pipe_process()

DOCA_STABLE doca_error_t doca_flow_cfg_set_cb_pipe_process	(	struct doca_flow_cfg *	cfg,
		doca_flow_pipe_process_cb	cb
	)

Set callback for pipe process completion.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	cb	Callback for pipe process completion

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_cb_shared_resource_unbind()

DOCA_STABLE doca_error_t doca_flow_cfg_set_cb_shared_resource_unbind	(	struct doca_flow_cfg *	cfg,
		doca_flow_shared_resource_unbind_cb	cb
	)

Set callback for unbinding of a shared resource.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	cb	Callback for unbinding of a shared resource

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_default_rss()

DOCA_EXPERIMENTAL doca_error_t doca_flow_cfg_set_default_rss	(	struct doca_flow_cfg *	cfg,
		const struct doca_flow_resource_rss_cfg *	rss
	)

Set RSS global configuration.

Set the RSS global configuration for all port

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	rss	RSS global configuration for all port

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_cfg_set_definitions()

DOCA_EXPERIMENTAL doca_error_t doca_flow_cfg_set_definitions	(	struct doca_flow_cfg *	cfg,
		const struct doca_flow_definitions *	defs
	)

Set the definition object.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	defs	A valid doca flow definitions object.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_mode_args()

DOCA_STABLE doca_error_t doca_flow_cfg_set_mode_args	(	struct doca_flow_cfg *	cfg,
		const char *	mode_args
	)

Set DOCA mode args.

Set the DOCA Flow architecture mode switch, vnf

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	mode_args	DOCA Flow architecture mode

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_nr_acl_collisions()

DOCA_STABLE doca_error_t doca_flow_cfg_set_nr_acl_collisions	(	struct doca_flow_cfg *	cfg,
		uint8_t	nr_acl_collisions
	)

Set number of pre-configured collisions.

Get the number of pre-configured collisions for the acl module

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	nr_acl_collisions	Number pre-configured collisions

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_nr_counters()

DOCA_STABLE doca_error_t doca_flow_cfg_set_nr_counters	(	struct doca_flow_cfg *	cfg,
		uint32_t	nr_counters
	)

Set number of counters to configure.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	nr_counters	Number of counters to configure

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_nr_meters()

DOCA_STABLE doca_error_t doca_flow_cfg_set_nr_meters	(	struct doca_flow_cfg *	cfg,
		uint32_t	nr_meters
	)

Set number of traffic meters to configure.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	nr_meters	Number of traffic meters to configure

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_nr_shared_resource()

DOCA_STABLE doca_error_t doca_flow_cfg_set_nr_shared_resource	(	struct doca_flow_cfg *	cfg,
		uint32_t	nr_shared_resource,
		enum doca_flow_shared_resource_type	type
	)

Set number of shared resource.

Set the number of shared resource per type

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	nr_shared_resource	Number of shared resource
[in]	type	Type of shared resource

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_pipe_queues()

DOCA_STABLE doca_error_t doca_flow_cfg_set_pipe_queues	(	struct doca_flow_cfg *	cfg,
		uint16_t	pipe_queues
	)

Set pipe queues.

Set the pipe's number of queues for each offload thread

Parameters

[in]	cfg	DOCA Flow global configuration
[in]	pipe_queues	Pipe queues

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_queue_depth()

DOCA_STABLE doca_error_t doca_flow_cfg_set_queue_depth	(	struct doca_flow_cfg *	cfg,
		uint32_t	queue_depth
	)

Set number of pre-configured queue_size.

Parameters

[in]	cfg	DOCA Flow global configuration.
[out]	queue_depth	Number of pre-configured queue_size

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_cfg_set_rss_key()

DOCA_STABLE doca_error_t doca_flow_cfg_set_rss_key	(	struct doca_flow_cfg *	cfg,
		const uint8_t *	rss_key,
		uint32_t	rss_key_len
	)

Set RSS hash key.

Parameters

[in]	cfg	DOCA Flow global configuration.
[in]	rss_key	RSS hash key
[in]	rss_key_len	Length of the RSS hash key in bytes

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_destroy()

DOCA_STABLE void doca_flow_destroy

(

void

)

Destroy the doca flow.

Release all the resources used by doca flow.

Must be invoked at the end of the application, before it exits.

doca_flow_entries_process()

DOCA_STABLE doca_error_t doca_flow_entries_process	(	struct doca_flow_port *	port,
		uint16_t	pipe_queue,
		uint64_t	timeout,
		uint32_t	max_processed_entries
	)

Process entries in queue.

The application must invoke this function in order to complete the flow rule offloading and to receive the flow rule operation status.

Parameters

[in]	port	Port
[in]	pipe_queue	Queue identifier.
[in]	timeout	Max time in micro seconds for this function to process entries. Process once if timeout is 0
[in]	max_processed_entries	Flow entries number to process If it is 0, it will proceed until timeout.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_DRIVER - driver error.

doca_flow_get_target()

DOCA_EXPERIMENTAL doca_error_t doca_flow_get_target	(	enum doca_flow_target_type	type,
		struct doca_flow_target **	target
	)

Get doca flow forward target.

Parameters

[in]	type	Target type.
[out]	target	Target handler on success

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NOT_SUPPORTED - unsupported type.

doca_flow_init()

DOCA_EXPERIMENTAL doca_error_t doca_flow_init

(

struct doca_flow_cfg *

cfg

)

Initialize the doca flow.

This is the global initialization function for doca flow. It initializes all resources used by doca flow.

Must be invoked first before any other function in this API. this is a one time call, used for doca flow initialization and global configurations.

Parameters

[in]

cfg

Port configuration, see doca_flow_cfg for details.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported configuration.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_mpls_label_decode()

DOCA_EXPERIMENTAL doca_error_t doca_flow_mpls_label_decode	(	const struct doca_flow_header_mpls *	mpls,
		uint32_t *	label,
		uint8_t *	traffic_class,
		uint8_t *	ttl,
		bool *	bottom_of_stack
	)

Decode an MPLS label header.

Note

: All output variables are in cpu-endian.

Parameters

[in]	mpls	Pointer to MPLS structure to decode.
[out]	label	Pointer to fill MPLS label value.
[out]	traffic_class	Pointer to fill MPLS traffic class value.
[out]	ttl	Pointer to fill MPLS TTL value.
[out]	bottom_of_stack	Pointer to fill whether this MPLS is bottom of stack.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_mpls_label_encode()

DOCA_EXPERIMENTAL doca_error_t doca_flow_mpls_label_encode	(	uint32_t	label,
		uint8_t	traffic_class,
		uint8_t	ttl,
		bool	bottom_of_stack,
		struct doca_flow_header_mpls *	mpls
	)

Prepare an MPLS label header in big-endian.

Note

: All input variables are in cpu-endian.

Parameters

[in]	label	The label value - 20 bits.
[in]	traffic_class	Traffic class - 3 bits.
[in]	ttl	Time to live - 8 bits
[in]	bottom_of_stack	Whether this MPLS is bottom of stack.
[out]	mpls	Pointer to MPLS structure to fill.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_parser_geneve_opt_create()

DOCA_EXPERIMENTAL doca_error_t doca_flow_parser_geneve_opt_create	(	const struct doca_flow_port *	port,
		const struct doca_flow_parser_geneve_opt_cfg	tlv_list[],
		uint8_t	nb_options,
		struct doca_flow_parser **	parser
	)

Creates GENEVE TLV parser for the selected port.

This function must be called before creation of any pipe using GENEVE option.

This API is port oriented, but the configuration is done once for all ports under the same physical device. Each port should call this API before using GENEVE options, but it must use the same options in the same order inside the list.

Each physical device has 7 DWs for GENEVE TLV options. Each nonzero element in 'data_mask' array consumes one DW, and choosing matchable mode for class consumes additional one. Calling this API for second port under same physical device doesn't consume more DW, it uses same configuration.

Parameters

[in]	port	Pointer to doca flow port.
[in]	tlv_list	A list of GENEVE TLV options to create parser for them.
[in]	nb_options	The number of options in TLV list.
[out]	parser	Parser handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported configuration.
• DOCA_ERROR_ALREADY_EXIST - physical device already has parser, by either same or another port.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_parser_geneve_opt_destroy()

DOCA_EXPERIMENTAL doca_error_t doca_flow_parser_geneve_opt_destroy

(

struct doca_flow_parser *

parser

)

Destroy GENEVE TLV parser.

This function must be called after last use of GENEVE option and before port closing.

Parameters

[in]

parser

Pointer to parser to be destroyed.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_IN_USE - one of options is in used by a pipe.
• DOCA_ERROR_DRIVER - there is no valid GENEVE TLV parser in this handle.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_pipe_acl_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_acl_add_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_match *	match,
		const struct doca_flow_match *	match_mask,
		const uint32_t	priority,
		const struct doca_flow_fwd *	fwd,
		const enum doca_flow_flags_type	flag,
		void *	usr_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add one new entry to a acl pipe.

This API will populate the acl entries

Parameters

	pipe_queue	Queue identifier.
	pipe	Pointer to pipe.
	match	Pointer to match, indicate specific packet match information.
	match_mask	Pointer to match mask information.
	priority	Priority value
	fwd	Pointer to fwd actions.
	flag	Flow entry will be pushed to hw immediately or not. enum doca_flow_flags_type.
	usr_ctx	Pointer to the user context. This context is associated with the entry and will be used during update and removal operations. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	The entry inserted.

Returns

Pipe entry handler on success, NULL otherwise and error is set.

doca_flow_pipe_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_add_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_match *	match,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		uint32_t	flags,
		void *	usr_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add one new entry to a pipe.

When a packet matches a single pipe, will start HW offload. The pipe only defines which fields to match. When offloading, we need detailed information from packets, or we need to set some specific actions that the pipe did not define. The parameters include:

match: The packet detail fields according to the pipe definition. actions: The real actions according to the pipe definition. monitor: Defines the monitor actions if the pipe did not define it. fwd: Define the forward action if the pipe did not define it.

This API will do the actual HW offload, with the information from the fields of the input packets.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	pipe	Pointer to pipe.
[in]	match	Pointer to match, indicate specific packet match information.
[in]	actions	Pointer to modify actions, indicate specific modify information.
[in]	monitor	Pointer to monitor actions.
[in]	fwd	Pointer to fwd actions.
[in]	flags	Flow entry will be pushed to hw immediately or not. enum doca_flow_flags_type.
[in]	usr_ctx	Pointer to the user context. This context is associated with the entry and will be used during update and removal operations. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	Pipe entry handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_calc_hash()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_calc_hash	(	struct doca_flow_pipe *	pipe,
		const struct doca_flow_match *	match,
		uint32_t *	hash
	)

calc the hash for a given match on a given pipe.

Calculates the hash value for a given pipe assuming the that the match parameter holds the values that the HW will see.

Parameters

[in]	pipe	Pointer to pipe.
[in]	match	Pointer to match, indicate specific packet match information.
[out]	hash	The calculated hash on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_cfg_create()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_create	(	struct doca_flow_pipe_cfg **	cfg,
		struct doca_flow_port *	port
	)

Create DOCA Flow pipe configuration struct.

Create and allocate DOCA Flow pipe configuration struct and set port

Parameters

[out]	cfg	DOCA Flow pipe configuration.
[in]	port	DOCA Flow port.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_destroy()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_destroy

(

struct doca_flow_pipe_cfg *

cfg

)

Destroy DOCA Flow pipe configuration struct.

Free and destroy the DOCA Flow pipe configuration struct

Parameters

[in]

cfg

DOCA Flow pipe configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_actions()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_actions	(	struct doca_flow_pipe_cfg *	cfg,
		struct doca_flow_actions *const *	actions,
		struct doca_flow_actions *const *	actions_masks,
		struct doca_flow_action_descs *const *	action_descs,
		size_t	nr_actions
	)

Set pipe's actions, actions mask and actions descriptor.

Set pipe's actions, actions mask and actions descriptor. nr_actions must not be zero, and actions must not be NULL. actions_masks and action_descs can be NULL, meaning not set.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	actions	DOCA Flow actions array
[in]	actions_masks	DOCA Flow actions mask array
[in]	action_descs	DOCA Flow actions descriptor array
[in]	nr_actions	Number of actions

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_congestion_level_threshold()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_congestion_level_threshold	(	struct doca_flow_pipe_cfg *	cfg,
		uint8_t	congestion_level_threshold
	)

Set pipe's congestion level threshold.

Set congestion threshold for pipe in percentage (0,100] - pipe notification.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	congestion_level_threshold	congestion level threshold

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_dir_info()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_dir_info	(	struct doca_flow_pipe_cfg *	cfg,
		enum doca_flow_direction_info	dir_info
	)

Set pipe's Direction info.

Set pipe's Direction info. This is an optional direction hint for driver optimization, supported in switch mode only.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	dir_info	DOCA Flow direction info.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_domain()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_domain	(	struct doca_flow_pipe_cfg *	cfg,
		enum doca_flow_pipe_domain	domain
	)

Set pipe's domain.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	domain	DOCA Flow pipe steering domain

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_ALREADY_EXIST - domain was already set.

doca_flow_pipe_cfg_set_excluded_queue()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_excluded_queue	(	struct doca_flow_pipe_cfg *	cfg,
		uint16_t	pipe_queue
	)

Set pipe_queue as excluded in the pipe.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	pipe_queue	The pipe_queue to exclude

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_hash_map_algorithm()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_hash_map_algorithm	(	struct doca_flow_pipe_cfg *	cfg,
		uint32_t	algorithm_flags
	)

Set pipe map algorithm - supported only in hash pipe.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	algorithm_flags	Algorithms to use in the pipe. enum doca_flow_pipe_hash_map_algorithm.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_is_resizable()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_is_resizable	(	struct doca_flow_pipe_cfg *	cfg,
		bool	is_resizable
	)

Set if the pipe supports the resize operation.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	is_resizable	If the pipe is resizable.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_is_root()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_is_root	(	struct doca_flow_pipe_cfg *	cfg,
		bool	is_root
	)

Set if pipe is root or not.

Set if pipe is root or not. If true it means the pipe is a root pipe executed on packet arrival.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	is_root	If the pipe is root.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_label()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_label	(	struct doca_flow_pipe_cfg *	cfg,
		const char *	label
	)

Sets the label for the given pipe.

The label is a text string that can be used to identify or describe the pipe.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	label	A string containing the label to be set.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_match()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_match	(	struct doca_flow_pipe_cfg *	cfg,
		const struct doca_flow_match *	match,
		const struct doca_flow_match *	match_mask
	)

Set pipe's match and match mask.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	match	DOCA Flow match
[in]	match_mask	DOCA Flow match mask

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_miss_counter()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_miss_counter	(	struct doca_flow_pipe_cfg *	cfg,
		bool	miss_counter
	)

Set to enable pipe's miss counter.

Set to enable pipe's missed flows counter, can be queried with doca_flow_resource_query_pipe_miss().

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	miss_counter	If to enable miss counter

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_monitor()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_monitor	(	struct doca_flow_pipe_cfg *	cfg,
		const struct doca_flow_monitor *	monitor
	)

Set pipe's monitor.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	monitor	DOCA Flow monitor

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_name()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_name	(	struct doca_flow_pipe_cfg *	cfg,
		const char *	name
	)

Set pipe's name.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	name	Pipe name

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_nr_entries()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_nr_entries	(	struct doca_flow_pipe_cfg *	cfg,
		uint32_t	nr_entries
	)

Set pipe's maximum number of flow rules.

Set pipe's maximum number of flow rules, default is 8k if not set.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	nr_entries	Maximum number of flow rules

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_ordered_lists()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_cfg_set_ordered_lists	(	struct doca_flow_pipe_cfg *	cfg,
		struct doca_flow_ordered_list *const *	ordered_lists,
		size_t	nr_ordered_lists
	)

Set pipe's ordered lists.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	ordered_lists	DOCA Flow ordered lists array
[in]	nr_ordered_lists	Number of ordered lists

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_pipe_cfg_set_type()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_type	(	struct doca_flow_pipe_cfg *	cfg,
		enum doca_flow_pipe_type	type
	)

Set pipe's type.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	type	DOCA Flow pipe type

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_cfg_set_user_ctx()

DOCA_STABLE doca_error_t doca_flow_pipe_cfg_set_user_ctx	(	struct doca_flow_pipe_cfg *	cfg,
		void *	user_ctx
	)

Set pipe's user context.

Set pipe's user context - pipe notification.

Parameters

[in]	cfg	DOCA Flow pipe configuration.
[in]	user_ctx	User context

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_pipe_control_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_control_add_entry	(	uint16_t	pipe_queue,
		uint32_t	priority,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_match *	match,
		const struct doca_flow_match *	match_mask,
		const struct doca_flow_match_condition *	condition,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_actions *	actions_mask,
		const struct doca_flow_action_descs *	action_descs,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		void *	usr_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add one new entry to a control pipe.

Refer to doca_flow_pipe_add_entry.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	priority	Priority value.
[in]	pipe	Pointer to pipe.
[in]	match	Pointer to match, indicate specific packet match information.
[in]	match_mask	Pointer to match mask information.
[in]	condition	Pointer to match condition information.
[in]	actions	Pointer to modify actions, indicate specific modify information.
[in]	actions_mask	Pointer to modify actions' mask, indicate specific modify information.
[in]	action_descs	action descriptions
[in]	monitor	Pointer to monitor actions.
[in]	fwd	Pointer to fwd actions.
[in]	usr_ctx	Pointer to the user context. This context is associated with the entry and will be used during update and removal operations. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	Pipe entry handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.
• DOCA_ERROR_NOT_SUPPORTED - unsupported pipe type.

doca_flow_pipe_create()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_create	(	const struct doca_flow_pipe_cfg *	cfg,
		const struct doca_flow_fwd *	fwd,
		const struct doca_flow_fwd *	fwd_miss,
		struct doca_flow_pipe **	pipe
	)

Create one new pipe.

Create new pipeline to match and offload specific packets, the pipe configuration includes the following components:

match: Match one packet by inner or outer fields.
match_mask: The mask for the matched items.
actions: Includes the modify specific packets fields, Encap and
             Decap actions.
monitor: Includes Count, Age, and Meter actions.
fwd: The destination of the matched action, include RSS, Hairpin,
        Port, and Drop actions.

This API will create the pipe, but would not start the HW offload.

Parameters

[in]	cfg	Pipe configuration.
[in]	fwd	Fwd configuration for the pipe.
[in]	fwd_miss	Fwd_miss configuration for the pipe. NULL for no fwd_miss. When creating a pipe if there is a miss and fwd_miss configured, packet steering should jump to it.
[out]	pipe	Pipe handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NOT_SUPPORTED - unsupported pipe type.
• DOCA_ERROR_DRIVER - driver error.
• DOCA_ERROR_TOO_BIG - pipe specs exceed capability

doca_flow_pipe_destroy()

DOCA_STABLE void doca_flow_pipe_destroy

(

struct doca_flow_pipe *

pipe

)

Destroy one pipe.

Destroy the pipe, and the pipe entries that match this pipe.

Parameters

[in]

pipe

Pointer to pipe.

doca_flow_pipe_dump()

DOCA_EXPERIMENTAL void doca_flow_pipe_dump	(	struct doca_flow_pipe *	pipe,
		FILE *	f
	)

Dump pipe information (not including the entries)

Parameters

[in]	pipe	Pointer to doca flow pipe.
[in]	f	The output file of the pipe information.

doca_flow_pipe_entry_get_status()

DOCA_STABLE enum doca_flow_entry_status doca_flow_pipe_entry_get_status

(

struct doca_flow_pipe_entry *

entry

)

Get entry's status.

Parameters

[in]

entry

pipe entry

Returns

entry's status

doca_flow_pipe_hash_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_hash_add_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		uint32_t	entry_index,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		const enum doca_flow_flags_type	flags,
		void *	usr_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add one new entry to an hash pipe.

Refer to doca_flow_pipe_add_entry.

Parameters

	pipe_queue	Queue identifier.
	pipe	Pointer to pipe.
	entry_index	Static index in pipe for this entry.
	actions	Pointer to modify actions, indicate specific modify information.
	monitor	Pointer to monitor actions.
	fwd	Pointer to forward actions.
	flags	Flow entry will be pushed to HW immediately or not. enum doca_flow_flags_type.
	usr_ctx	Pointer to the user context. This context is associated with the entry and will be used during removal operation. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	Pipe entry handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_lpm_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_lpm_add_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_match *	match,
		const struct doca_flow_match *	match_mask,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		const enum doca_flow_flags_type	flag,
		void *	usr_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add one new entry to a lpm pipe.

This API will populate the lpm entries

Parameters

[in]	pipe_queue	Queue identifier.
[in]	pipe	Pointer to pipe.
[in]	match	Pointer to match, indicate specific packet match information.
[in]	match_mask	Pointer to match mask information.
[in]	actions	Pointer to modify actions, indicate specific modify information.
[in]	monitor	Pointer to monitor actions.
[in]	fwd	Pointer to fwd actions.
[in]	flag	Flow entry will be pushed to hw immediately or not. enum doca_flow_flags_type.
[in]	usr_ctx	Pointer to the user context. This context is associated with the entry and will be used during update and removal operations. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	Pipe entry handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_lpm_update_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_lpm_update_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		const enum doca_flow_flags_type	flags,
		struct doca_flow_pipe_entry *	entry
	)

Update the lpm pipe entry with new actions.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	pipe	Pointer to pipe.
[in]	actions	Pointer to modify actions, indicate specific modify information.
[in]	monitor	Pointer to monitor actions.
[in]	fwd	Pointer to fwd actions.
[in]	flags	Flow entry will be pushed to hw immediately or not. enum doca_flow_flags_type.
[in]	entry	The pipe entry to be updated.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.
• DOCA_ERROR_AGAIN - resource temporarily unavailable, try again

doca_flow_pipe_ordered_list_add_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_ordered_list_add_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		uint32_t	idx,
		const struct doca_flow_ordered_list *	ordered_list,
		const struct doca_flow_fwd *	fwd,
		enum doca_flow_flags_type	flags,
		void *	user_ctx,
		struct doca_flow_pipe_entry **	entry
	)

Add an entry to the ordered list pipe.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	pipe	Pipe handle.
[in]	idx	Unique entry index. It is the user's responsibility to ensure uniqueness.
[in]	ordered_list	Ordered list with pointers to struct doca_flow_actions and struct doca_flow_monitor at the same indices as they were at the pipe creation time. If the configuration contained an element of struct doca_flow_action_descs, the corresponding array element is ignored and can be NULL.
[in]	fwd	Entry forward configuration.
[in]	flags	Entry insertion flags.
[in]	user_ctx	Pointer to the user context. This context is associated with the entry and will be used during removal operation. Therefore, the pointer must remain valid for as long as the entry is valid.
[out]	entry	The entry inserted.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_remove_entry()

DOCA_STABLE doca_error_t doca_flow_pipe_remove_entry	(	uint16_t	pipe_queue,
		uint32_t	flags,
		struct doca_flow_pipe_entry *	entry
	)

Free one pipe entry.

This API will free the pipe entry and cancel HW offload. The Application receives the entry pointer upon creation and if can call this function when there is no more need for this offload. For example, if the entry aged, use this API to free it.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	flags	Flow entry will be removed from hw immediately or not. enum doca_flow_flags_type.
[in]	entry	The pipe entry to be removed.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NOT_SUPPORTED - unsupported pipe type.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_pipe_resize()

DOCA_STABLE doca_error_t doca_flow_pipe_resize	(	struct doca_flow_pipe *	pipe,
		uint8_t	new_congestion_level,
		doca_flow_pipe_resize_nr_entries_changed_cb	nr_entries_changed_cb,
		doca_flow_pipe_resize_entry_relocate_cb	entry_relocation_cb
	)

Resize pipe.

Parameters

[in]	pipe	Pointer to pipe.
[in]	new_congestion_level	Pushback the pipe current congestion level to a new value.
[in]	nr_entries_changed_cb	Number of entries after resize.
[in]	entry_relocation_cb	Entry relocate behavior.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.

doca_flow_pipe_update_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_update_entry	(	uint16_t	pipe_queue,
		struct doca_flow_pipe *	pipe,
		const struct doca_flow_actions *	actions,
		const struct doca_flow_monitor *	monitor,
		const struct doca_flow_fwd *	fwd,
		const enum doca_flow_flags_type	flags,
		struct doca_flow_pipe_entry *	entry
	)

Update the pipe entry with new actions.

Parameters

[in]	pipe_queue	Queue identifier.
[in]	pipe	Pointer to pipe.
[in]	actions	Pointer to modify actions, indicate specific modify information.
[in]	monitor	Pointer to monitor actions.
[in]	fwd	Pointer to fwd actions.
[in]	flags	Flow entry will be pushed to hw immediately or not. enum doca_flow_flags_type.
[in]	entry	The pipe entry to be updated.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_DRIVER - driver error.
• DOCA_ERROR_NOT_SUPPORTED - unsupported pipe type.
• DOCA_ERROR_AGAIN - resource temporarily unavailable, try again

doca_flow_pipe_update_miss()

DOCA_EXPERIMENTAL doca_error_t doca_flow_pipe_update_miss	(	struct doca_flow_pipe *	pipe,
		const struct doca_flow_fwd *	fwd_miss
	)

Update the forward miss action.

Parameters

[in]	pipe	The pipe to update its miss action.
[in]	fwd_miss	A new fwd_miss configuration for the pipe.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NOT_SUPPORTED - unsupported forward request.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_port_calc_entropy()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_calc_entropy	(	struct doca_flow_port *	port,
		struct doca_flow_entropy_format *	header,
		uint16_t *	entropy
	)

Calculate the entropy.

Calculate the entropy as it would have been calculated by the HW.

Parameters

[in]	port	The given port for the entropy calculation.
[in]	header	Pointer to the header that holds the fields that are the base for the entropy calculation.
[out]	entropy	Used to return the calculated entropy. It will be written in network order.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_port_cfg_create()

DOCA_STABLE doca_error_t doca_flow_port_cfg_create

(

struct doca_flow_port_cfg **

cfg

)

Create DOCA Flow port configuration struct.

Create and allocate DOCA Flow port configuration struct

Parameters

[out]

cfg

DOCA Flow port configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_port_cfg_destroy()

DOCA_STABLE doca_error_t doca_flow_port_cfg_destroy

(

struct doca_flow_port_cfg *

cfg

)

Destroy DOCA Flow port configuration struct.

Free and destroy the DOCA Flow port configuration struct

Parameters

[in]

cfg

DOCA Flow port configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_actions_mem_size()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_actions_mem_size	(	struct doca_flow_port_cfg *	cfg,
		uint32_t	size
	)

Set max memory size used by actions.

Set max memory which will be used by actions in this port. Default is zero.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	size	The memory size in byte, should be power of two and not less than 64B.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_dev()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_dev	(	struct doca_flow_port_cfg *	cfg,
		struct doca_dev *	dev
	)

Set port's device.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	dev	Device

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_dev_rep()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_dev_rep	(	struct doca_flow_port_cfg *	cfg,
		struct doca_dev_rep *	dev
	)

Set port's device for representor.

Calling this function also indicates the port is representor.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	dev	Doca device representor.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_devargs()

DOCA_STABLE doca_error_t doca_flow_port_cfg_set_devargs	(	struct doca_flow_port_cfg *	cfg,
		const char *	devargs
	)

Set devargs.

Set specific configuration per port type

Parameters

[in]	cfg	DOCA Flow port configuration
[in]	devargs	Specific configuration per port type

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_port_cfg_set_ipsec_sn_offload_disable()

DOCA_STABLE doca_error_t doca_flow_port_cfg_set_ipsec_sn_offload_disable

(

struct doca_flow_port_cfg *

cfg

)

Disable SN offload for ipsec - Anti-replay and sn increment will not be activated.

Parameters

[in]

cfg

DOCA Flow port configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_operation_state()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_operation_state	(	struct doca_flow_port_cfg *	cfg,
		enum doca_flow_port_operation_state	state
	)

Set default rules operation state.

Note

If this setter is not called, the default state is DOCA_FLOW_PORT_OPERATION_STATE_ACTIVE.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	state	The desired operation state for the port instance.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_port_id()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_port_id	(	struct doca_flow_port_cfg *	cfg,
		uint16_t	port_id
	)

Set the logical port ID.

Assigns a logical port ID to the specified DOCA Flow port.

Parameters

[in]	cfg	Pointer to the DOCA Flow port configuration.
[in]	port_id	Logical port ID to assign to the port.

Returns

• DOCA_SUCCESS on success.
• Error code on failure:
  • DOCA_ERROR_INVALID_VALUE if the input is invalid.

doca_flow_port_cfg_set_priv_data_size()

DOCA_STABLE doca_error_t doca_flow_port_cfg_set_priv_data_size	(	struct doca_flow_port_cfg *	cfg,
		uint16_t	priv_data_size
	)

Set user private data size.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	priv_data_size	User private data size

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_rss_cfg()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_rss_cfg	(	struct doca_flow_port_cfg *	cfg,
		const struct doca_flow_resource_rss_cfg *	rss_cfg
	)

Set RSS optional configuration.

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	rss_cfg	RSS configuration

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.

doca_flow_port_cfg_set_service_threads_core()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_service_threads_core	(	struct doca_flow_port_cfg *	cfg,
		uint32_t	core
	)

Set service threads execution cpu core.

Set cpu core which will be used by service threads in this port. Default is zero. Current supported service threads: counters cache threads

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	core	The cpu core number.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_cfg_set_service_threads_cycle()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_cfg_set_service_threads_cycle	(	struct doca_flow_port_cfg *	cfg,
		uint32_t	cycle_ms
	)

Set service threads max execution cycle.

Defines the minimum time between two consecutive thread cycle executions in port. Default is 1000 ms (1 sec). Current supported service threads: counters cache threads

Parameters

[in]	cfg	DOCA Flow port configuration.
[in]	cycle_ms	The service threads cycle in ms.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.

doca_flow_port_operation_state_modify()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_operation_state_modify	(	struct doca_flow_port *	port,
		enum doca_flow_port_operation_state	state
	)

Modifies the operation state of a port instance.

This function changes the operation state of the given port instance. If the port instance already has the required state, the function returns DOCA_SUCCESS without performing any operations.

Warning

Two instances cannot be in the same operation state simultaneously except DOCA_FLOW_PORT_OPERATION_STATE_UNCONNECTED.

Parameters

[in]	port	Pointer to the DOCA port instance.
[in]	state	The desired operation state for the port instance.

Returns

DOCA_SUCCESS - if successful. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - not supported in the current run mode.
• DOCA_ERROR_NOT_PERMITTED - operation not permitted.
• DOCA_ERROR_ALREADY_EXIST - another instance exists with the same state.
• DOCA_ERROR_UNKNOWN - unknown error.

doca_flow_port_pair()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_pair	(	struct doca_flow_port *	port,
		struct doca_flow_port *	pair_port
	)

pair two doca flow ports.

This API should be used to pair two doca ports. This pair should be the same as the actual physical layer paired information. Those two pair ports have no order, a port cannot be paired with itself.

In this API, default behavior will be handled according to each modes. In VNF mode, pair information will be translated to queue action to redirect packets to it's pair port. In REMOTE_VNF mode, default rules will be created to redirect packets between 2 pair ports.

Parameters

[in]	port	Pointer to doca flow port.
[in]	pair_port	Pointer to the pair port.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - not supported in the current run mode.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_port_pipes_dump()

DOCA_EXPERIMENTAL void doca_flow_port_pipes_dump	(	struct doca_flow_port *	port,
		FILE *	f
	)

Dump pipes of one port.

Dump all pipes information belong to this port.

Parameters

[in]	port	Pointer to doca flow port.
[in]	f	The output file of the pipe information.

doca_flow_port_pipes_flush()

DOCA_STABLE void doca_flow_port_pipes_flush

(

struct doca_flow_port *

port

)

Flush pipes of one port.

Destroy all pipes and all pipe entries belonging to the port.

Parameters

[in]

port

Pointer to doca flow port.

doca_flow_port_priv_data()

DOCA_STABLE uint8_t* doca_flow_port_priv_data

(

struct doca_flow_port *

port

)

Get pointer of user private data.

User can manage specific data structure in port structure. The size of the data structure is given on port configuration. See doca_flow_cfg for more details.

Parameters

[in]

port

Port struct.

Returns

Private data head pointer.

doca_flow_port_start()

DOCA_EXPERIMENTAL doca_error_t doca_flow_port_start	(	const struct doca_flow_port_cfg *	cfg,
		struct doca_flow_port **	port
	)

Start a doca port.

Start a port with the given configuration. Will create one port in the doca flow layer, allocate all resources used by this port, and create the default offload logic for traffic.

Parameters

[in]	cfg	Port configuration, see doca_flow_cfg for details.
[out]	port	Port handler on success.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported port type.
• DOCA_ERROR_NOT_PERMITTED - operation not permitted.
• DOCA_ERROR_ALREADY_EXIST - another instance has the same operation state.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_port_stop()

DOCA_STABLE doca_error_t doca_flow_port_stop

(

struct doca_flow_port *

port

)

Stop a doca port.

Stop the port, disable the traffic, destroy the doca port, free all resources of the port.

Parameters

[in]

port

Port struct.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_IN_USE - port resources in use.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_port_switch_get()

DOCA_STABLE struct doca_flow_port* doca_flow_port_switch_get

(

const struct doca_flow_port *

port

)

Get doca flow switch port.

Parameters

[in]

port

The port for which to get the switch port. If NULL, get the first switch port created. The application could use this function to get the doca switch port, then create pipes and pipe entries on this port.

Returns

The parent switch port number or NULL if none found

doca_flow_resource_query_entry()

DOCA_EXPERIMENTAL doca_error_t doca_flow_resource_query_entry	(	struct doca_flow_pipe_entry *	entry,
		struct doca_flow_resource_query *	query_stats
	)

Extract information about specific entry.

Query the packet statistics about specific pipe entry

Parameters

[in]	entry	The pipe entry to query.
[in]	query_stats	Data retrieved by the query.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_resource_query_pipe_miss()

DOCA_EXPERIMENTAL doca_error_t doca_flow_resource_query_pipe_miss	(	struct doca_flow_pipe *	pipe,
		struct doca_flow_resource_query *	query_stats
	)

Extract information about pipe miss entry.

Query the packet statistics about specific pipe miss entry

Parameters

[in]	pipe	The pipe to query.
[in]	query_stats	Data retrieved by the query.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_shared_resource_set_cfg()

DOCA_EXPERIMENTAL doca_error_t doca_flow_shared_resource_set_cfg	(	enum doca_flow_shared_resource_type	type,
		uint32_t	id,
		struct doca_flow_shared_resource_cfg *	cfg
	)

Configure a single shared resource.

This API can be used by bounded and unbounded resources.

Parameters

[in]	type	Shared resource type.
[in]	id	Shared resource id.
[in]	cfg	Pointer to a shared resource configuration.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported shared resource type.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_shared_resources_bind()

DOCA_STABLE doca_error_t doca_flow_shared_resources_bind	(	enum doca_flow_shared_resource_type	type,
		uint32_t *	res_array,
		uint32_t	res_array_len,
		void *	bindable_obj
	)

Binds a bulk of shared resources to a bindable object.

Binds a bulk of shared resources from the same type to a bindable object. Currently the bindable objects are ports and pipes.

Parameters

[in]	type	Shared resource type.
[in]	res_array	Array of shared resource IDs.
[in]	res_array_len	Shared resource IDs array length.
[in]	bindable_obj	Pointer to an allowed bindable object, use NULL to bind globally.

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported shared resource type.
• DOCA_ERROR_UNKNOWN - otherwise.

doca_flow_shared_resources_query()

DOCA_EXPERIMENTAL doca_error_t doca_flow_shared_resources_query	(	enum doca_flow_shared_resource_type	type,
		uint32_t *	res_array,
		struct doca_flow_resource_query *	query_results_array,
		uint32_t	array_len
	)

Extract information about shared counter.

Query an array of shared objects of a specific type.

Parameters

[in]	type	Shared object type.
[in]	res_array	Array of shared objects IDs to query.
[in]	query_results_array	Data array retrieved by the query.
[in]	array_len	Number of objects and their query results in their arrays (same number).

Returns

DOCA_SUCCESS - in case of success. Error code - in case of failure:

• DOCA_ERROR_INVALID_VALUE - received invalid input.
• DOCA_ERROR_NO_MEMORY - memory allocation failed.
• DOCA_ERROR_NOT_SUPPORTED - unsupported shared resource type.
• DOCA_ERROR_UNKNOWN - otherwise.
