doca flow matcher information More...

#include <doca_flow.h>

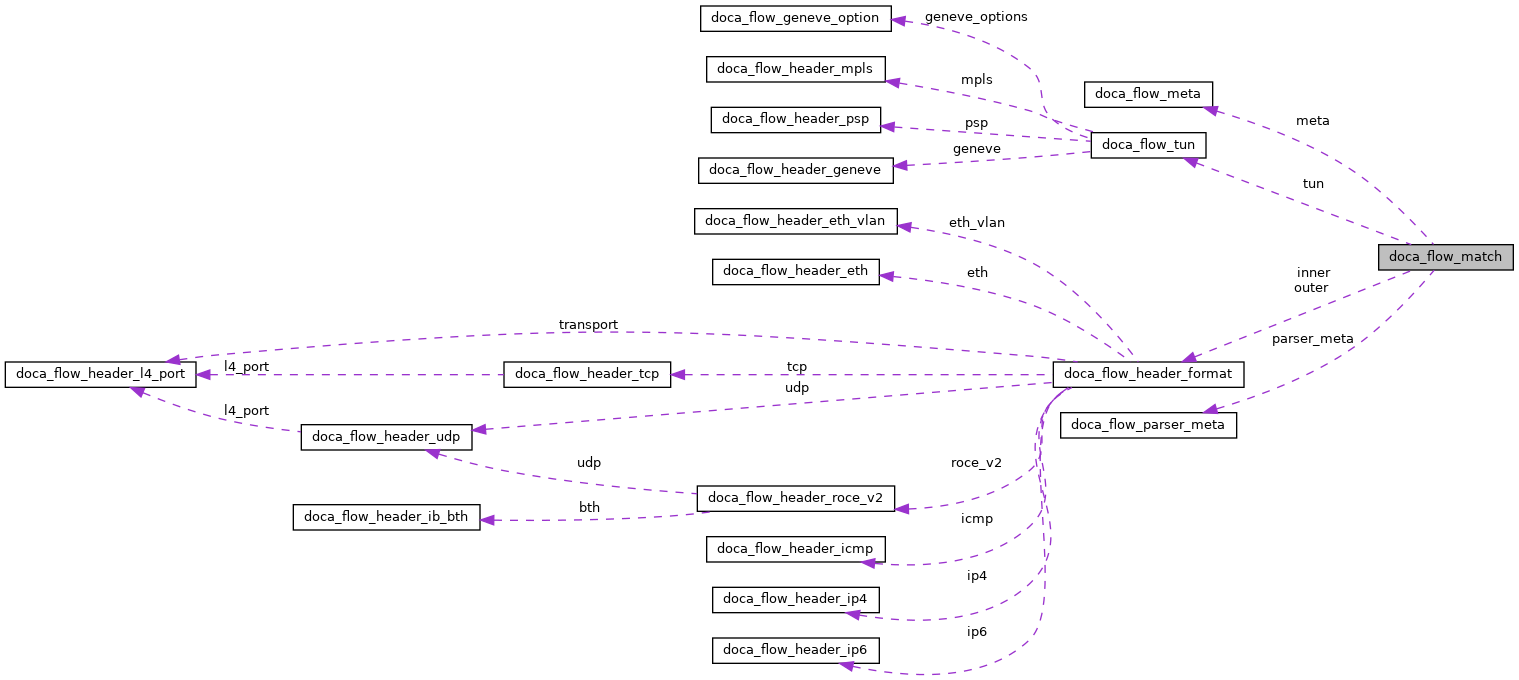

Collaboration diagram for doca_flow_match:

[legend]

Data Fields
uint32_t	flags

struct doca_flow_meta	meta

struct doca_flow_parser_meta	parser_meta

struct doca_flow_header_format	outer

struct doca_flow_tun	tun

struct doca_flow_header_format	inner

Detailed Description

doca flow matcher information

Definition at line 491 of file doca_flow.h.

Field Documentation

uint32_t doca_flow_match::flags

match items which are no value

Definition at line 492 of file doca_flow.h.

struct doca_flow_header_format doca_flow_match::inner

inner layer header format

Definition at line 492 of file doca_flow.h.

struct doca_flow_meta doca_flow_match::meta

Programmable meta data.

Definition at line 492 of file doca_flow.h.

struct doca_flow_header_format doca_flow_match::outer

outer layer header format

Definition at line 492 of file doca_flow.h.

struct doca_flow_parser_meta doca_flow_match::parser_meta

Read-only meta data.

Definition at line 492 of file doca_flow.h.

struct doca_flow_tun doca_flow_match::tun

tunnel info

Definition at line 492 of file doca_flow.h.

The documentation for this struct was generated from the following file:
