doca_flow_ordered_list_element Struct Reference
DOCA Flow

Ordered list elements. More...

#include <doca_flow.h>

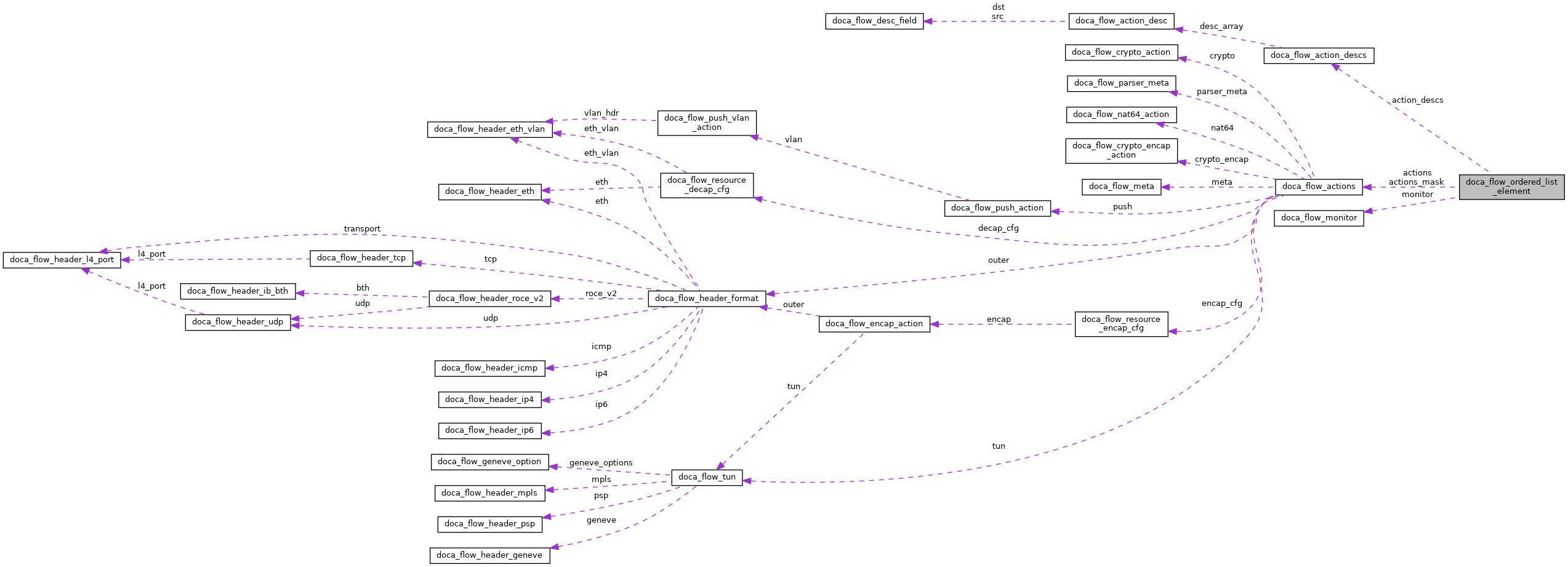

Collaboration diagram for doca_flow_ordered_list_element:
Collaboration graph
[legend]

Data Fields

enum doca_flow_ordered_list_element_type type

union {
   struct {
      struct doca_flow_actions *   actions

      struct doca_flow_actions *   actions_mask

      struct doca_flow_action_descs *   action_descs

   }

   struct doca_flow_monitor *   monitor

};


Detailed Description

Ordered list elements.

Definition at line 1057 of file doca_flow.h.

Field Documentation

◆

union { ... }

◆ action_descs

struct doca_flow_action_descs* doca_flow_ordered_list_element::action_descs

Definition at line 1066 of file doca_flow.h.

◆ actions

struct doca_flow_actions* doca_flow_ordered_list_element::actions

Definition at line 1062 of file doca_flow.h.

◆ actions_mask

struct doca_flow_actions* doca_flow_ordered_list_element::actions_mask

Definition at line 1064 of file doca_flow.h.

◆ monitor

struct doca_flow_monitor* doca_flow_ordered_list_element::monitor

Definition at line 1069 of file doca_flow.h.

◆ type

enum doca_flow_ordered_list_element_type doca_flow_ordered_list_element::type

Types of DOCA Flow structures each of the elements is pointing to.

Definition at line 1036 of file doca_flow.h.

The documentation for this struct was generated from the following file:
