doca_flow_entropy_format Struct Reference

doca flow header format for entropy More...

#include <doca_flow.h>

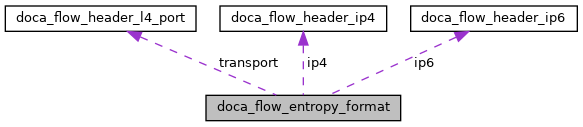

Collaboration diagram for doca_flow_entropy_format:

Data Fields
enum doca_flow_l3_type	l3_type
union {
struct doca_flow_header_ip4   ip4
struct doca_flow_header_ip6   ip6
};
enum doca_flow_l4_type_ext	l4_type_ext
struct doca_flow_header_l4_port	transport

Detailed Description

doca flow header format for entropy

Definition at line 473 of file doca_flow.h.

Field Documentation

union { ... }

ip4

struct doca_flow_header_ip4 doca_flow_entropy_format::ip4

ipv4 head

Definition at line 442 of file doca_flow.h.

ip6

struct doca_flow_header_ip6 doca_flow_entropy_format::ip6

ipv6 head

Definition at line 442 of file doca_flow.h.

l3_type

enum doca_flow_l3_type doca_flow_entropy_format::l3_type

layer 3 protocol type

Definition at line 442 of file doca_flow.h.

l4_type_ext

enum doca_flow_l4_type_ext doca_flow_entropy_format::l4_type_ext

l4 layer extend type

Definition at line 442 of file doca_flow.h.

transport

struct doca_flow_header_l4_port doca_flow_entropy_format::transport

transport layer source and destination port

Definition at line 442 of file doca_flow.h.

---

The documentation for this struct was generated from the following file:

• include/doca_flow.h
