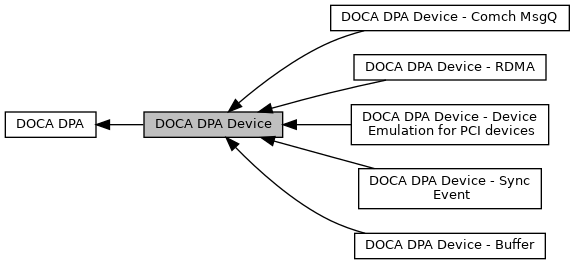

Modules | |
| DOCA DPA Device - Buffer | |
| DOCA DPA Device - Comch MsgQ | |
| DOCA DPA Device - Device Emulation for PCI devices | |
| DOCA DPA Device - RDMA | |
| DOCA DPA Device - Sync Event | |
Macros | |
| #define | DOCA_DPA_DEVICE |
| declares that we are compiling for the DPA Device More... | |
| #define | __forceinline static inline __attribute__((always_inline)) |
| static inline wrapper More... | |
| #define | DOCA_DPA_DEV_LOG_ERR(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_ERROR, __VA_ARGS__) |
| Generate a DOCA DPA device ERROR log message. More... | |
| #define | DOCA_DPA_DEV_LOG_WARN(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_WARNING, __VA_ARGS__) |
| Generate a DOCA DPA device WARNING log message. More... | |
| #define | DOCA_DPA_DEV_LOG_INFO(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_INFO, __VA_ARGS__) |
| Generate a DOCA DPA device INFO log message. More... | |
| #define | DOCA_DPA_DEV_LOG_DBG(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_DEBUG, __VA_ARGS__) |
| Generate a DOCA DPA device DEBUG log message. More... | |
Typedefs | |
| typedef __dpa_global__ enum doca_dpa_dev_log_level | doca_dpa_dev_log_level_t |
| DOCA DPA device log levels, sorted by verbosity from high to low. More... | |
Enumerations | |
| enum | doca_dpa_dev_log_level { DOCA_DPA_DEV_LOG_LEVEL_DISABLE = 10 , DOCA_DPA_DEV_LOG_LEVEL_ERROR = 30 , DOCA_DPA_DEV_LOG_LEVEL_WARNING = 40 , DOCA_DPA_DEV_LOG_LEVEL_INFO = 50 , DOCA_DPA_DEV_LOG_LEVEL_DEBUG = 60 , DOCA_DPA_DEV_LOG_LEVEL_DISABLE = 10 , DOCA_DPA_DEV_LOG_LEVEL_ERROR = 30 , DOCA_DPA_DEV_LOG_LEVEL_WARNING = 40 , DOCA_DPA_DEV_LOG_LEVEL_INFO = 50 , DOCA_DPA_DEV_LOG_LEVEL_DEBUG = 60 } |
| DOCA DPA device log levels, sorted by verbosity from high to low. More... | |
| enum | doca_dpa_dev_completion_type_t { DOCA_DPA_DEV_COMP_SEND = 0x0 , DOCA_DPA_DEV_COMP_RECV_RDMA_WRITE_IMM = 0x1 , DOCA_DPA_DEV_COMP_RECV_SEND = 0x2 , DOCA_DPA_DEV_COMP_RECV_SEND_IMM = 0x3 , DOCA_DPA_DEV_COMP_SEND_ERR = 0xD , DOCA_DPA_DEV_COMP_RECV_ERR = 0xE } |
| DPA completion type. More... | |
| enum | doca_dpa_dev_submit_flag { DOCA_DPA_DEV_SUBMIT_FLAG_NONE = 0U , DOCA_DPA_DEV_SUBMIT_FLAG_FLUSH = (1U << 0) , DOCA_DPA_DEV_SUBMIT_FLAG_OPTIMIZE_REPORTS = (1U << 1) } |
| DPA submit flag type. More... | |
Variables | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_t |
| DPA context handle type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_uintptr_t |
| DPA pointer type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_hash_table_t |
| DPA hash table handle type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_completion_t |
| DPA completion handle type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_completion_element_t |
| DPA completion element handle type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_async_ops_t |
| DPA asynchronous ops handle type definition. More... | |
| __dpa_global__ typedef uint64_t | doca_dpa_dev_notification_completion_t |
| DPA notification completion handle type definition. More... | |
Detailed Description
DOCA DPA Device library. For more details please refer to the user guide on DOCA devzone.
Macro Definition Documentation
◆ __forceinline
| #define __forceinline static inline __attribute__((always_inline)) |
static inline wrapper
Definition at line 130 of file doca_dpa_dev.h.
◆ DOCA_DPA_DEV_LOG_DBG
| #define DOCA_DPA_DEV_LOG_DBG | ( | ... | ) | doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_DEBUG, __VA_ARGS__) |
Generate a DOCA DPA device DEBUG log message.
- Note
- This call affects the performance.
Definition at line 295 of file doca_dpa_dev.h.
◆ DOCA_DPA_DEV_LOG_ERR
| #define DOCA_DPA_DEV_LOG_ERR | ( | ... | ) | doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_ERROR, __VA_ARGS__) |
Generate a DOCA DPA device ERROR log message.
- Note
- This call affects the performance.
Definition at line 271 of file doca_dpa_dev.h.
◆ DOCA_DPA_DEV_LOG_INFO
| #define DOCA_DPA_DEV_LOG_INFO | ( | ... | ) | doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_INFO, __VA_ARGS__) |
Generate a DOCA DPA device INFO log message.
- Note
- This call affects the performance.
Definition at line 287 of file doca_dpa_dev.h.
◆ DOCA_DPA_DEV_LOG_WARN
| #define DOCA_DPA_DEV_LOG_WARN | ( | ... | ) | doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_WARNING, __VA_ARGS__) |
Generate a DOCA DPA device WARNING log message.
- Note
- This call affects the performance.
Definition at line 279 of file doca_dpa_dev.h.
◆ DOCA_DPA_DEVICE
| #define DOCA_DPA_DEVICE |
declares that we are compiling for the DPA Device
- Note
- Must be defined before the first API use/include of DOCA
Definition at line 32 of file doca_dpa_dev.h.
Typedef Documentation
◆ doca_dpa_dev_log_level_t
| typedef __dpa_global__ enum doca_dpa_dev_log_level doca_dpa_dev_log_level_t |
DOCA DPA device log levels, sorted by verbosity from high to low.
Include to define compatibility with current version, define experimental Symbols
Enumeration Type Documentation
◆ doca_dpa_dev_completion_type_t
DPA completion type.
Definition at line 92 of file doca_dpa_dev.h.
◆ doca_dpa_dev_log_level
DOCA DPA device log levels, sorted by verbosity from high to low.
Include to define compatibility with current version, define experimental Symbols
Definition at line 46 of file doca_dpa_dev.h.
◆ doca_dpa_dev_submit_flag
DPA submit flag type.
Definition at line 104 of file doca_dpa_dev.h.
Function Documentation
◆ doca_dpa_dev_completion_ack()
| DOCA_EXPERIMENTAL void doca_dpa_dev_completion_ack | ( | doca_dpa_dev_completion_t | dpa_comp_handle, |
| uint64_t | num_comp | ||
| ) |
Acknowledge that the completions have been read on the completion context.
This function releases resources of the acked completion elements in the completion context. This acknowledgment enables receiving new num_comp completions
- Parameters
-
[in] dpa_comp_handle - DPA completion handle [in] num_comp - Number of completion elements which have been read
◆ doca_dpa_dev_completion_request_notification()
| DOCA_EXPERIMENTAL void doca_dpa_dev_completion_request_notification | ( | doca_dpa_dev_completion_t | dpa_comp_handle | ) |
Request notification on the DPA completion.
This function enables requesting new notifications on the DPA completion. Without calling this function, DPA completion context will not be notified on new arrived completion elements hence new completions will not be populated in DPA completion context.
- Parameters
-
[in] dpa_comp_handle - DPA completion handle
◆ doca_dpa_dev_device_set()
| DOCA_EXPERIMENTAL void doca_dpa_dev_device_set | ( | doca_dpa_dev_t | dpa_handle | ) |
Set a DPA device.
This function must be called before calling any related API of a DPA resource (RDMA/completion context/Async ops/...) that was created on an extended DPA context (a DPA context that was created using host API doca_dpa_device_extend()). Please note:
- User who creates only a DPA base context and has no extended DPA context in his application doesn't need to call this API.
- User who creates DPA resources on both base and extended DPA contexts must sets the proper DPA device (also for base DPA context) before calling relevant DPA resource API.
◆ doca_dpa_dev_get_completion()
| DOCA_EXPERIMENTAL int doca_dpa_dev_get_completion | ( | doca_dpa_dev_completion_t | dpa_comp_handle, |
| doca_dpa_dev_completion_element_t * | comp_element | ||
| ) |
Get DPA completion element.
This function returns a completion element which has arrived at the completion context. If a DPA thread is attached to this completion context, the thread will be triggered on this completion element.
- Parameters
-
[in] dpa_comp_handle - DPA completion handle [out] comp_element - DPA completion element
- Returns
- This function returns 1 if there is completion element to return. Otherwise returns 0
◆ doca_dpa_dev_get_completion_immediate()
| DOCA_EXPERIMENTAL uint32_t doca_dpa_dev_get_completion_immediate | ( | doca_dpa_dev_completion_element_t | comp_element | ) |
Get completion element immediate data.
This function returns immediate data for a completion of type: 1- DOCA_DPA_DEV_COMP_RECV_RDMA_WRITE_IMM 2- DOCA_DPA_DEV_COMP_RECV_SEND_IMM
- Note
- This API is not relevant for completions of other types.
- Parameters
-
[in] comp_element - DPA RDMA completion element
- Returns
- This function returns immediate of completion element
◆ doca_dpa_dev_get_completion_type()
| DOCA_EXPERIMENTAL doca_dpa_dev_completion_type_t doca_dpa_dev_get_completion_type | ( | doca_dpa_dev_completion_element_t | comp_element | ) |
Get completion element type.
- Parameters
-
[in] comp_element - DPA completion element
- Returns
- This function returns type completion element
◆ doca_dpa_dev_get_completion_user_data()
| DOCA_EXPERIMENTAL uint32_t doca_dpa_dev_get_completion_user_data | ( | doca_dpa_dev_completion_element_t | comp_element | ) |
Get completion element user data.
This API returns user data which: 1- Was set previously in host API doca_dpa_async_ops_create(..., user_data, ...) When DPA Completion Context is attached to DPA Async Ops. 2- Equivalent to "connection_id" in doca_error_t doca_rdma_connection_get_id(const struct doca_rdma_connection *rdma_connection, uint32_t *connection_id) When DPA Completion Context is attached to DOCA RDMA context.
- Parameters
-
[in] comp_element - DPA completion element
- Returns
- This function returns user data of completion element
◆ doca_dpa_dev_hash_table_add()
| DOCA_EXPERIMENTAL void doca_dpa_dev_hash_table_add | ( | doca_dpa_dev_hash_table_t | ht_handle, |
| uint32_t | key, | ||
| uint64_t | value | ||
| ) |
Map a specific key to the specified value in the hash table.
- Note
- Adding a new key when the hash table is full will lead to unexpected behavior.
- Parameters
-
[in] ht_handle - DPA hash table handle [in] key - New key to add to hash table [in] value - New key's value to add to hash table
◆ doca_dpa_dev_hash_table_find()
| DOCA_EXPERIMENTAL int doca_dpa_dev_hash_table_find | ( | doca_dpa_dev_hash_table_t | ht_handle, |
| uint32_t | key, | ||
| uint64_t * | value | ||
| ) |
Returns the value to which the specified key is mapped in the hash table.
- Parameters
-
[in] ht_handle - DPA hash table handle [in] key - Key to find in hash table [out] value - Key's value
- Returns
- This function returns 1 if the key exists in the hash table. Otherwise returns 0
◆ doca_dpa_dev_hash_table_remove()
| DOCA_EXPERIMENTAL void doca_dpa_dev_hash_table_remove | ( | doca_dpa_dev_hash_table_t | ht_handle, |
| uint32_t | key | ||
| ) |
Remove the key and its corresponding value from the hash table.
- Parameters
-
[in] ht_handle - DPA hash table handle [in] key - Key to remove from hash table
◆ doca_dpa_dev_log()
| DOCA_EXPERIMENTAL void doca_dpa_dev_log | ( | doca_dpa_dev_log_level_t | log_level, |
| const char * | format, | ||
| ... | |||
| ) |
Print logs to Host.
This function prints from device to host's standard output stream or the user defined file set by doca_dpa_log_file_set_path(). The log level will determine the print according to the verbosity set by doca_dpa_set_log_level(). It is recommended to use the bellow defined MACROs for device logging for better readability. Multiple threads may call these MACROs simultaneously. Printing is a convenience service, and due to limited buffering on the host, not all print statements may appear on the host.
- Parameters
-
[in] log_level - level for device log [in] format - format string that contains the text to be written to host (same as from regular printf)
◆ doca_dpa_dev_num_threads()
| DOCA_EXPERIMENTAL unsigned int doca_dpa_dev_num_threads | ( | void | ) |
Obtains the number of threads running the kernel.
Retrieves the number of threads assigned to a given kernel. This is either the value: 1- num_threads that was passed to host API doca_dpa_kernel_launch_update_set/add(..., num_threads, ...) 2- num_threads that was passed to host API doca_dpa_thread_group_create(..., num_threads, ...)
- Returns
- Returns the number of threads running the kernel
◆ doca_dpa_dev_thread_finish()
| DOCA_EXPERIMENTAL void doca_dpa_dev_thread_finish | ( | void | ) |
Finish a DPA thread.
This function marks the thread not to be rescheduled. Any new completion arrived at the attach completion context will not trigger the DPA thread again.
- Note
- This API is relevant only for a kernel used for DPA thread ('doca_dpa_thread'), which was set previously using host API doca_dpa_thread_set_func_arg(). This API is not relevant for a kernel used in host kernel launch APIs.
◆ doca_dpa_dev_thread_get_local_storage()
| DOCA_EXPERIMENTAL doca_dpa_dev_uintptr_t doca_dpa_dev_thread_get_local_storage | ( | void | ) |
Get DPA thread local storage.
This function returns DPA thread local storage which was set previously using host API doca_dpa_thread_set_local_storage().
- Note
- This API is relevant only for a kernel used for DPA thread ('doca_dpa_thread'), which was set previously using host API doca_dpa_thread_set_func_arg(). This API is not relevant for a kernel used in host kernel launch APIs.
- Returns
- This function returns DPA pointer for DPA thread local storage
◆ doca_dpa_dev_thread_notify()
| DOCA_EXPERIMENTAL void doca_dpa_dev_thread_notify | ( | doca_dpa_dev_notification_completion_t | comp_handle | ) |
Notify the completion handle and trigger the attached thread.
This function notifies the given completion context which leads to triggering the attached DPA thread. Please note that using this API will leads to triggering the attached thread without receiving a completion on the attached completion context, hence can't read completion info using doca_dpa_dev_get_completion*() APIs
- Note
- This API is relevant only for a kernel used for DPA thread ('doca_dpa_thread'), which was set previously using host API doca_dpa_thread_set_func_arg(). This API is not relevant for a kernel used in host kernel launch APIs.
- Parameters
-
[in] comp_handle - DPA notification completion handle
◆ doca_dpa_dev_thread_rank()
| DOCA_EXPERIMENTAL unsigned int doca_dpa_dev_thread_rank | ( | void | ) |
Obtains the thread rank.
Retrieves the thread rank for a given kernel on the DPA. This function returns a number in {0..N-1}, where N is either: 1- The number of threads requested for launch during a kernel submission when using host APIs: doca_dpa_kernel_launch_update_set/add(..., N, ...). 2- The number of threads in thread group running the kernel when using host APIs: doca_dpa_thread_group_create(..., N, ...)
- Returns
- Returns the thread rank for a given kernel on the DPA.
◆ doca_dpa_dev_thread_reschedule()
| DOCA_EXPERIMENTAL void doca_dpa_dev_thread_reschedule | ( | void | ) |
Reschedule a DPA thread.
This function reschedules a DPA thread and releases the EU and make it available for rescheduling. Any new completion arrived at the attach completion context will trigger the DPA thread again.
- Note
- This API is relevant only for a kernel used for DPA thread ('doca_dpa_thread'), which was set previously using host API doca_dpa_thread_set_func_arg(). This API is not relevant for a kernel used in host kernel launch APIs.
◆ doca_dpa_dev_trace()
| DOCA_EXPERIMENTAL void doca_dpa_dev_trace | ( | uint64_t | arg1, |
| uint64_t | arg2, | ||
| uint64_t | arg3, | ||
| uint64_t | arg4, | ||
| uint64_t | arg5 | ||
| ) |
Creates trace message entry with arguments.
This function prints traces arguments from device to host's standard output stream, or to the user's defined outfile set by doca_dpa_trace_file_set_path().
- Note
- It is recommended to use trace for enhanced performance in logging
- Parameters
-
[in] arg1 - argument #1 to format into the template [in] arg2 - argument #2 to format into the template [in] arg3 - argument #3 to format into the template [in] arg4 - argument #4 to format into the template [in] arg5 - argument #5 to format into the template
◆ doca_dpa_dev_trace_flush()
| DOCA_EXPERIMENTAL void doca_dpa_dev_trace_flush | ( | void | ) |
Flush the trace message buffer to Host.
As soon as a buffer is fully occupied it is internally sent to host, however user can ask partially occupied buffer to be sent to host. Its intended use is at end of run to flush whatever messages left
- Note
- : Frequent call to this API might cause performance issues.
◆ doca_dpa_dev_yield()
| DOCA_EXPERIMENTAL void doca_dpa_dev_yield | ( | void | ) |
Yield a DPA thread.
This function yields a DPA thread that is running a kernel
- Note
- This API is relevant only for a kernel used in host kernel launch APIs doca_dpa_kernel_launch_update_set/add(...). This API is not relevant for a kernel used for DPA thread ('doca_dpa_thread'), which was set previously using host API doca_dpa_thread_set_func_arg().
Variable Documentation
◆ doca_dpa_dev_async_ops_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_async_ops_t |
DPA asynchronous ops handle type definition.
Definition at line 82 of file doca_dpa_dev.h.
◆ doca_dpa_dev_completion_element_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_completion_element_t |
DPA completion element handle type definition.
Definition at line 77 of file doca_dpa_dev.h.
◆ doca_dpa_dev_completion_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_completion_t |
DPA completion handle type definition.
Definition at line 72 of file doca_dpa_dev.h.
◆ doca_dpa_dev_hash_table_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_hash_table_t |
DPA hash table handle type definition.
Definition at line 67 of file doca_dpa_dev.h.
◆ doca_dpa_dev_notification_completion_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_notification_completion_t |
DPA notification completion handle type definition.
Definition at line 87 of file doca_dpa_dev.h.
◆ doca_dpa_dev_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_t |
DPA context handle type definition.
Definition at line 57 of file doca_dpa_dev.h.
◆ doca_dpa_dev_uintptr_t
| __dpa_global__ typedef uint64_t doca_dpa_dev_uintptr_t |
DPA pointer type definition.
Definition at line 62 of file doca_dpa_dev.h.
