#include <doca_pcc.h>
#include <doca_dev.h>
#include <doca_error.h>

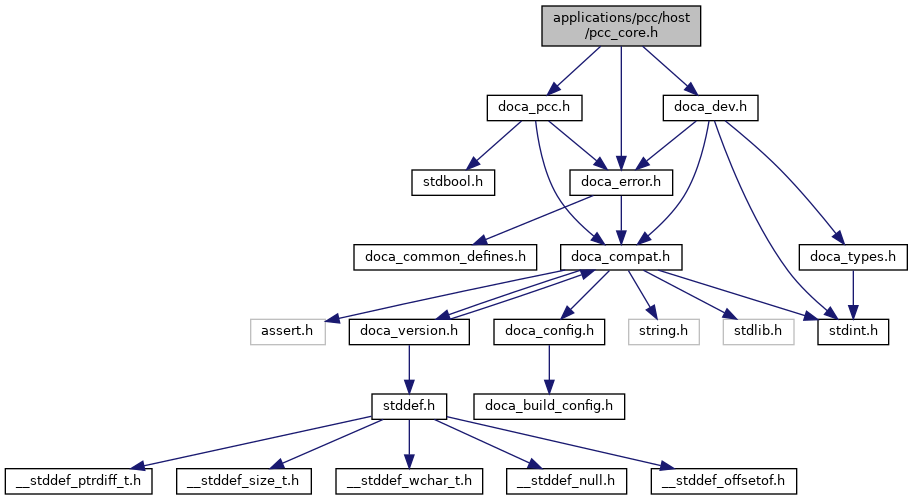

Include dependency graph for pcc_core.h:

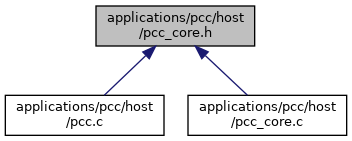

This graph shows which files directly or indirectly include this file:

Data Structures
struct	pcc_config

struct	pcc_resources

Macros
#define	PCC_RP_THREADS_NUM_DEFAULT_VALUE (48 + 1) /* Default Number of PCC RP threads, the extra one is used for communication */

#define	PCC_NP_THREADS_NUM_DEFAULT_VALUE (16) /* Default Number of PCC NP threads */

#define	WAIT_TIME_DEFAULT_VALUE (-1) /* Wait time - default value (infinity) */

#define	IFA2_HOP_LIMIT_DEFAULT_VALUE (0xFE) /* IFA2 packet hop limit value */

#define	IFA2_GNS_DEFAULT_VALUE (0xF) /* IFA2 packet GNS value */

#define	IFA2_GNS_IGNORE_DEFAULT_VALUE (0) /* IFA2 packet GNS value */

#define	IFA2_GNS_IGNORE_DEFAULT_MASK (0) /* IFA2 packet GNS value */

#define	PCC_COREDUMP_FILE_DEFAULT_PATH ("/tmp/doca_pcc_coredump.txt") /* Default pathname for device coredump file */

#define	PCC_PRINT_BUFFER_SIZE_DEFAULT_VALUE (512 * 2048) /* Device print buffer size - default value */

#define	PCC_MAILBOX_REQUEST_SIZE (sizeof(uint32_t)) /* Size of the mailbox request */

#define	PCC_MAILBOX_RESPONSE_SIZE (0) /* Size of the mailbox response. Currently not used */

#define	MAX_USER_ARG_SIZE (1024) /* Maximum size of user input argument */

#define	MAX_ARG_SIZE (MAX_USER_ARG_SIZE + 1) /* Maximum size of input argument */

#define	LOG_LEVEL_CRIT (20) /* Critical log level */

#define	LOG_LEVEL_ERROR (30) /* Error log level */

#define	LOG_LEVEL_WARNING (40) /* Warning log level */

#define	LOG_LEVEL_INFO (50) /* Info log level */

#define	LOG_LEVEL_DEBUG (60) /* Debug log level */

#define	PRINT_CRIT(...)

#define	PRINT_ERROR(...)

#define	PRINT_WARNING(...)

#define	PRINT_INFO(...)

#define	PRINT_DEBUG(...)

Enumerations
enum	pcc_dev_probe_packet_type_t { PCC_DEV_PROBE_PACKET_CCMAD = 0 , PCC_DEV_PROBE_PACKET_IFA1 = 1 , PCC_DEV_PROBE_PACKET_IFA2 = 2 }
	intelemetry request packet format More...

enum	pcc_role_t { PCC_ROLE_RP = 0 , PCC_ROLE_NP = 1 }
	intelemetry request packet format More...

Functions
doca_error_t	pcc_init (struct pcc_config cfg, struct pcc_resources resources)

doca_error_t	pcc_mailbox_send (struct pcc_config cfg, struct pcc_resources resources)

doca_error_t	pcc_destroy (struct pcc_resources *resources)

doca_error_t	register_pcc_params (void)

Variables
const uint32_t	default_pcc_rp_threads_list [PCC_RP_THREADS_NUM_DEFAULT_VALUE]

const uint32_t	default_pcc_np_threads_list [PCC_NP_THREADS_NUM_DEFAULT_VALUE]

int	log_level

struct doca_pcc_app *	pcc_rp_rtt_template_app

struct doca_pcc_app *	pcc_rp_switch_telemetry_app

struct doca_pcc_app *	pcc_np_nic_telemetry_app

struct doca_pcc_app *	pcc_np_switch_telemetry_app

Macro Definition Documentation

◆ IFA2_GNS_DEFAULT_VALUE

#define IFA2_GNS_DEFAULT_VALUE (0xF) /* IFA2 packet GNS value */

Definition at line 38 of file pcc_core.h.

◆ IFA2_GNS_IGNORE_DEFAULT_MASK

#define IFA2_GNS_IGNORE_DEFAULT_MASK (0) /* IFA2 packet GNS value */

Definition at line 40 of file pcc_core.h.

◆ IFA2_GNS_IGNORE_DEFAULT_VALUE

#define IFA2_GNS_IGNORE_DEFAULT_VALUE (0) /* IFA2 packet GNS value */

Definition at line 39 of file pcc_core.h.

◆ IFA2_HOP_LIMIT_DEFAULT_VALUE

#define IFA2_HOP_LIMIT_DEFAULT_VALUE (0xFE) /* IFA2 packet hop limit value */

Definition at line 37 of file pcc_core.h.

◆ LOG_LEVEL_CRIT

#define LOG_LEVEL_CRIT (20) /* Critical log level */

Definition at line 48 of file pcc_core.h.

◆ LOG_LEVEL_DEBUG

#define LOG_LEVEL_DEBUG (60) /* Debug log level */

Definition at line 52 of file pcc_core.h.

◆ LOG_LEVEL_ERROR

#define LOG_LEVEL_ERROR (30) /* Error log level */

Definition at line 49 of file pcc_core.h.

◆ LOG_LEVEL_INFO

#define LOG_LEVEL_INFO (50) /* Info log level */

Definition at line 51 of file pcc_core.h.

◆ LOG_LEVEL_WARNING

#define LOG_LEVEL_WARNING (40) /* Warning log level */

Definition at line 50 of file pcc_core.h.

◆ MAX_ARG_SIZE

#define MAX_ARG_SIZE (MAX_USER_ARG_SIZE + 1) /* Maximum size of input argument */

Definition at line 46 of file pcc_core.h.

◆ MAX_USER_ARG_SIZE

#define MAX_USER_ARG_SIZE (1024) /* Maximum size of user input argument */

Definition at line 45 of file pcc_core.h.

◆ PCC_COREDUMP_FILE_DEFAULT_PATH

#define PCC_COREDUMP_FILE_DEFAULT_PATH ("/tmp/doca_pcc_coredump.txt") /* Default pathname for device coredump file */

Definition at line 41 of file pcc_core.h.

◆ PCC_MAILBOX_REQUEST_SIZE

#define PCC_MAILBOX_REQUEST_SIZE (sizeof(uint32_t)) /* Size of the mailbox request */

Definition at line 43 of file pcc_core.h.

◆ PCC_MAILBOX_RESPONSE_SIZE

#define PCC_MAILBOX_RESPONSE_SIZE (0) /* Size of the mailbox response. Currently not used */

Definition at line 44 of file pcc_core.h.

◆ PCC_NP_THREADS_NUM_DEFAULT_VALUE

#define PCC_NP_THREADS_NUM_DEFAULT_VALUE (16) /* Default Number of PCC NP threads */

Definition at line 35 of file pcc_core.h.

◆ PCC_PRINT_BUFFER_SIZE_DEFAULT_VALUE

#define PCC_PRINT_BUFFER_SIZE_DEFAULT_VALUE (512 * 2048) /* Device print buffer size - default value */

Definition at line 42 of file pcc_core.h.

◆ PCC_RP_THREADS_NUM_DEFAULT_VALUE

#define PCC_RP_THREADS_NUM_DEFAULT_VALUE (48 + 1) /* Default Number of PCC RP threads, the extra one is used for communication */

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the NVIDIA CORPORATION nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL NVIDIA CORPORATION BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TOR (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition at line 33 of file pcc_core.h.

◆ PRINT_CRIT

#define PRINT_CRIT ( ... )

Value:

    do { \
        if (log_level >= LOG_LEVEL_CRIT) \
            printf(__VA_ARGS__); \
    } while (0)

Definition at line 62 of file pcc_core.h.

◆ PRINT_DEBUG

#define PRINT_DEBUG ( ... )

Value:

    do { \
        if (log_level >= LOG_LEVEL_DEBUG) \
            printf(__VA_ARGS__); \
    } while (0)

Definition at line 86 of file pcc_core.h.

◆ PRINT_ERROR

#define PRINT_ERROR ( ... )

Value:

    do { \
        if (log_level >= LOG_LEVEL_ERROR) \
            printf(__VA_ARGS__); \
    } while (0)

Definition at line 68 of file pcc_core.h.

◆ PRINT_INFO

#define PRINT_INFO ( ... )

Value:

    do { \
        if (log_level >= LOG_LEVEL_INFO) \
            printf(__VA_ARGS__); \
    } while (0)

Definition at line 80 of file pcc_core.h.

◆ PRINT_WARNING

#define PRINT_WARNING ( ... )

Value:

    do { \
        if (log_level >= LOG_LEVEL_WARNING) \
            printf(__VA_ARGS__); \
    } while (0)

Definition at line 74 of file pcc_core.h.

◆ WAIT_TIME_DEFAULT_VALUE

#define WAIT_TIME_DEFAULT_VALUE (-1) /* Wait time - default value (infinity) */

Definition at line 36 of file pcc_core.h.

Enumeration Type Documentation

◆ pcc_dev_probe_packet_type_t

enum pcc_dev_probe_packet_type_t

intelemetry request packet format

Enumerator
PCC_DEV_PROBE_PACKET_CCMAD	request packet follows ccmad format
PCC_DEV_PROBE_PACKET_IFA1	request packet follows ifa1.0 format
PCC_DEV_PROBE_PACKET_IFA2	request packet follows ifa2.0 format

Definition at line 115 of file pcc_core.h.

◆ pcc_role_t

enum pcc_role_t

intelemetry request packet format

Enumerator
PCC_ROLE_RP	Reaction Point Role
PCC_ROLE_NP	Notification Point Role

Definition at line 124 of file pcc_core.h.

Function Documentation

◆ pcc_destroy()

doca_error_t pcc_destroy ( struct pcc_resources * resources )

Definition at line 525 of file pcc_core.c.

◆ pcc_init()

doca_error_t pcc_init	(	struct pcc_config *	cfg,
		struct pcc_resources *	resources
	)

Definition at line 246 of file pcc_core.c.

◆ pcc_mailbox_send()

doca_error_t pcc_mailbox_send	(	struct pcc_config *	cfg,
		struct pcc_resources *	resources
	)

Definition at line 491 of file pcc_core.c.

◆ register_pcc_params()

doca_error_t register_pcc_params ( void )

Definition at line 898 of file pcc_core.c.

Variable Documentation

◆ default_pcc_np_threads_list

const uint32_t default_pcc_np_threads_list[PCC_NP_THREADS_NUM_DEFAULT_VALUE]

extern

Definition at line 62 of file pcc_core.c.

◆ default_pcc_rp_threads_list

const uint32_t default_pcc_rp_threads_list[PCC_RP_THREADS_NUM_DEFAULT_VALUE]

extern

Definition at line 57 of file pcc_core.c.

◆ log_level

int log_level

extern

Definition at line 40 of file pcc.c.

◆ pcc_np_nic_telemetry_app

struct doca_pcc_app* pcc_np_nic_telemetry_app

extern

◆ pcc_np_switch_telemetry_app

struct doca_pcc_app* pcc_np_switch_telemetry_app

extern

◆ pcc_rp_rtt_template_app

struct doca_pcc_app* pcc_rp_rtt_template_app

extern

◆ pcc_rp_switch_telemetry_app

struct doca_pcc_app* pcc_rp_switch_telemetry_app

extern
