#include <doca_dev.h>
#include <doca_flow.h>
#include <dpdk_utils.h>

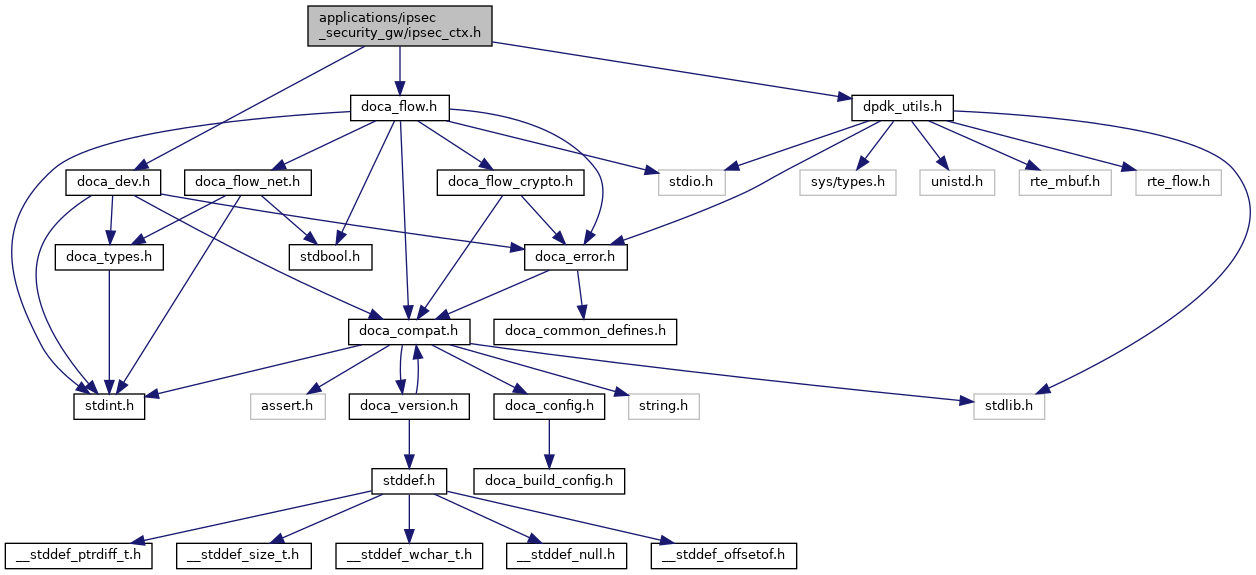

Include dependency graph for ipsec_ctx.h:

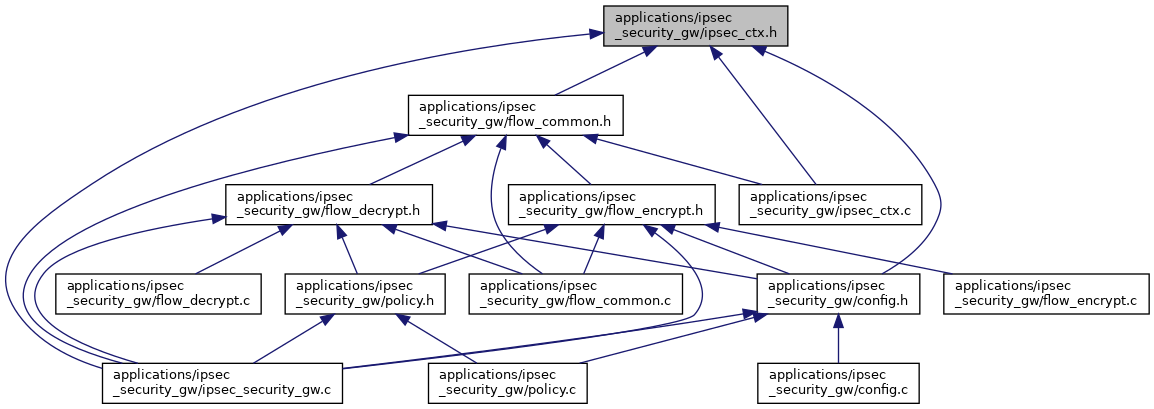

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ipsec_security_gw_sa_attrs

struct	bad_syndrome_entry

struct	antireplay_state

struct	security_gateway_entry_info

struct	decrypt_rule

struct	ipsec_security_gw_ip4

struct	ipsec_security_gw_ip6

struct	encrypt_rule

struct	security_gateway_pipe_info

struct	encrypt_pipes

struct	decrypt_pipes

struct	switch_pipes

struct	ipsec_security_gw_rules

struct	ipsec_security_gw_dev_info

struct	ipsec_security_gw_doca_objects

struct	ipsec_security_gw_socket_ctx

struct	ipsec_security_gw_config

Macros
#define	MAX_SOCKET_PATH_NAME (108) /* Maximum socket file name length */

#define	MAX_FILE_NAME (255) /* Maximum file name length */

#define	MAX_NB_RULES (1048576) /* Maximal number of rules == 2^20 */

#define	DYN_RESERVED_RULES (1024) /* Reserved rules for dynamic rules */

#define	MAX_KEY_LEN (32) /* Maximal GCM key size is 256bit==32B */

#define	NUM_OF_SYNDROMES (4) /* Number of bad syndromes */

#define	SW_WINDOW_SIZE 64 /* The size of the replay window when anti replay is done by SW */

#define	HW_WINDOW_SIZE 128 /* The size of the replay window when anti replay is done by HW*/

#define	MAX_NAME_LEN (20) /* Max pipe and entry name length */

#define	MAX_ACTIONS_MEM_SIZE (8388608 * 64) /* 2^23 * size of max_entry */

Functions
doca_error_t	ipsec_security_gw_init_devices (struct ipsec_security_gw_config *app_cfg)

doca_error_t	ipsec_security_gw_close_devices (const struct ipsec_security_gw_config *app_cfg)

doca_error_t	find_port_action_type_vnf (const struct ipsec_security_gw_config app_cfg, int port_id, struct doca_dev connected_dev, int idx)

doca_error_t	find_port_action_type_switch (int port_id, int *idx)

Macro Definition Documentation

◆ DYN_RESERVED_RULES

#define DYN_RESERVED_RULES (1024) /* Reserved rules for dynamic rules */

Definition at line 41 of file ipsec_ctx.h.

◆ HW_WINDOW_SIZE

#define HW_WINDOW_SIZE 128 /* The size of the replay window when anti replay is done by HW*/

Definition at line 45 of file ipsec_ctx.h.

◆ MAX_ACTIONS_MEM_SIZE

#define MAX_ACTIONS_MEM_SIZE (8388608 * 64) /* 2^23 * size of max_entry */

Definition at line 47 of file ipsec_ctx.h.

◆ MAX_FILE_NAME

#define MAX_FILE_NAME (255) /* Maximum file name length */

Definition at line 39 of file ipsec_ctx.h.

◆ MAX_KEY_LEN

#define MAX_KEY_LEN (32) /* Maximal GCM key size is 256bit==32B */

Definition at line 42 of file ipsec_ctx.h.

◆ MAX_NAME_LEN

#define MAX_NAME_LEN (20) /* Max pipe and entry name length */

Definition at line 46 of file ipsec_ctx.h.

◆ MAX_NB_RULES

#define MAX_NB_RULES (1048576) /* Maximal number of rules == 2^20 */

Definition at line 40 of file ipsec_ctx.h.

◆ MAX_SOCKET_PATH_NAME

#define MAX_SOCKET_PATH_NAME (108) /* Maximum socket file name length */

Definition at line 38 of file ipsec_ctx.h.

◆ NUM_OF_SYNDROMES

#define NUM_OF_SYNDROMES (4) /* Number of bad syndromes */

Definition at line 43 of file ipsec_ctx.h.

◆ SW_WINDOW_SIZE

#define SW_WINDOW_SIZE 64 /* The size of the replay window when anti replay is done by SW */

Definition at line 44 of file ipsec_ctx.h.

Enumeration Type Documentation

◆ ipsec_security_gw_esp_offload

enum ipsec_security_gw_esp_offload

Enumerator
IPSEC_SECURITY_GW_ESP_OFFLOAD_BOTH
IPSEC_SECURITY_GW_ESP_OFFLOAD_ENCAP
IPSEC_SECURITY_GW_ESP_OFFLOAD_DECAP
IPSEC_SECURITY_GW_ESP_OFFLOAD_NONE

Definition at line 192 of file ipsec_ctx.h.

◆ ipsec_security_gw_flow_mode

enum ipsec_security_gw_flow_mode

Enumerator
IPSEC_SECURITY_GW_VNF
IPSEC_SECURITY_GW_SWITCH

Definition at line 186 of file ipsec_ctx.h.

◆ ipsec_security_gw_fwd_syndrome

enum ipsec_security_gw_fwd_syndrome

Enumerator
IPSEC_SECURITY_GW_FWD_SYNDROME_DROP
IPSEC_SECURITY_GW_FWD_SYNDROME_RSS

Definition at line 208 of file ipsec_ctx.h.

◆ ipsec_security_gw_mode

enum ipsec_security_gw_mode

Enumerator
IPSEC_SECURITY_GW_TUNNEL
IPSEC_SECURITY_GW_TRANSPORT
IPSEC_SECURITY_GW_UDP_TRANSPORT

Definition at line 179 of file ipsec_ctx.h.

◆ ipsec_security_gw_perf

enum ipsec_security_gw_perf

Enumerator
IPSEC_SECURITY_GW_PERF_NONE
IPSEC_SECURITY_GW_PERF_INSERTION_RATE
IPSEC_SECURITY_GW_PERF_BW
IPSEC_SECURITY_GW_PERF_BOTH

Definition at line 200 of file ipsec_ctx.h.

Function Documentation

◆ find_port_action_type_switch()

doca_error_t find_port_action_type_switch	(	int	port_id,
		int *	idx
	)

Definition at line 43 of file ipsec_ctx.c.

◆ find_port_action_type_vnf()

doca_error_t find_port_action_type_vnf	(	const struct ipsec_security_gw_config *	app_cfg,
		int	port_id,
		struct doca_dev **	connected_dev,
		int *	idx
	)

Definition at line 117 of file ipsec_ctx.c.

◆ ipsec_security_gw_close_devices()

doca_error_t ipsec_security_gw_close_devices ( const struct ipsec_security_gw_config * app_cfg )

Definition at line 170 of file ipsec_ctx.c.

◆ ipsec_security_gw_init_devices()

doca_error_t ipsec_security_gw_init_devices ( struct ipsec_security_gw_config * app_cfg )

Definition at line 221 of file ipsec_ctx.c.

Enumerations
enum	ipsec_security_gw_mode { IPSEC_SECURITY_GW_TUNNEL , IPSEC_SECURITY_GW_TRANSPORT , IPSEC_SECURITY_GW_UDP_TRANSPORT }

enum	ipsec_security_gw_flow_mode { IPSEC_SECURITY_GW_VNF , IPSEC_SECURITY_GW_SWITCH }

enum	ipsec_security_gw_esp_offload { IPSEC_SECURITY_GW_ESP_OFFLOAD_BOTH , IPSEC_SECURITY_GW_ESP_OFFLOAD_ENCAP , IPSEC_SECURITY_GW_ESP_OFFLOAD_DECAP , IPSEC_SECURITY_GW_ESP_OFFLOAD_NONE }

enum	ipsec_security_gw_perf { IPSEC_SECURITY_GW_PERF_NONE , IPSEC_SECURITY_GW_PERF_INSERTION_RATE , IPSEC_SECURITY_GW_PERF_BW , IPSEC_SECURITY_GW_PERF_BOTH }

enum	ipsec_security_gw_fwd_syndrome { IPSEC_SECURITY_GW_FWD_SYNDROME_DROP , IPSEC_SECURITY_GW_FWD_SYNDROME_RSS }
