doca_flow_ct_actions Struct Reference

#include <doca_flow_ct.h>

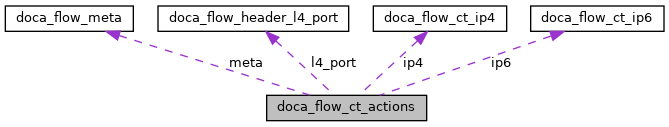

Collaboration diagram for doca_flow_ct_actions:

Data Fields
enum doca_flow_resource_type	resource_type
union {
uint32_t   action_handle
struct {
uint8_t   action_idx
struct doca_flow_meta   meta
struct doca_flow_header_l4_port   l4_port
union {
struct doca_flow_ct_ip4   ip4
struct doca_flow_ct_ip6   ip6
}
}   data
};

Detailed Description

doca flow CT action

Definition at line 596 of file doca_flow_ct.h.

Field Documentation

union { ... }

action_handle

uint32_t doca_flow_ct_actions::action_handle

handle of a predefined shared action

Definition at line 600 of file doca_flow_ct.h.

action_idx

uint8_t doca_flow_ct_actions::action_idx

action template index

Definition at line 603 of file doca_flow_ct.h.

struct { ... } doca_flow_ct_actions::data

ip4

struct doca_flow_ct_ip4 doca_flow_ct_actions::ip4

source and destination ipv4 addresses

Definition at line 603 of file doca_flow_ct.h.

ip6

struct doca_flow_ct_ip6 doca_flow_ct_actions::ip6

source and destination ipv6 addresses

Definition at line 603 of file doca_flow_ct.h.

l4_port

struct doca_flow_header_l4_port doca_flow_ct_actions::l4_port

UDP or TCP source and destination port

Definition at line 603 of file doca_flow_ct.h.

meta

struct doca_flow_meta doca_flow_ct_actions::meta

modify meta

Definition at line 603 of file doca_flow_ct.h.

resource_type

enum doca_flow_resource_type doca_flow_ct_actions::resource_type

shared/non-shared

Definition at line 558 of file doca_flow_ct.h.

---

The documentation for this struct was generated from the following file:

• include/doca_flow_ct.h
