#include <stdint.h>
#include <stddef.h>
#include <doca_compat.h>

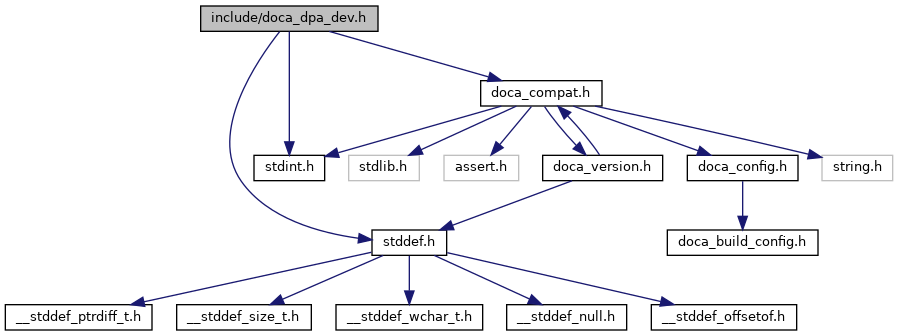

Include dependency graph for doca_dpa_dev.h:

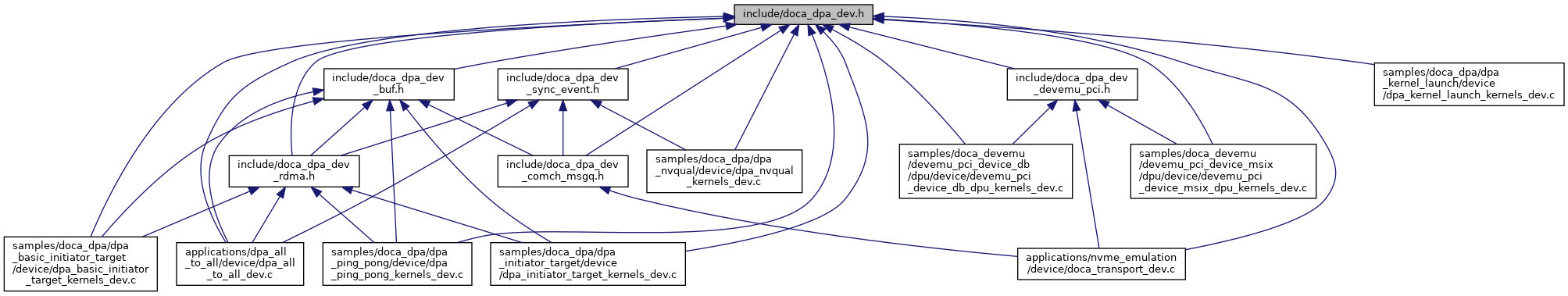

This graph shows which files directly or indirectly include this file:

Macros
#define	DOCA_DPA_DEVICE
	declares that we are compiling for the DPA Device More...

#define	__forceinline static inline __attribute__((always_inline))
	static inline wrapper More...

#define	DOCA_DPA_DEV_LOG_ERR(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_ERROR, __VA_ARGS__)
	Generate a DOCA DPA device ERROR log message. More...

#define	DOCA_DPA_DEV_LOG_WARN(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_WARNING, __VA_ARGS__)
	Generate a DOCA DPA device WARNING log message. More...

#define	DOCA_DPA_DEV_LOG_INFO(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_INFO, __VA_ARGS__)
	Generate a DOCA DPA device INFO log message. More...

#define	DOCA_DPA_DEV_LOG_DBG(...) doca_dpa_dev_log(DOCA_DPA_DEV_LOG_LEVEL_DEBUG, __VA_ARGS__)
	Generate a DOCA DPA device DEBUG log message. More...

Typedefs
typedef __dpa_global__ enum doca_dpa_dev_log_level	doca_dpa_dev_log_level_t
	DOCA DPA device log levels, sorted by verbosity from high to low. More...

Enumerations
enum	doca_dpa_dev_log_level { DOCA_DPA_DEV_LOG_LEVEL_DISABLE = 10 , DOCA_DPA_DEV_LOG_LEVEL_ERROR = 30 , DOCA_DPA_DEV_LOG_LEVEL_WARNING = 40 , DOCA_DPA_DEV_LOG_LEVEL_INFO = 50 , DOCA_DPA_DEV_LOG_LEVEL_DEBUG = 60 , DOCA_DPA_DEV_LOG_LEVEL_DISABLE = 10 , DOCA_DPA_DEV_LOG_LEVEL_ERROR = 30 , DOCA_DPA_DEV_LOG_LEVEL_WARNING = 40 , DOCA_DPA_DEV_LOG_LEVEL_INFO = 50 , DOCA_DPA_DEV_LOG_LEVEL_DEBUG = 60 }
	DOCA DPA device log levels, sorted by verbosity from high to low. More...

enum	doca_dpa_dev_completion_type_t { DOCA_DPA_DEV_COMP_SEND = 0x0 , DOCA_DPA_DEV_COMP_RECV_RDMA_WRITE_IMM = 0x1 , DOCA_DPA_DEV_COMP_RECV_SEND = 0x2 , DOCA_DPA_DEV_COMP_RECV_SEND_IMM = 0x3 , DOCA_DPA_DEV_COMP_SEND_ERR = 0xD , DOCA_DPA_DEV_COMP_RECV_ERR = 0xE }
	DPA completion type. More...

enum	doca_dpa_dev_submit_flag { DOCA_DPA_DEV_SUBMIT_FLAG_NONE = 0U , DOCA_DPA_DEV_SUBMIT_FLAG_FLUSH = (1U << 0) , DOCA_DPA_DEV_SUBMIT_FLAG_OPTIMIZE_REPORTS = (1U << 1) }
	DPA submit flag type. More...

Functions
DOCA_EXPERIMENTAL void	doca_dpa_dev_device_set (doca_dpa_dev_t dpa_handle)
	Set a DPA device. More...

DOCA_EXPERIMENTAL unsigned int	doca_dpa_dev_thread_rank (void)
	Obtains the thread rank. More...

DOCA_EXPERIMENTAL unsigned int	doca_dpa_dev_num_threads (void)
	Obtains the number of threads running the kernel. More...

DOCA_EXPERIMENTAL doca_dpa_dev_uintptr_t	doca_dpa_dev_thread_get_local_storage (void)
	Get DPA thread local storage. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_yield (void)
	Yield a DPA thread. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_thread_reschedule (void)
	Reschedule a DPA thread. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_thread_finish (void)
	Finish a DPA thread. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_thread_notify (doca_dpa_dev_notification_completion_t comp_handle)
	Notify the completion handle and trigger the attached thread. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_log (doca_dpa_dev_log_level_t log_level, const char *format,...) __attribute__((format(printf
	Print logs to Host. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_trace (uint64_t arg1, uint64_t arg2, uint64_t arg3, uint64_t arg4, uint64_t arg5)
	Creates trace message entry with arguments. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_trace_flush (void)
	Flush the trace message buffer to Host. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_hash_table_add (doca_dpa_dev_hash_table_t ht_handle, uint32_t key, uint64_t value)
	Map a specific key to the specified value in the hash table. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_hash_table_remove (doca_dpa_dev_hash_table_t ht_handle, uint32_t key)
	Remove the key and its corresponding value from the hash table. More...

DOCA_EXPERIMENTAL int	doca_dpa_dev_hash_table_find (doca_dpa_dev_hash_table_t ht_handle, uint32_t key, uint64_t *value)
	Returns the value to which the specified key is mapped in the hash table. More...

DOCA_EXPERIMENTAL int	doca_dpa_dev_get_completion (doca_dpa_dev_completion_t dpa_comp_handle, doca_dpa_dev_completion_element_t *comp_element)
	Get DPA completion element. More...

DOCA_EXPERIMENTAL doca_dpa_dev_completion_type_t	doca_dpa_dev_get_completion_type (doca_dpa_dev_completion_element_t comp_element)
	Get completion element type. More...

DOCA_EXPERIMENTAL uint32_t	doca_dpa_dev_get_completion_user_data (doca_dpa_dev_completion_element_t comp_element)
	Get completion element user data. More...

DOCA_EXPERIMENTAL uint32_t	doca_dpa_dev_get_completion_immediate (doca_dpa_dev_completion_element_t comp_element)
	Get completion element immediate data. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_completion_ack (doca_dpa_dev_completion_t dpa_comp_handle, uint64_t num_comp)
	Acknowledge that the completions have been read on the completion context. More...

DOCA_EXPERIMENTAL void	doca_dpa_dev_completion_request_notification (doca_dpa_dev_completion_t dpa_comp_handle)
	Request notification on the DPA completion. More...

Variables
__dpa_global__ typedef uint64_t	doca_dpa_dev_t
	DPA context handle type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_uintptr_t
	DPA pointer type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_hash_table_t
	DPA hash table handle type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_completion_t
	DPA completion handle type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_completion_element_t
	DPA completion element handle type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_async_ops_t
	DPA asynchronous ops handle type definition. More...

__dpa_global__ typedef uint64_t	doca_dpa_dev_notification_completion_t
	DPA notification completion handle type definition. More...
