flow_ct_aging_sample.c File Reference

#include <stdlib.h>
#include <unistd.h>
#include <rte_ethdev.h>
#include <doca_log.h>
#include <doca_flow.h>
#include <doca_flow_ct.h>
#include "flow_ct_common.h"
#include "flow_common.h"

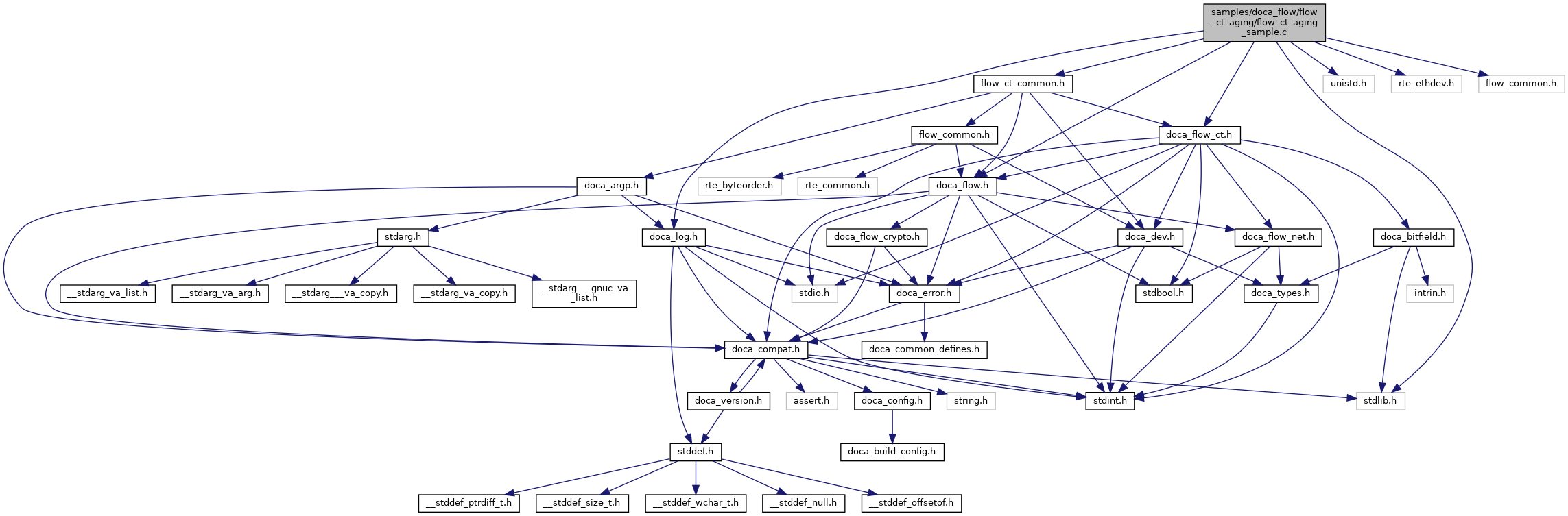

Include dependency graph for flow_ct_aging_sample.c:

Go to the source code of this file.

Data Structures
struct	aging_user_data

Macros
#define	N_BURST   32

Functions
	DOCA_LOG_REGISTER (FLOW_CT_AGING)
static doca_error_t	handle_aged_flow (struct doca_flow_port *port, uint16_t ct_queue, struct entries_status *status, int *total_counter)
static void	check_for_valid_entry_aging (struct doca_flow_pipe_entry *entry, uint16_t pipe_queue, enum doca_flow_entry_status status, enum doca_flow_entry_op op, void *user_ctx)
static doca_error_t	create_ct_pipe (struct doca_flow_port *port, struct doca_flow_pipe *fwd_pipe, struct doca_flow_pipe **pipe)
static doca_error_t	create_count_pipe (struct doca_flow_port *port, struct doca_flow_pipe **pipe)
static doca_error_t	add_age_ct_entries (struct doca_flow_port *port, uint16_t ct_queue, const int nb_aging_entries, struct entries_status *status, struct aging_user_data *user_data[nb_aging_entries])
doca_error_t	flow_ct_aging (uint16_t nb_queues, struct doca_dev *ct_dev)

Macro Definition Documentation

N_BURST

#define N_BURST   32

Definition at line 38 of file flow_ct_aging_sample.c.

Function Documentation

add_age_ct_entries()

static doca_error_t add_age_ct_entries ( struct doca_flow_port *  port, uint16_t  ct_queue, const int  nb_aging_entries, struct entries_status *  status, struct aging_user_data *  user_data[nb_aging_entries]  )

static

Definition at line 282 of file flow_ct_aging_sample.c.

check_for_valid_entry_aging()

static void check_for_valid_entry_aging ( struct doca_flow_pipe_entry *  entry, uint16_t  pipe_queue, enum doca_flow_entry_status  status, enum doca_flow_entry_op  op, void *  user_ctx  )

static

Definition at line 99 of file flow_ct_aging_sample.c.

create_count_pipe()

static doca_error_t create_count_pipe ( struct doca_flow_port *  port, struct doca_flow_pipe **  pipe  )

static

Definition at line 193 of file flow_ct_aging_sample.c.

create_ct_pipe()

static doca_error_t create_ct_pipe ( struct doca_flow_port *  port, struct doca_flow_pipe *  fwd_pipe, struct doca_flow_pipe **  pipe  )

static

Definition at line 139 of file flow_ct_aging_sample.c.

DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER

(

FLOW_CT_AGING

)

flow_ct_aging()

doca_error_t flow_ct_aging	(	uint16_t	nb_queues,
		struct doca_dev *	ct_dev
	)

Definition at line 377 of file flow_ct_aging_sample.c.

handle_aged_flow()

static doca_error_t handle_aged_flow ( struct doca_flow_port *  port, uint16_t  ct_queue, struct entries_status *  status, int *  total_counter  )

static

Definition at line 58 of file flow_ct_aging_sample.c.
