#include <doca_log.h>
#include <doca_bitfield.h>
#include <dpdk_utils.h>
#include "flow_ct_common.h"

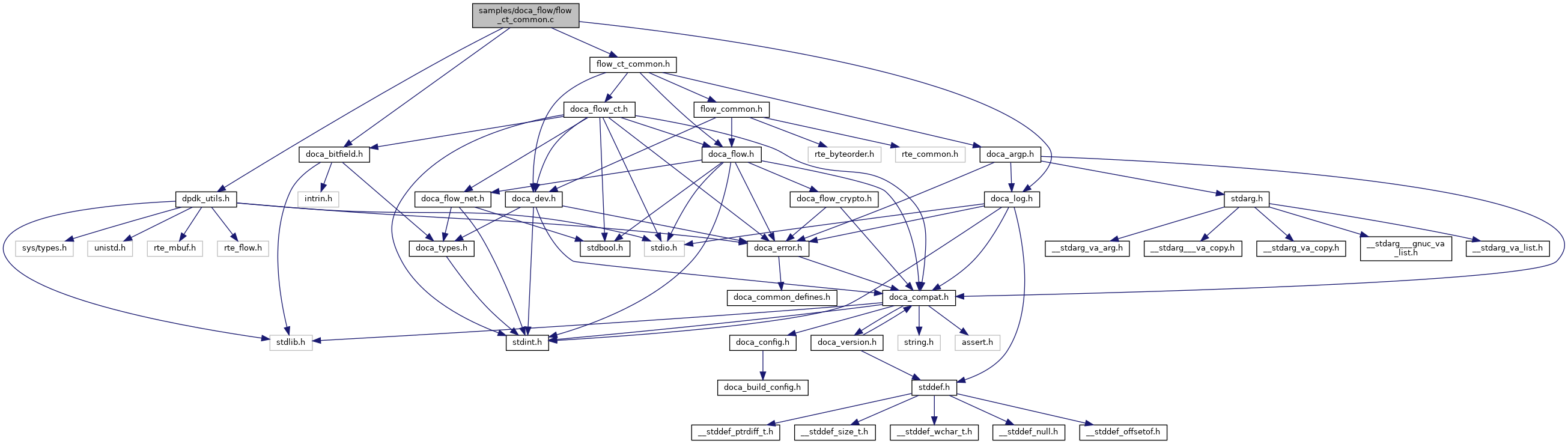

Include dependency graph for flow_ct_common.c:

Macros
#define	DPDK_ADDITIONAL_ARG 2

#define	FNV1A_32_OFFSET (uint32_t)2166136261

#define	FNV1A_32_PRIME (uint32_t)16777619

Functions
	DOCA_LOG_REGISTER (FLOW_CT_COMMON)

static doca_error_t	pci_addr_callback (void param, void config)

static uint32_t	fnv1a_32bit_hash (const void *buf, size_t len, uint32_t hash)

doca_error_t	flow_ct_register_params (void)

doca_error_t	init_doca_flow_ct (uint32_t flags, uint32_t nb_arm_queues, uint32_t nb_ctrl_queues, uint32_t nb_user_actions, doca_flow_ct_entry_finalize_cb entry_finalize_cb, uint32_t nb_ipv4_sessions, uint32_t nb_ipv6_sessions, uint32_t dup_filter_sz, bool o_match_inner, struct doca_flow_meta o_zone_mask, struct doca_flow_meta o_modify_mask, bool r_match_inner, struct doca_flow_meta r_zone_mask, struct doca_flow_meta r_modify_mask)

doca_error_t	flow_ct_dpdk_init (int argc, char **dpdk_argv)

doca_error_t	flow_ct_capable (struct doca_devinfo *dev_info)

uint32_t	flow_ct_hash_6tuple (const struct doca_flow_ct_match *match, doca_be32_t zone_field, bool is_ipv6)

void	cleanup_procedure (struct doca_flow_pipe ct_pipe, int nb_ports, struct doca_flow_port ports[])

doca_error_t	create_ct_root_pipe (struct doca_flow_port port, bool is_ipv4, bool is_ipv6, enum doca_flow_l4_meta l4_type, struct doca_flow_pipe fwd_pipe, struct entries_status status, struct doca_flow_pipe *pipe)

doca_error_t	flow_ct_queue_reserve (struct doca_flow_port port, uint16_t ct_queue, struct entries_status status, uint32_t room)

Macro Definition Documentation

◆ DPDK_ADDITIONAL_ARG

#define DPDK_ADDITIONAL_ARG 2

Definition at line 33 of file flow_ct_common.c.

◆ FNV1A_32_OFFSET

#define FNV1A_32_OFFSET (uint32_t)2166136261

Definition at line 64 of file flow_ct_common.c.

◆ FNV1A_32_PRIME

#define FNV1A_32_PRIME (uint32_t)16777619

Definition at line 65 of file flow_ct_common.c.

Function Documentation

◆ cleanup_procedure()

void cleanup_procedure	(	struct doca_flow_pipe *	ct_pipe,
		int	nb_ports,
		struct doca_flow_port *	ports[]
	)

Definition at line 209 of file flow_ct_common.c.

◆ create_ct_root_pipe()

doca_error_t create_ct_root_pipe	(	struct doca_flow_port *	port,
		bool	is_ipv4,
		bool	is_ipv6,
		enum doca_flow_l4_meta	l4_type,
		struct doca_flow_pipe *	fwd_pipe,
		struct entries_status *	status,
		struct doca_flow_pipe **	pipe
	)

Definition at line 224 of file flow_ct_common.c.

◆ DOCA_LOG_REGISTER()

DOCA_LOG_REGISTER ( FLOW_CT_COMMON )

◆ flow_ct_capable()

doca_error_t flow_ct_capable ( struct doca_devinfo * dev_info )

Definition at line 178 of file flow_ct_common.c.

◆ flow_ct_dpdk_init()

doca_error_t flow_ct_dpdk_init	(	int	argc,
		char **	dpdk_argv
	)

Definition at line 167 of file flow_ct_common.c.

◆ flow_ct_hash_6tuple()

uint32_t flow_ct_hash_6tuple	(	const struct doca_flow_ct_match *	match,
		doca_be32_t	zone_field,
		bool	is_ipv6
	)

Definition at line 183 of file flow_ct_common.c.

◆ flow_ct_queue_reserve()

doca_error_t flow_ct_queue_reserve	(	struct doca_flow_port *	port,
		uint16_t	ct_queue,
		struct entries_status *	status,
		uint32_t	room
	)

Definition at line 390 of file flow_ct_common.c.

◆ flow_ct_register_params()

doca_error_t flow_ct_register_params ( void )

Definition at line 87 of file flow_ct_common.c.

◆ fnv1a_32bit_hash()

static uint32_t fnv1a_32bit_hash	(	const void *	buf,
		size_t	len,
		uint32_t	hash
	)

static

Definition at line 74 of file flow_ct_common.c.

◆ init_doca_flow_ct()

doca_error_t init_doca_flow_ct	(	uint32_t	flags,
		uint32_t	nb_arm_queues,
		uint32_t	nb_ctrl_queues,
		uint32_t	nb_user_actions,
		doca_flow_ct_entry_finalize_cb	entry_finalize_cb,
		uint32_t	nb_ipv4_sessions,
		uint32_t	nb_ipv6_sessions,
		uint32_t	dup_filter_sz,
		bool	o_match_inner,
		struct doca_flow_meta *	o_zone_mask,
		struct doca_flow_meta *	o_modify_mask,
		bool	r_match_inner,
		struct doca_flow_meta *	r_zone_mask,
		struct doca_flow_meta *	r_modify_mask
	)

Definition at line 115 of file flow_ct_common.c.

◆ pci_addr_callback()

static doca_error_t pci_addr_callback	(	void *	param,
		void *	config
	)
