doca_flow_ct.h File Reference
#include <stdbool.h>#include <stdint.h>#include <stdio.h>#include <doca_compat.h>#include <doca_dev.h>#include <doca_error.h>#include <doca_flow.h>#include <doca_flow_net.h>#include <doca_bitfield.h>

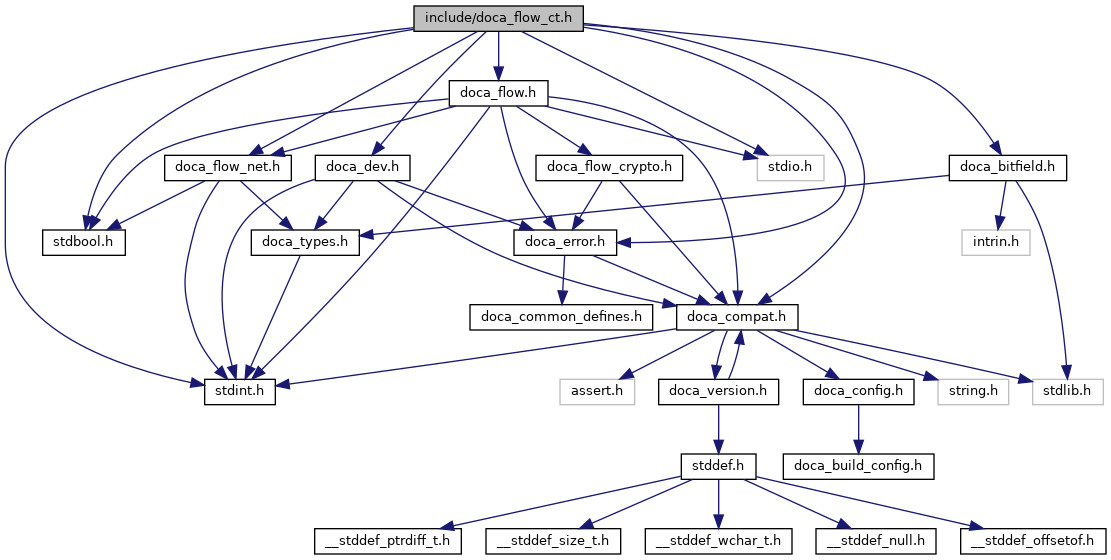

Include dependency graph for doca_flow_ct.h:

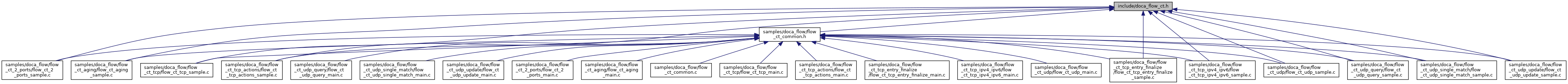

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | doca_flow_ct_aging_ctx |
| CT aging user plugin context. More... | |
| union | doca_flow_ct_aging_conn |
| CT aging connection info. More... | |
| struct | doca_flow_ct_aging_conn_event |
| CT aging user plugin connection event. More... | |
| struct | doca_flow_ct_aging_ops |
| CT aging user plugin callbacks. More... | |
| struct | doca_flow_ct_aging_counter_state |
| CT aging counter state. More... | |
| struct | doca_flow_ct_aging_counter |
| Counter statistics. More... | |
| struct | doca_flow_ct_aging_conn_update_info |
| Connection update information. More... | |
| struct | doca_flow_ct_actions |
| struct | doca_flow_ct_match4 |
| doca flow CT IPv4 match pattern More... | |
| struct | doca_flow_ct_match6 |
| doca flow CT IPv6 match pattern More... | |
| struct | doca_flow_ct_match |
| doca flow CT match pattern More... | |
Macros | |
| #define | DOCA_FLOW_CT_ACTION_HANDLE_INVALID (UINT32_MAX) |
| #define | DOCA_FLOW_CT_MARK_FROM_DPDK(_mark) (DOCA_BETOH32((_mark) + 1) >> 8) |
Typedefs | |
| typedef void(* | doca_flow_ct_entry_finalize_cb) (struct doca_flow_pipe *pipe, void *entry, uint16_t queue, void *usr_ctx) |
| typedef void(* | doca_flow_ct_stats_update_cb) (struct doca_flow_pipe *pipe, void *priv_data, struct doca_flow_resource_query *stats_origin, struct doca_flow_resource_query *stats_reply) |
Functions | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_create (struct doca_flow_ct_cfg **cfg) |
| Create CT configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_destroy (struct doca_flow_ct_cfg *cfg) |
| Destroy CT configuration. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_flags (struct doca_flow_ct_cfg *cfg, uint32_t flags) |
| Set CT flags. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_queues (struct doca_flow_ct_cfg *cfg, uint32_t n_queues) |
| Set number of hardware queues. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_queue_depth (struct doca_flow_ct_cfg *cfg, uint32_t queue_depth) |
| Set queue depth. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_ctrl_queues (struct doca_flow_ct_cfg *cfg, uint32_t n_ctrl_queues) |
| Set number of control queues. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_user_actions (struct doca_flow_ct_cfg *cfg, uint32_t n_user_actions) |
| Set number of user actions. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_connections (struct doca_flow_ct_cfg *cfg, uint32_t n_ipv4, uint32_t n_ipv6, uint32_t n_total) |
| Set number of ARM sessions. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_max_connections_per_zone (struct doca_flow_ct_cfg *cfg, uint32_t max_connections_per_zone) |
| Set maximum number of connections per zone. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_counter_asymmetric (struct doca_flow_ct_cfg *cfg, uint32_t n_counter_asymmetric) |
| Set number of asymmetric counter connections. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_entry_private_data_size (struct doca_flow_ct_cfg *cfg, uint32_t entry_priv_data_size) |
| Set entry private data size. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_entry_finalize_cb (struct doca_flow_ct_cfg *cfg, doca_flow_ct_entry_finalize_cb entry_finalize_cb) |
| Set entry finalize callback to query connection final stats. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_status_update_cb (struct doca_flow_ct_cfg *cfg, doca_flow_ct_stats_update_cb stats_update_cb) |
| Set status update callback to notify on counter changes. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_aging_core (struct doca_flow_ct_cfg *cfg, uint32_t aging_core) |
| Set core ID to run aging thread on. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_aging_query_delay (struct doca_flow_ct_cfg *cfg, uint32_t aging_query_delay_s) |
| Set aging query delay in seconds. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_aging_plugin_ops (struct doca_flow_ct_cfg *cfg, struct doca_flow_ct_aging_ops *aging_ops) |
| Set aging plugin callbacks. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_dup_filter_size (struct doca_flow_ct_cfg *cfg, uint32_t dup_filter_sz) |
| Set Number of connections to cache in duplication filter. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cfg_set_direction (struct doca_flow_ct_cfg *cfg, bool direction, bool match_inner, struct doca_flow_meta *zone_match_mask, struct doca_flow_meta *meta_modify_mask) |
| Set CT configuration origin and reply direction. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_init (const struct doca_flow_ct_cfg *cfg) |
| Initialize the doca flow ct. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_cap_is_dev_supported (const struct doca_devinfo *devinfo) |
| Check if doca device supported by CT. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_destroy (void) |
| Destroy the doca flow ct. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_meta_prepare (struct doca_flow_meta *meta, uint32_t zone, bool is_reply) |
| Prepare meta with zone and default CT type. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_meta_mask_prepare (struct doca_flow_meta *meta, bool is_reply) |
| Prepare meta as mask with zone and CT type. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_meta_set_match_zone (struct doca_flow_meta *meta, uint32_t zone, bool is_reply) |
| Set meta match zone data to doca_flow meta. More... | |
| DOCA_EXPERIMENTAL uint32_t | doca_flow_ct_meta_get_zone_offset (bool is_reply) |
| Get zone data bit offset in meta data field. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_aging_counter_state_get (struct doca_flow_ct_aging_ctx *ctx, struct doca_flow_ct_aging_counter_state *ctrs, uint32_t n) |
| Get counter state inside aging plugin timer callback. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_aging_counter_state_set (struct doca_flow_ct_aging_ctx *ctx, struct doca_flow_ct_aging_counter_state *ctrs, uint32_t n) |
| Set counter state inside aging plugin timer callback. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_aging_counter_query (struct doca_flow_ct_aging_ctx *ctx, struct doca_flow_ct_aging_counter *ctrs, uint32_t n) |
| Get counter statistics inside aging plugin timer callback. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_aging_conn_update (struct doca_flow_ct_aging_ctx *ctx, struct doca_flow_ct_aging_conn_update_info *info, uint32_t n) |
| Update connection counter inside aging plugin timer callback. More... | |
| DOCA_EXPERIMENTAL void | doca_flow_ct_aging_conn_timeout (struct doca_flow_ct_aging_ctx *ctx, uint32_t *aging_conn_ids, uint32_t n) |
| Remove timeout connections inside aging plugin timer callback. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_entries_process (struct doca_flow_port *port, uint16_t pipe_queue, uint32_t min_room, uint32_t max_processed_entries, uint32_t *queue_room) |
| Process CT entries in queue. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_entry_prepare (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_ct_match *match_origin, uint32_t hash_origin, struct doca_flow_ct_match *match_reply, uint32_t hash_reply, struct doca_flow_pipe_entry **entry, bool *conn_found) |
| Lookup recent CT entry and create on miss. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_entry_prepare_rollback (uint16_t queue, struct doca_flow_pipe *pipe, struct doca_flow_pipe_entry *entry) |
| Free the CT entry that hasn't been added to CT pipe. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_add_entry (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_ct_match *match_origin, struct doca_flow_ct_match *match_reply, const struct doca_flow_ct_actions *actions_origin, const struct doca_flow_ct_actions *actions_reply, uint32_t fwd_handle_origin, uint32_t fwd_handle_reply, uint32_t timeout_s, void *usr_ctx, struct doca_flow_pipe_entry *entry) |
| Add new entry to doca flow CT pipe. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_entry_add_dir (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_ct_match *match, const struct doca_flow_ct_actions *actions, uint32_t fwd_handle, struct doca_flow_pipe_entry *entry) |
| Add missing direction rule to CT connection. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_update_entry (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_pipe_entry *entry, const struct doca_flow_ct_actions *actions_origin, const struct doca_flow_ct_actions *actions_reply, uint32_t fwd_handle_origin, uint32_t fwd_handle_reply, uint32_t timeout_s) |
| Update CT entry meta or counter. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_rm_entry (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_pipe_entry *entry) |
| remove CT entry. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_get_entry (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_pipe_entry *entry, struct doca_flow_ct_match *match_origin, struct doca_flow_ct_match *match_reply, uint64_t *entry_flags) |
| Get CT entry match pattern. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_query_entry (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t flags, struct doca_flow_pipe_entry *entry, struct doca_flow_resource_query *stats_origin, struct doca_flow_resource_query *stats_reply, uint64_t *last_hit_s) |
| Extract information about specific entry. More... | |
| DOCA_EXPERIMENTAL void * | doca_flow_ct_entry_get_priv_data (uint16_t queue, struct doca_flow_pipe *pipe, struct doca_flow_pipe_entry *entry) |
| DOCA_EXPERIMENTAL uint32_t | doca_flow_ct_entry_get_conn_id (uint16_t queue, struct doca_flow_pipe *pipe, struct doca_flow_pipe_entry *entry) |
| DOCA_EXPERIMENTAL uint32_t | doca_flow_ct_entry_get_aging_conn_id (uint16_t queue, struct doca_flow_pipe *pipe, struct doca_flow_pipe_entry *entry) |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_entry_get_by_id (uint16_t queue, struct doca_flow_pipe *pipe, uint32_t conn_id, struct doca_flow_pipe_entry **entry, void **priv_data) |
| Retrieves the entry from CT pipe based on the given connection ID. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_actions_add_shared (uint16_t ctrl_queue, struct doca_flow_pipe *pipe, const struct doca_flow_ct_actions actions[], uint32_t nb_actions, uint32_t actions_handles[]) |
| Add shared modify-action. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_actions_update_shared (uint16_t ctrl_queue, struct doca_flow_pipe *pipe, const struct doca_flow_ct_actions actions[], uint32_t nb_actions, uint32_t actions_handles[]) |
| Update shared modify-action. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_actions_rm_shared (uint16_t ctrl_queue, struct doca_flow_pipe *pipe, uint32_t actions_handles[], uint32_t nb_actions) |
| Remove shared modify-action. More... | |
| DOCA_EXPERIMENTAL doca_error_t | doca_flow_ct_fwd_register (struct doca_flow_port *port, uint32_t fwd_count, struct doca_flow_fwd fwd[], uint32_t fwd_handle[]) |
| CT register multiple forwards pipes. More... | |
